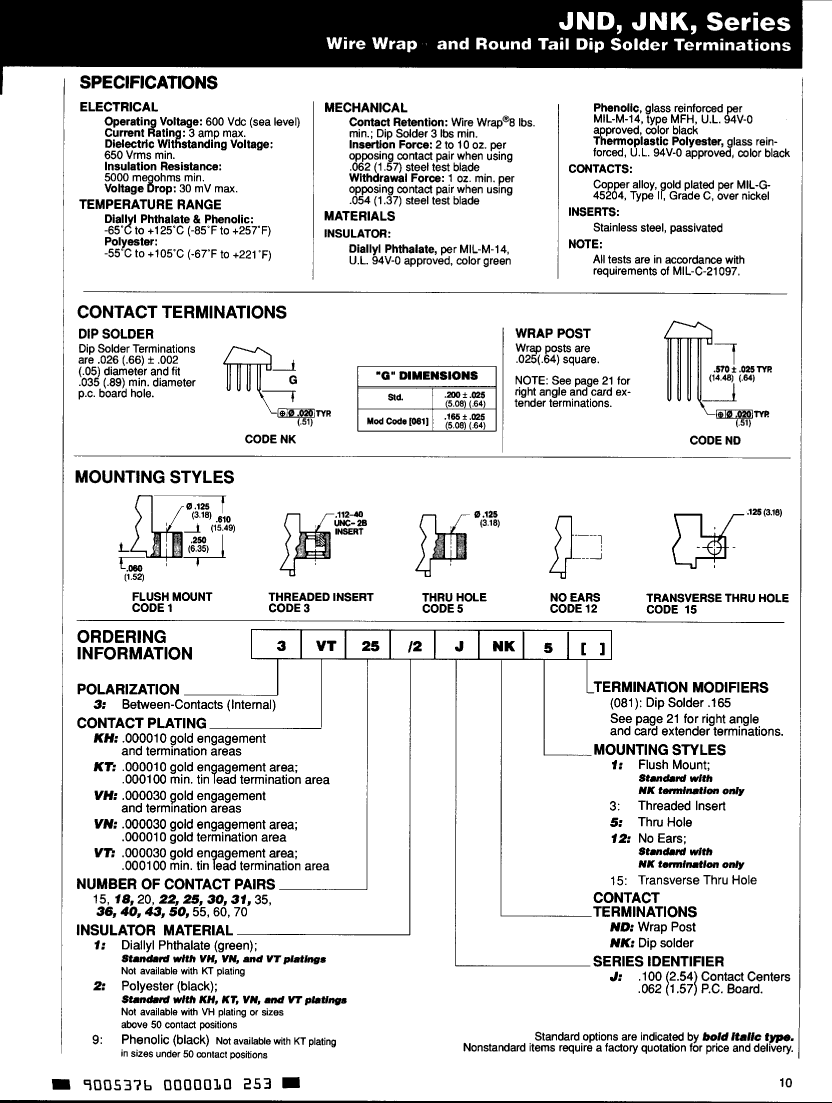

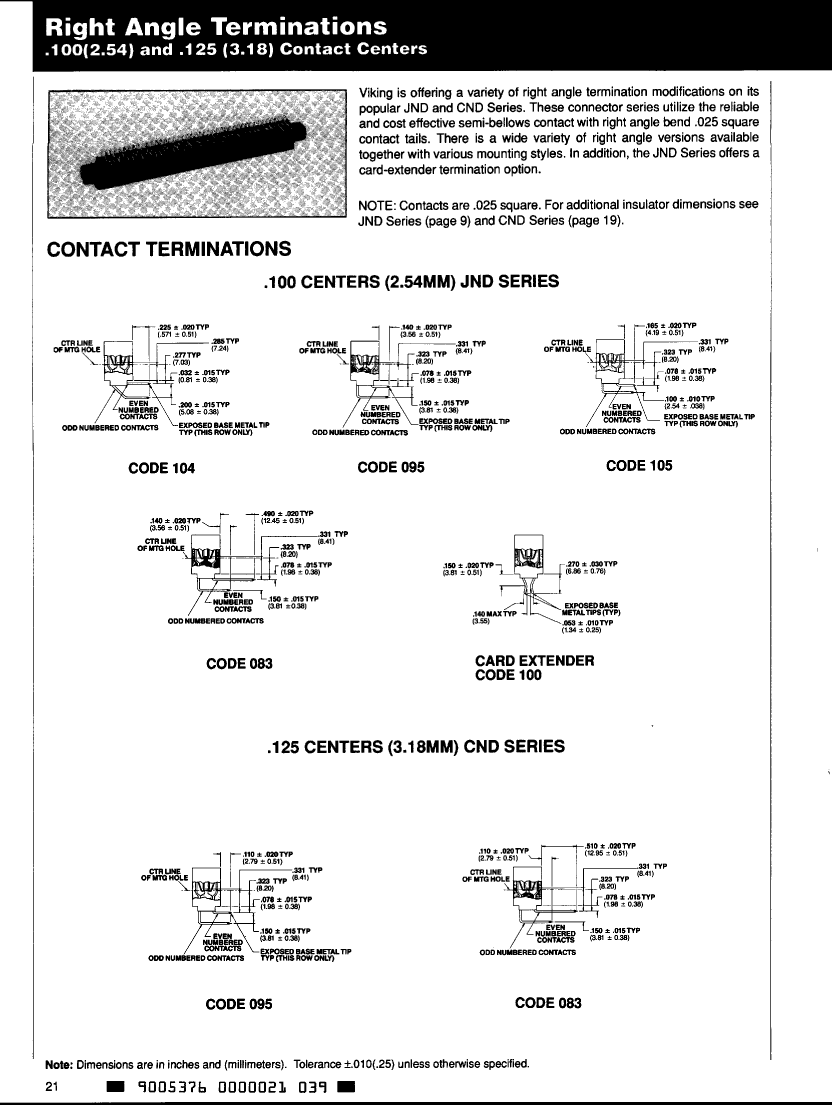

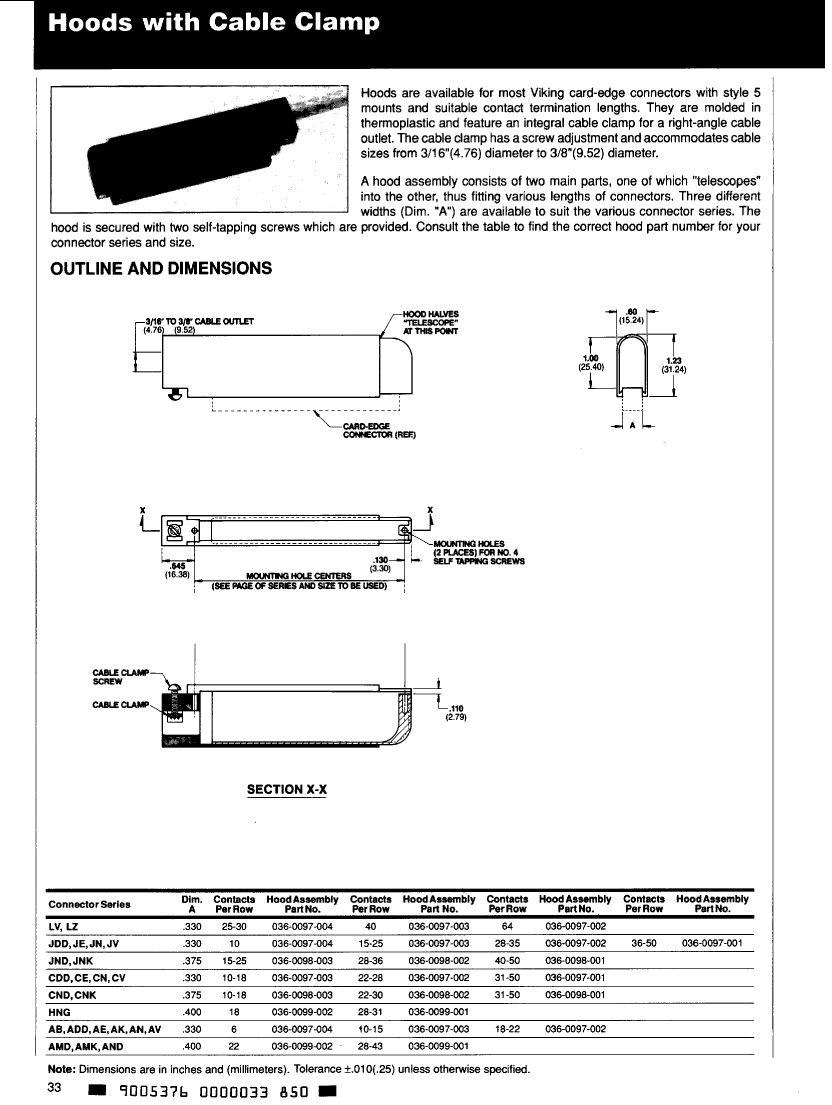

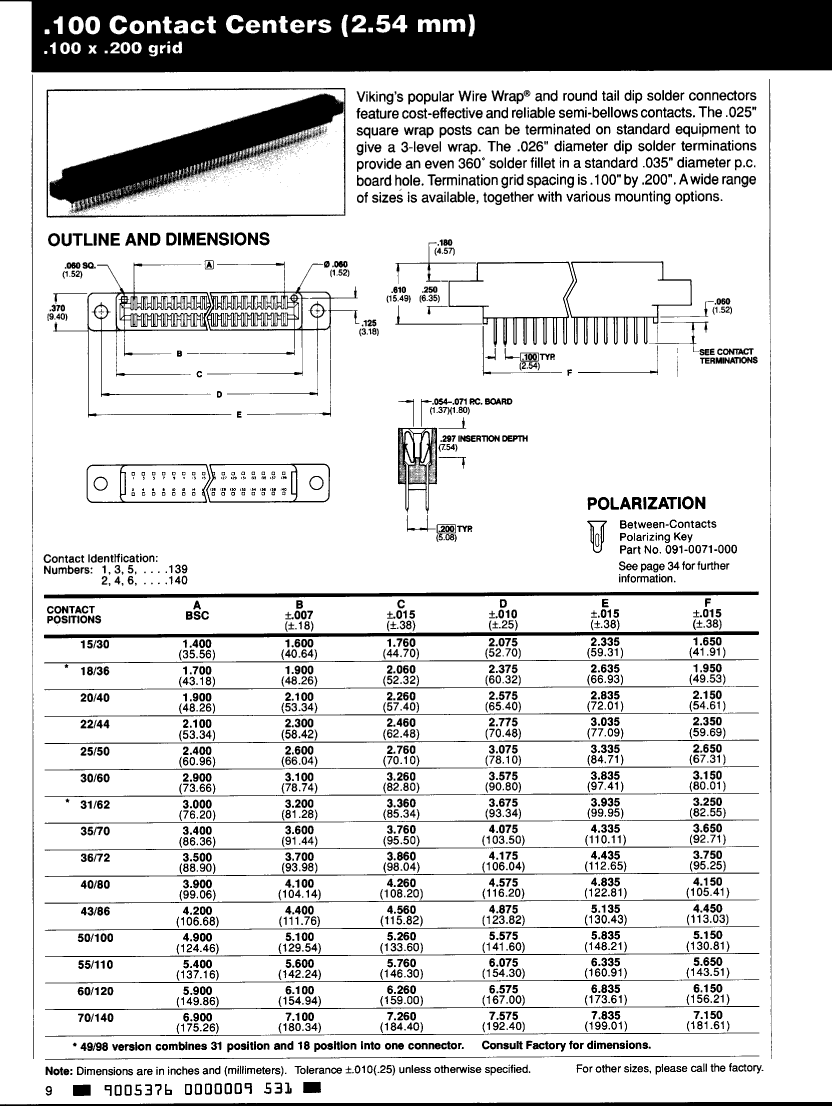

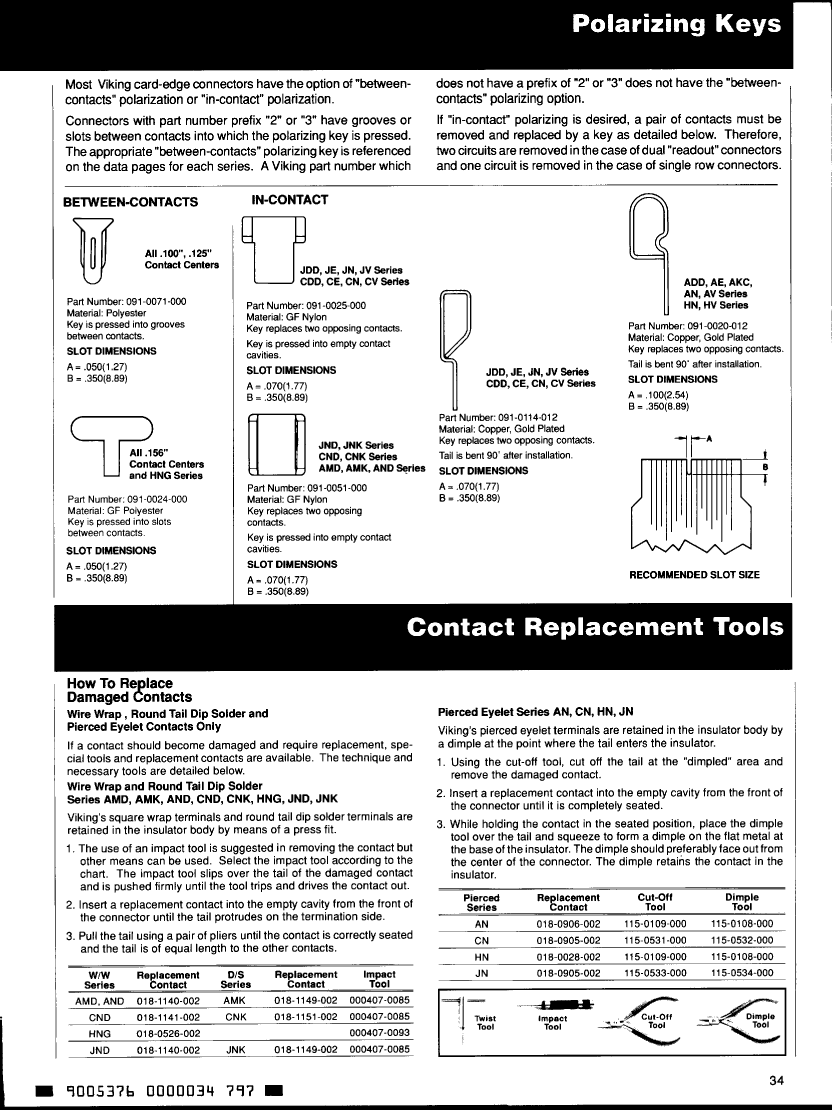

EDGE CONNECTOR,PCB MNT,RECEPT,80 CONTACTS,0.1 PITCH,WRAP POST TERMINAL,HOLE .125-.137
| Parameter Name | Attribute value |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Other features | NONE |
| Board mount options | MOUNTING FLANGE |
| body width | 0.37 inch |
| subject depth | 0.61 inch |
| body length | 4.835 inch |
| Body/casing type | RECEPTACLE |
| Connector type | CARD EDGE CONNECTOR |
| Contact to complete cooperation | AU ON NI |
| Contact material | COPPER ALLOY |
| contact mode | RECTANGULAR |
| Contact resistance | 10 mΩ |
| Contact style | BELLOWED TYPE |
| Dielectric withstand voltage | 650VAC V |
| maximum insertion force | 2.78 N |
| Insulation resistance | 5000000000 Ω |
| Insulator color | BLACK |
| insulator material | GLASS FILLED POLYESTER |
| MIL compliance | YES |
| Manufacturer's serial number | JND |
| Plug contact pitch | 0.1 inch |
| Installation option 1 | HOLE .125-.137 |
| Installation option 2 | OFFSET HORIZ DRILL |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -55 °C |
| PCB contact pattern | RECTANGULAR |
| Plating thickness | 10u inch |
| Rated current (signal) | 3 A |
| Guideline | UL, CSA |
| reliability | MIL-C-21097 |
| Terminal length | 0.27 inch |
| Terminal pitch | 2.54 mm |
| Termination type | WIRE WRAP |
| Total number of contacts | 80 |
| Evacuation force-minimum value | .278 N |
