B061-3214-117-Z

Description
Board Connector, 32 Contact(s), 4 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug
CategoryThe connector    The connector
File Size218KB,1 Pages
ManufacturerSMP Technology Inc.
Download Datasheet Parametric View All

B061-3214-117-Z Overview

Board Connector, 32 Contact(s), 4 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug

B061-3214-117-Z Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresROHS COMPLIANT
body width0.4 inch
subject depth0.197 inch
body length0.82 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU
Contact completed and terminatedTIN
Contact point genderFEMALE
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage500VAC V
Insulation resistance5000000000 Ω
insulator materialGLASS FILLED POLYESTER
Manufacturer's serial numberB061
Plug contact pitch0.1 inch
Match contact row spacing0.1 inch
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number4
Number of rows loaded4
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
PCB contact patternRECTANGULAR
PCB contact row spacing2.54 mm
Plating thickness10u inch
Rated current (signal)3 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.112 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts32
HOW TO ORDER:
B
0
6
1
-
X
X
1
4
-
1
1
X
-
Z
RoHS
COMPLIANT
ELECTRICAL:
CURRENT: 3A
CONTACT RESISTANCE: 20mΩ Max.
INSULATOR RESISTANCE: 5000MΩ Min.
DIELECTRIC WITHSTANDING VOLTAGE: 500VAC FOR 1 MIN.
OPERATING TEMPERATURE: -40° C TO +105° C
NUMBER OF CONTACTS:
?? thru ??
DEFINITION:
1 - STRAIGHT
NUMBER OF ROWS:
4 - FOUR
Drawn Checked
S.M.
A.M.
B.S.
S.M.
HOUSING DIMESIONS:
Height - 5.00mm
Width - 10.16mm
Contact Tail - 2.85mm
CONTACT STYLE:
1 - CANTILEVER BEAM
PLATING OVERALL:
0 - FULL TIN
1 - FULL Au
3 - 10u" Au
4 - 15u" Au
5 - 30u" Au
MATERIAL:
INSULATOR: GLASS FILLED POLYESTER (UL94V-0)
CONTACT: COPPER ALLOY
Rev
0
Issued
A Revised for RoHS Compliance
SCALE:n/a
TOL. DEC.
.X +/- 0.35
.XX +/- 0.25
.XXX +/- 0.15
SELECTIVE PLATING:
6 - Au CONTACT AREA/TIN TAIL
7 - 10u" Au CONTACT AREA/TIN TAIL
8 - 15u" Au CONTACT AREA/TIN TAIL
9 - 30u" Au CONTACT AREA/TIN TAIL
Date
Appproved
S.M.
09/12/03
12/15/06
S.M.
SMP TECHNOLOGY, INC.

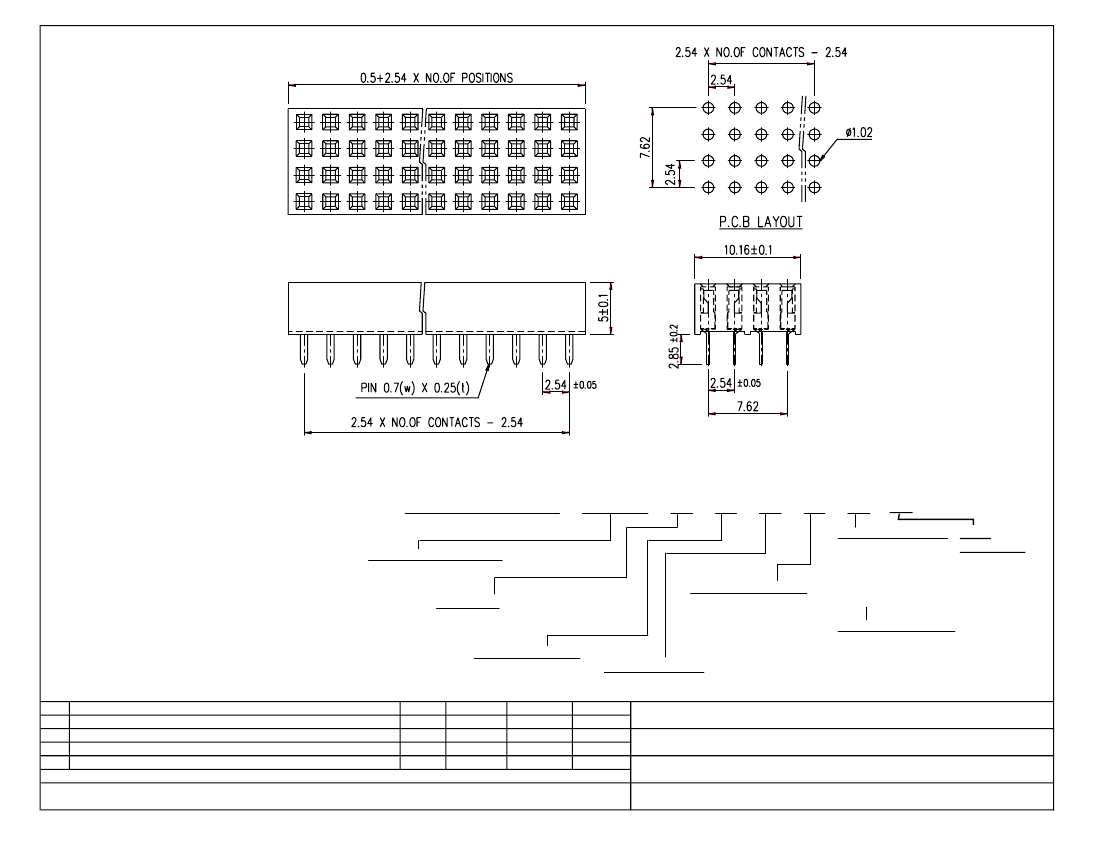

Receptacle Assembly, 2.54mm Pitch, Top Entry, Quad Row
Cantilever Beam Contact, 5.0mm Height, Thru Hole
ANGLE +/- 5°
UNIT: mm
SERIES: B061
Pg: 1
