New Product

SS5P5, SS5P6

www.vishay.com

Vishay General Semiconductor

High Current Density Surface Mount

Schottky Barrier Rectifiers

eSMP

Series

FEATURES

• Very low profile - typical height of 1.1 mm

• Ideal for automated placement

• Low forward voltage drop, low power losses

• High efficiency

• Low thermal resistance

• Meets MSL level 1, per

LF maximum peak of 260 °C

• AEC-Q101 qualified

• Compliant to RoHS Directive 2002/95/EC and in

accordance to WEEE 2002/96/EC

•

Halogen-free according to IEC 61249-2-21 definition

J-STD-020,

TO-277A (SMPC)

Cathode

Anode 1

Anode 2

PRIMARY CHARACTERISTICS

F(AV)

RRM

FSM

at I

= 5.0 A

max.

5.0 A

50 V, 60 V

150 A

20 mJ

0.560 V

150 °C

MECHANICAL DATA

Case:

TO-277A (SMPC)

Molding compound meets UL 94 V-0 flammability rating

Base P/N-M3 - halogen-free, RoHS compliant, and

commercial grade

Base P/NHM3 - halogen-free, RoHS compliant, and

automotive grade

Terminals:

Matte tin plated leads, solderable per

J-STD-002 and JESD 22-B102

M3 suffix meets JESD 201 class 1A whisker test, HM3 suffix

meets JESD 201 class 2 whisker test

TYPICAL APPLICATIONS

For use in low voltage high frequency inverters,

freewheeling, DC/DC converters, and polarity protection

applications.

MAXIMUM RATINGS

= 25 °C unless otherwise noted)

PARAMETER

Device marking code

Maximum repetitive peak reverse voltage

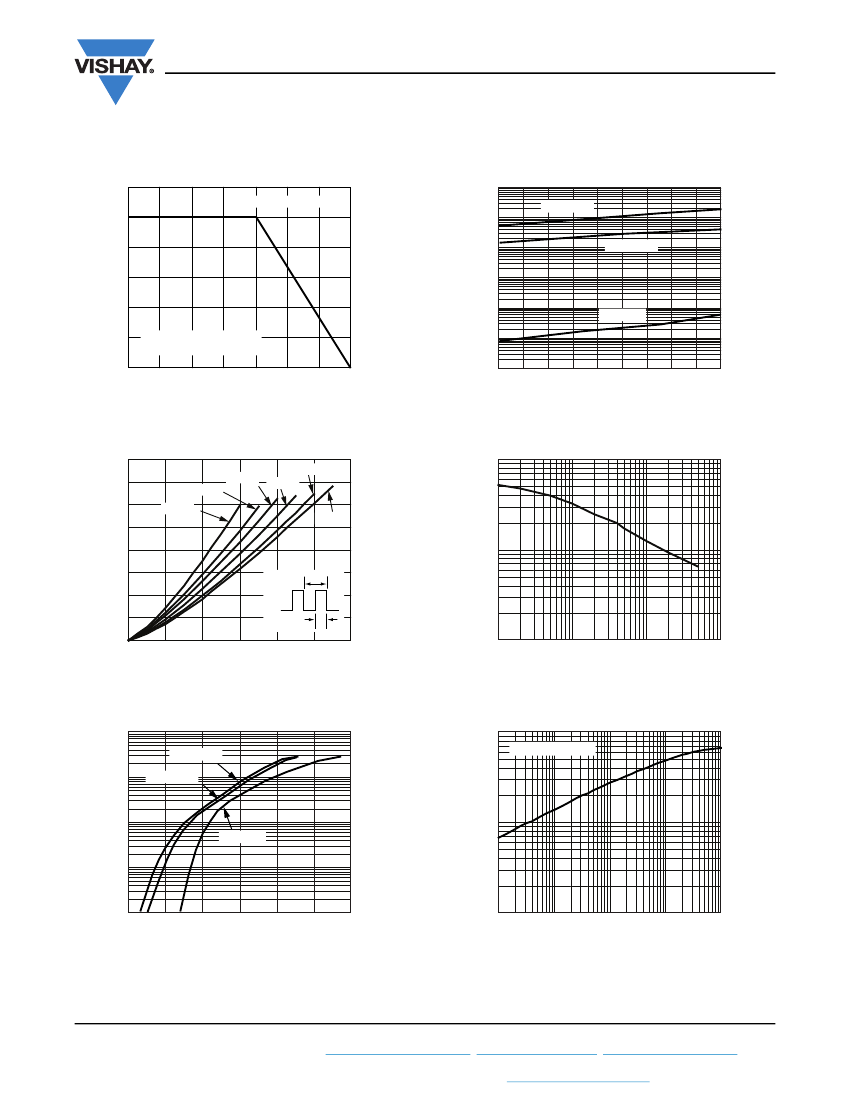

Maximum average forward rectified current (fig. 1)

Peak forward surge current 10 ms single half sine-wave

superimposed on rated load

Non-repetitive avalanche energy

at I

= 2.0 A, T

= 25 °C

Operating junction and storage temperature range

RRM

F(AV)

FSM

, T

STG

SYMBOL

SS5P5

S55

5.0

150

- 55 to + 150

SS5P6

S56

°C

UNIT

Revision: 28-Jun-11

Document Number: 88988
