ST 2SA952
PNP Silicon Epitaxial Planar Transistor
for switching and AF amplifier applications.
The transistor is subdivided into three group, M, L
and K according to its DC current gain.
On special request, these transistors can be
manufactured in different pin configurations.
1. Emitter 2. Collector 3. Base
TO-92 Plastic Package
Absolute Maximum Ratings (T
a
= 25
O
C)
Parameter
Collector Base Voltage
Collector Emitter Voltage
Emitter Base Voltage
Collector Current
Base Current
Power Dissipation
Junction Temperature
Storage Temperature Range
Symbol
-V
CBO
-V
CEO
-V
EBO
-I
C
-I
B
P
tot
T
j
T
S
Value
30
25
5
700
150
600
150
- 55 to + 150
Unit
V
V
V
mA
mA
mW
O
C
C
O
Characteristics at T
a
= 25
O
C
Parameter
DC Current Gain
at -V
CE
= 1 V, -I
C
= 100 mA
Current Gain Group M
L
K
at -V
CE
= 1 V, -I
C
= 700 mA
Collector Base Cutoff Current
at -V
CB
= 30 V
Emitter Base Cutoff Current
at -V
EB
= 5 V
Collector Emitter Saturation Voltage
at -I
C
= 700 mA, -I
B
= 70 mA
Base Emitter Saturation Voltage
at -I
C
= 700 mA, -I
B
= 70 mA
Base Emitter Voltage
at -V
CE
= 6 V, -I
C
= 10 mA
Gain Bandwidth Product
at -V
CE
= 6 V, -I
E
= 10 mA
Collector to Base Capacitance
at -V
CB
= 6 V, f = 1 MHz
Symbol
h
FE
h
FE
h
FE
h
FE
-I
CBO
-I
EBO
-V
CE(sat)
-V
BE(sat)
-V
BE
f
T
C
OB
Min.
90
135
200
50
-
-
-
-
0.6
50
-
Max.
180
270
400
-
100
100
0.6
1.2
0.7
-
40
Unit
-
-
-
-
nA
nA
V
V
V
MHz
pF
SEMTECH ELECTRONICS LTD.
(Subsidiary
of Sino-Tech International Holdings Limited, a company
listed on the Hong Kong Stock Exchange, Stock Code: 724)
®
Dated : 24/05/2008

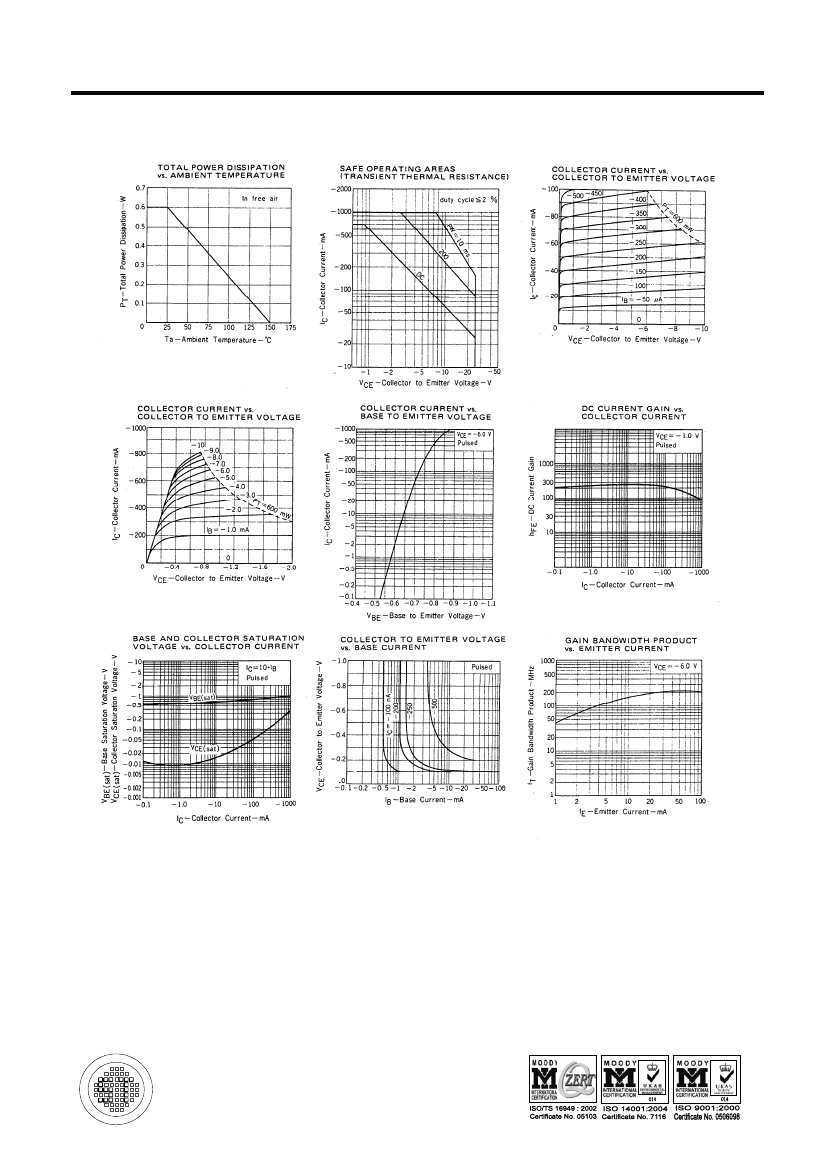

ST 2SA952
SEMTECH ELECTRONICS LTD.
(Subsidiary
of Sino-Tech International Holdings Limited, a company
listed on the Hong Kong Stock Exchange, Stock Code: 724)
®
Dated : 24/05/2008
