R12N4-C470KL-5.0 datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> R12N4-C470KL-5.0

R12N4-C470KL-5.0: DescriptionPotentiometer, Carbon, 0.05W, 470000ohm, 100V, 20% +/-Tol; CategoryPassive components The resistor; File Size248KB，2 Pages; ManufacturerSong Huei Electric Co., Ltd.; Websitehttp://www.song-huei.com.tw

Download Datasheet Parametric Compare View All

R12N4-C470KL-5.0 Overview

Potentiometer, Carbon, 0.05W, 470000ohm, 100V, 20% +/-Tol

R12N4-C470KL-5.0 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
structure	Rotary
Manufacturer's serial number	R12N4(OT.TAPER)
Package diameter	13 mm
Package length	3.4 mm
Package form	Panel Mount
Rated power dissipation(P)	0.05 W
resistance	470000 Ω
Resistor type	POTENTIOMETER
rotation angle	230 deg
series	R12N4(OT. TAPER)
technology	CARBON
Tolerance	20%
Operating Voltage	100 V

Preview

Download Datasheet

View All

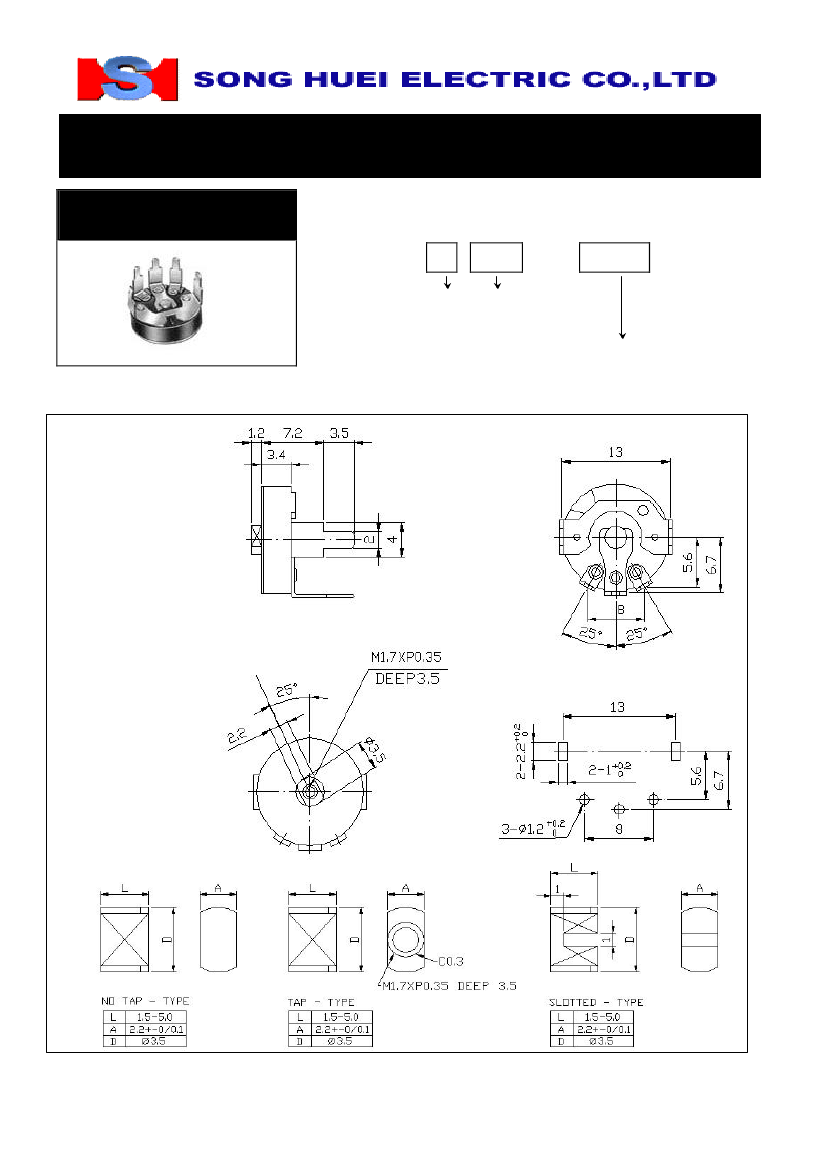

12mm Molded Case Rotary Potentiometer

(12mm

模殼式旋½可變電阻)

R12N4

Part Number

R12N4 - B

50K , L -

1.2

Taper Resistance Value

線性

阻值

Shaft Length

軸長

Dimensions

規格尺寸

Shaft Type

軸型

http://www.song-huei.com.tw

R12N4-C470KL-5.0 Related Products

	R12N4-C470KL-5.0	R12N4-D470KL-1.5	R12N4-A470KL-1.5	R12N4-A470KL-5.0	R12N4-C470KL-1.5	R12N4-D470KL-5.0	R12N4-W470KL-5.0
Description	Potentiometer, Carbon, 0.05W, 470000ohm, 100V, 20% +/-Tol	Potentiometer, Carbon, 0.05W, 470000ohm, 100V, 20% +/-Tol	Potentiometer, Carbon, 0.05W, 470000ohm, 100V, 20% +/-Tol	Potentiometer, Carbon, 0.05W, 470000ohm, 100V, 20% +/-Tol	Potentiometer, Carbon, 0.05W, 470000ohm, 100V, 20% +/-Tol	Potentiometer, Carbon, 0.05W, 470000ohm, 100V, 20% +/-Tol	Potentiometer, Carbon, 0.05W, 470000ohm, 100V, 20% +/-Tol
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
structure	Rotary	Rotary	Rotary	Rotary	Rotary	Rotary	Rotary
Manufacturer's serial number	R12N4(OT.TAPER)	R12N4(OT.TAPER)	R12N4(OT.TAPER)	R12N4(OT.TAPER)	R12N4(OT.TAPER)	R12N4(OT.TAPER)	R12N4(OT.TAPER)
Package diameter	13 mm	13 mm	13 mm	13 mm	13 mm	13 mm	13 mm
Package length	3.4 mm	3.4 mm	3.4 mm	3.4 mm	3.4 mm	3.4 mm	3.4 mm
Package form	Panel Mount	Panel Mount	Panel Mount	Panel Mount	Panel Mount	Panel Mount	Panel Mount
Rated power dissipation(P)	0.05 W	0.05 W	0.05 W	0.05 W	0.05 W	0.05 W	0.05 W
resistance	470000 Ω	470000 Ω	470000 Ω	470000 Ω	470000 Ω	470000 Ω	470000 Ω
Resistor type	POTENTIOMETER	POTENTIOMETER	POTENTIOMETER	POTENTIOMETER	POTENTIOMETER	POTENTIOMETER	POTENTIOMETER
rotation angle	230 deg	230 deg	230 deg	230 deg	230 deg	230 deg	230 deg
series	R12N4(OT. TAPER)	R12N4(OT. TAPER)	R12N4(OT. TAPER)	R12N4(OT. TAPER)	R12N4(OT. TAPER)	R12N4(OT. TAPER)	R12N4(OT. TAPER)
technology	CARBON	CARBON	CARBON	CARBON	CARBON	CARBON	CARBON
Tolerance	20%	20%	20%	20%	20%	20%	20%
Operating Voltage	100 V	100 V	100 V	100 V	100 V	100 V	100 V
