PV-H-2X17: DescriptionBoard Connector, 34 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, Locking, Plug; CategoryThe connector The connector; File Size142KB，1 Pages; ManufacturerMorethanall Co., Ltd.; Websitehttp://www.morethanall.com

Download Datasheet Parametric Compare View All

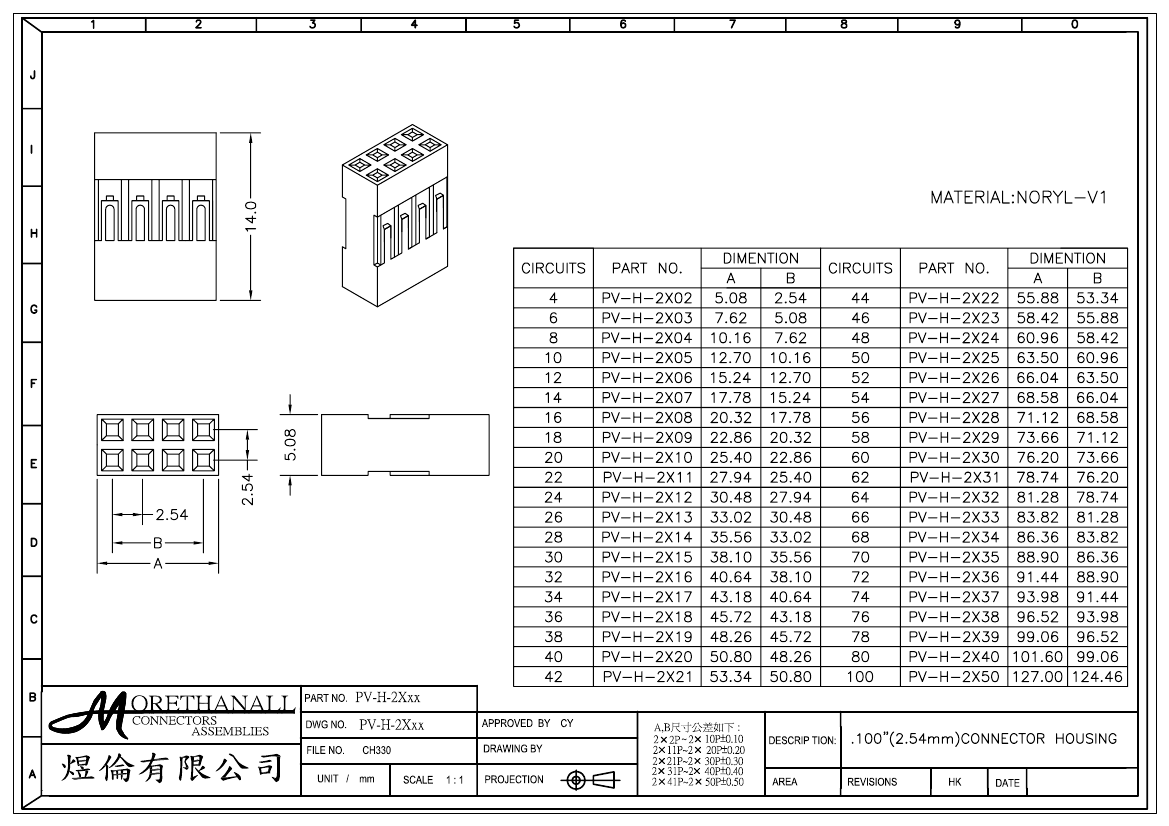

PV-H-2X17 Overview

Board Connector, 34 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, Locking, Plug

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	NONE
body width	0.2 inch
subject depth	0.551 inch
body length	1.7 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Manufacturer's serial number	PV
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Number of rows loaded	2
Guideline	UL
reliability	COMMERCIAL
Terminal length
Total number of contacts	34

	PV-H-2X17	PV-H-2X08	PV-H-2X13	PV-H-2X25
Description	Board Connector, 34 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, Locking, Plug	Board Connector, 16 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, Locking, Plug	Board Connector, 26 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, Locking, Plug	Board Connector, 50 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, Locking, Plug
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	NONE	NONE	NONE	NONE
body width	0.2 inch	0.2 inch	0.2 inch	0.2 inch
subject depth	0.551 inch	0.551 inch	0.551 inch	0.551 inch
body length	1.7 inch	0.8 inch	1.3 inch	2.5 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Manufacturer's serial number	PV	PV	PV	PV
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING
Number of rows loaded	2	2	2	2
Guideline	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Total number of contacts	34	16	26	50
