507-145

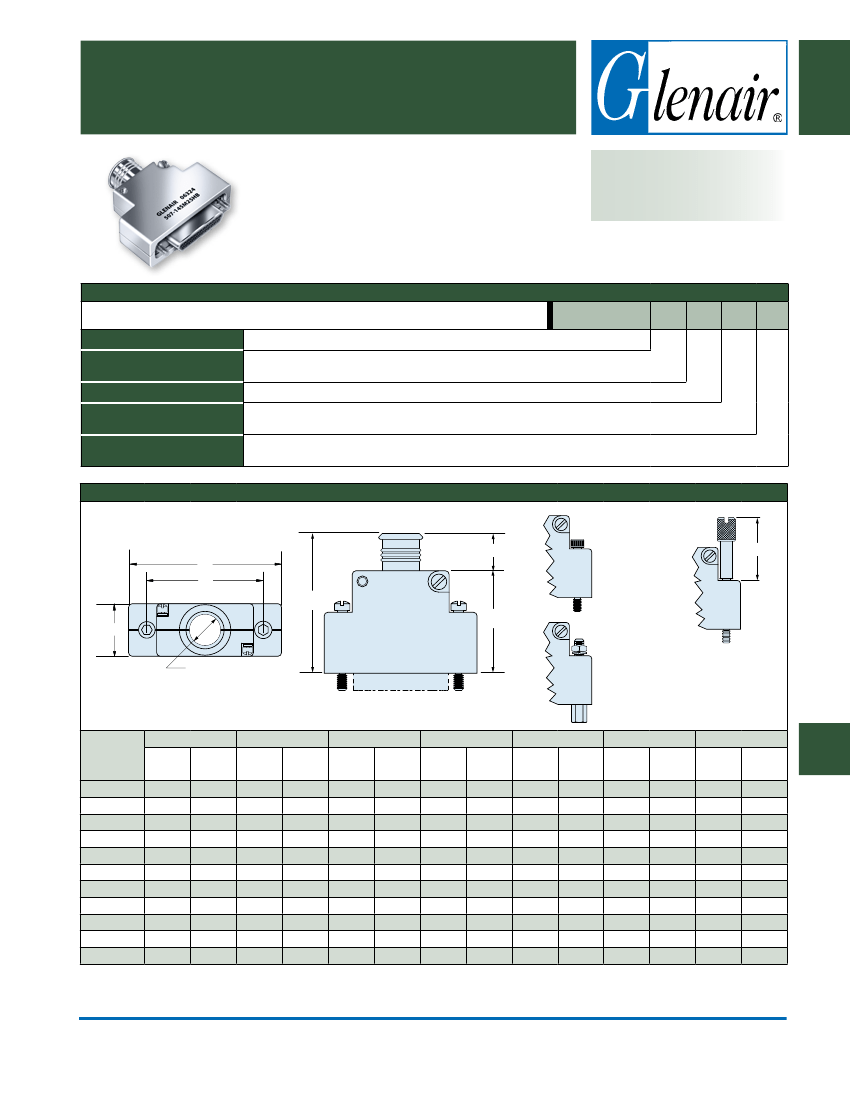

EMI/RFI Split Shell Banding Backshell with Screwlocks
Round Cable Entry
Split EMI Backshells
allow installation on wired
connector assemblies.
Captive Screwlocks
for fast connection. Plug in
the connector, then fasten the hardware.
Materials
• Shell: Aluminum Alloy 6061 -T6
• Clips: 17-7PH Stainless Steel
• Hardware: 300 Series Stainless Steel
A
B
C
D
E
F
G
How To Order EMI/RFI Split Banding Backshell
Sample Part Number
Series
Shell Finish
Connector Size
Hardware Option
EMI Band Strap Option
507-145
E
– Chem Film (Alodyne)
M
– Electroless Nickel
J
– Cadmium, Yellow Chromate
NF
– Cadmium, Olive Drab
(See Table I)
H
– Hex Head Screwlock
F
– Jackpost, Female
Z2
– Gold
507-145
M
25
h
B
09, 15, 21, 25, 31, 37 51, 51-2, 67, 69, 100
OMIT
– For Fillister Head Screwlock
E
– Extended Screwlock
Omit
(Leave Blank) –
Band Not Included
B
– Micro Band Supplied
K
– Coiled Micro Band Supplied
Table I: Dimensions
CODE H
HEX HEAD
SCREWLOCK
.32 (8.1)
A
C
E
B
F
G
H
J
K
L
M
N
P
Q
INDEX
CODE B
FILLISTER HEAD
JACKSCREW
ØD
CODE F
FEMALE
JACKPOST
CODE E
EXTENDED
SCREWLOCK
A Max.
Size
09
15
21
25
31
37
51
51-2
67
69
100
In.
.915
1.065
1.215
1.315
1.465
1.615
1.565
1.965
2.365
1.865
2.305
mm.
23.24
27.05
30.86
33.40
37.21
41.02
39.75
48.91
60.07
47.37
58.55
In.
B Max.
mm.
11.43
11.43
11.43
11.43
11.43
11.43
12.57
11.43
11.43
12.57
13.72
In.
.565
.715
.865
.965
1.115
1.265
1.215
1.615
2.015
1.515
1.800
C
mm.
14.35
18.16
21.97
24.51
28.32
32.13
30.86
41.02
51.18
38.48
45.72
In.
± .010
.160
.190
.220
.260
.275
.285
.350
.285
.350
.350
.490
D
mm.
± 0.25
4.06
4.83
5.59
6.60
6.99
7.24
8.89
7.24
8.89
8.89
12.45
In.
E Max.
mm.
26.24
27.84
28.63
30.23
31.01
32.59
34.19
34.19
34.19
34.19
35.76
In.
F Max.
mm.
18.31
19.89
20.70
22.28
23.06
24.66
26.24
26.24
26.24
26.24
27.83
In.
G Max.
mm.
14.07
15.67
16.48
18.06
18.34
19.94
22.02
22.02
22.02
22.02
23.62
.450
.450
.450
.450
.450
.450
.495
.450
.450
.495
.540
1.033
1.096
1.127
1.190
1.221
1.283
1.346
1.346
1.346
1.346
1.408
.721
.783
.815
.877
.908
.971
1.033
1.033
1.033
1.033
1.096
.554
.617
.649
.711
.722
.785
.867
.867
.867
.867
.930
