2TP19-21 Overview

Rocker Switch, DPDT, Latched, 20A, 28VDC, Screw Terminal, Rocker Actuator, Panel Mount

2TP19-21 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Actuator type	ROCKER
body width	22.61 mm
body height	31.62 mm
Body length or diameter	33.53 mm
Contact (AC) maximum rated R load	15A@125VAC
Maximum contact current (AC)	15 A
Maximum contact current (DC)	20 A
Contact (DC) maximum rated R load	20A@28VDC
Maximum contact voltage (AC)	125 V
Maximum contact voltage (DC)	28 V
Manufacturer's serial number	2TP19
Installation features	PANEL MOUNT
Maximum operating temperature	71 °C
seal	DUST PROOF; WATER PROOF
surface mount	NO
Switch action	LATCHED
switch function	DPDT
Switch type	ROCKER SWITCH
Termination type	SCREW
Base Number Matches	1

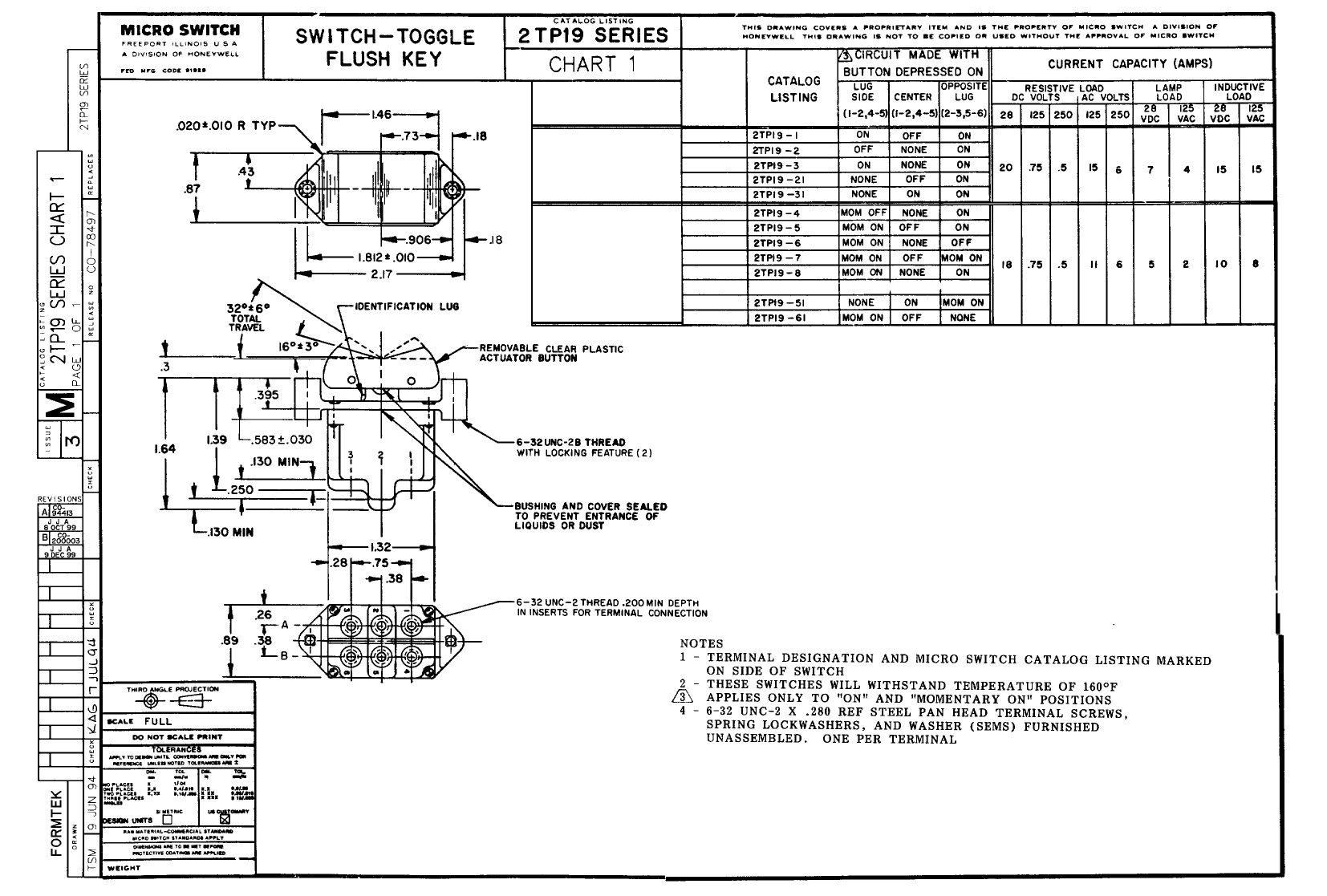

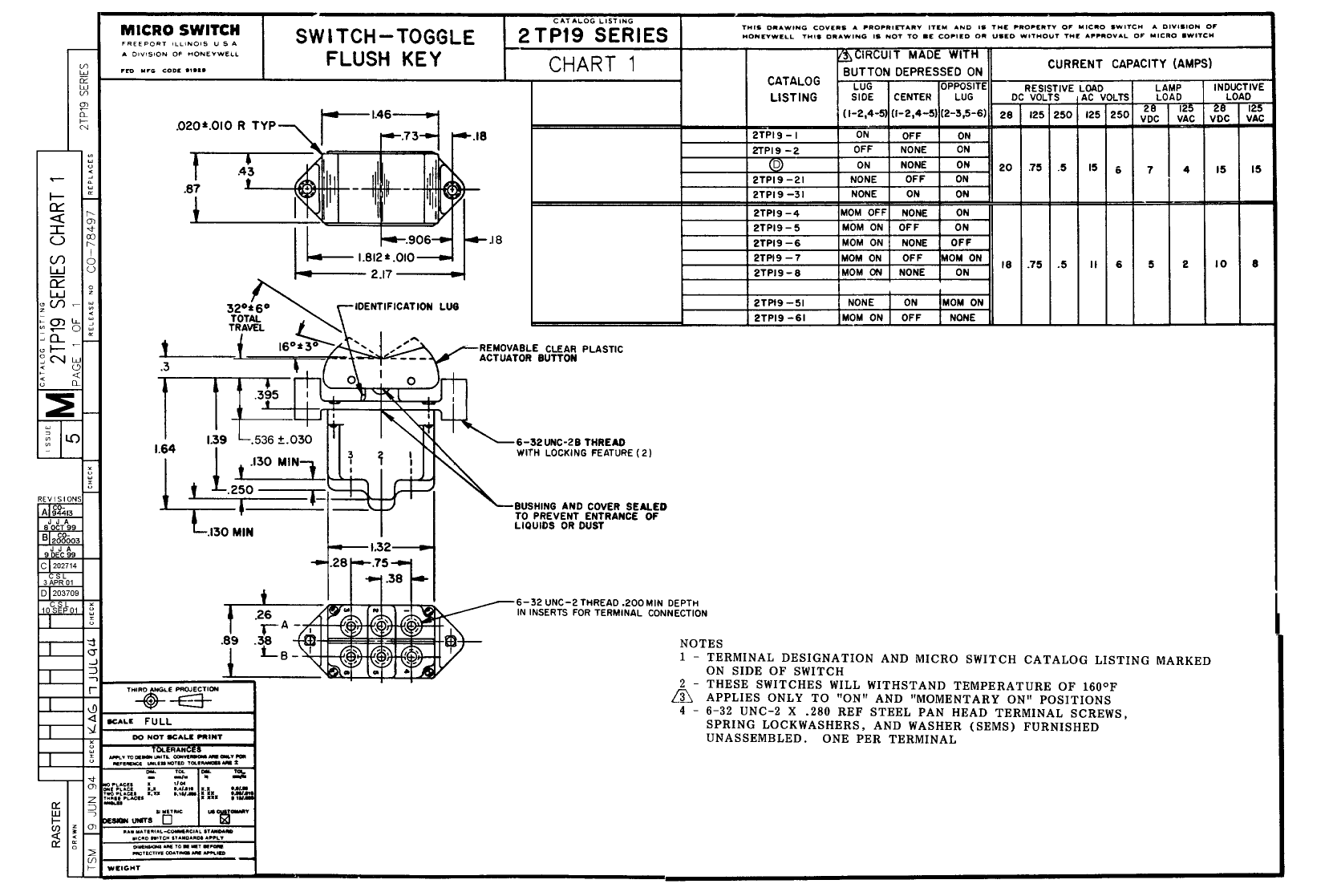

Preview

Download Datasheet

View All

2TP19-21 Related Products

	2TP19-21	2TP19-61	2TP19-6	2TP19-2	2TP19-4	2TP19-8	2TP19-51	2TP19-5	2TP19-31
Description	Rocker Switch, DPDT, Latched, 20A, 28VDC, Screw Terminal, Rocker Actuator, Panel Mount	Rocker Switch, DPDT, Momentary, 18A, 28VDC, Screw Terminal, Rocker Actuator, Panel Mount	Rocker Switch, DPDT, Momentary, 18A, 28VDC, Screw Terminal, Rocker Actuator, Panel Mount	Rocker Switch, DPDT, Latched, 20A, 28VDC, Screw Terminal, Rocker Actuator, Panel Mount	Rocker Switch, DPDT, Momentary, 18A, 28VDC, Screw Terminal, Rocker Actuator, Panel Mount	Rocker Switch, DPDT, Momentary, 18A, 28VDC, Screw Terminal, Rocker Actuator, Panel Mount	Rocker Switch, DPDT, Momentary, 18A, 28VDC, Screw Terminal, Rocker Actuator, Panel Mount	Rocker Switch, DPDT, Latched And Momentary, 18A, 28VDC, Screw Terminal, Rocker Actuator, Panel Mount	Rocker Switch, DPDT, Latched, 20A, 28VDC, Screw Terminal, Rocker Actuator, Panel Mount
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Actuator type	ROCKER	ROCKER	ROCKER	ROCKER	ROCKER	ROCKER	ROCKER	ROCKER	ROCKER
body width	22.61 mm	22.61 mm	22.61 mm	22.61 mm	22.61 mm	22.61 mm	22.61 mm	22.61 mm	22.61 mm
body height	31.62 mm	31.62 mm	31.62 mm	31.62 mm	31.62 mm	31.62 mm	31.62 mm	31.62 mm	31.62 mm
Body length or diameter	33.53 mm	33.53 mm	33.53 mm	33.53 mm	33.53 mm	33.53 mm	33.53 mm	33.53 mm	33.53 mm
Contact (AC) maximum rated R load	15A@125VAC	11A@125VAC	11A@125VAC	15A@125VAC	11A@125VAC	11A@125VAC	11A@125VAC	11A@125VAC	15A@125VAC
Maximum contact current (AC)	15 A	11 A	11 A	15 A	11 A	11 A	11 A	11 A	15 A
Maximum contact current (DC)	20 A	18 A	18 A	20 A	18 A	18 A	18 A	18 A	20 A
Contact (DC) maximum rated R load	20A@28VDC	18A@28VDC	18A@28VDC	20A@28VDC	18A@28VDC	18A@28VDC	18A@28VDC	18A@28VDC	20A@28VDC
Maximum contact voltage (AC)	125 V	125 V	125 V	125 V	125 V	125 V	125 V	125 V	125 V
Maximum contact voltage (DC)	28 V	28 V	28 V	28 V	28 V	28 V	28 V	28 V	28 V
Manufacturer's serial number	2TP19	2TP19	2TP19	2TP19	2TP19	2TP19	2TP19	2TP19	2TP19
Installation features	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
Maximum operating temperature	71 °C	71 °C	71 °C	71 °C	71 °C	71 °C	71 °C	71 °C	71 °C
seal	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
Switch action	LATCHED	MOMENTARY	MOMENTARY	LATCHED	MOMENTARY	MOMENTARY	MOMENTARY	LATCHED AND MOMENTARY	LATCHED
switch function	DPDT	DPDT	DPDT	DPDT	DPDT	DPDT	DPDT	DPDT	DPDT
Switch type	ROCKER SWITCH	ROCKER SWITCH	ROCKER SWITCH	ROCKER SWITCH	ROCKER SWITCH	ROCKER SWITCH	ROCKER SWITCH	ROCKER SWITCH	ROCKER SWITCH
Termination type	SCREW	SCREW	SCREW	SCREW	SCREW	SCREW	SCREW	SCREW	SCREW
Base Number Matches	1	1	1	1	1	1	1	1	1
