TP2010DJ16TR03: Description4x4 mm Low Profile Tactile Switches; File Size154KB，1 Pages; ManufacturerGREATECS; Websitehttp://www.greatecs.com/

Download Datasheet Compare View All

TP2010DJ16TR03 Overview

4x4 mm Low Profile Tactile Switches

Preview

Download Datasheet

View All

Tactile Switches

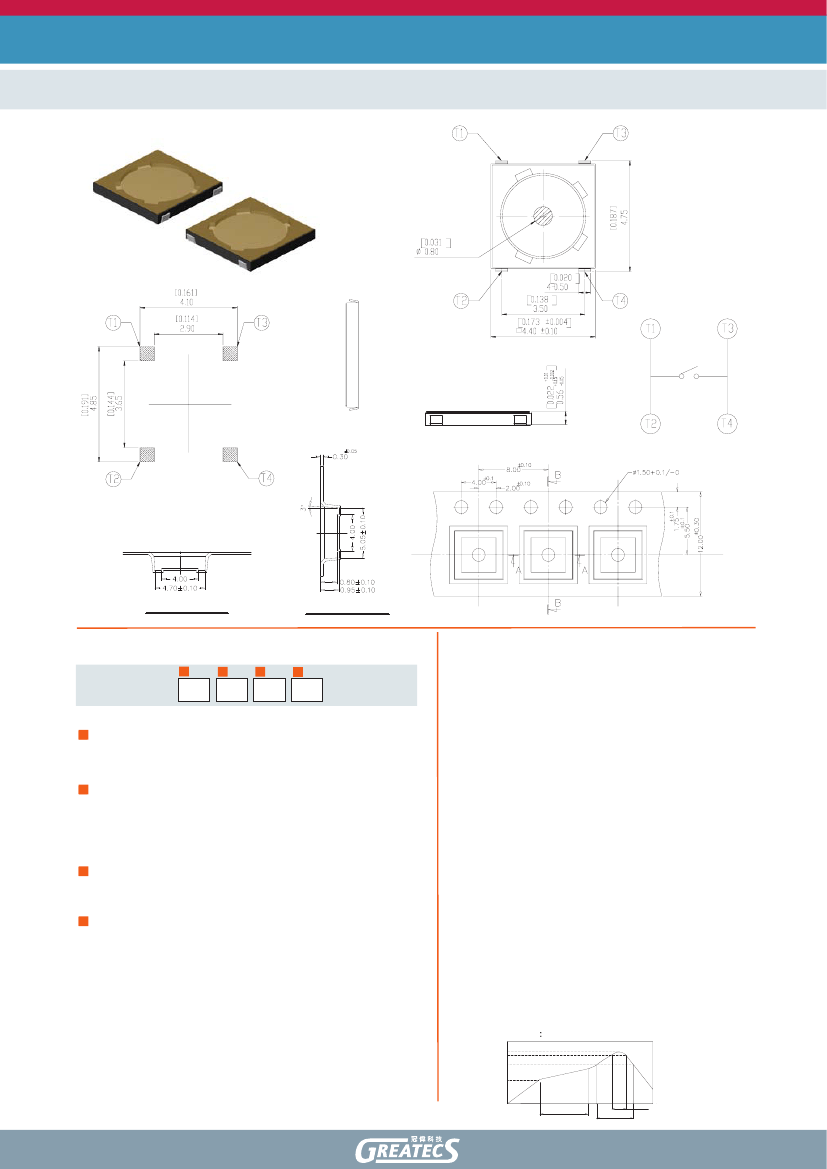

4x4 mm Low Profile Tactile Switches

TP2010D Series

Actuator

Circuit Diagram

P.C.B Layout

Packing

A-ASection

B-BSection

8000 Pcs/REEL

How to order:

Specifications:

TP2010D

TYPE OF TERMINALS:

SMT J-Bending

OPERATING FORCE

160gf

200gf

260gf

PACKAGE:

Tape & Reel

SOLDERING:

Lead Free Solderable

MATERIALS

» Base: UL-94V-0 LCP High-Temp Thermoplastic.

Coloe: Black

» Contact: Stainless steel with silver cladding.

» Terminal : Phosphor bronze with silver cladding.

» Tape: Kapton.

MECHANICAL

» Operation Force: 160±50gf

» Stroke: 0.2±0.1mm

»Operation Temperature Range: -20°C to +70°C

» Storage Temperature Range: -30°C to +80°C

ELECTRICAL

» Electrical Life: 200,000 cycles.

50 mA,12 VDC

» Contact Resistance: 100 m

max.

» Insulation Resistance: 100M

min. at 500 VDC

» Dielectric Strength: 350 VAC / 1 minute

» Contact Arrangement: 1 pole 1 throw

SOLDERING PROCESS

» Hand Soldering: Use a soldering iron of 30 watts,

controlled at 350°C approximately 5 seconds while

applying solder.

» Reflow Soldering: Vapor phase & reflow soldering can

be applied

Temperature Profile：

MAX 260°

255°

230°

150°

Room

Temperature

120~150sec

5~10sec

60sec

General Tolerance: ±0.1mm

TIME(sec)

sales@greatecs.com

www.greatecs.com
