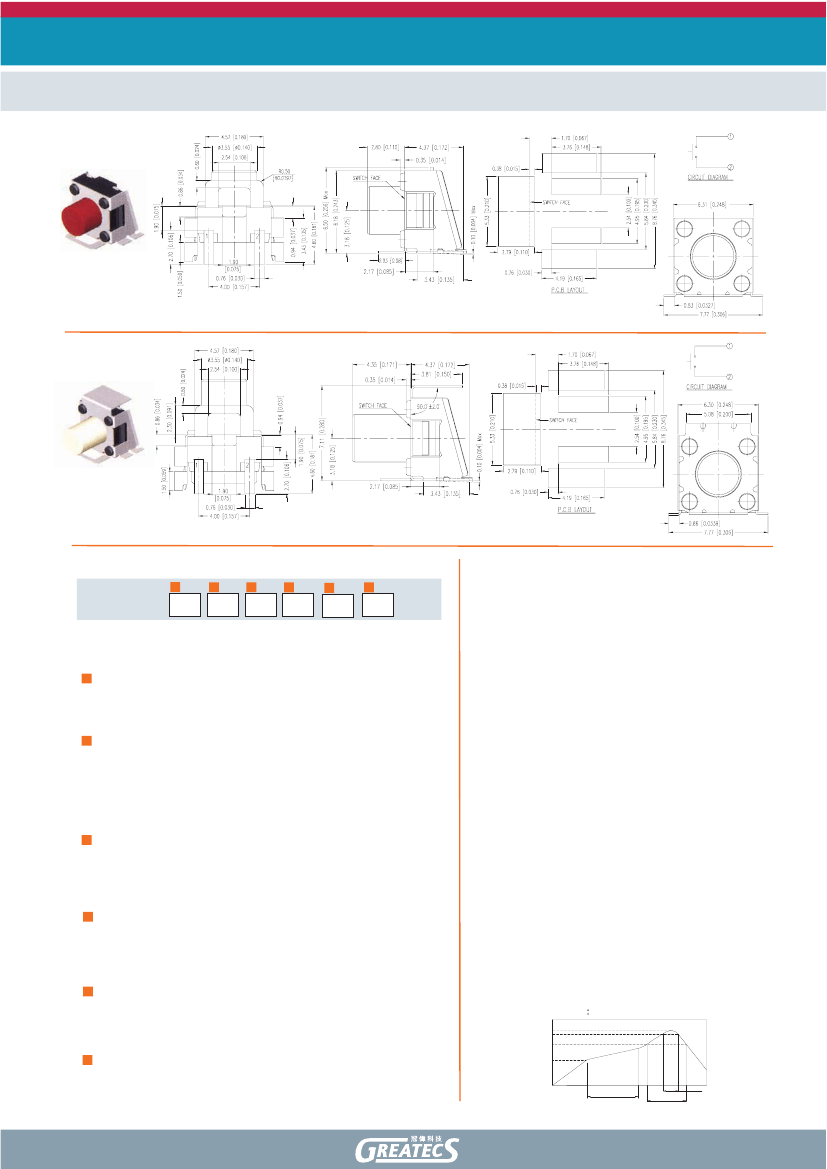

Tactile Switches
6x6 mm Right Angle Type with Supporting Terminal & Tab Available
TP203C Series
TP203CS28CNTR03
TP203CS43BUTR03
How to order:
1
2
3
4
5
6
General Specifications:
MATERIALS
» Cover: Stainless steel
» Contact: Stainless steel with silver plating.
» Terminal: Brass with silver plating.
» Stem: Nylon High-temp Thermoplastic
Color: White<180gf>; Red<260gf>
» Seal: Silicone Rubber
» Block: Nylon High-temo Thermoplastic
» Base: LCP High-temp Thermoplastic
MECHANICAL
» Operation Force: 180±50gf(White);260±50gf(Red)
» Stroke: 0.15mm Min
» Operation Temperature Range: -25°C to +70°C
» Storage Temperature Range: -30°C to +80°C
ELECTRICAL
» Electrical Life: 200,000 cycles
» Rating: 1.5 mA, 5 VDC
» Contact Resistance: 100 mΩ max.
» Insulation Resistance: 100MΩ min. at 500 VDC
» Dielectric Strength: 250V AC / 1 minute
» Contact Arrangement: 1 pole 1 throw
SOLDERING PROCESS
» Hand Soldering: Use a soldering iron of 30 watts,
controlled at 350°C approximately 5 seconds while
applying solder.
» Reflow Soldering: When applying reflow soldering,
the peak temperature or the reflow over should be
set to 260°C max
Temperature Profile：
MAX 260°
255°
230°
TP203C
1
S
TYPE OF TERMINALS:
Right Angle SMT Type
2
43
28
23
40
3
HEIGHT OF ACTUATOR:
4.35mm
2.80mm
2.30mm
4.00mm
COLOR OF STEM & OPERATING FORCE:
White Stem 185
±50
gf
Red Stem 260
±50
gf
B
C
4
N
U
TAB:
Without Tab
Tab for auto-dipping
5
TR
PACKAGE:
Tape & Reel
6
03
ROHS:
RoHS & Lead Free Solderable
150°
Room
Temperature
120~150sec
5~10sec
60sec
TIME(sec)
General Tolerance: ±0.2mm
