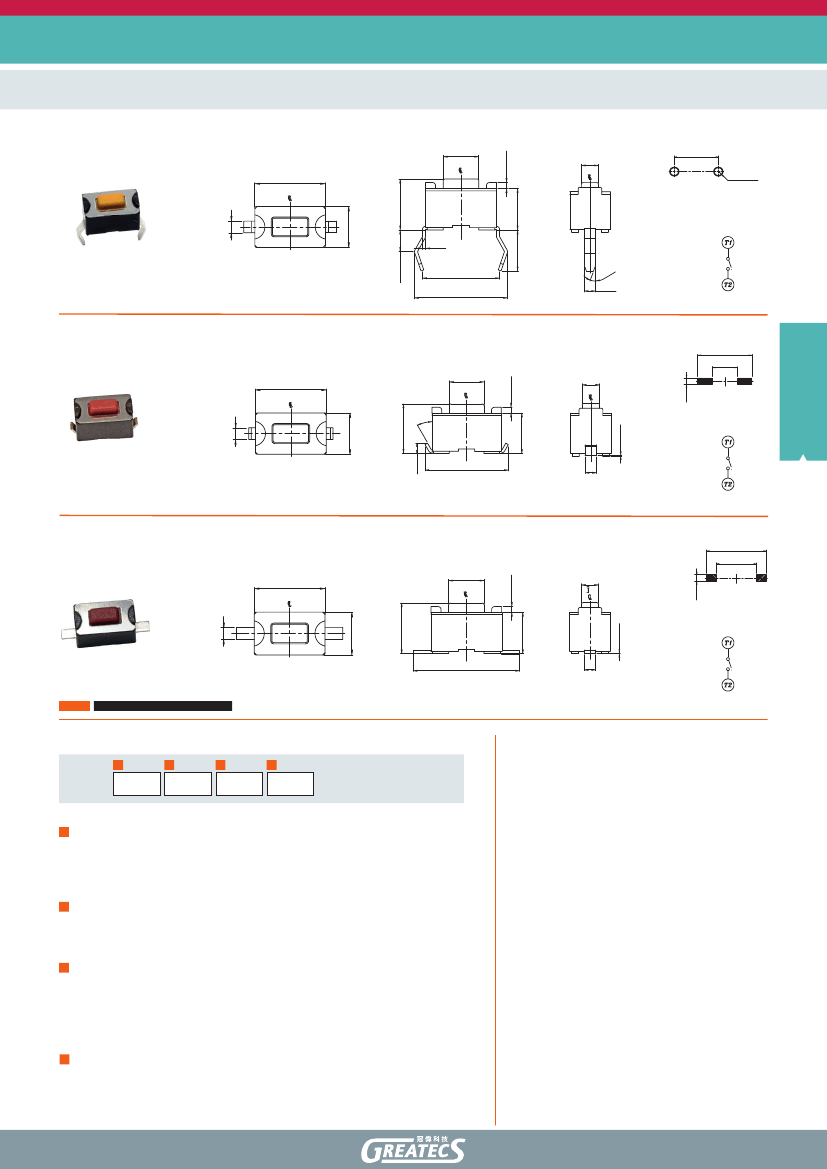

Tactile Switches
6 x 3.5 mm Tactile Switches
3.00
6.0
H±0.20
1.0
0.50 MAX
1.50
TP6 Series
6.50±0.10
1.3±0.05
P.C.B. LAYOUT
3.50
0.25
6.50±0.50
3.50±0.50
3.5
1.80
-0.50
+0
TP6H
Thru Hole Type
7.90±0.50
°
20
1.00
CIRCUIT DIAGRAM
7.40
1.60
3.00
0.50 MAX
3.40
1.50
6.0
1.0
P.C.B. LAYOUT
0.05 MAX
H±0.20
30°
3.50
3.5
(0.90)
(7.20)
1.00
CIRCUIT DIAGRAM
TP6B
Surface Mounting Bending Type
9.50
6.40
0.50 MAX
6.0
1.0
3.00
1.50
1.60
P.C.B. LAYOUT
0.05 MAX
H±0.20
9.00
3.50
3.5
1.00
CIRCUIT DIAGRAM
TP6S
Surface Mounting Type
How to order:
General Specifications:
3
4
FEATURES
» Sharp click feel with a positive tactile feedback
MATERIALS
» Contact Disc: Stainless steel with silver cladding
» Terminal: Brass with silver plated
MECHANICAL
» Stroke: 0.25 (+0.20/-0.10) mm
» Operation Temperature: -25°C to +70°C
» Storage Temperature: -30°C to +80°C
ELECTRICAL
» Electrical Life: 50,000 cycles for 160gf & 320gf
30,000 cycles for 260gf & 520gf
» Rating: 50mA, 12VDC
» Contact Arrangement: 1 pole 1 throw
LEADFREE SOLDERING PROCESSES
» Wave Soldering: Recommended solder temperature
at 260°C max. 5 seconds subject to PCB 1.6mm
thickness (for THT).
» Reflow Soldering: When applying reflow soldering,
the peak temperature or the reflow oven should be
set to 260°C max. 10 seconds (for SMT).
TP6
1
1
2
H
B
S
2
TYPE OF TERMINALS:
THT
SMT Bending
SMT Flat
DIMENSION H:
H = 4.3 mm
H = 5.0 mm
STEM COLOR / OPERATING FORCE:
Brown / 160±50 gf
Red / 260±50 gf
Salmon / 320±80 gf
Yellow / 520±130 gf
43
50
3
K
C
B
E
4
PACKAGE:
BK
Bag (TP6H Only)
TB
Tube
TR
Tape & Reel
General Tolerance: ± 0.2 mm
sales@greatecs.com
www.greatecs.com
E06
Tactile Switches
