TS-RDP5
Description
TS-RDP5 is a USB2.0 Compact Card Reader. It is
designed for fast, easy data transfer and exchange using
multiple types of Memory Cards.
USB2.0 Compact Card Reader
Placement
Features
•
Color: Black(Cap & Case)/Green(Frame)
•
Fully Compliant with the Hi-Speed USB 2.0 specification
•
Hi-Speed Data transfer rates of up to 480Mb/s
•
USB powered (no external power or battery needed)
•
LED indicates card insertion and data traffic
：
•
Compatible Cards
Directly:
O
O
O
O
O
O
O
O
O
SD (Secure Digital)
SDHC (Secure Digital High Capacity)
MMC (MultiMediaCard)
MMCplus
MMCmobile
RS-MMC
microSDHC
microSD
/
TransFlash
Memory Stick Micro (M2)

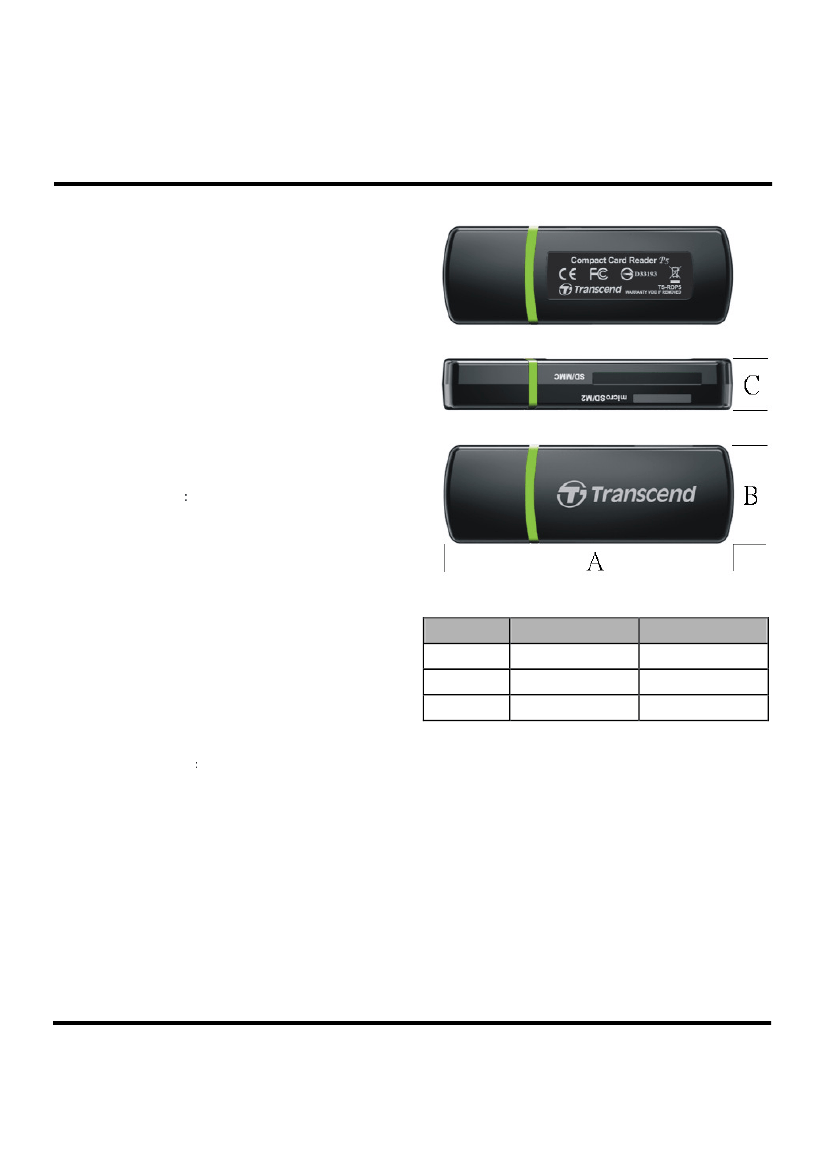

Dimensions
Side
A
B
C
Millimeters
66.90
±
1.0
22.60
±
1.0
12.00
±
1.0
Inches
2.63
±
0.04
0.89
±
0.04
0.47
±
0.04
O
O
O
miniSD
miniSDHC
MMCmicro
Transcend Information, Inc.
：
Adapter Required
System Requirements
Desktop or notebook computer with a working USB port
One of the following Operating Systems:
O
O
O
O
O
O
O
Windows Me
Windows 2000
Windows XP
Windows Vista
Windows 7
Mac OS 9.0, or later
Linux Kernel 2.4.2, or later
™
™
®
™
®
®
®
1
TS-RDP5
Pinouts
Pin No.
01
02
03
04
Pin Name
V
USB
USB-
USB+
VSS
VSS
V
USB
USB-
USB+
Symbol
USB2.0 Compact Card Reader
Pin Identification
Function
USB differential signal:
The pairs are used to transmit
Data/Address/Command
Ground
USB Power Input
Block Diagram
Controller
USB
Port
V
USB
3.3V/1.8V
Voltage
Regulator
12MHz
Crystal
V
D33P
V
DD18
V
DDHM
V
OUT
V
IN
SD/MMC slot
MicroSD/M2 slot
Transcend Information, Inc.
2
TS-RDP5
Recommended Operating Conditions:
SYMBOL
V
USB
T
OPR
PARAMETER
Power Supply
Operating Temperature
MIN.
4.5
0
TYP.
5.0
USB2.0 Compact Card Reader
MAX.
5.5
70
UNITS
V
O
C
DC Characteristics:
SYMBOL
V
DDHM
V
IN
V
OUT
V
DD18
PARAMETER
Input Voltage
Input Signal Voltage
Output Voltage
Supply Voltage
MIN.
3.0
-0.3
3.0
1.62
3.3
1.8
TYP.
3.3
MAX.
3.6
V
DDHM
+0.3
3.6
1.98
UNITS
V
V
V
V
DC Electrical Characteristics of 3.3V I/O:
SYMBOL
V
D33P
V
IL
V
IH
V
OL
V
OH
PARAMETER
Supply Voltage
Input Low Voltage
Input High Voltage
Output Low Voltage
Output High Voltage
2.4
2.0
0.4
MIN.
3.15
TYP.
3.3
MAX.
3.6
0.8
UNITS
V
V
V
V
V
Above technical information is based on industry standard data and tested to be reliable. However, Transcend makes no
warranty, either expressed or implied, as to its accuracy and assumes no liability in connection with the use of this product.
Transcend reserves the right to make changes in specifications at any time without prior notice.
Transcend Information, Inc.
3
