UFTC Tip Cartridges for Metcal UltraFine
TM
Hand-piece
UFTC-
7
CN01
UFTC-
7
CN02
UFTC-
7
CN04

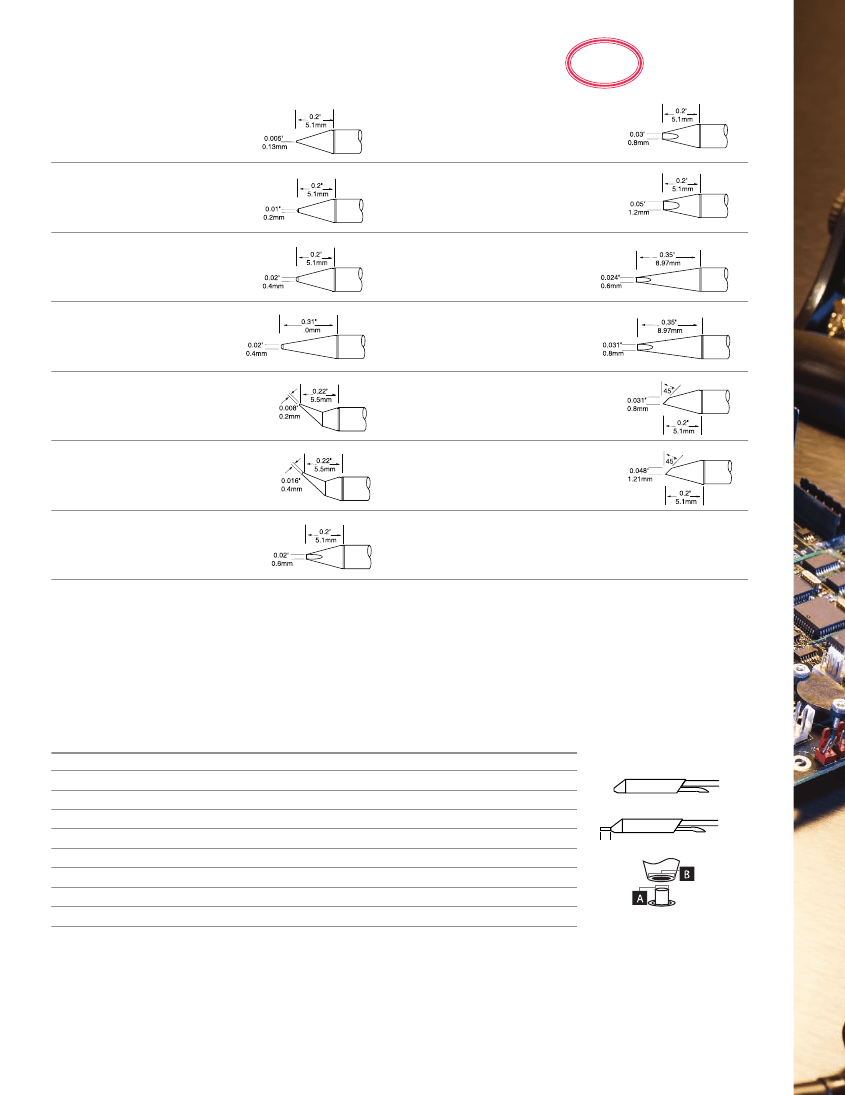

UltraFine
™
Tip Cartridge, Conical
0.13mm x 5.1mm (0.005" x 0.2")
UFTC-
7
CH08
UltraFine
™
Tip Cartridge, Chisel
0.8mm x 5.1mm (0.03" x 0.2")
NEW
UltraFine
™
Tip Cartridge, Conical
0.2mm x 5mm (0.01" x 0.2")
UltraFine
™
Tip Cartridge, Conical
0.4mm x 5mm (0.02" x 0.2")
UFTC-
7
CH12
UltraFine
™
Tip Cartridge, Chisel
1.2mm x 5mm (0.05" x 0.2")
UFTC-
7
CHL06
UltraFine
™
Tip Cartridge, Chisel, Long
0.6mm x 9mm (0.024" x 0.35")
UFTC-
7
CNL04
UltraFine
™
Tip Cartridge, Conical,
Long 0.4mm x 9mm (0.02" x 0.31")
9
UFTC-
7
CHL08
UFTC-
7
CNB02
UltraFine
™
Tip Cartridge, Conical, Bent
0.2mm x 5.5mm (0.01" x 0.22")
UFTC-
7
CNB04
UltraFine
™
Tip Cartridge, Conical, Bent
0.4mm x 5.5mm (0.02" x 0.22")
UFTC-
7
CH06
UltraFine
™
Tip Cartridge, Chisel
0.6mm x 5.1mm (0.024" x 0.2")
UFTC-
7
DRH408
UltraFine
™
Tip Cartridge, Chisel, Long
0.8mm x 9mm (0.03" x 0.35")
UltraFine
™
Tip Cartridge, Hoof, Micro
0.8mm x 5.1mm (0.03" x 0.2")
UFTC-
7
DRH412
UltraFine
™
Tip Cartridge, Hoof, Micro
1.2mm x 5.1mm (0.048" x 0.2")
7
= 700 Series for most standard applications. UFTC Tip Cartridges are only available in 700 Series
STDC Desolder Cartridges for Desoldering Hand-piece
The Metcal MX-DS1 Desoldering Hand-piece provides exceptional ability for safely desoldering through-hole components.
The high-mass STDC cartridges store a high volume of heat while maintaining a non-damaging constant temperature.
Coupled with the MX-5000 power supply, heat is rapidly replenished, dynamically responding to the load conditions.
STDC-102
!
STDC-103
!
STDC-104
!
STDC-105
!
STDC-106
!
STDC-107
!
STDC-703L
!!
STDC-704L
!!
STDC-705L
!!
Cartridge, Desolder
Cartridge, Desolder
Cartridge, Desolder
Cartridge, Desolder
Cartridge, Desolder
Cartridge, Desolder
Cartridge, Desolder Long Reach
Cartridge, Desolder Long Reach
Cartridge, Desolder Long Reach
0.64mm (0.025")
0.76mm (0.076")
1.02mm (0.04")
1.27mm (0.05")
1.52mm (0.06")
0.76mm (0.03")
1.02mm (0.04")
1.27mm (0.05")
2.41mm (0.095")
ø A mm (")
1.40mm (.055")
ø B mm (")
1.68mm (.066")
Standard
Long Reach
1.78mm (.070")
2.03mm (.080")
1.68mm (.066")
3.18mm (.125")
1.79mm (.070")
2.03mm (.080")
2.29mm (.090")
0.400"
!
1
= 700 Series for most standard applications.
8
= 800 Series for ceramic and high thermal demand applications.
0
= 600 Series also available for temperature sensitive
applications. To order these series, replace 1 with 8 or 0.
!!
7
= 700 Series for most standard applications.
8
= 800 Series for ceramic and high thermal demand applications. To order this series, replace 7 with 8.
Download the Surface Mount Removal Techniques using MX-5000 Soldering and Rework System technical note from
www.metcal.com
