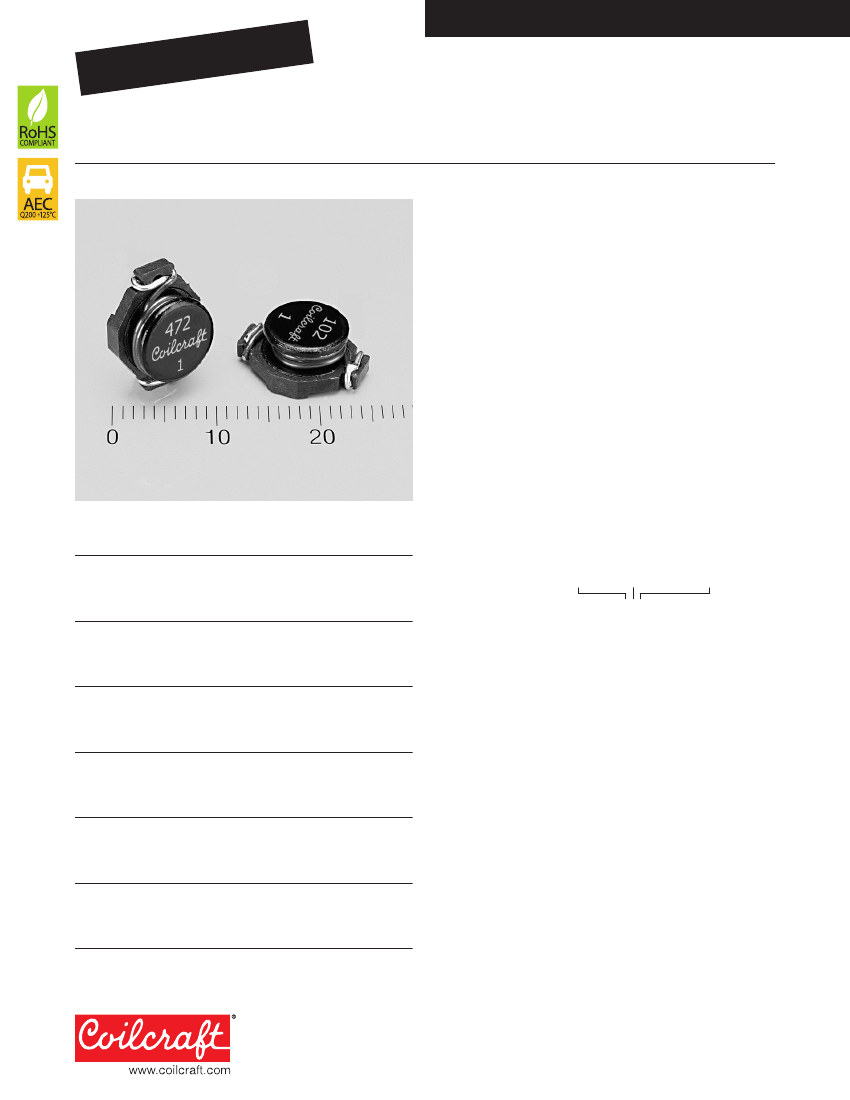

Document 365-1
SMT Power Inductors – DO3316T
• Designed for high temperature applications – over 125°C
ambient
• AEC-Q200 qualified; ideal for many automotive applications
• Soldered self-leaded construction for excellent solderability
• 10% tolerance for most values
• Low DCR and high current handling
Designer’s Kit C396
contains 3 of each 20% value
Core material
Ferrite
Core and winding loss
See www.coilcraft.com/coreloss
Terminations
RoHS compliant tin-silver-copper over copper. Other
terminations available at additional cost.
Weight
0.95 – 1.25 g
Ambient temperature
–40°C to +155°C. See derating curve for
Irms
vs Temperature.
Storage temperature
Component: –40°C to +155°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
Packaging
750/13″ reel Plastic tape: 24 mm wide, 0.35 mm thick,
12 mm pocket spacing, 6.4 mm pocket depth
PCB washing
Tested with pure water or alcohol only. For other solvents,
see Doc787_PCB_Washing.pdf.
1. When ordering, specify
tolerance, termination
and
packaging
codes:
DO3316T-474MLD
Tolerance: M =
20%,
K
= 10% (Table shows stock tolerances in bold.)
Termination: L
= RoHS compliant tin-silver over copper.
Special order:
T
= RoHS tin-silver-copper
(95.5/4/0.5) or
S
= non-RoHS tin-lead (63/37).
Packaging: D
= 13″ machine-ready reel. EIA-481 embossed plastic
tape (750 parts per full reel).
B
= Less than full reel. In tape, but not machine ready.
To have a leader and trailer added ($25 charge), use
code letter C instead.
2. Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc.
3. Tolerances in bold are stocked for immediate shipment.
4. SRF measured using Agilent/HP 8753D network analyzer.
5. DC current at which the inductance drops 10% (typ) from its value with-
out current.
6. Current that causes a 40°C temperature rise from 25°C ambient.
7. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
Part number
1
DO3316T-331ML_
DO3316T-681ML_
DO3316T-102ML_
DO3316T-152ML_
DO3316T-222_L_
DO3316T-272_L_
DO3316T-332_L_
DO3316T-392_L_
DO3316T-472_L_
DO3316T-562_L_
DO3316T-682_L_
DO3316T-822_L_
DO3316T-103_L_
DO3316T-123_L_
DO3316T-153_L_
DO3316T-183_L_
DO3316T-223_L_
DO3316T-273_L_
DO3316T-333_L_
DO3316T-393_L_
DO3316T-473_L_
DO3316T-563_L_
DO3316T-683_L_
DO3316T-823_L_
DO3316T-104_L_
DO3316T-124_L_
DO3316T-154_L_
DO3316T-184_L_
DO3316T-224_L_
DO3316T-274_L_
DO3316T-334_L_
DO3316T-394_L_
DO3316T-474_L_
L
2
(µH)
0.33
0.68
1.0
1.5
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
390
470
%
tol
3
20
20
20
20
20,10
20,10
20,10
20,10
20,10
20,10
20,10
20,10
20,10
20,10
20,10
20,10
20,10
20,10
20,10
20,10
20,10
20,10
20,10
20,10
20,10
20,10
20,10
20,10
20,10
20,10
20,10
20,10
20,10
DCR
max
(Ohms)
0.002
0.005
0.006
0.008
0.011
0.012
0.014
0.015
0.018
0.021
0.024
0.032
0.034
0.036
0.045
0.050
0.070
0.085
0.100
0.120
0.150
0.165
0.220
0.250
0.280
0.400
0.460
0.520
0.700
0.800
1.07
1.14
1.27
SRF
4
typ
(MHz)
200
200
100
90
90
65
60
50
50
45
43
34
31
27
25
22
18
18
17
15
14
12
11
10
9.0
8.0
6.0
6.0
5.0
5.0
4.5
4.0
3.5
Isat
5
(A)
20
13
11
9.0
7.8
7.0
6.4
5.9
5.4
4.7
4.4
4.0
3.9
3.4
3.1
2.8
2.5
2.3
2.0
1.8
1.65
1.45
1.40
1.30
1.20
1.00
0.90
0.85
0.80
0.75
0.60
0.62
0.50
Irms
6
(A)
16
12
10
9.0
7.4
6.6
5.9
5.3
4.8
4.65
4.40
4.15
3.90
3.50
3.10
2.90
2.70
2.30
2.10
1.95
1.80
1.65
1.50
1.40
1.30
1.00
0.90
0.85
0.80
0.70
0.60
0.55
0.50
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 365-1
Revised 09/25/12
© Coilcraft Inc. 2013
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
PERATURE
HIGH TEM
SMT Power Inductors – DO3316T Series

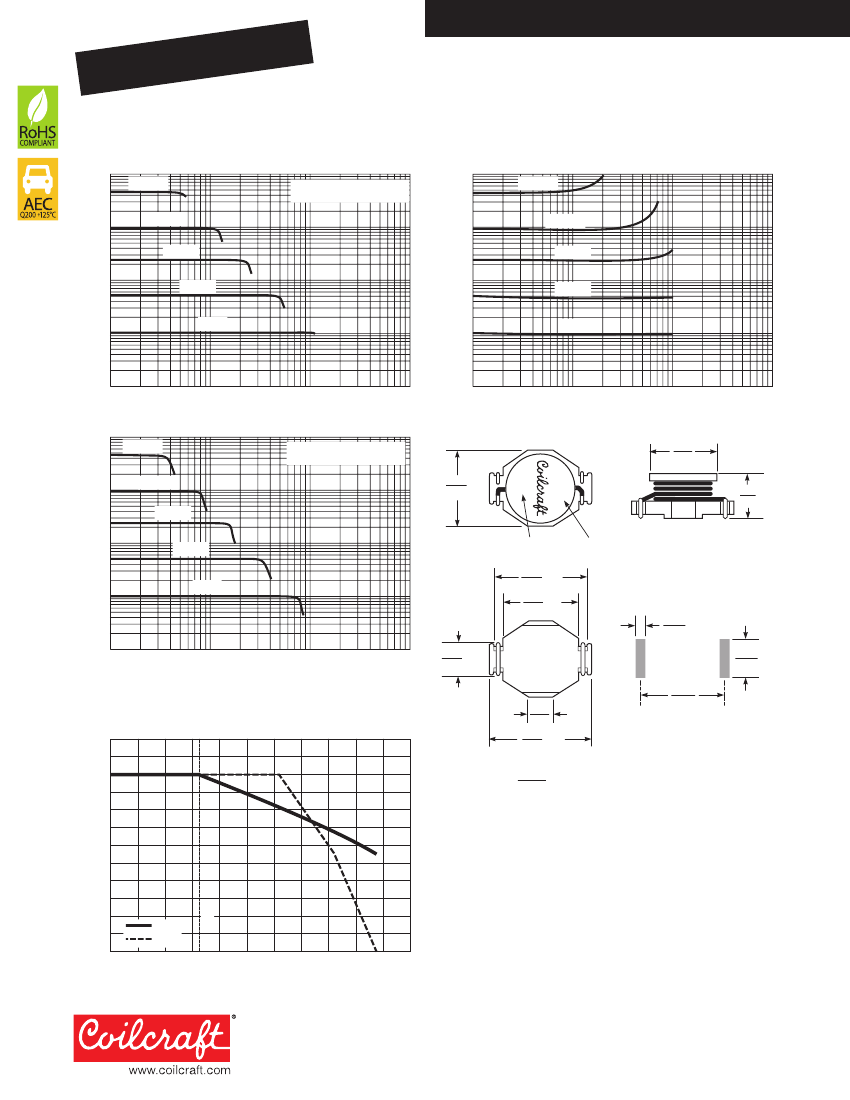

Typical L vs Current
1000
470 µH
100 µH
22 µH
10
4.7 µH
1 µH
Document 365-2
Typical L vs Frequency
At 25°C ambient
1000
470 µH
100 µH
22 µH
10
4.7 µH
1 µH
100
100
Inductance (µH)
1
Inductance (µH)
10
100
1
0.1
0.1
1
0.1
Current (A)
0.1
1
Frequency (MHz)
10
100
1000
470 µH
100 µH
22 µH
At 125°C ambient
0.390
max
9,91
0.330
8,38
XXX
100
Inductance (µH)
0.250
max
6,35
X
10
4.7 µH
1 µH
Internal code
0.460 max
11,68
0.360
min
9.14
Dash number
1
Recommended
Land Pattern
0.060
1,52
0.1
0.1
1
Current (A)
10
100
0.150
typ
3,81
0.160
4,06
0.400
10,16
Current Derating
120
110
0.120
3,05
0.520
max
13,21
Percent of rated current
100
90
80
70
60
50
40
20
10
0
30
Isat
Irms
-40 -20
0
20
Dimensions are in
inches
mm
25°C
40
60
80
100
120
140
160 180
Ambient temperature (°C)
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 365-2
Revised 09/25/12
© Coilcraft Inc. 2013
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
