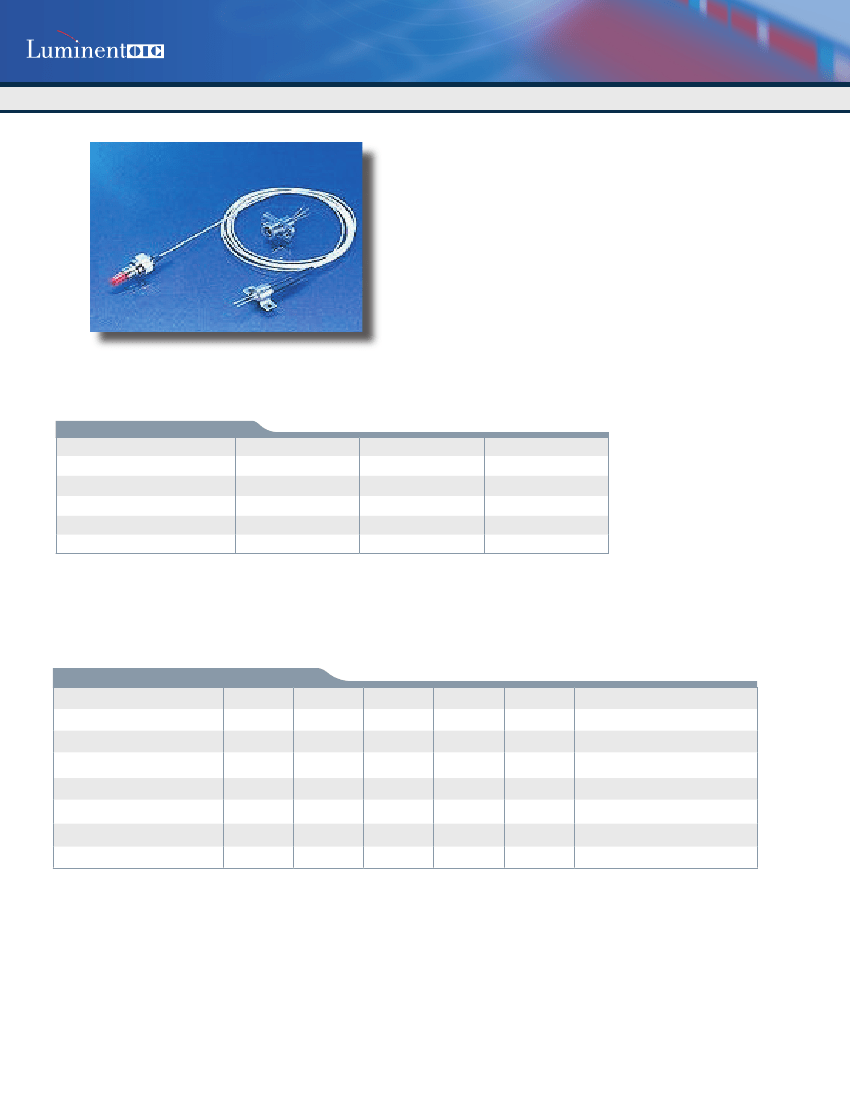

InGaAs PIN Photodiode Modules
R-11-055-X-XXX-X-XX
• InGaAs/InP PIN Photodiode
• Sensitive receiver at 1310nm and 1550nm
• Low dark current
• Fast pulse response
• -40~85
º
C operating temperature
• Hermetically sealed 3-pin metal case
• FC/ST/SC Receptacle packaged
• SM/MM fiber pigtailed with optional FC/ST/SC connector
• RoHS compliant available
Features
Packaging
Application
Absolute Maximum Ratings (Tc=25ºC)
Parameter
Supply Reverse Voltage
Forward Current
Reverse Current
Operating Temperature
Storage Temperature
Symbol
V
R
I
F
I
R
T
opr
T
stg
Value
20
2
1
-40 ~ 85
-40 ~ 85
Unit
V
mA
mA
ºC
ºC
(All optical data refer to a coupled 9/125µm SM fiber, 50/125µm MM fiber and 62.5/125µm MM fiber)
Optical and Electrical Characteristics (Tc=25ºC)
Parameter
Active Area (Dia)
Detection Range
Responsivity
Dark Current
Capacitance
Rise / Fall Time
Bandwidth
Symbol
Min
-
1100
Typ
55
1310
0.85
-
-
-
-
Max
-
1650
-
0.7
0.7
0.3
-
Unit
µm
nm
A/W
nA
pF
ns
GHz
Test Conditions
-
-
V
R
=5V,
λ=1310nm
V
R
=5V
V
R
=5V
V
R
=5V, 10%~90%
V
R
=5V
R
I
dark
C
T
r
/ T
f
BW
0.8
-
-
-
3
Note: 1.Pin assignment can be customized.
2.Specifications subject to change without notice.
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
LUMNDS538-SEP2807
rev. A.1
1
InGaAs PIN Photodiode Modules
R-11-055-X-XXX-X-XX
Pin Assignment
CASE (2)
Pin Assignment
1~PD (-)
PD- (1)
PD+ (3)
2~CASE
3~PD (+)
Functional Schematic

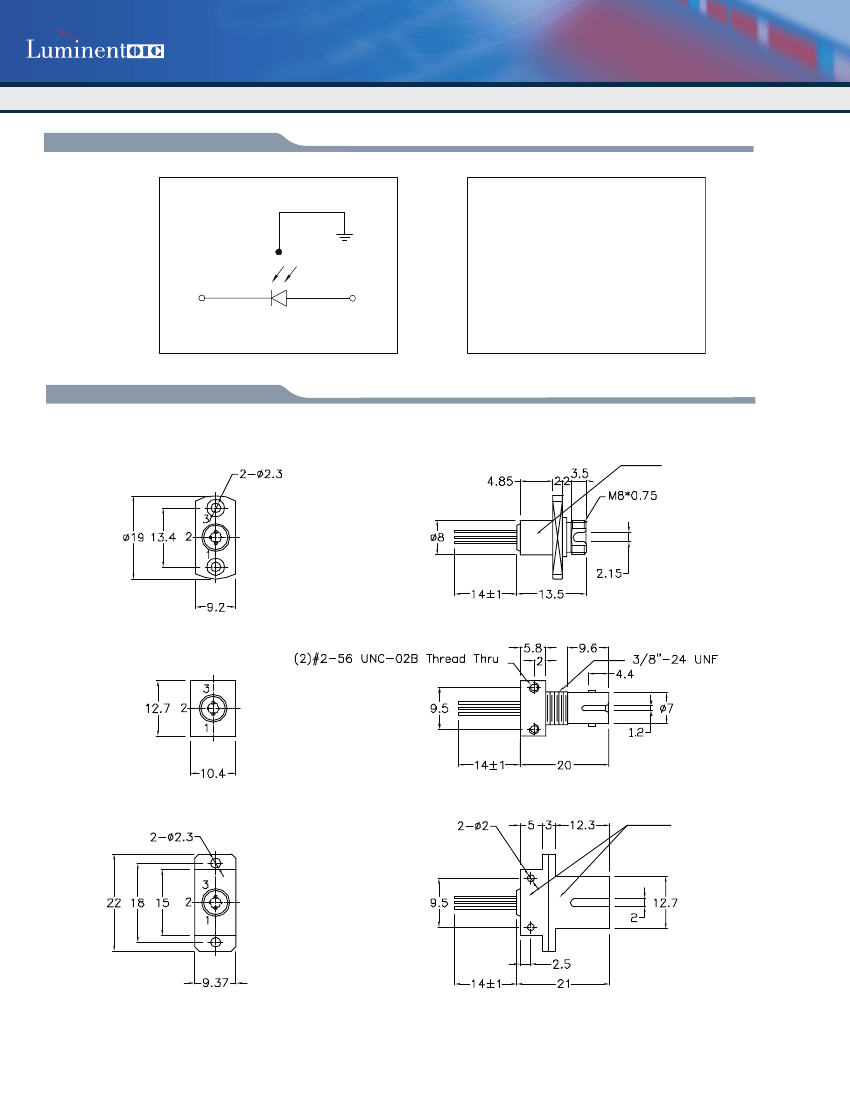

Packaging Dimension
Units in mm.
PIN TIA Receiver Module-Receptacle
Part Number : R-11-055-R-SXX-XX
metal
FC Receptacle
R-11-055-R-SFC-XX
ST Receptacle
R-11-055-R-SST-XX
plastic
SC Receptacle
R-11-055-R-SSC-XX
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
LUMNDS538-SEP2807
rev. A.1
2
InGaAs PIN Photodiode Modules
R-11-055-X-XXX-X-XX
Packaging Dimension
Units in mm.

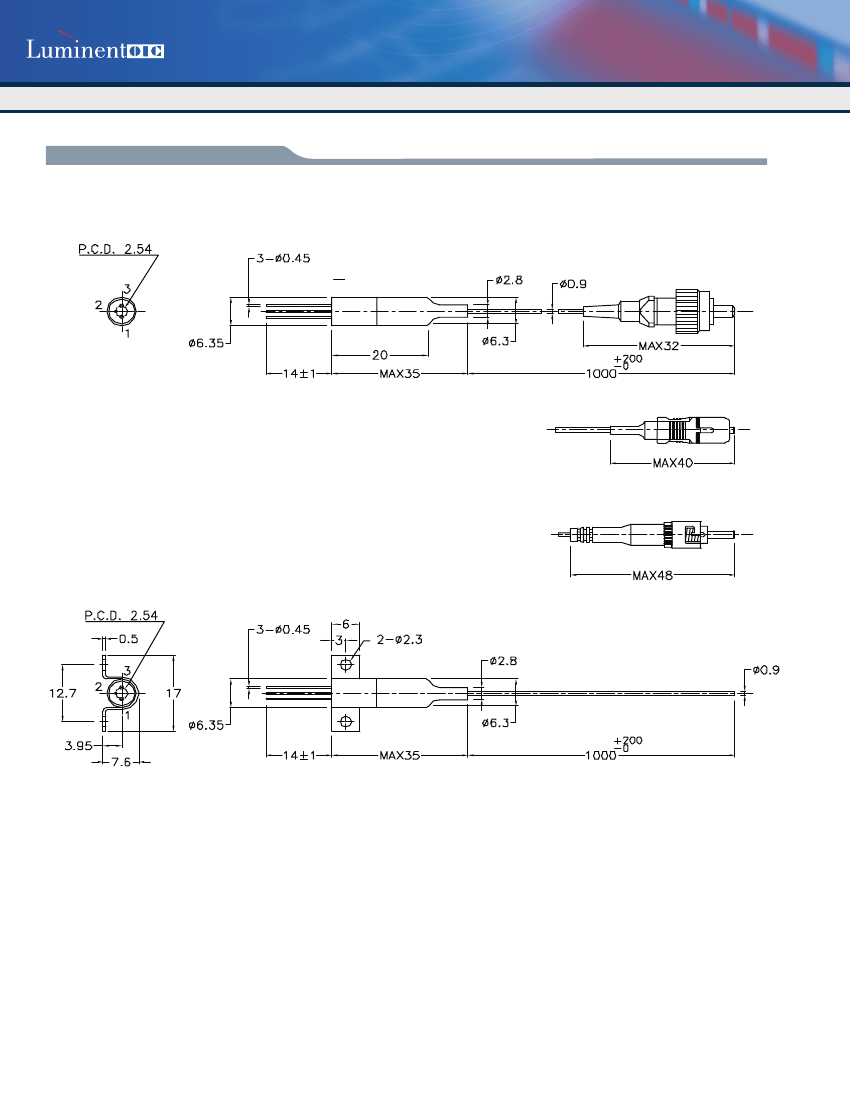

PIN TIA Receiver Module-Pigtail
Part Number : R-11-055-P-XXX-X-XX
Flange Type
"
":Flangeless
Connector Type
FC:FC/PC
SC:SC/PC
ST:ST/PC
"O":Horizonal (Omega Housing)
"-"
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
LUMNDS538-SEP2807
rev. A.1
3
InGaAs PIN Photodiode Modules
R-11-055-X-XXX-X-XX
Ordering Information
R-11-075-X-XXX-X-XX
Package
R=Receptacle
P=Pigtail
Connector
FC/ST/SC/Blank
Flange
"Blank" : without flange
"O" : O Type flange
Fiber Application
S= 9/125µm
M= 50/125µm
N= 62.5/125µm
Blank/G5/GR
RoHS Compliant
Blank = RoHS non-compliant product
G5 = RoHS 5/6-compliant product (lead exemption)
GR = Full RoHS compliant product (no exemption)
Warnings
Handling Precautions: This device is susceptible to damage as a result of electrostatic discharge (ESD). A static free environment is highly recommended.
Follow guidelines according to proper ESD procedures.
Laser Safety: Radiation emitted by laser devices can be dangerous to human eyes. Avoid eye exposure to direct or indirect radiation.
Legal Notice
IMPORTANT NOTICE!
All information contained in this document is subject to change without notice, at Luminent’s sole and absolute discretion. Luminent warrants perfor-
mance of its products to current specifications only in accordance with the company’s standard one-year warranty; however, specifications designated as
“preliminary” are given to describe components only, and Luminent expressly disclaims any and all warranties for said products, including express, implied,
and statutory warranties, warranties of merchantability, fitness for a particular purpose, and non-infringement of proprietary rights. Please refer to the
company’s Terms and Conditions of Sale for further warranty information.
Luminent assumes no liability for applications assistance, customer product design, software performance, or infringement of patents, services, or intel-
lectual property described herein. No license, either express or implied, is granted under any patent right, copyright, or intellectual property right, and
Luminent makes no representations or warranties that the product(s) described herein are free from patent, copyright, or intellectual property rights.
Products described in this document are NOT intended for use in implantation or other life support applications where malfunction may result in injury or
death to persons. Luminent customers using or selling products for use in such applications do so at their own risk and agree to fully defend and indemnify
Luminent for any damages resulting from such use or sale.
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROVIDED ON AN “AS IS” BASIS. Customer agrees that Luminent is not liable for any actual, con-
sequential, exemplary, or other damages arising directly or indirectly from any use of the information contained in this document. Customer must contact
Luminent to obtain the latest version of this publication to verify, before placing any order, that the information contained herein is current.
© LuminentOIC, Inc. 2007
All rights reserved
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
LUMNDS538-SEP2807
rev. A.1
4
