4/7/2014

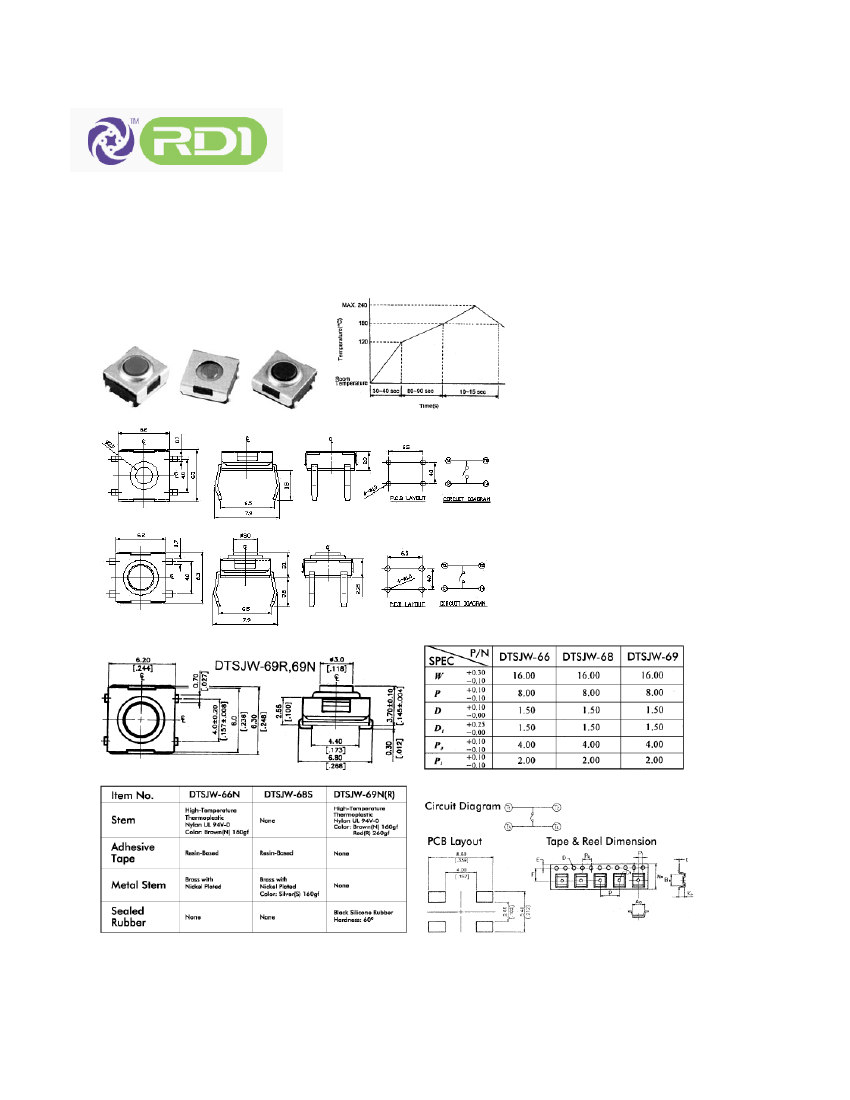

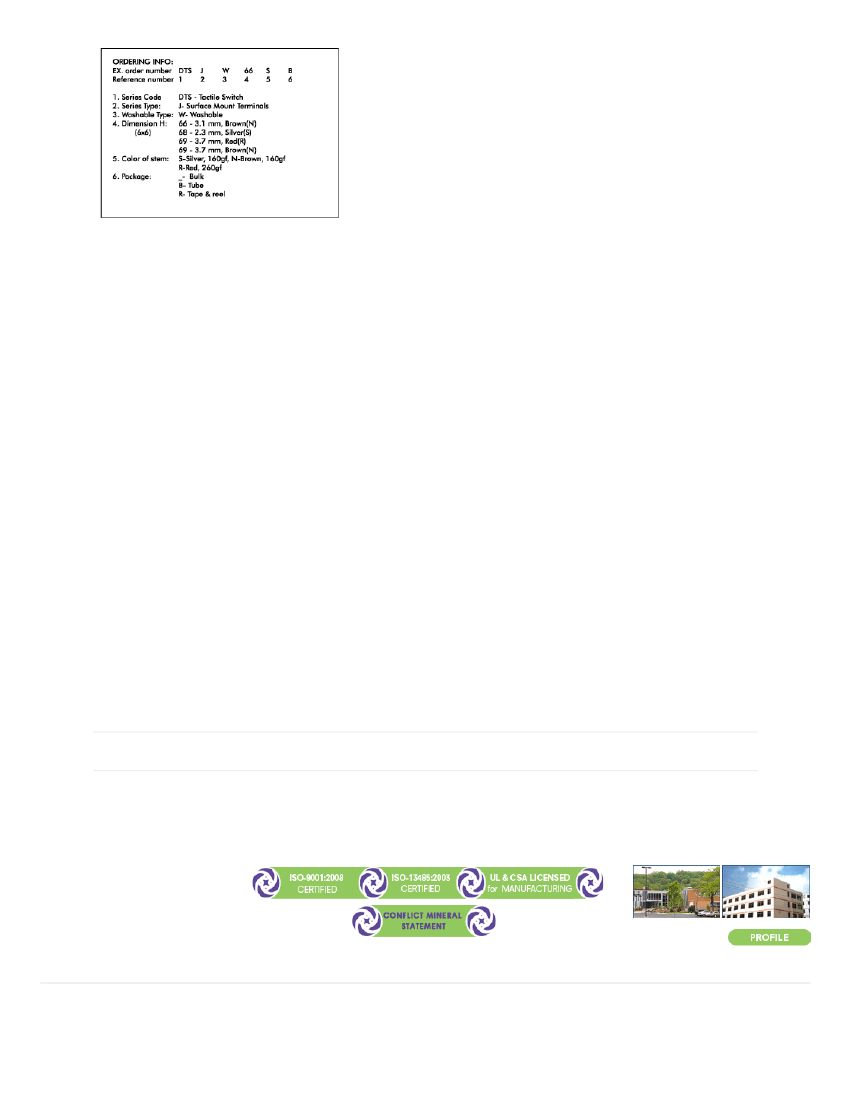

DTSJW Series
Mechanical Specifications
Operating Force :
260+/-50gf. Red(R), DTS H/M W-69R
160+/-50gf. Brown(N), DTS H/M W-66N, 69N
160+/-50gf. Silver(S), DTS H/M W-68S
Stop strength :
Stroke:
Vertical, 3kgf static load for 15 second period
-25 degrees C to +70 degrees C
-30 degrees C to +80 degrees C
(6x6) 0.25 +0.2 mm/-0.1 mm
Operating Temp. Range:
Storage Temp. Range:
Vibration test :
MIL-STD-202F Method 201A
Frequency: 10-55-10Hz/ 1 minute
Directions: X,Y,Z 3 mutually perpendicular directions
Time: 2 hours each direction - High reliability
Electrical Specifications
Electrical Life :
Rating:
50,000 cycles min. for 160gf & 260gf
100m ohms. Max
100m ohms Min. 500V DC
1 pole, 1 throw
250V AC/ 1 minute
50 mA, 12V DC
Contact Resistance :
Insulation Resistance :
Dielectric strength:
Contact arrangements :
Soldering Process
Wave Soldering :
Hand Soldering :
Soldering :
Recommended solder temp. at 500 degrees F (260C) max
30 watt soldeing iron, controlled at 680 degrees F
approximately 2 seconds while applying solder
Vapor phase & IR-reflow soldering can be applied
Conditions for solder: (Reflow & Washable Type)
