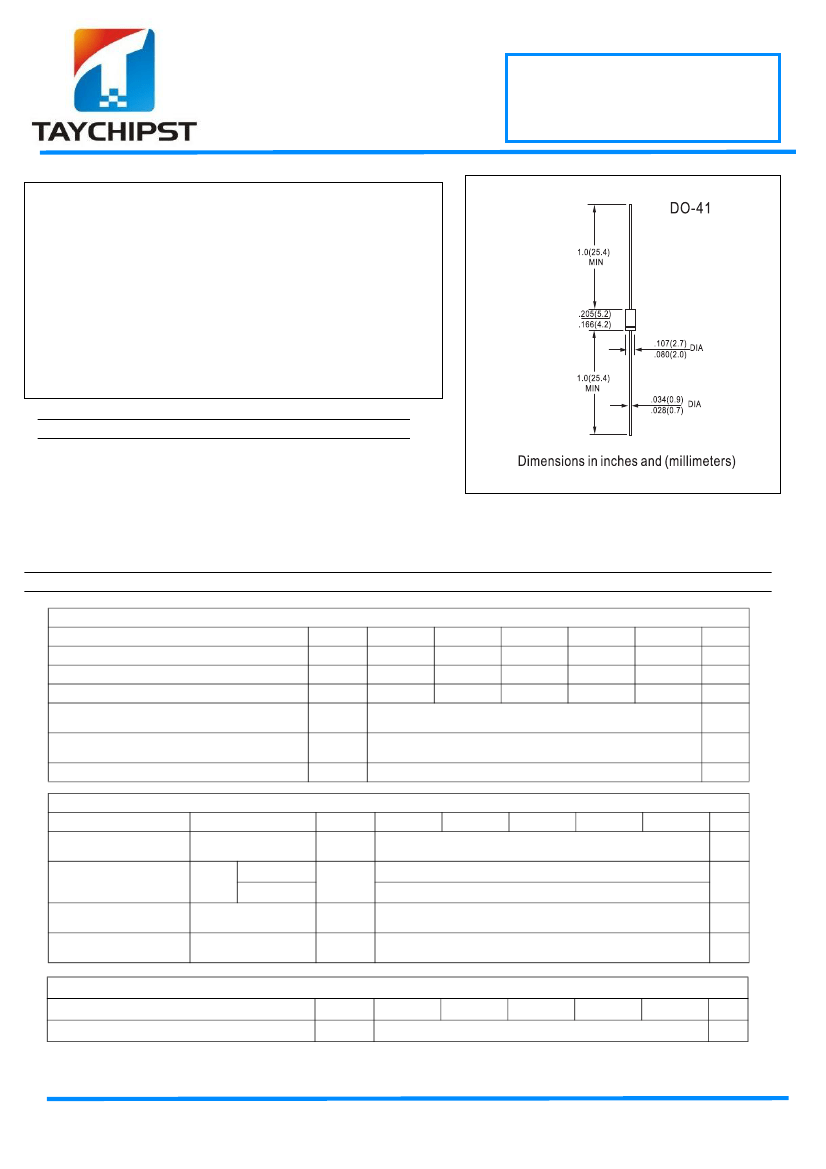

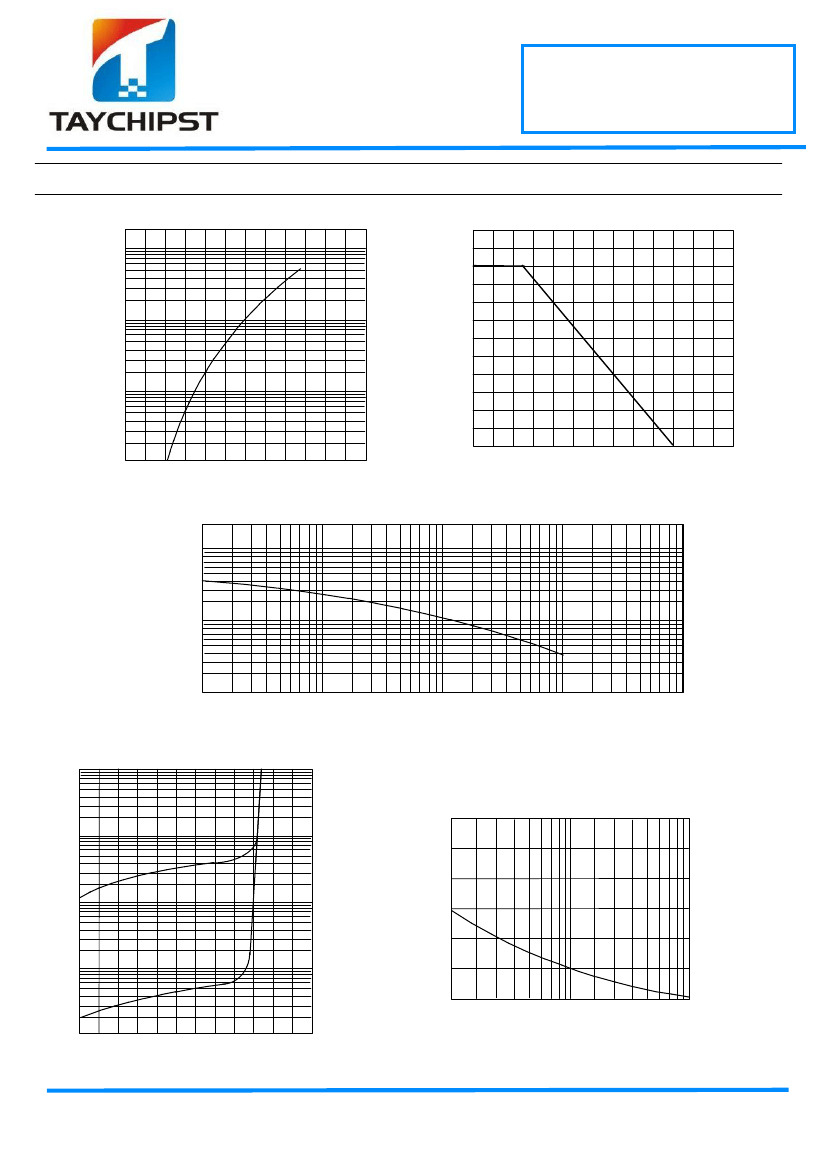

1N4933GP THRU 1N4937GP
GLASS PASSIVATED JUNCTION FAST SWITCHING RECTIFIER
50V-600V
1.0A
FEATURES
♦
Plastic package has Underwriters Laboratory
Flammability Classification 94V-0
♦
High temperature metallurgically bonded construction
♦
Capable of meeting environmental standards of MIL-S-19500
♦
For use in high frequency rectifier circuits
♦
Fast switching for high efficiency
♦
Glass passivated cavity-free junction
♦
1.0 Ampere operation at T
A
=75°C with no thermal runaway
♦
Typical I
R
less than 0.1µA
MECHANICAL DATA
Case:
JEDEC DO-204AL molded plastic over glass body
Terminals:
Plated axial leads, solderable per MIL-STD-750,
Method 2026
Polarity:
Color band denotes cathode end
Mounting Position:
Any
Weight:
0.012 ounce, 0.34 gram
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
MAXIMUM RATINGS
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
0.375" (9.5 mm) lead length at T
A
= 75 °C
Peak forward surge current 8.3 ms single half
sine-wave superimposed on rated load
Operating junction and storage temperature range
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
T
J
, T
STG
1N4933GP
50
35
50
1N4934GP
100
70
100
1N4935GP
200
145
200
1.0
30
- 65 to + 175
1N4936GP
400
280
400
1N4937GP
600
420
600
UNIT
V
V
V
A
A
°C
ELECTRICAL CHARACTERISTICS
PARAMETER
Maximum instantaneous
forward voltage
Maximum DC reverse
current at rated DC
blocking voltage
Maximum reverse
recovery time
Typical junction
capacitance
TEST CONDITIONS
1.0 A
T
A
= 25 °C
I
R
T
A
= 125 °C
I
F
= 1.0 A, V
R
= 30 V
4.0 V, 1 MHz
t
rr
C
J
100
200
15
ns
pF
SYMBOL
V
F
1N4933GP
1N4934GP
1N4935GP
1.2
5.0
μA
1N4936GP
1N4937GP
UNIT
V
THERMAL CHARACTERISTICS
PARAMETER
Typical thermal resistance
SYMBOL
R
JA
(1)
1N4933GP
1N4934GP
1N4935GP
55
1N4936GP
1N4937GP
UNIT
°C/W
Note
(1)
Thermal resistance from junction to ambient and from junction to lead at 0.375" (9.5 mm) lead length, PCB mounted
E-mail: sales@taychipst.com
1 of 2
Web Site: www.taychipst.com
1N4933GP THRU 1N4937GP
GLASS PASSIVATED JUNCTION FAST SWITCHING RECTIFIER
50V-600V
1.0A
ATINGS AND CHARACTERISTIC CURVES
Figure 1 Typical Forward Characteristics
20
10
6
4
2
Amps
1
.6
.4
.2
T
J
=25°C
.1
.06
.04
.02
.01
.6
.8
1.0
1.2
1.4
1.6
1N4933GP THRU 1N4937GP
Figure 2 Forward Derating Curve
1.2
1.0
.8
.6
Amps .4
.2
Single Phase, Half Wave
60Hz Resistive or Inductive Load
0
0
50
75
100
125
150
175
Instantaneous Forward Current - Amperes
versus
Instantaneous Forward Voltage - Volts
Figure 3
Average Forward Rectified Current - Amperes
versus
Ambient Temperature -
°C
Junction Capacitance
100
60
40
20
10
6
4
2
1
.1
.2
.4
1
2
4
10
20
40
100
200
400
1000
T
J
=25°C
Junction Capacitance - pF
versus
Reverse Voltage - Volts
Figure 4 Typical Reverse Characteristics
100
60
40
20
10
6
4
2
1
.6
.4
.2
.1
.06
.04
.02
.01
20
40
60
80
100
120
140
T
J
=25°C
T
J
=100°C
Figure 5 Peak Forward Surge Current
60
50
40
30
Amps
20
10
5
0
1
2
4
6
8 10
20
40
60 80 100
Peak Forward Surge Current - Amperes
versus
Number Of Cycles At 60Hz - Cycles
Instantaneous Reverse Leakage Current - MicroAmperes
E-mail: sales@taychipst.com
2 of 2
Web Site: www.taychipst.com
