BG035-10A-0-0600-0180-0290-N-B datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> BG035-10A-0-0600-0180-0290-N-B

Preview

BG035-10A-0-0600-0180-0290-N-B: DescriptionBoard Connector, 10 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Receptacle,; CategoryThe connector The connector; File Size121KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BG035-10A-0-0600-0180-0290-N-B Overview

Board Connector, 10 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Receptacle,

BG035-10A-0-0600-0180-0290-N-B Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Global Connector Technology
Reach Compliance Code	compli
Other features	ROHS COMPLIANT
body width	0.118 inch
subject depth	0.197 inch
body length	1 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrie
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	600VAC V
Insulation resistance	1000000000 Ω
insulator material	NYLON
JESD-609 code	e4
Manufacturer's serial number	BG035
Plug contact pitch	0.1 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	FLASH inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	10
Base Number Matches	1

Preview

Download Datasheet

View All

1

2

3

4

5

6

7

8

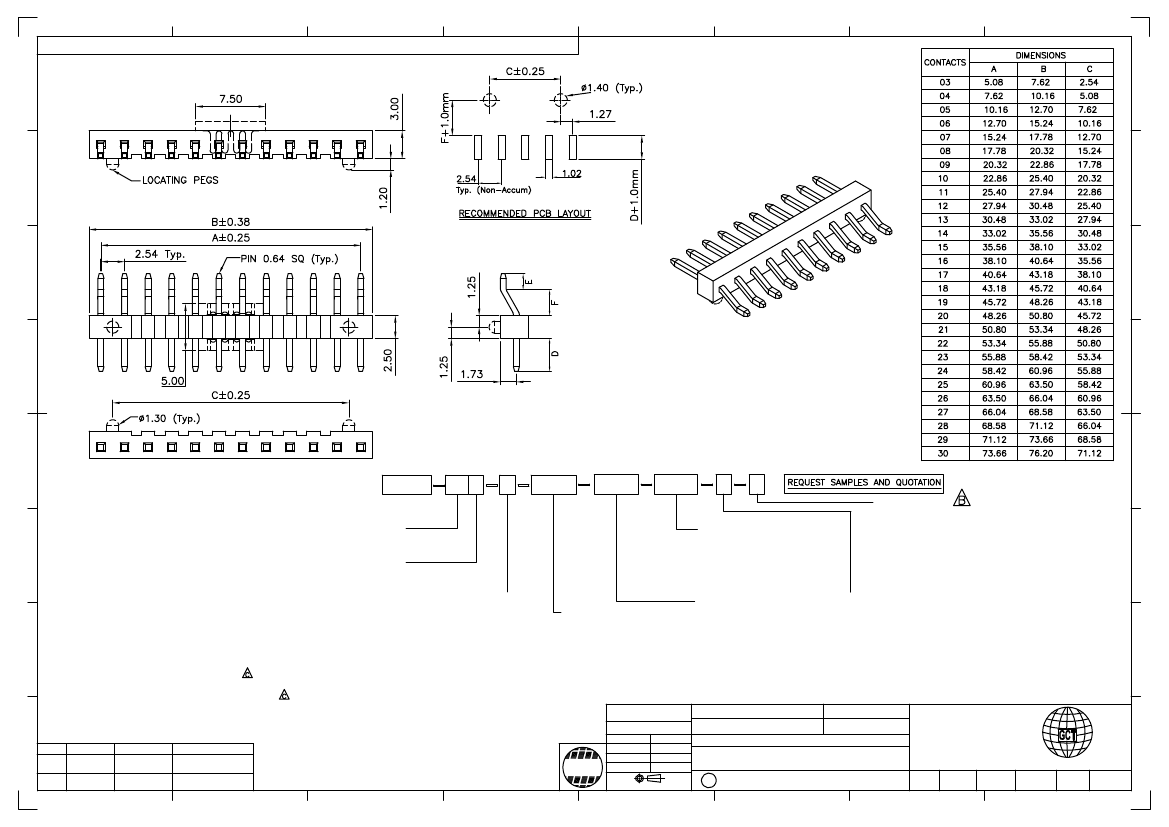

Global Connector Technology Ltd. - BG035: 2.54mm PITCH PIN HEADER, SINGLE ROW, SURFACE MOUNT, HORIZONTAL

A

B

C

D

E

Ordering Grid

SPECIFICATIONS

规格

CURRENT RATING

电流额定值

: 3.0 AMPERE

INSULATION RESISTANCE

绝缘电阻值

: 1000M

Ω

Min.

No. of Contacts

DIELECTRIC WITHSTANDING

耐电压

: 600V AC

03 to 30

CONTACT RESISTANCE

接触电阻值

: 20mΩ Max.

OPERATING TEMPERATURE

工½温度

: -40°C TO +105°C

Contact Plating

CONTACT MATERIAL

端子物料

: COPPER ALLOY

A = Gold Flash All Over

INSULATOR MATERIAL

绝缘½物料

:

B = Selective Gold Flash

STANDARD

标准物料

:POLYAMIDE

聚醯胺

, NYLON 6T, UL 94-V0

OPTIONS

可选物料

: POLYESTER

聚酯

, LCP, UL 94-V0

Contact Area/ Tin On Tail

SOLDERING PROCESS

可焊性

:

C = Tin All Over

NYLON 6T (STANDARD

标准物料

) -

G = 10µ" Gold Contact Area/Tin

IR REFLOW

回流焊

: 260°C for 10 sec.

On Tail

WAVE

波峰焊

: 230°C for 5-10 sec.

I = 30µ" Gold Contact Area/Tin

MANUAL SOLDER

人工焊接

: 350°C for 3-5sec

On Tail

LCP (OPTION

可选物料

) -

Standard = Gold Flash All

IR REFLOW

回流焊

: 260°C for 10 sec.

Over

WAVE

波峰焊

: 250°C for 5-10 sec

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

MATES WITH

配套之母座

(SUBJECT TO PIN LENGTH

在端子长度适合的条件下

):

BG090

BG095

BG096

BG100

BG110

BG115

BG125

BG130

BG135

BG145

BG205

By

DETAIL

REV

DATE

LYH

DRAWING

RELEASE

A

01/11/06

CB

PACKING OPTIONS

CHANGED

E

BG035

XX X

X

XXXX

X

Packing Options

B = Tape and Reel with Cap (Standard)

D = Tube

E = Tube with Cap

F

Locating Peg

0 = No Peg

1 = With Peg

Dimension F (1/100mm)

(Tail Bend Length)

Standard - 2.90mm = 0290

Or specify Dimension F

e.g. 2.50mm = 0250

TOL.: ±0.2mm

Dimension D (1/100mm)

(Post Length)

Standard - 6.00mm = 0600

Or specify Dimension D

e.g. 2.50mm = 0250

TOL.: ±0.2mm

Dimension E (1/100mm)

(Tail Foot Length)

Standard - 1.80mm = 0180

Or specify Dimension E

e.g. 2.50mm = 0250

TOL.: ±0.2mm

F

Insulator Material

N = Nylon 6T (Standard)

L = LCP

G

Tolerances

(Except as noted)

Part Number:-

Date:-

Dimensions in mm

X.°±5°

.X°±2°

.XX°±1°

X.XXX ± 0.10 .XXX°±0.5°

X. ± 0.30

X.X ± 0.20

X.XX ± 0.15

Third Angle Projection

BG035

Description:-

01 NOV 06

H

DR

CHANGE TO SOLDER

TEMP. INFORMATION

C

05/08/09

1

B

27/04/09

RoHS

3

4

2.54mm PITCH PIN HEADER, SINGLE ROW,

SURFACE MOUNT, HORIZONTAL

Global

Connector

Technology

Scale

NTS

H

Sheet No.

E & OE

1/1

www.globalconnectortechnology.com

Material

See Note

C

THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE

COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT

Revision

C

Drawn by

LYH

2

5

6

7

8
