AXIAL SILASTIC GUARD JUNCTION STANDARD RECTIFIER
1N5391G THRU 1N5399G
FEATURES
•
•
•
•
•
Glass passivated chip junction
Low forward voltage drop
Low reverse leakage
High forward surge current capability
High temperature soldering guaranteed
260℃/10 secods,0.375”(9.5mm)lead length at 5 lbs(2.3kg) tension
DO-15
1.0(25.4)
MIN.
.034(0.9)
.028(0.7)
DIA.
MECHANICAL DATA
•
•
•
•
•
•
.300(7.6)
.230(5.8)
.140(3.6)
.104(2.6)
1.0(25.4)
MIN.
DIA.
Case: Transfer molded plastic
Epoxy: UL94V-0 rate flame retardant
Polarity: Color band denotes cathode end
Lead: Plated axial lead, solderable per MIL-STD-202E method 208C
Mounting position: Any
Weight: 0.012ounce, 0.39 grams
Dimensions in inches and (millimeters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25℃ ambient temperature unless otherwise specified
Single Phase, half wave, 60Hz, resistive or inductive load
For capacitive load derate current by 20%
1N
1N
1N
1N
1N
1N
1N
1N
1N
SYMBOLS
UNIT
5391G 5392G 5393G 5394G 5395G 5396G 5397G 5398G 5399G
Maximum Repetitive Peak Reverse Voltage
V
RRM
50
100 200
300 400
500 600
800 1000 Volts
Maximum RMS Voltage
210 280
350
420
560
700 Volts
V
RMS
35
70
140
Maximum DC Blocking Voltage
V
DC
50
100 200
300 400
500
600
800 1000 Volts
Maximum Average Forward Rectified Current
0.375”(9.5mm) lead length at T
A
=75℃
Peak Forward Surge Current
8.3mS single half sine wave superimposed on
rated load (JEDEC method)
Maximum Instantaneous Forward Voltage at 1.5A
Maximum DC Reverse Current
at rated DC blocking Voltage at
T
A
= 25℃
T
A
= 125℃
•
•
•
I
(AV)
I
FSM
V
F
I
R
I
R(AV)
C
J
R
θJA
T
J
T
STG
1.5
50
1.1
5.0
50
30
20
50
(-55 to +150)
(-55 to +150)
Amps
Amps
Volts
µA
µA
pF
℃
/W
℃
℃
Maximum Full Load Reverse Current, full cycle
Average 0.375(9.5mm) lead length at T
L
=75℃
Typical Junction Capacitance (NOTE 1)
Typical Thermal Resistance (NOTE 2)
Operating Temperature Range
Storage Temperature Range
Notes:
1.Measured at 1.0MHz and applied reverse voltage of 4.0 Volits.
2. Thermal Resistance from Junction to Ambient at. 375”(9.5mm)lead length, P.C. board mounted.
Web Site:
WWW.PS-PFS.COM
AXIAL SILASTIC GUARD JUNCTION STANDARD RECTIFIER
1N5391G THRU 1N5399G

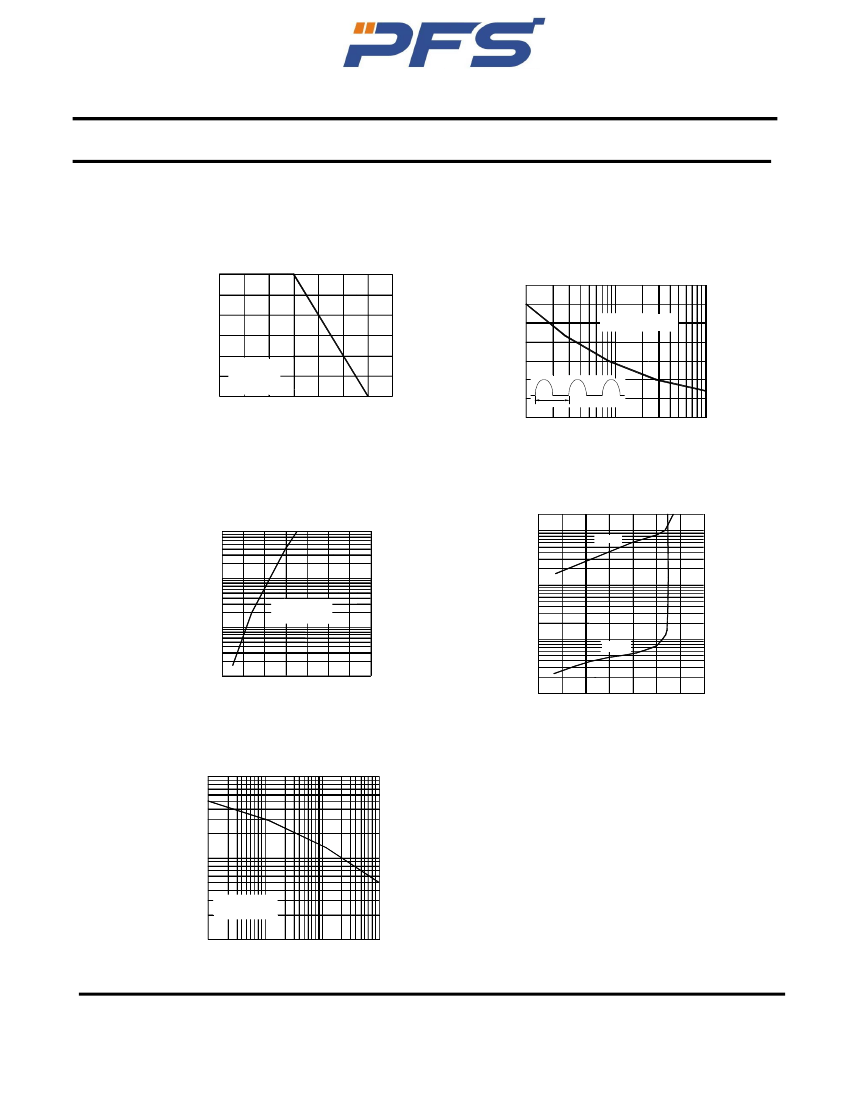

RATING AND CHRACTERISTIC CURVES IN5391G THRU IN5399G
FIG.1-TYPICAL FORWARD CURRENT
DERATING CURVE
1.5
FIG.2-MAXIMUM NON-REPETITIVE PEAK
FORWARD SURGE CURRENT
70
AVERAGE FORWARD CURRENT,
(A)
PEAK FORWARD SURGE
60
1.0
CURRENT, (A)
8.3ms Single Half Sine-Wave
(JEDEC Method) T= T
jmax
40
0.5
Single Phase
Half Wave 60Hz
Resistive or
Inductive Load
0.375(9.5mm) Lead Length
20
0
0
25
50
75
100
125
150
175
0
1
2
4
6
8
10
20
40
60
100
1 Cycle
AMBIENT TEMPERATURE, (° C)
NUMBER OF CYCLES AT 60 Hz
FIG.3-TYPICAL INSTANTANEOUS
FORWARD CHARACTERISTICS
10
FIG.4-TYPICAL REVERSE
CHARACTERISTICS
20
10
INSTANTANEOUS FORWARD CURRENT,
1.0
INSTANTANEOUS REVERSE CURRENT,
(μA)
T
J
=125° C
1.0
T
J
=25° C
Pulse Width=300us
1% Duty Cycle
0.1
(A)
0.1
T
J
=25° C
0.01
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
INSTANTANEOUS FORWARD VOLTAGE,(V)
0.01
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK
REVERSE VOLTAGE,(%)
FIG.5-TYPICAL JUNCTION CAPACITANCE
100
CAPACITANCE,(pF)
10
T
J
=25° C
f=1MHz
Vsig=50mVp-p
1
0.1
1.0
10
100
REVERSE VOLTAGE,(V)
Web Site:
WWW.PS-PFS.COM
