1N5391 - 1N5399 — General Purpose Rectifiers
August 2009
1N5391 - 1N5399
General Purpose Rectifiers
Features
• 1.5 ampere operation at T
A
= 70°C with no thermal runaway.
• High current capability.
• Low leakage.
DO-15
Color Band Denotes Cathode
Absolute Maximum Ratings *
T
A
= 25°C unless otherwise noted
Symbol
V
RRM
I
F(AV)
I
FSM
Parameter
Peak Repetitive Reverse Voltage
Average Rectified Forward Current
.375 " lead length @ T
A
= 75°C
Non-repetitive Peak Forward Surge
Current
8.3 ms Single Half-Sine-Wave
Value
5391 5392 5393 5394 5395 5396 5397 5398 5399
50
100
200
300
400
1.5
500
600
800 1000
Units
V
A
50
-55 to +150
-55 to +150
A
°C
°C
T
STG
T
J
Storage Temperature Range
Operating Junction Temperature
* These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.
Thermal Characteristics
Symbol
P
D
R
θJL
Parameter
Power Dissipation
Thermal Resistance, Junction to Lead *
Value
4.8
26
Units
W
°C/W
* Mounted on 0.375" (9.5mm) PCB
Electrical Characteristics
Symbol
V
F
I
R
C
T
T
A
= 25°C unless otherwise noted
Parameter
Forward Voltage @1.5A
Reverse Leakage @rated V
R
T
A
=25°C
T
A
=100°C
Total Capacitance V
R
=4.0 V, f=1.0MHz
Value
5391 5392 5393 5394 5395 5396 5397 5398 5399
1.4
5.0
300
25
Units
V
μA
μA
pF
© 2009 Fairchild Semiconductor Corporation
1N5391 - 1N5399 Rev. D1
1
www.fairchildsemi.com

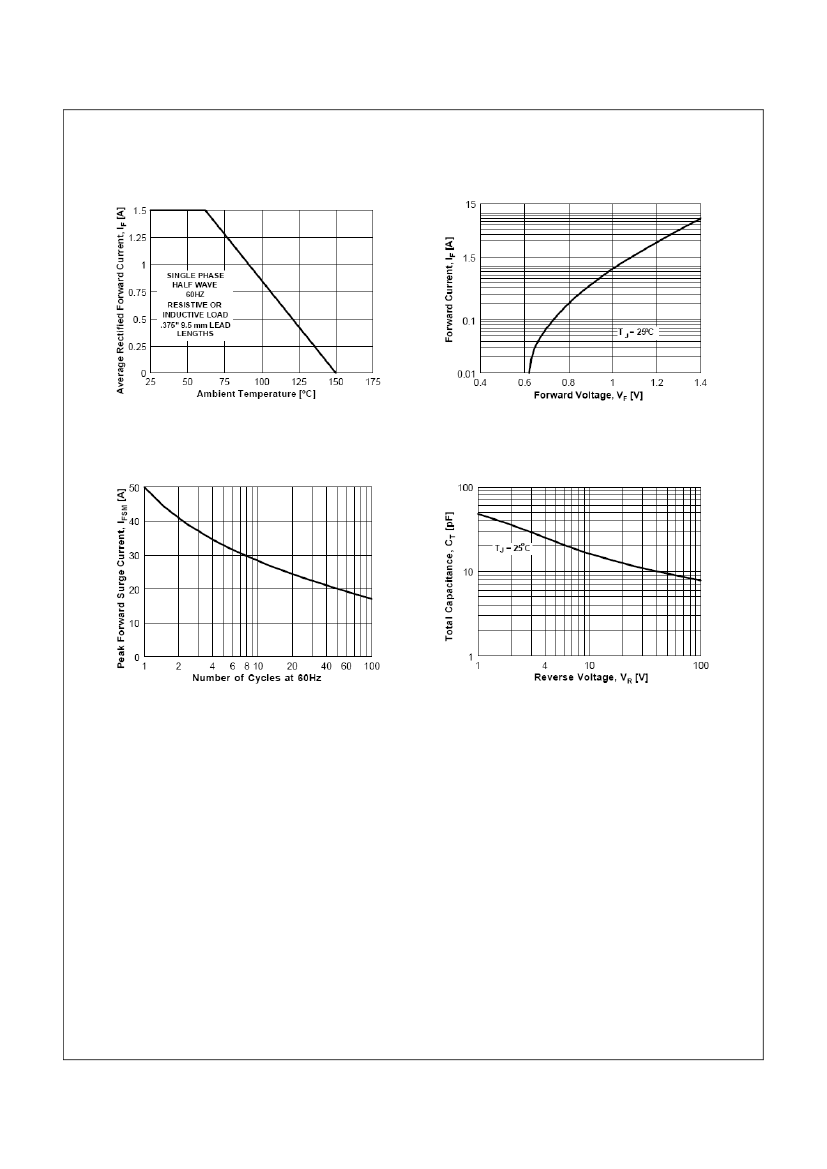

TRADEMARKS
