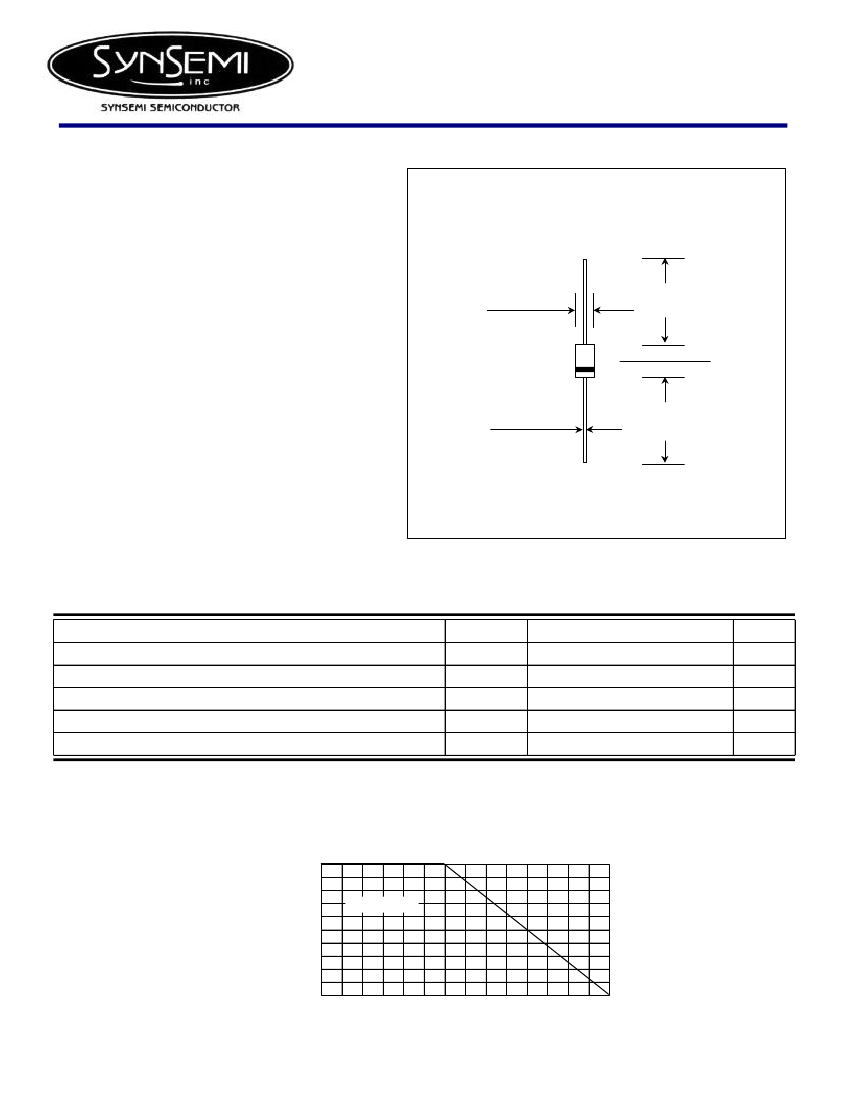

1N5913A - 1N5957A
V
Z
: 3.3 - 240 Volts
P
D
: 1.5 Watts
FEATURES :
*
*
*
*
Complete Voltage Range 3.3 to 200 Volts
High peak reverse power dissipation
High reliability
Low leakage current
SILICON ZENER DIODES
DO - 41
0.107 (2.7)
0.080 (2.0)
1.00 (25.4)
MIN.
0.205 (5.2)
0.166 (4.2)
MECHANICAL DATA
* Case : DO-41 Molded plastic
* Epoxy : UL94V-O rate flame retardant
* Lead : Axial lead solderable per MIL-STD-202,
method 208 guaranteed
* Polarity : Color band denotes cathode end
* Mounting position : Any
* Weight : 0.339 gram
0.034 (0.86)
0.028 (0.71)
1.00 (25.4)
MIN.
Dimensions in inches and ( millimeters )
MAXIMUM RATINGS
Rating at 25
°
C ambient temperature unless otherwise specified
Rating
DC Power Dissipation at T
L
= 75
°C
(Note1)
Maximum Forward Voltage at I
F
= 200 mA
Maximum Thermal Resistance Junction to Ambient Air (Note2)
Junction Temperature Range
Storage Temperature Range
Symbol
P
D
V
F
RθJA
T
J
Ts
Value
1.5
1.5
130
- 55 to + 175
- 55 to + 175
Unit
Watts
Volts
K/W
°C
°C
Note :
(1) T
L
= Lead temperature at 3/8 " (9.5mm) from body
(2) Valid provided that leads are kept at ambient temperature at a distance of 10 mm from case.
Fig. 1 POWER TEMPERATURE DERATING CURVE
P
D
, MAXIMUM DISSIPATION
(WATTS)
1.5
1.2
L = 3/8" (9.5mm)
0.9
0.6
0.3
0
25
50
75
100
125
150
175
T
L,
LEAD TEMPERATURE (
°
C)
Page 1 of 2
Rev. 01 : January 10, 2004
ELECTRICAL CHARACTERISTICS
Rating at 25
°
C ambient temperature unless otherwise specified
Nominal Zener
Voltage
V
Z
@ I
ZT
I
ZT
(V)
(mA)
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10
11
12
13
15
16
18
20
22
24
27
30
33
36
39
43
47
51
56
62
68
75
82
91
100
110
120
130
150
160
180
200
240
113.6
104.2
96.1
87.2
79.8
73.5
66.9
60.5
55.1
50.0
45.7
41.2
37.5
34.1
31.2
28.8
25.0
23.4
20.8
18.7
17.0
15.6
13.9
12.5
11.4
10.4
9.6
8.7
8.0
7.3
6.7
6.0
5.5
5.0
4.6
4.1
3.7
3.4
3.1
2.9
2.5
2.3
2.1
1.9
1.5
Maximum Zener
Impedance
Z
ZK
@ I
ZK
(Ω)
500
500
500
500
500
500
500
200
200
400
400
500
500
550
550
550
600
600
650
650
650
700
700
750
800
850
900
950
1000
1100
1300
1500
1700
2000
2500
3000
3100
4000
4500
5000
6000
6500
7000
8000
9000
Maximum Reverse
Leakage Current
I
R
@ V
R
(V)
(
µ
A)
100
75
25
5.0
5.0
5.0
5.0
5.0
50
50
50
50
50
50
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.5
2.0
3.0
4.0
5.2
6.0
6.5
7.0
8.0
8.4
9.1
9.9
11.4
12.2
13.7
15.2
16.7
18.2
20.6
22.8
25.1
27.4
29.7
32.7
35.8
38.8
42.6
47.1
51.7
56.0
62.2
69.2
76.0
83.6
91.2
98.8
114.0
121.6
136.8
152.0
182.4
Maximum DC
Zener Current
I
ZM
(mA)
454
416
384
348
319
294
267
241
220
200
182
164
150
136
125
115
100
93
83
75
68
62
55
50
45
41
38
34
31
29
26
24
22
20
18
16
15
13
12
11
10
9.0
8.0
7.0
6.0
TYPE
Z
ZT
@ I
ZT
(Ω)
10
9.0
7.5
6.0
5.0
4.0
2.0
2.0
2.5
3.0
3.5
4.0
4.5
5.5
6.5
7.0
9.0
10
12
14
17.5
19
23
26
33
38
45
53
67
70
86
100
120
140
160
200
250
300
380
450
600
700
900
1200
1600
I
ZK
(mA)
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
0.5
0.5
0.5
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
1N5913A
1N5914A
1N5915A
1N5916A
1N5917A
1N5918A
1N5919A
1N5920A
1N5921A
1N5922A
1N5923A
1N5924A
1N5925A
1N5926A
1N5927A
1N5928A
1N5929A
1N5930A
1N5931A
1N5932A
1N5933A
1N5934A
1N5935A
1N5936A
1N5937A
1N5938A
1N5939A
1N5940A
1N5941A
1N5942A
1N5943A
1N5944A
1N5945A
1N5946A
1N5947A
1N5948A
1N5949A
1N5950A
1N5951A
1N5952A
1N5953A
1N5954A
1N5955A
1N5956A
1N5957A
Note :
( 1 ) Suffix " A " indicates
±
10% tolerance, suffix " B " indicates
±
5.0% tolerance.
Page 2 of 2
Rev. 01 : January 10, 2004
