1N6267A-1N6303CA
V
BR
: 6.8 - 200 Volts
P
PK
: 1500 Watts
FEATURES :
* 1500W surge capability at 1ms
* Excellent clamping capability
* Low zener impedance
* Fast response time : typically less
then 1.0 ps from 0 volt to V
BR(min.)
* Typical I
R
less then 1µA above 10V
TRANSIENT VOLTAGE
SUPPRESSOR

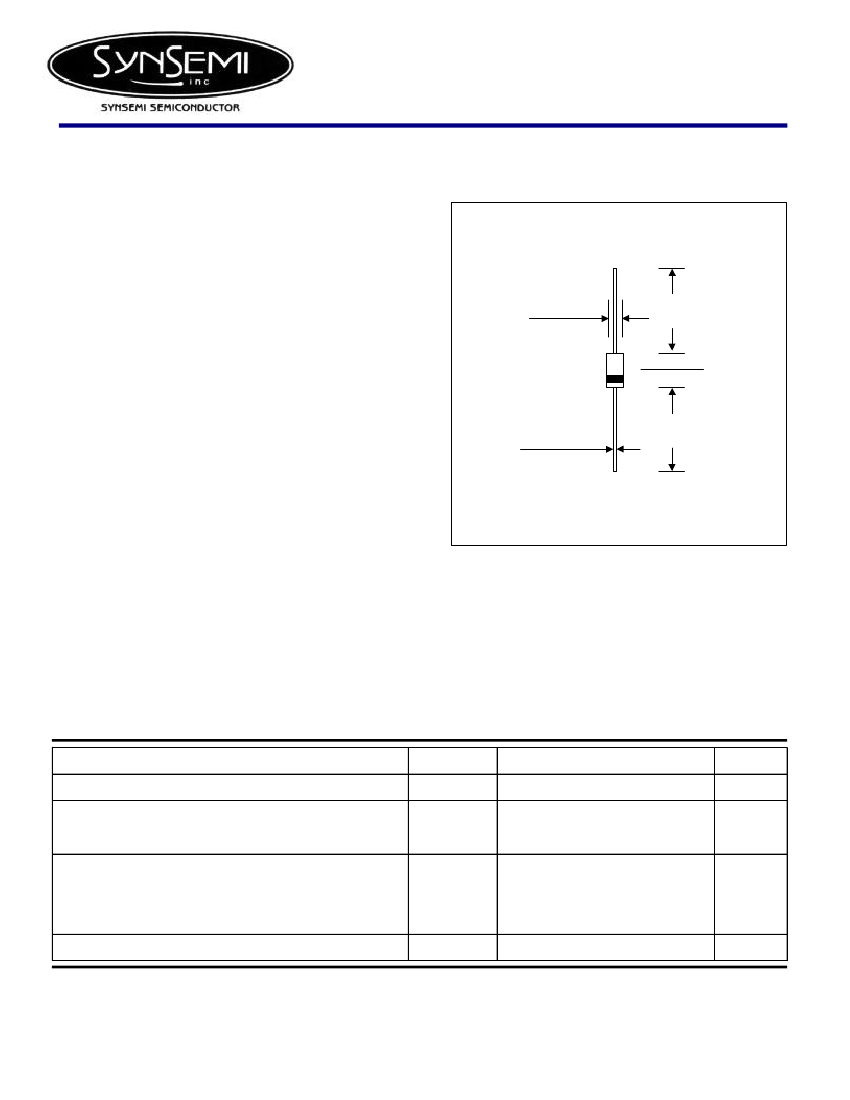

DO-201
0.21 (5.33)
0.19 (4.83)
1.00 (25.4)
MIN.
0.375 (9.53)
0.285 (7.24)
MECHANICAL DATA
* Case : DO-201 Molded plastic
* Epoxy : UL94V-O rate flame retardant
* Lead : Axial lead solderable per MIL-STD-202,
method 208 guaranteed
* Polarity : Color band denotes cathode end except Bipolar.
* Mounting position : Any
* Weight : 0.93 grams
0.052 (1.07)
0.048 (0.97)
1.00 (25.4)
MIN.
Dimensions in inches and (millimeters)
MAXIMUM RATINGS
Rating at 25
°
C ambient temperature unless otherwise specified.
Rating
Peak Power Dissipation at Ta = 25
°C,
Tp=1ms (Note1)
Steady State Power Dissipation at TL = 75
°C
Lead Lengths 0.375", (9.5mm) (Note 2)
Peak Forward Surge Current, 8.3ms Single Half
Sine-Wave Superimposed on Rated Load
(JEDEC Method) (Note 3)
Operating and Storage Temperature Range
Symbol
P
PK
P
D
Value
1500
5.0
Unit
W
W
I
FSM
200
A
T
J
, T
STG
- 65 to + 175
°C
Notes :
(1) Non-repetitive Current pulse, per Fig. 5 and derated above Ta = 25
°
C per Fig. 1
(2) Mounted on Copper Lead area of 1.57 in
2
(40mm
2
).
(3) 8.3 ms single half sine-wave, duty cycle = 4 pulses per minutes maximum.
Page 1 of 3
Rev. 02 : January 28, 2004
ELECTRICAL CHARACTERISTICS
Rating at 25°C ambient temperature unless otherwise specified
Type No.
Uni-directional
1N6267A
1N6268A
1N6269A
1N6270A
1N6271A
1N6272A
1N6273A
1N6274A
1N6275A
1N6276A
1N6277A
1N6278A
1N6279A
1N6280A
1N6281A
1N6282A
1N6283A
1N6284A
1N6285A
1N6286A
1N6287A
1N6288A
1N6289A
1N6290A
1N6291A
1N6292A
1N6293A
1N6294A
1N6295A
1N6296A
1N6297A
1N6298A
1N6299A
1N6300A
1N6301A
1N6302A
1N6303A
Bi-directional
1N6267CA
1N6268CA
1N6269CA
1N6270CA
1N6271CA
1N6272CA
1N6273CA
1N6274CA
1N6275CA
1N6276CA
1N6277CA
1N6278CA
1N6279CA
1N6280CA
1N6281CA
1N6282CA
1N6283CA
1N6284CA
1N6285CA
1N6286CA
1N6287CA
1N6288CA
1N6289CA
1N6290CA
1N6291CA
1N6292CA
1N6293CA
1N6294CA
1N6295CA
1N6296CA
1N6297CA
1N6298CA
1N6299CA
1N6300CA
1N6301CA
1N6302CA
1N6303CA
Breakdown Voltage @ It
( Note 1 )
V
BR
(V)
Min.
Max.
6.45
7.13
7.79
8.65
9.50
10.5
11.4
12.4
14.3
15.2
17.1
19.0
20.9
22.8
25.7
28.5
31.4
34.2
37.1
40.9
44.7
48.5
53.2
58.9
64.6
71.3
77.9
86.5
95.0
105
114
124
143
152
162
171
190
7.14
7.88
8.61
9.55
10.5
11.6
12.6
13.7
15.8
16.8
18.9
21.0
23.1
25.2
28.4
31.5
34.7
37.8
41.0
45.2
49.4
53.6
58.8
65.1
71.4
78.8
86.1
95.5
105
116
126
137
158
168
179
189
210
It
(mA)
10
10
10
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
Working Peak
Reverse
Voltage
V
RWM
(V)
5.80
6.40
7.02
7.78
8.55
9.40
10.2
11.1
12.8
13.6
15.3
17.1
18.8
20.5
23.1
25.6
28.2
30.8
33.3
36.8
40.2
43.6
47.8
53.0
58.1
64.1
70.1
77.8
85.5
94.0
102
111
128
136
145
154
171
Maximum
Maximum
Reverse Leakage Reverse
@ V
RWM
Current
I
R
I
RSM
(A)
(µA)
1000
500
200
50
10
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
143
132
124
112
103
96.0
90.0
82.0
71.0
67.0
59.5
54.0
49.0
45.0
40.0
36.0
33.0
30.0
28.0
25.3
23.2
21.4
19.5
17.7
16.3
14.6
13.3
12.0
11.0
9.9
9.1
8.4
7.2
6.8
6.4
6.1
5.5
Maximum
Maximum
Clamping
Temperature
Voltage @ I
RSM
Co-efficient
V
RSM
of V
BR
(V)
(% /°C)
10.5
11.3
12.1
13.4
14.5
15.6
16.7
18.2
21.2
22.5
25.2
27.7
30.6
33.2
37.5
41.4
45.7
49.9
53.9
59.3
64.8
70.1
77.0
85.0
92.0
103
113
125
137
152
165
179
207
219
234
246
274
0.057
0.061
0.065
0.068
0.073
0.075
0.078
0.081
0.084
0.086
0.088
0.090
0.092
0.094
0.096
0.097
0.098
0.099
0.100
0.101
0.101
0.102
0.103
0.104
0.104
0.105
0.105
0.106
0.106
0.107
0.107
0.107
0.108
0.108
0.108
0.108
0.108
Notes:
( 1 ) V
BR
measured after It applied for 300
µs.,
It = square wave pulse or equivalent.
( 2 ) V
F
= 3.5 Vmax., I
F
= 100 Amps. ( 6.8 Volts thru 91 Volts )
V
F
= 5.0 Vmax., I
F
= 100 Amps. ( 100 Volts thru 200 Volts ) per 1/2 square or equivalent sine wave.
PW = 8.3 ms, duty cycle = 4 pulses per minute maximum.
Page 2 of 3
Rev. 02 : January 28, 2004

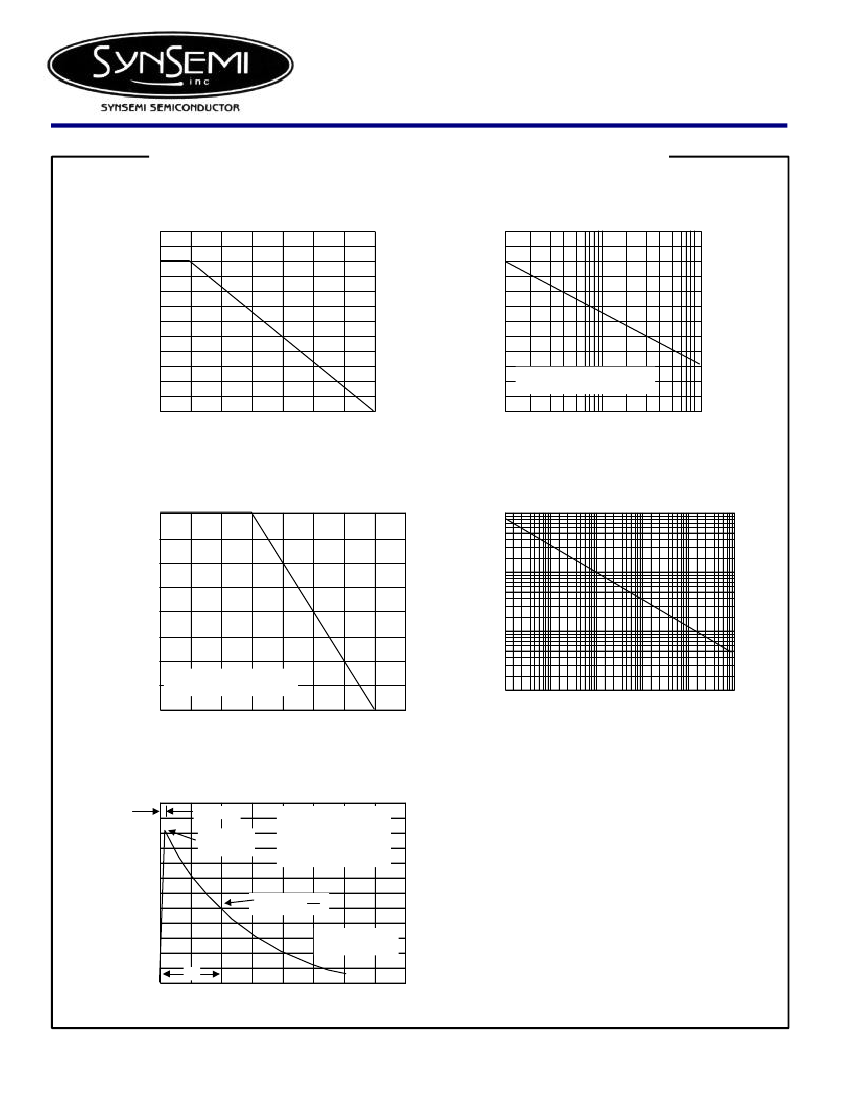

RATING AND CHARACTERISTIC CURVES ( 1N6267A - 1N6303CA )
FIG.1 - PULSE DERATING CURVE
120
FIG.2 - MAXIMUM NON-REPETITIVE
SURGE CURRENT
240
PEAK PULSE DERATING IN % OF
PEAK POWER OR CURRENT
PEAK FORWARD SURGE
CURRENT, AMPERES
100
80
200
160
60
120
40
80
8.3 ms SINGLE HALF SINE WAVE
JEDEC METHOD
20
0
0
25
50
75
100
125
150
175
40
0
1
2
4
6
10
20
40
60
100
Ta, AMBIENT TEMPERATURE, (
°
C)
NUMBER OF CYCLES AT 60Hz
FIG.3 - STEADY STATE POWER DERATING
P
D
, STEADY STATE POWER DISSIPATION
(WATTS)
5.00
FIG.4 - PULSE RATING CURVE
100
3.75
Pp,PEAK POWER (kW)
Single Phase Half Wave
60 Hz Resistive or Inductive load
10
2.50
1.0
1.25
0.1
0.1µs
125
150
175
200
1.0µs
10µs
100µs
1.0ms
10ms
0
0
25
50
75
100
tp, PULSE WIDTH
T
L
, LEAD TEMPERATURE (°C)
FIG.5 - PULSE WAVEFORM
PEAK PULSE CURRENT - % I
RMS
Tr = 10µs
100
Peak Value
I
RMS
T
J
=25
°C
Pulse Width (tp) is defined
as that point where the peak
current decays to 50%
of I
RSM
50
Half Value - I
RMS
2
10X1000 Waveform
as defined by R.E.A.
tp
0
0
1.0
2.0
3.0
4.0
T, TIME(ms)
Page 3 of 3
Rev. 02 : January 28, 2004
