ExpressPort™ QSFP+
QSFP
U90-T161-100A
U90-A111-101A
U90-H1R1-100A
The ExpressPort™ QSFP+/QSFP Interconnect system is comprised of a 38-position 0.8 mm pitch SMT
connector and a press-fit cage designed to comply with the Quad Small Form-factor Pluggable (QSFP) Transceiver
Specifications. The connector system is capable of data rates beyond 10 Gbps per channel (4 channels) and is
intended for external connections (38-position connector). High speed serial interconnect applications include
clusters, servers and storage devices.
The ExpressPort™ QSFP+ E-series connector family is rated at 28 Gbps per channel (4x28), featuring a stamped
and formed contact design providing improved mechanical durability. This connector features an integrated
grounding structure and resonance dampening features for superior crosstalk performance. The contact design is
optimized for a smooth impedance profile resulting in low losses. The ExpressPort ™ QSFP+ E-series connector
is designed for IBTA [EDR] applications (25.78 Gbps) and is fully compatible with industry standard SFF-8436
QSFP+ modules. The QSFP+ E-series connector is fully compatible with existing QSFP and QSFP+ cages.
Specification Highlights
The QSFP interconnect system is comprised of a press-fit cage assembly which is used with 38-position,
0.8 mm pitch connectors complying with QSFP Transceiver Specifications.
Mechanical Characteristics
• Cage is keyed according to QSFP MSA
• Durability: 250 mating cycles minimum
• Connector insertion force: 40 N max
• Connector withdrawal force: 30 N max
Packaging
• Tape and reel packaging: connector or 1x1 cage
• Tray packaging: cage of all sizes
• Bulk packaging: dust cover
Materials
• Cage
Electrical Characteristics
• Base material: copper alloy
• Operating voltage: 30 V
• Operating current: 0.5 A
• Plating: nickel
• Insulation resistance: 1000 MΩ min • DWV: 300 V AC
• Light pipe: optical grade polycarbonate
• Contact resistance: 70 mΩ max
• Hot swappable
• Heat sink: aluminum alloy
• Differential impedance: 100
Ω+/-
10
Ω
• Heat sink clip: stainless steel
Signal Integrity Characteristics
• Dust cover: thermoplastic
QSFP, ExpressPort™ QSFP+
• Connector
• Return Loss: 10 dB
• Contact base material: copper alloy
• Near end isolation: -40 dB (frequencies up to 3 GHz)
• Contact plating: gold on mating area; matte tin on terminations
• Insertion loss: 0.13dB max (frequencies up to 1.25 GHz)
and grounding tabs
0.25 dB max (frequencies 1.25 - 2.50 GHz)
• Housings: glass reinforced, lead-free solder reflow process
0.25 dB max (frequencies 2.50 - 5.00 GHz)
compatible thermoplastic, UL94V-0 rated
• Rise time for impedance measurement: 25 ps
Temperature Rating
• Within pair skew: 1 ps
• Operating temperature: -40 °C to +85 °C
• NEXT:
≤
2%
• Storage temperature: -40 °C to +85 °C
ExpressPort™ QSFP+ E-series Connector
• Return loss: -12dB max (frequencies up to 14GHz)
Configurations
(Rows x Ports per row)
• Insertion loss: 1.4dB max (frequencies up to 14GHz)
• 1x1
• 1x3
• 1x4
• 1x6
• Common mode conversion: -24dB max (up to 14 GHz)
• Integrated Crosstalk Noise: 3mV rms
Options
- assumes 3 nearest-neighbor (most-detrimental)
• Light pipe
• Cage design
aggressor parameters and receiver parameters:
• Round 1.4 mm
• Through the bezel
• Near- & far-end aggressors’ peak differential
• Square 2.6x2.6 mm
• Behind the bezel
amplitude: 600mv
• Dust cover
• Heat sinks
• Near- & far-end aggressors’ 20%-80% risetime: 9.6ps
• 3dB reference receiver bandwidth: 18.75 GHz
• Range of integration: 10MHz to 28 GHz
• MDNEXT: 1mVrms MDFEXT: 2.8mVrms
1x3 QSFP Cage
with Heat Sink and Round Light Pipes
U90-G351-101A
10
HIGH SPEED
FS1-E38-20M0-10
28 Gbps
I/O PRODUCTS
FS1-R38-20A2-10
16 Gbps
FS1-R38-20A2-01
12 Gbps

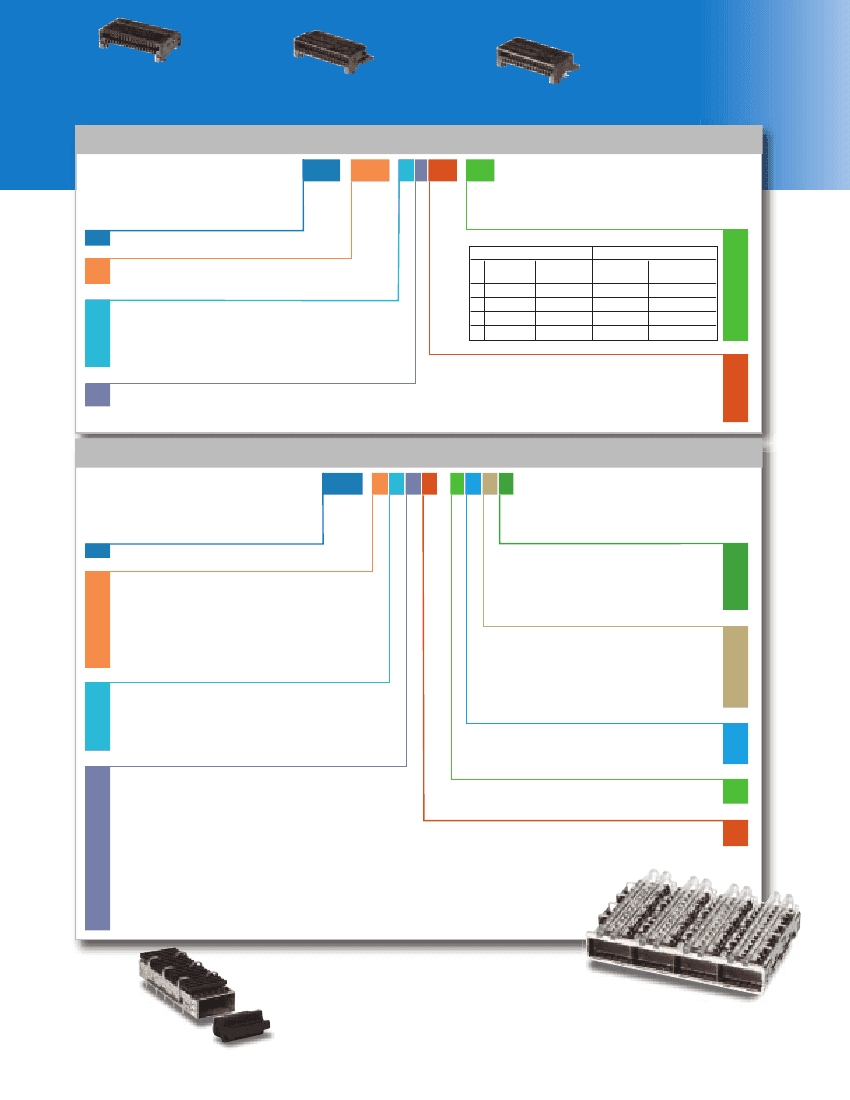

Ordering Information
Contact Amphenol for additional options
Connectors:
- QSFP
- ExpressPort™ QSFP+
- ExpressPort™ QSFP+ E-series
FS1
R38
SERIES DESIGNATION
FS1- R38 -X 0 XX - XX
SPECIAL
XX
00
10
01
11
Features
Resonance Hold down
Dampening
tabs
NO
NO
YES
NO
NO
YES
YES
YES
Bandwidth per Channel
FS1-R38
FS1-E38
QSFP+
E-series
12 Gbps
Contact Amphenol
16 Gbps
28 Gbps
12 Gbps
N/A
16 Gbps
N/A
XX
R38
- 38 Position Connector (QSFP, ExpressPort™ QSFP+)
E38
- 38 Position connector (ExpressPort™ QSFP+ E-series)
PLATING
2
- 30µ" Gold Plating on Mating Area
Matte Tin Plating on Termination
3
- 15µ" Gold Plating on Mating Area
Matte Tin Plating on Termination
0
- Standard
X
0
OPTIONS
00-
QSFP Connector
0A
- Connector with Hold Down Tabs
A2
- QSFP+ Connector
M0
- E-series Connector
XX
Ordering Information
Contact Amphenol for additional options
Cages:
- QSFP
- ExpressPort™ QSFP+
U90
X
SERIES DESIGNATION (RoHS)
U90 - X X X 1 - 1 X X X
STYLE
A
- One Row Cage 0°
G
- One row Cage - 0° Behind Bezel
H
- One row Cage - 0° Thru the Bezel w/optional Light Pipe
L
- One row Cage - 0° No Pins on Back Wall
R
- Thru the Bezel with Low Profile, Low Force Heat
Sink Clip and Low Profile Heat Sink
NUMBER OF PORT IN ROW
1
- 1x1 ports
3
- 1x3 ports
4
- 1x4 ports
6
- 1x6 ports
HEAT SINK OPTION
1
- No Heat Sink and No Clip Shipped
2
- Fin Style (Black Oxide) Heat Sink and Clip (H=6.5 mm)
3
- Fin Style (Black Oxide) Heat Sink and Clip (H=4.2 mm)
4
- Fin Style (Black oxide) Heat Sink and Clip (H=13.5 mm)
5
- Pin Style (Nickel Plated) Heat Sink and Clip (H=6.5 mm)
6
- Pin Style (Nickel Plated) Heat Sink and Clip (H=4.2 mm)
7
- Pin Style (Nickel Plated) Heat Sink and Clip (H=13.5 mm)
D
- Pin-Fin Style (Black Oxide) Heat Sink and Clip (H=6.5 mm)
E
- Pin-Fin Style (Black Oxide) Heat Sink and Clip (H=4.2 mm)
F
- Pin-Fin Style (Black Oxide) Heat Sink and Clip (H=13.5 mm)
R
- Pin-Fin Style (Nickel Plated) Heat Sink and Clip (H=13.5 mm)
PACKAGING
1
- Tray Packaging
T
- Tape and Reel Packaging
A
- Tray Packaging with Heat Sink and Clip
or Light Pipe Shipped Assembled
LIGHT PIPES OPTION
0
- Standard
1
- With Light Pipes (Round 1.4 mm Outlet)
No EMI gasket
3
- With Light Pipes (Square 2.6 x 2.6 mm Outlet)
No EMI Gasket
OPTIONAL DUST COVER
0
- Without Dust Cover
D
- With Dust Cover (Ship Loose)
PLATING
1
- Nickel
APPLICATION
1
- Press Fit Pins - 2.5 mm Long
X
X
X
X
X
1
1
1x1 QSFP Cage
with Heat Sink and Dust Cover
U90-A131-1D01
1x4 QSFP Cage
with Heat Sink and Square Light Pipes
U90-G461-103A
Telephone: (416) 291-4401 Fax: (416) 292-0647 E-Mail: sales@amphenolcanada.com
All specifications are subject to change without notice.
11
