DTSYHL-62R-Q-B: DescriptionKeypad Switch, 0.5A, 12VDC, Solder Terminal, Through Hole-straight; CategoryMechanical and electronic products switch; File Size595KB，1 Pages; ManufacturerAPEM

Download Datasheet Parametric Compare View All

DTSYHL-62R-Q-B Overview

Keypad Switch, 0.5A, 12VDC, Solder Terminal, Through Hole-straight

DTSYHL-62R-Q-B Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator length	0.043 inch
Actuator type	PUSHBUTTON
body height	2.0066 mm
Body length or diameter	6.1976 mm
Maximum contact current (DC)	0.5 A
Contact (DC) maximum rated R load	0.5A@12VDC
Maximum contact voltage (DC)	12 V
Electrical life	100000 Cycle(s)
Manufacturer's serial number	DTSYH-6
Installation features	THROUGH HOLE-STRAIGHT
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
surface mount	NO
Switch type	KEYPAD SWITCH
Terminal length	0.138 inch
Termination type	SOLDER

Preview

Download Datasheet

View All

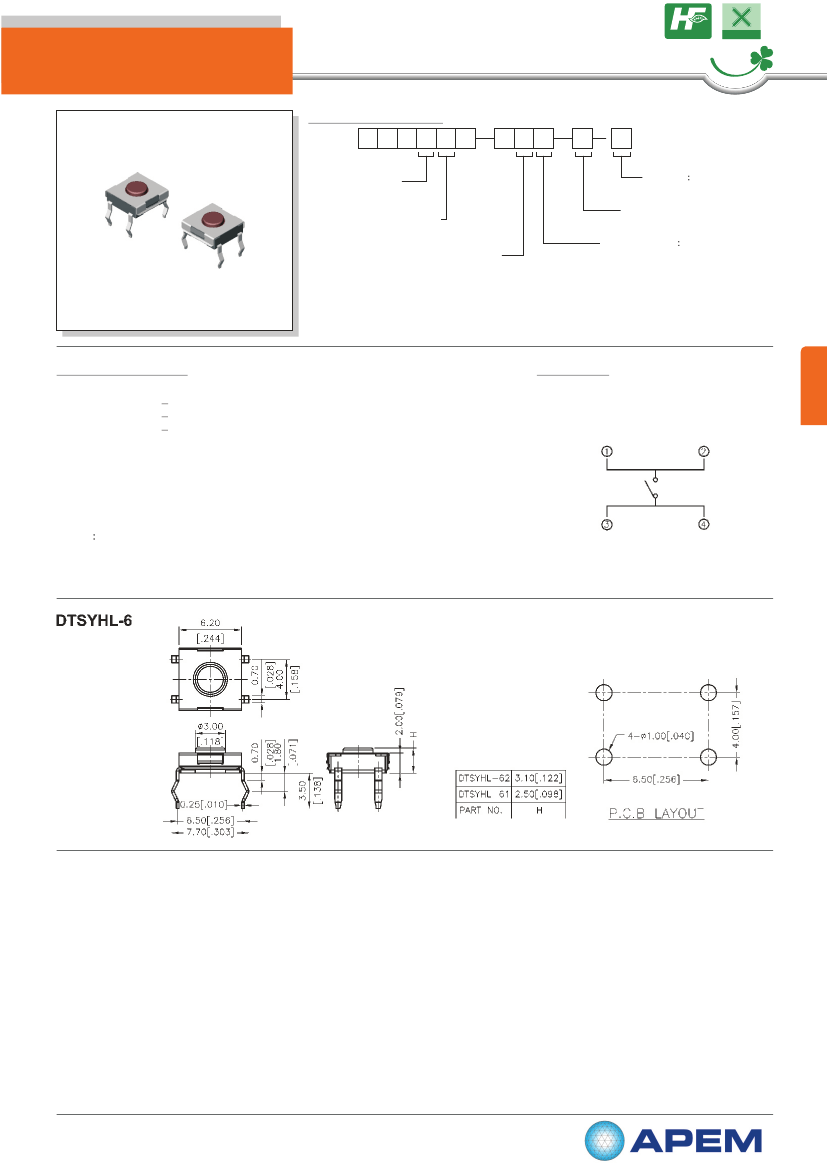

DTSYH-6

SERIES

6X6 Through Hole Type

(Pitch 4.0mm)

HOW TO ORDER

D

T

S

Y

H

L

6

B

Halogen Free

LEAD FREE

Pb

RoHS

Compliant

Terminal Pitch4.0mm

Package

B=Tube

V=RoHS & Lead Free Solderable

Q=Halogen Free

Operating Force

K=Black,100g

N=Brown,160g

R=Red,260g

Through Hole

Height:

1=2.5mm

2=3.1mm

SPECIFICATION

MECHANICAL

Operation Force: 260+50gf Red(R)

160+50gf Brown(N)

100+50gf Black(K)

Stroke: 0.25+0.2/-0.1mm

ENVIRONMENTAL

o

Operation Temperature Range : -25C to +70C

o

Storage Temperature Range : -30C to +80C

ELECTRICAL

Electrical Life: 100,000 cycles for 260gf

200,000 cycles for 100gf,160gf

Rating 50mA, 12VDC

PACKAGE

Tube: 75 pcs/tube

CIRCUIT

TACT SWITCH

www.dip.com.tw

70

DTSYHL-62R-Q-B Related Products

	DTSYHL-62R-Q-B	DTSYHL-62K-Q-B	DTSYHL-62K-V-B	DTSYHL-62N-Q-B	DTSYHL-62R-V-B	DTSYHL-61K-Q-B	DTSYHL-61N-Q-B	DTSYHL-61N-V-B	DTSYHL-61R-V-B
Description	Keypad Switch, 0.5A, 12VDC, Solder Terminal, Through Hole-straight	Keypad Switch, 0.5A, 12VDC, Solder Terminal, Through Hole-straight	Keypad Switch, 0.5A, 12VDC, Solder Terminal, Through Hole-straight	Keypad Switch, 0.5A, 12VDC, Solder Terminal, Through Hole-straight	Keypad Switch, 0.5A, 12VDC, Solder Terminal, Through Hole-straight	Keypad Switch, 0.5A, 12VDC, Solder Terminal, Through Hole-straight	Keypad Switch, 0.5A, 12VDC, Solder Terminal, Through Hole-straight	Keypad Switch, 0.5A, 12VDC, Solder Terminal, Through Hole-straight	Keypad Switch, 0.5A, 12VDC, Solder Terminal, Through Hole-straight
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Actuator length	0.043 inch	0.043 inch	0.043 inch	0.043 inch	0.043 inch	0.019 inch	0.019 inch	0.019 inch	0.019 inch
Actuator type	PUSHBUTTON	PUSHBUTTON	PUSHBUTTON	PUSHBUTTON	PUSHBUTTON	PUSHBUTTON	PUSHBUTTON	PUSHBUTTON	PUSHBUTTON
body height	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm
Body length or diameter	6.1976 mm	6.1976 mm	6.1976 mm	6.1976 mm	6.1976 mm	6.1976 mm	6.1976 mm	6.1976 mm	6.1976 mm
Maximum contact current (DC)	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A
Contact (DC) maximum rated R load	0.5A@12VDC	0.5A@12VDC	0.5A@12VDC	0.5A@12VDC	0.5A@12VDC	0.5A@12VDC	0.5A@12VDC	0.5A@12VDC	0.5A@12VDC
Maximum contact voltage (DC)	12 V	12 V	12 V	12 V	12 V	12 V	12 V	12 V	12 V
Electrical life	100000 Cycle(s)	200000 Cycle(s)	200000 Cycle(s)	200000 Cycle(s)	100000 Cycle(s)	200000 Cycle(s)	200000 Cycle(s)	200000 Cycle(s)	100000 Cycle(s)
Manufacturer's serial number	DTSYH-6	DTSYH-6	DTSYH-6	DTSYH-6	DTSYH-6	DTSYH-6	DTSYH-6	DTSYH-6	DTSYH-6
Installation features	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
Switch type	KEYPAD SWITCH	KEYPAD SWITCH	KEYPAD SWITCH	KEYPAD SWITCH	KEYPAD SWITCH	KEYPAD SWITCH	KEYPAD SWITCH	KEYPAD SWITCH	KEYPAD SWITCH
Terminal length	0.138 inch	0.138 inch	0.138 inch	0.138 inch	0.138 inch	0.138 inch	0.138 inch	0.138 inch	0.138 inch
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
