2N4272 datasheet, PDF - EEWORLD Datasheet

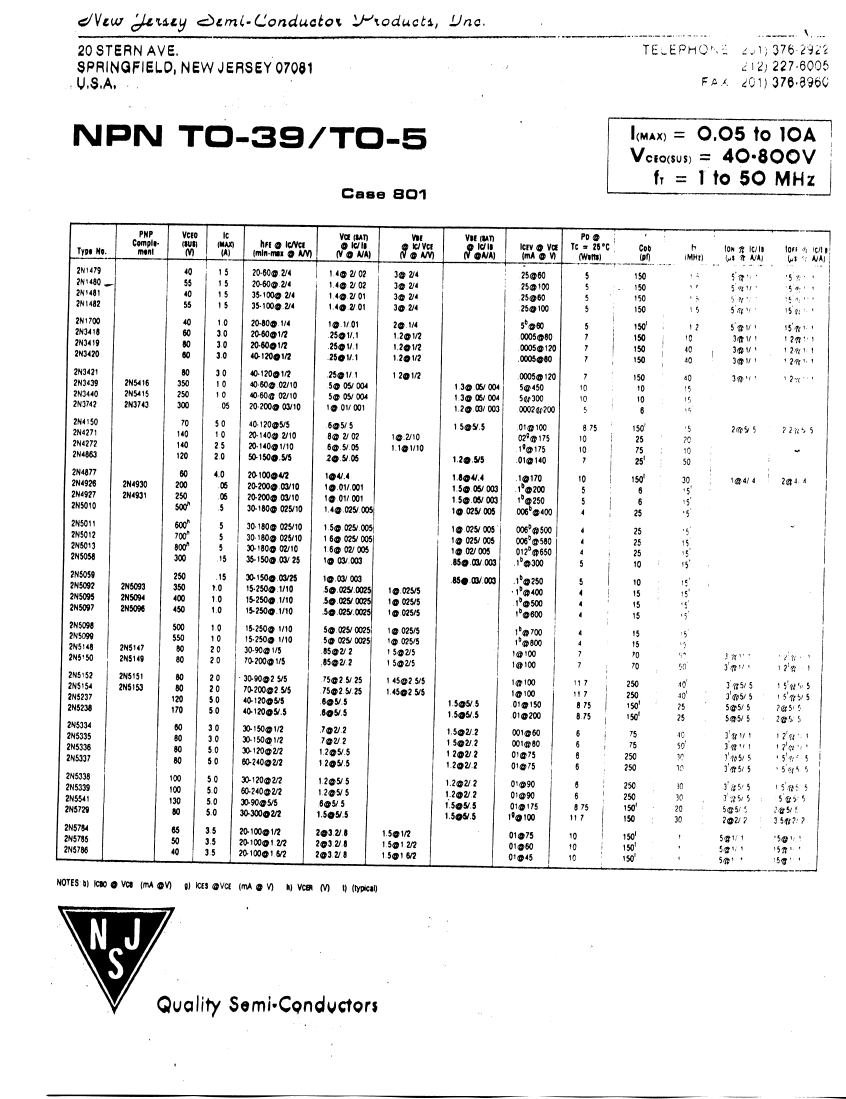

2N4272: Description1 A, 40 V, NPN, Si, POWER TRANSISTOR, TO-5; CategoryDiscrete semiconductor The transistor; File Size170KB，1 Pages; ManufacturerNew Jersey Semiconductor; Websitehttp://www.njsemi.com

Download Datasheet Parametric View All

2N4272 Overview

1 A, 40 V, NPN, Si, POWER TRANSISTOR, TO-5

Parameter Name	Attribute value
Maker	New Jersey Semiconductor
package instruction	CYLINDRICAL, O-MBCY-W3
Reach Compliance Code	unknow
Maximum collector current (IC)	2.5 A
Collector-emitter maximum voltage	140 V
Configuration	SINGLE
JESD-30 code	O-MBCY-W3
Number of components	1
Number of terminals	3
Package body material	METAL
Package shape	ROUND
Package form	CYLINDRICAL
Polarity/channel type	NPN
surface mount	NO
Terminal form	WIRE
Terminal location	BOTTOM
Transistor component materials	SILICON
