Tray-rated per UL 13; UL 444; UL 1277; UL 1685; CSA
C22.2 No. 230 and No. 232
Tested to industrial ruggedness standards
Listed OFN-LS and CSA FT4-ST1, IEC 60332-3, IEC
61034 and IEC 60754-2
Meets burn test criteria
Available in MSHA versions
Mine Safety and Health Administration approved
Corning Cable Systems LSZH™ Industrial Fiber Optic
Cables are designed for industrial building backbones
and harsh environments atypical of traditional datacom
systems. Based on proven stranded loose tube cable
designs, these industrial cables are flame-retardant and
have been tested to meet mechanical/environmental
conditions exceeding the requirements set for traditional
datacom cables. When tested to specified “tray” applica-
tion requirements, the cables have demonstrated supe-
rior performance levels for compressive loading, cyclic
impact and chemical resistance. The 250 μm color-coded
individual fibers offer quick and easy identification during
installation with 50 μm, 62.5 μm and single-mode ver-
sions available.
Corning Cable Systems LSZH Industrial Cables provide
life-safety benefits for industrial applications through the
cables’ construction. Many traditional data communica-
tion cables contain halogens in the jacket compound,
which pose little risk in the controlled and protected
environment of typical building air spaces, such as be-
hind walls, under floors and in conduit. However, cables
deployed in industrial applications, particularly on the
plant floor, are typically exposed to greater risk of fire,
extreme temperatures or chemical exposure. This often
makes halogen cables inappropriate for industrial envi-
ronments. When cables containing halogens ignite, they
emit highly reactive gases that can be harmful if inhaled.
When halogens combine with water, acids are formed.
These acids damage both living tissue and inorganic ma-
terials, such as metal and electronic equipment. Corning
Standards
Approval and Listings
National Electrical Code®
(NEC®) OFN-LS; CSA
OFN FT4-ST1; Sunlight
Resistant (SUN RES);
IEEE-383 flame test;
Suitable for Direct Burial
(DIR BUR); IEC 60332-3,
IEC 60754-2, IEC 61034
Outdoor aerial and duct;
indoor general purpose
horizontal according to NEC
Article 770
ANSI/ICEA S-104-696; UL
13; UL 444; UL 1277; UL
1685; CSA C22 No. 230
and No. 232
Common Installations

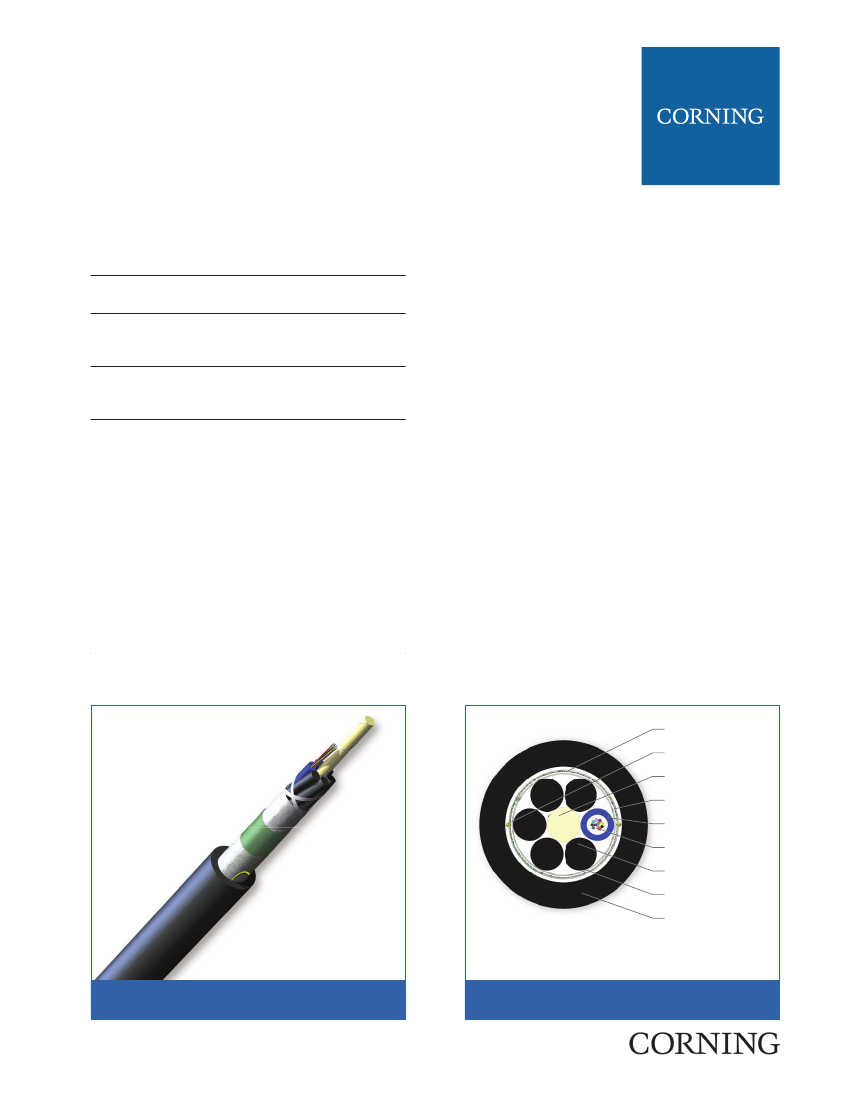

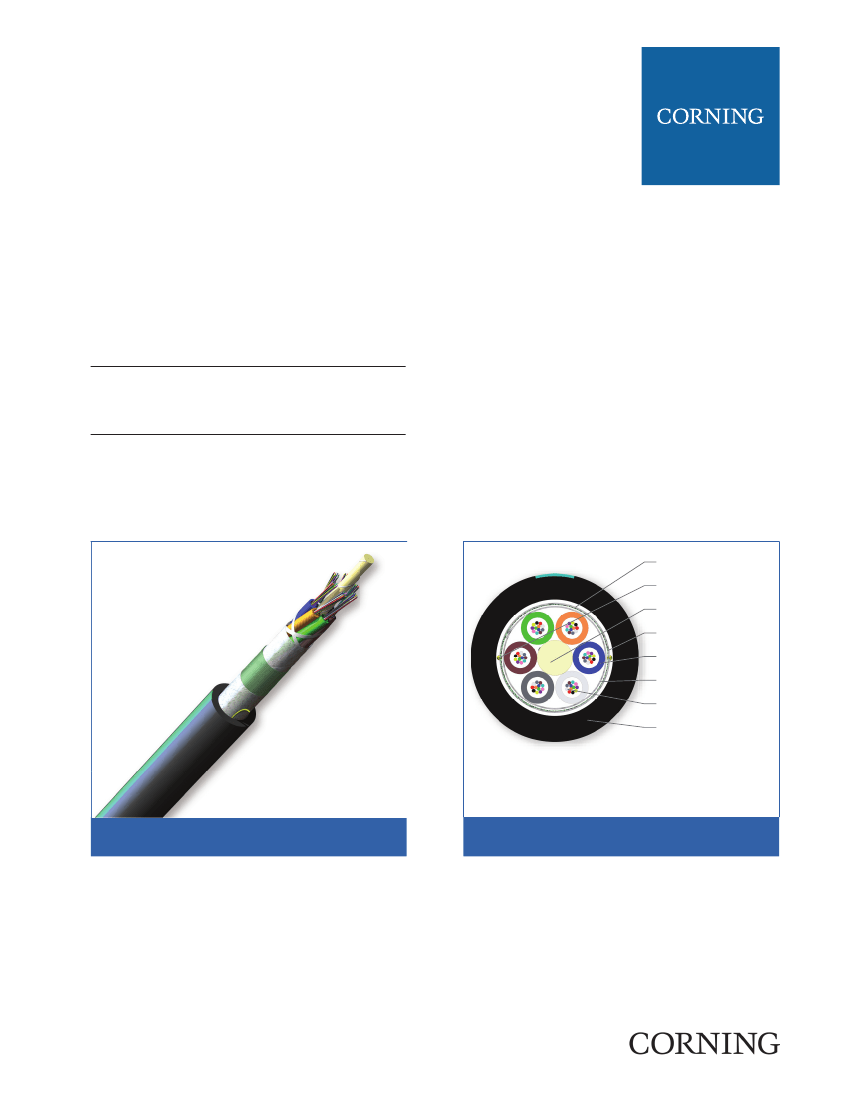

Design and Test Criteria
Water-Swellable
Tape
Ripcord
Dielectric Central
Element
Flame-Retardant
Tape
Buffer
Tube
Fiber
Filling Element
Water-Swellable
Tape
FRNC / LSZH
Outer Jacket
Industrial LSZH™ Loose Tube, Gel-Free, Double-
Jacket Cables, 12-Fibers
Family Spec Sheet 0098_NAFTA_AEN
Page 1 | Revision date 2013-03-06
Industrial LSZH™ Loose Tube, Gel-Free, Double-
Jacket Cables, 12-Fibers
Industrial Fiber Optic Cables, LSZH™
Single-Jacket Cable, 12-288 Fibers
Standards
Approval and Listings
National Electrical Code®
(NEC®) OFN-LS; CSA
OFN FT4-ST1; Sunlight
Resistant (SUN RES);
IEEE-383 flame test;
Suitable for Direct Burial
(DIR BUR); IEC 60332-3,
IEC 60754-2, IEC 61034
Outdoor aerial and duct;
indoor general purpose
horizontal according to NEC
Article 770
ANSI/ICEA S-104-696; UL
13; UL 444; UL 1277; UL
1685; CSA C22 No. 230
and No. 232
Cable Systems LSZH™ Industrial Cables eliminate these
risks in the event of a fire in the industrial environment. In
addition, the LSZH compound does not drip when super-
heated; the material burns to ash, eliminating the onset of
secondary fires.
Industrial LSZH Cables are available in 12 different jacket
colors, enabling easy visual identification and segregation
of cables while still providing all the required environmen-
tal protection of an indoor/outdoor cable jacket.
Common Installations
Design and Test Criteria
Water-Swellable
Tape
Ripcord
Dielectric Central
Element
Flame-Retardant
Tape
Buffer
Tube
Water-Swellable
Tape
Fiber
FRNC / LSZH
Outer Jacket
Industrial LSZH™ Loose Tube, Gel-Free, Double-
Jacket Cables, 72-Fibers
False
Industrial LSZH™ Loose Tube, Gel-Free, Double-
Jacket Cables, 72-Fibers
Family Spec Sheet 0098_NAFTA_AEN
Page 2 | Revision date 2013-03-06
Industrial Fiber Optic Cables, LSZH™
Single-Jacket Cable, 12-288 Fibers
Specifications
Temperature Range
Storage
Installation
Operation
-40 °C to 75 °C (-40 °F to 167 °F)
-30 °C to 60 °C (-22 °F to 140 °F)
-40 °C to 75 °C (-40 °F to 167 °F)
* Corning Cable Systems recommends storing indoor/outdoor cable in a proper temperature environment prior to installation to allow the cable temperature to
meet installation temperature range specifications for best installation results.
Mechanical Characteristics Cable
Max. Tensile Strengths, Short-Term
Max. Tensile Strengths, Long-Term
Fiber
Count
12 - 72
96
144
192 - 216
288
Buffer Tube
Diameter
2.5 mm
(0.1 in)
2.5 mm
(0.1 in)
2.5 mm
(0.1 in)
2.5 mm
(0.1 in)
2.5 mm
(0.1 in)
Nominal Outer
Diameter
12.5 mm
(0.49 in)
15.3 mm
(0.6 in)
18.9 mm
(0.74 in)
18.3 mm
(0.72 in)
21.3 mm
(0.84 in)
Min. Bend
Radius Instal-
lation
188 mm
(7.4 in)
230 mm
(9 in)
284 mm
(11.2 in)
275 mm
(10.8 in)
320 mm
(12.6 in)
2700 N (600 lbf)
810 N (180 lbf)
Min. Bend
Radius Opera-
tion
125 mm
(4.9 in)
153 mm
(6 in)
189 mm
(7.4 in)
183 mm
(7.2 in)
213 mm
(8.4 in)
Weight
Product Type
140 kg/km
(94 lb/1000 ft)
214 kg/km
(144 lb/1000 ft)
308 kg/km
(207 lb/1000 ft)
259 kg/km
(174 lb/1000 ft)
362 kg/km
(243 lb/1000 ft)
Dielectric
Dielectric
Dielectric
Dielectric
Dielectric
Chemical Characteristics
RoHS
Free of hazardous substances according to RoHS 2002/95/
