2SA1943 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> 2SA1943

2SA1943: DescriptionTOSHIBA TRANSISTOR SILICON PNP TRIPLE DIFFUSED TYPE; CategoryDiscrete semiconductor The transistor; File Size77KB，2 Pages; ManufacturerNew Jersey Semiconductor; Websitehttp://www.njsemi.com

Download Datasheet Parametric View All

2SA1943 Overview

TOSHIBA TRANSISTOR SILICON PNP TRIPLE DIFFUSED TYPE

2SA1943 Parametric

Parameter Name	Attribute value
Maker	New Jersey Semiconductor
package instruction	FLANGE MOUNT, R-PSFM-T3
Reach Compliance Code	unknow
Maximum collector current (IC)	15 A
Collector-emitter maximum voltage	230 V
Configuration	SINGLE
JESD-30 code	R-PSFM-T3
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	PNP
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Transistor component materials	SILICON
Nominal transition frequency (fT)	30 MHz

Preview

Download Datasheet

View All

^zml-i-onauctQi L/toaucti, L/nc.

20 STERN AVE.

SPRINGFIELD, NEW JERSEY 07081

U.S.A.

TELEPHONE: (973) 376-2922

(212)227-6005

FAX: (973) 376-8960

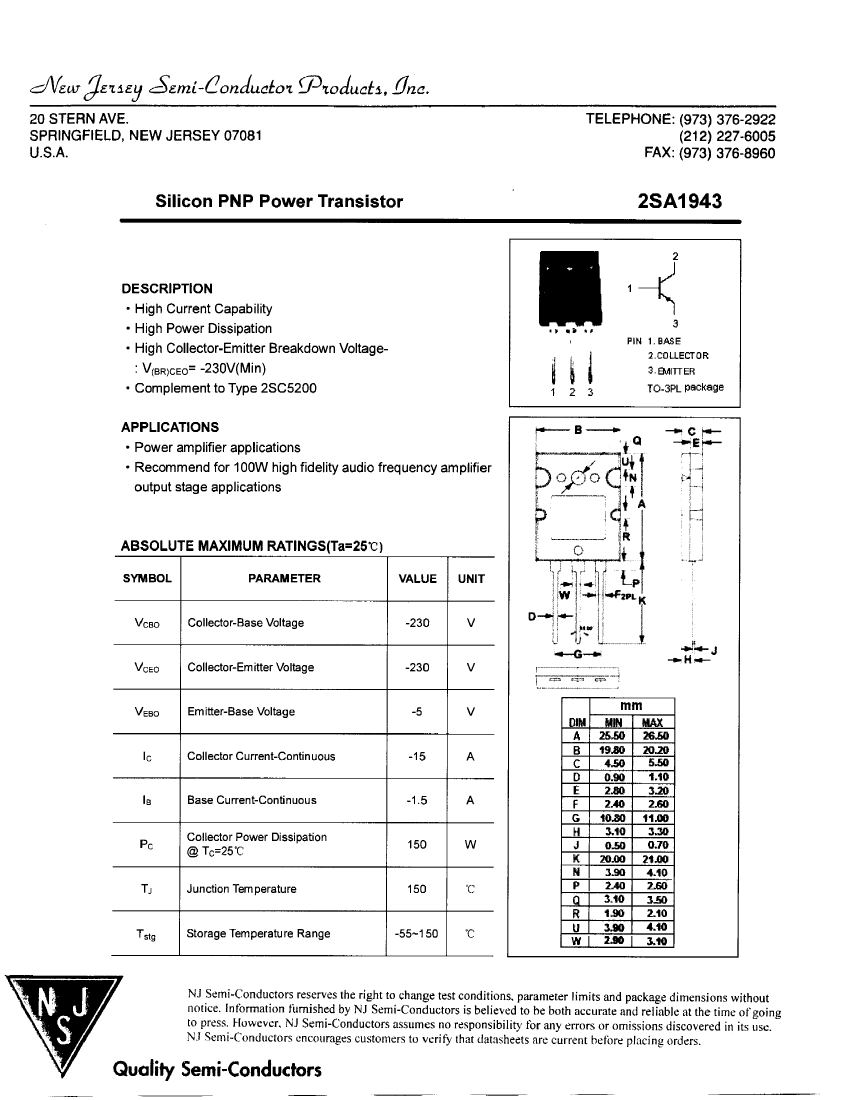

Silicon PNP Power Transistor

2SA1943

DESCRIPTION

• High Current Capability

• High Power Dissipation

• High Collector-Emitter Breakdown Voltage-

: V

(BR

)CEo= -230V(Min)

• Complement to Type 2SC5200

APPLICATIONS

• Power amplifier applications

• Recommend for 100W high fidelity audio frequency amplifier

output stage applications

2 3

PIN 1.BASE

2.COLLECTOR

3.&1ITTER

TO-3PL package

ABSOLUTE MAXIMUM RATINGS(Ta=25'C)

SYMBOL

PARAMETER

VALUE

UNIT

VCBO

Collector-Base Voltage

-230

VCEO

Collector-Emitter Voltage

-230

VEBO

Emitter-Base Voltage

-5

DIM

Collector Current-Continuous

-15

Base Current-Continuous

-1.5

Collector Power Dissipation

@ T

=25°C

150

MIN

25,50

19.80

4.50

0.90

2.80

2.40

10.80

3.10

0.50

20JDO

3.90

2.40

MAX

26.50

20.20

5.50

1.10

3.20

2.60

11.00

3.30

0.70

21.00

4.10

2JBO

Junction Temperature

150

Tstg

Storage Temperature Range

-55-150

•c

3.10

1.90

3.90

2.90

3^0

2.10

4.10

3.10

NJ Semi-Conductors reserves the right to change test conditions, parameter limits and package dimensions without

notice. Information furnished by NJ Semi-Conductors is believed to be both accurate and reliable at the time of going

to press. However, NJ Semi-Conductors assumes no responsibility for any errors or omissions discovered in its use.

NJ Semi-Conductors encourages customers to verify that datasheets are current before placing orders.
