1188P-1K2-V-T/R datasheet, PDF

1188P-1K2-V-T/R: DescriptionSwitch, SPST, Horizontal, 0.05A, 12VDC, Surface Mount-right Angle; CategoryMechanical and electronic products switch; File Size240KB，4 Pages; ManufacturerDIPTRONICS MANUFACTURING INC

Download Datasheet Parametric View All

1188P-1K2-V-T/R Overview

Switch, SPST, Horizontal, 0.05A, 12VDC, Surface Mount-right Angle

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator angle
Actuator color	BLACK
Actuator length	0.04 inch
Actuator material	THERMOPLASTIC
Actuator type	PUSHBUTTON
Other features	UL
body width	2.4892 mm
Body color	WHITE
body height	3.5052 mm
Body length or diameter	7.0104 mm
center contact material	STAINLESS STEEL
Center contact plating	SILVER
Maximum contact current (DC)	0.05 A
Contact (DC) maximum rated R load	0.05A@12VDC
Contact resistance	0.1 mΩ
Maximum contact voltage (DC)	12 V
Dielectric withstand voltage	250VAC V
Electrical life	50000 Cycle(s)
End contact material	STAINLESS STEEL
End contact plating	SILVER
Shell material	STEEL
Insulation resistance	100000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	1188
Installation features	SURFACE MOUNT-RIGHT ANGLE
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
PCB hole count	2
Solderability	HAND
surface mount	NO
Switch action	HORIZONTAL
switch function	SPST
Terminal material	BRASS
Termination type	SOLDER

1188 SERIES

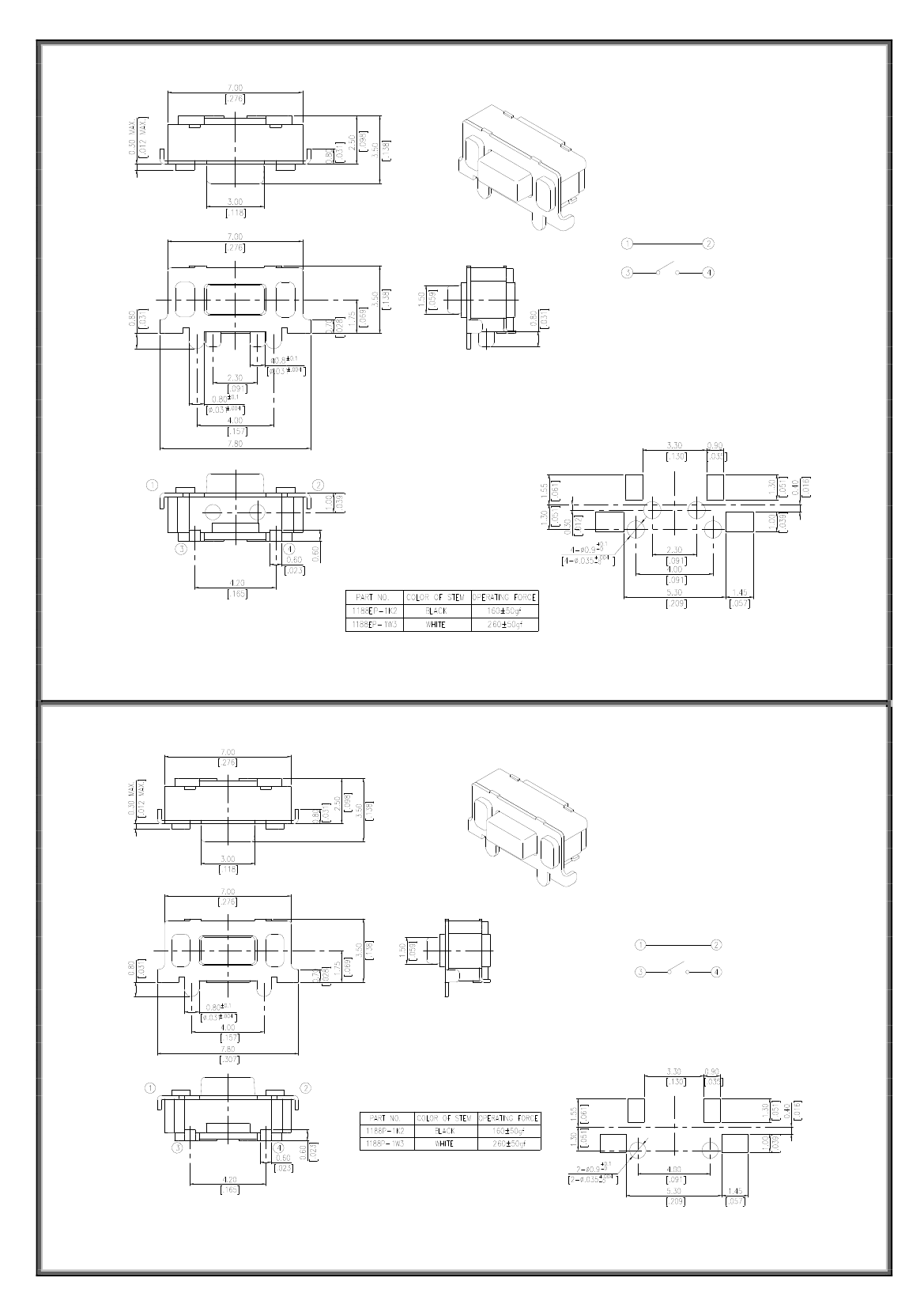

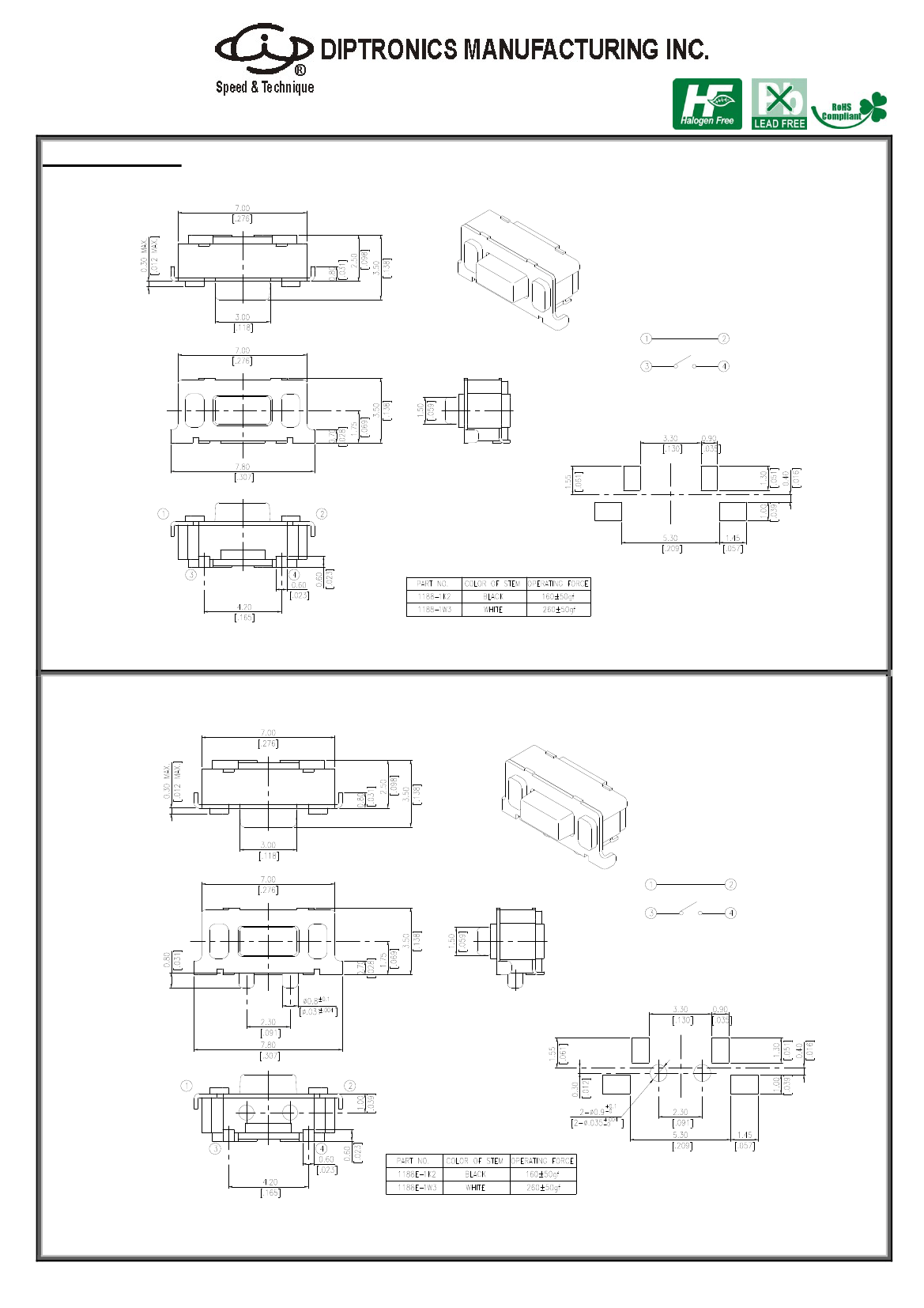

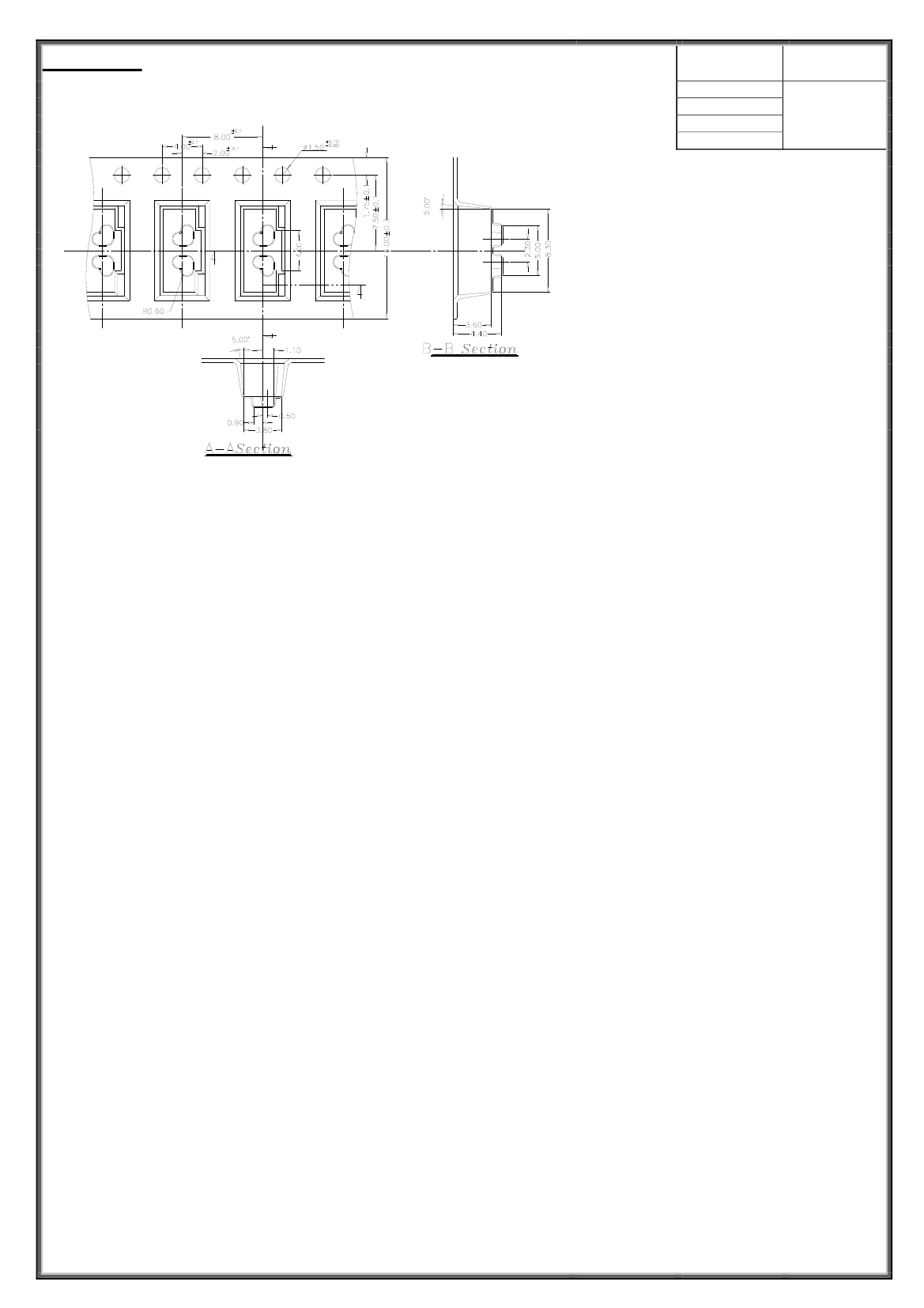

DIMENSIONS

1188-1

CIRCUIT

P.C.B. LAOUT

General Tolerance：±0.2mm

1188E-1

CIRCUIT

P.C.B. LAOUT

General Tolerance：±0.2mm
