8151-3068

Description
D Type Connector, 68 Contact(s), Female, 0.05 inch Pitch, IDC Terminal, Locking, Plug
CategoryThe connector    The connector
File Size198KB,1 Pages
ManufacturerConexcon Group
Download Datasheet Parametric Compare View All

8151-3068 Overview

D Type Connector, 68 Contact(s), Female, 0.05 inch Pitch, IDC Terminal, Locking, Plug

8151-3068 Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
ECCN codeEAR99
body width0.358 inch
subject depth0.323 inch
body length2.027 inch
Body/casing typePLUG
Contactor designPREASSEM CONN
Contact to complete cooperationAU ON NI
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact styleCENTRONIC
insulator materialGLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number8151
Plug contact pitch0.05 inch
Installation option 1LOCKING
Installation typeCABLE
Number of rows loaded2
Plating thicknessFLASH inch
GuidelineUL
reliabilityCOMMERCIAL
Shell materialSTEEL
Termination typeIDC
Total number of contacts68
Maximum wire diameter26 AWG
Minimum wire diameter28 AWG
SOLDER IDC TYPE FOR CABLE PLUG
SERIES.
8151 SERIES

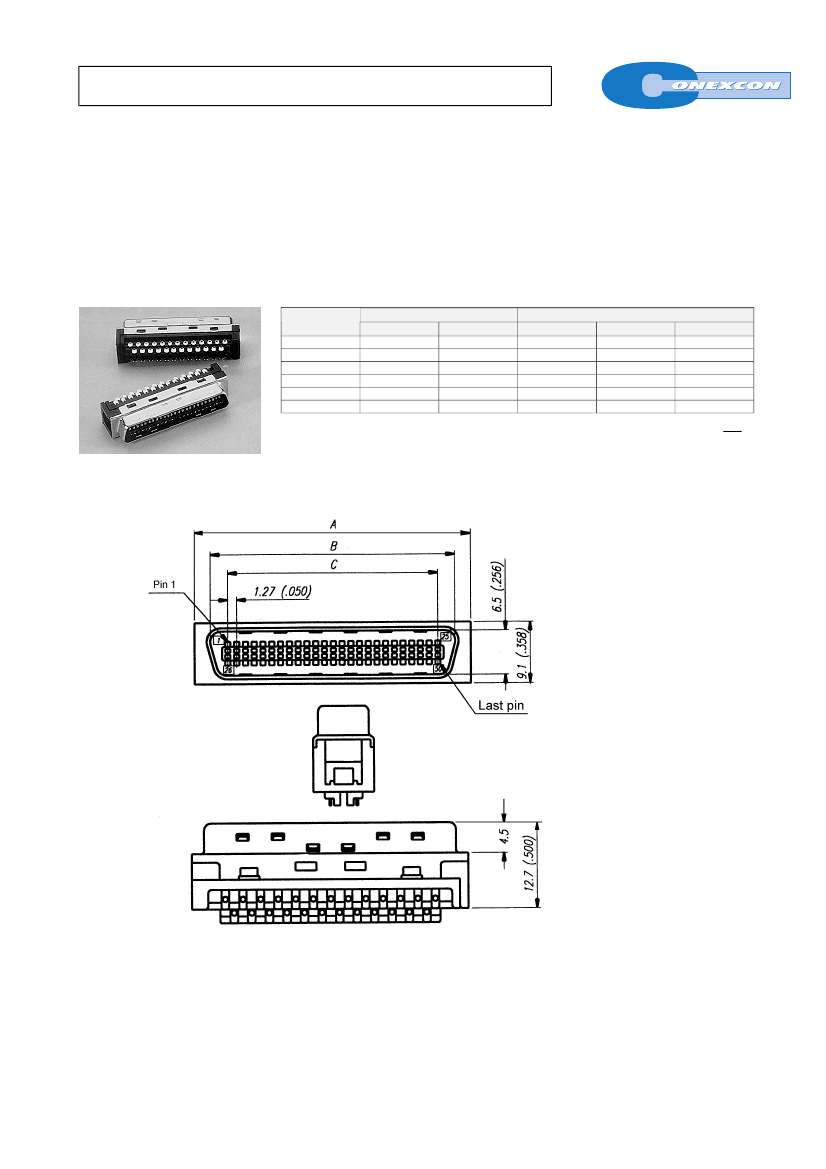

Half- Pitch Ribbon Connectors
Features
!
#
#
#
#
#
Shell: Cold roller Steel
Insulator Material: PBT + Glass-Fibre UL 94V-0
Accepts: 8160, 8161 and 8162 series
hoods
For electric equipments of high reliability and high density
packaging
Ordering and Dimensional Information
Part Number
Without Hood
8151 –
T014
8151 –
T020
8151 –
T026
8151 –
T036
8151 –
T050
8151 –
T068
With Hood (8160)
8151 –
T0142
8151 –
T0202
8151 –
T0262
8151 –
T0362
8151 –
T0502
8151 –
T0682
A
17.19 (0.677)
21.00 (0.827)
24.81 (0.977)
31.16 (1.227)
40.10 (1.579)
51.48 (2.027)
Dimensions
B
12.79 (0.504)
16.60 (0.564)
20.41 (0.804)
26.76 (1.054)
35.65 (1.404)
47.08 (1.854)
C
7.62 (0.300)
11.43 (0.450)
15.24 (0.600)
21.59 (0.850)
30.48 (1.200)
41.91 (1.650)
Unit:
mm.
Inch.
#
#
#
#
#
Available in 14, 20, 26, 36, 50 and 68 circuits
Excellent I/O connector
Wire size (AWG 26 to 28)
Ribbon contact design
Contact Material: Phosphor bronze
Dimensional Information
Circuit Size
14
20
26
36
50
68
T = Contact Plating
#
#
#
#
T =
2.
Tin plated
T =
3.
Gold flash over 50µ” nickel
T =
5.
15µ” gold over 50µ” nickel
T =
6.
30µ” gold over 50µ” nickel
Available kit with Connector + Hood
8160
8151
– TXXX2
XXX=
Nº Circuits
CONEXCON
Products specifications are subjet to be changed without notice. Please contact Sales Office for further confirmation

8151-3068 Related Products

8151-3068 8151-5036 8151-6068
Description D Type Connector, 68 Contact(s), Female, 0.05 inch Pitch, IDC Terminal, Locking, Plug D Type Connector D Type Connector, 68 Contact(s), Female, 0.05 inch Pitch, IDC Terminal, Locking, Plug
Reach Compliance Code unknown unknown unknow
Manufacturer's serial number 8151 8151 8151
ECCN code EAR99 EAR99 -
body width 0.358 inch - 0.358 inch
subject depth 0.323 inch - 0.323 inch
body length 2.027 inch - 2.027 inch
Body/casing type PLUG - PLUG
Contactor design PREASSEM CONN - PREASSEM CONN
Contact to complete cooperation AU ON NI - AU ON NI
Contact point gender FEMALE - FEMALE
Contact material PHOSPHOR BRONZE - PHOSPHOR BRONZE
contact mode RECTANGULAR - RECTANGULAR
Contact style CENTRONIC - CENTRONIC
insulator material GLASS FILLED POLYBUTYLENE TEREPHTHALATE - GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Plug contact pitch 0.05 inch - 0.05 inch
Installation option 1 LOCKING - LOCKING
Installation type CABLE - CABLE
Number of rows loaded 2 - 2
Plating thickness FLASH inch - 30u inch
Guideline UL - UL
reliability COMMERCIAL - COMMERCIAL
Shell material STEEL - STEEL
Termination type IDC - IDC
Total number of contacts 68 - 68
Maximum wire diameter 26 AWG - 26 AWG
Minimum wire diameter 28 AWG - 28 AWG
Maker - Conexcon Group Conexcon Group
