FC2016T12-H datasheet, PDF - EEWORLD Datasheet

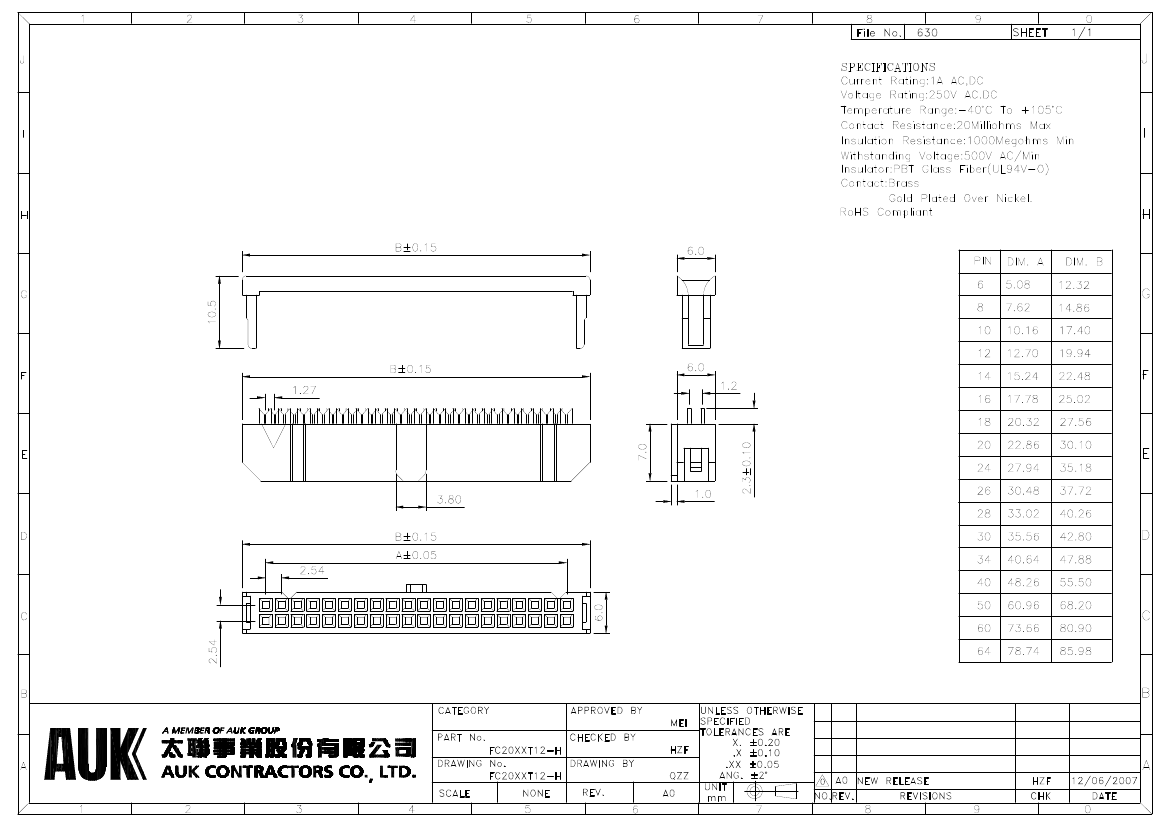

FC2016T12-H: DescriptionBoard Connector, 16 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Locking, Plug; CategoryThe connector The connector; File Size141KB，1 Pages; ManufacturerAUK Contractors Co., Ltd.

Download Datasheet Parametric View All

FC2016T12-H Overview

Board Connector, 16 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Locking, Plug

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.276 inch
subject depth	0.276 inch
body length	0.985 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	FC
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
polarization key	POLARIZED RIB(S)
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.091 inch
Termination type	IDC
Total number of contacts	16
