54961092421D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 54961092421D

54961092421D: DescriptionBarrier Strip Terminal Block,; CategoryThe connector; File Size2MB，1 Pages; ManufacturerPTR Messtechnik GmbH & Co. KG

Download Datasheet Parametric Compare View All

54961092421D Overview

Barrier Strip Terminal Block,

54961092421D Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK

Preview

Download Datasheet

View All

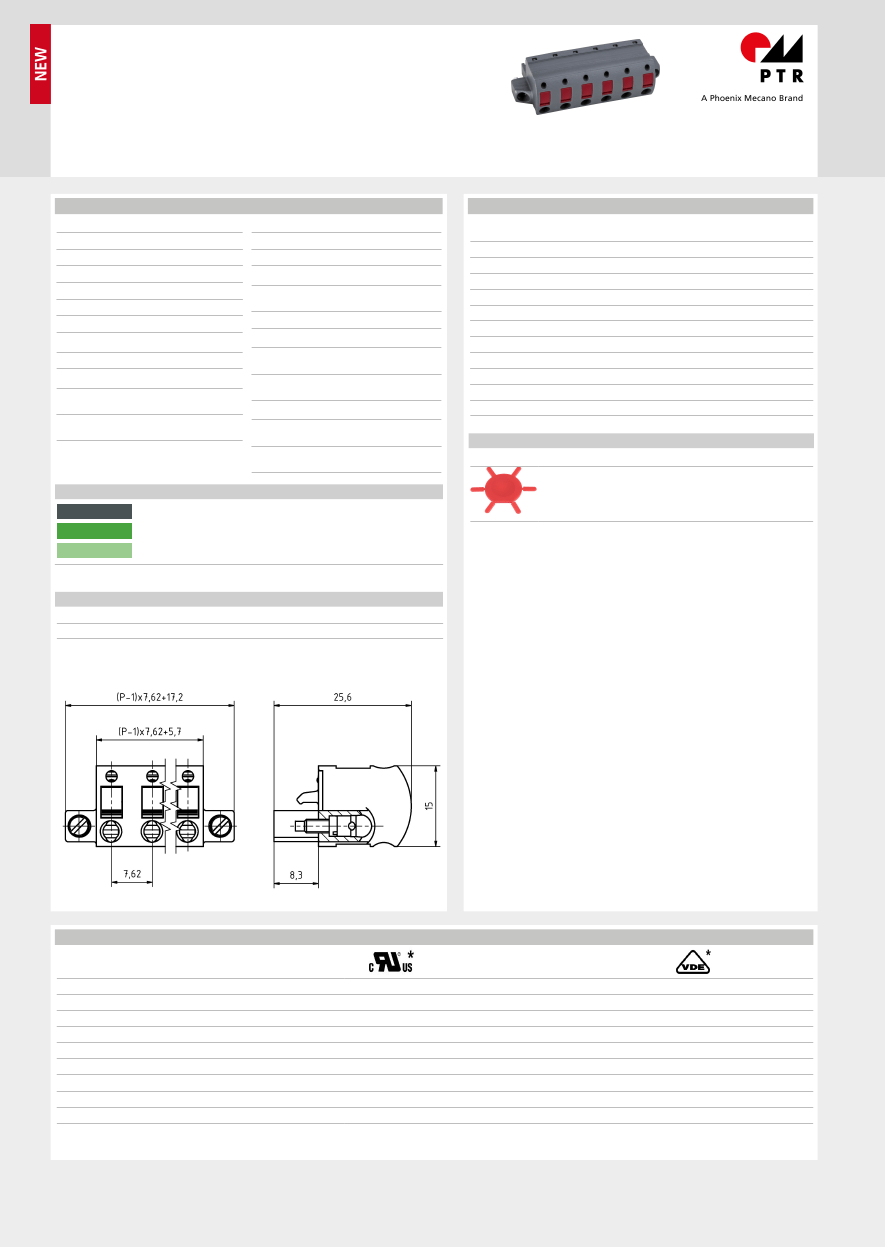

Push-In |

Spacing 7.62 mm

AKZ4961/..FKD-7.62-BASALTGREY

Technical Data

Wire sizes

Solid min

Solid max

Stranded (flexible) min

Stranded (flexible) max

Stranded with Ferrule min

Stranded with Ferrule max

0.2 mm²

2.5 mm²

0.2mm²

2.5 mm²

0.25 mm²

2.5 mm²

Order Data (Spacing 7.62 mm)

Insulating Material

Material

Flammability Class

PA 6.6

24.84

32.46

40.08

47.70

55.32

62.94

70.56

78.18

85.80

93.42

101.04

AKZ4961/2FKD-7.62-BASALTGREY

AKZ4961/3FKD-7.62-BASALTGREY

AKZ4961/4FKD-7.62-BASALTGREY

AKZ4961/5FKD-7.62-BASALTGREY

AKZ4961/6FKD-7.62-BASALTGREY

AKZ4961/7FKD-7.62-BASALTGREY

AKZ4961/8FKD-7.62-BASALTGREY

AKZ4961/9FKD-7.62-BASALTGREY

AKZ4961/10FKD-7.62-BASALTGREY

AKZ4961/11FKD-7.62-BASALTGREY

AKZ4961/12FKD-7.62-BASALTGREY

Poles

Width (mm)

Article Designation

Article

Number

54961022421 D 50

54961032421 D 50

54961042421 D 50

54961052421 D 50

54961062421 D 50

54961072421 D 50

54961082421 D 50

54961092421 D 50

54961102421 D 50

54961112421 D 50

54961122421 D 50

UL 94 V-0

Temperatures

Operating Temperature

(without mech. load)

Store Temperature

-40 °C - 105 °C

Dimensions

Stripped Length

12.0 mm

Wave Soldering Process

Soldering Temperature,

recommended

Peak Soldering Time,

recommended

Materials

Contact Spring

Clamp Spring

Copper

Alloy

Stainless

Steel

Reflow Process

Soldering Temperature,

recommended

Peak Soldering Time,

recommended

Accessoires

Figure

Designation

Coding Star CS1-5.0/5.08-RED

Article Number

Order Data: 50000000021

Colours

BASALT GREY, RAL 7012

GREEN, RAL 6018

LIGHT GREEN, similar RAL 6018

Colours according to RAL, there may be variations on colour due to production conditions. Special

colours on request.

Counterparts (Spacing 7.62 mm)

Pin Strip

STLZ965

In combination of connectors with different admission data, the lower value is valid.

Ratings

UseGroup

Rated Voltage

Rated Current

Overvoltage Category

Rated Wire Size

- solid

- stranded

Test Voltage

Pollution Degree

300 V

10 A

300 V

10 A

400 V

12 A

III

min

max

2.5 mm²

6.0 kV

* Approval Pending

AWG 26-12

1.60 kV

AWG 26-12

1.60 kV

0.2 mm²

PTR HARTMANN GmbH

• Gewerbehof 38 • 59368 Werne / Germany

Telefon: +49 (0)2389/7988-0 •

E-Mail: info@ptr-hartmann.com

www.ptr.eu

54961092421D Related Products

	54961092421D	54961032421D	54961112421D	54961122421D
Description	Barrier Strip Terminal Block,	Barrier Strip Terminal Block,	Barrier Strip Terminal Block,	Barrier Strip Terminal Block,
Reach Compliance Code	compliant	compliant	compli	compli
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK	BARRIER STRIP TERMINAL BLOCK	BARRIER STRIP TERMINAL BLOCK	BARRIER STRIP TERMINAL BLOCK
Maker	-	PTR Messtechnik GmbH & Co. KG	PTR Messtechnik GmbH & Co. KG	PTR Messtechnik GmbH & Co. KG
