AKZ4701/12KD-3.81-H-BASALTGREY

Description
Terminal and Terminal Block,
CategoryThe connector
File Size488KB,1 Pages
ManufacturerPTR Messtechnik GmbH & Co. KG
Download Datasheet Parametric View All

AKZ4701/12KD-3.81-H-BASALTGREY Overview

Terminal and Terminal Block,

AKZ4701/12KD-3.81-H-BASALTGREY Parametric

Parameter NameAttribute value
Reach Compliance Codecompliant
ECCN codeEAR99
Push-In |
Spacing 3.81 mm

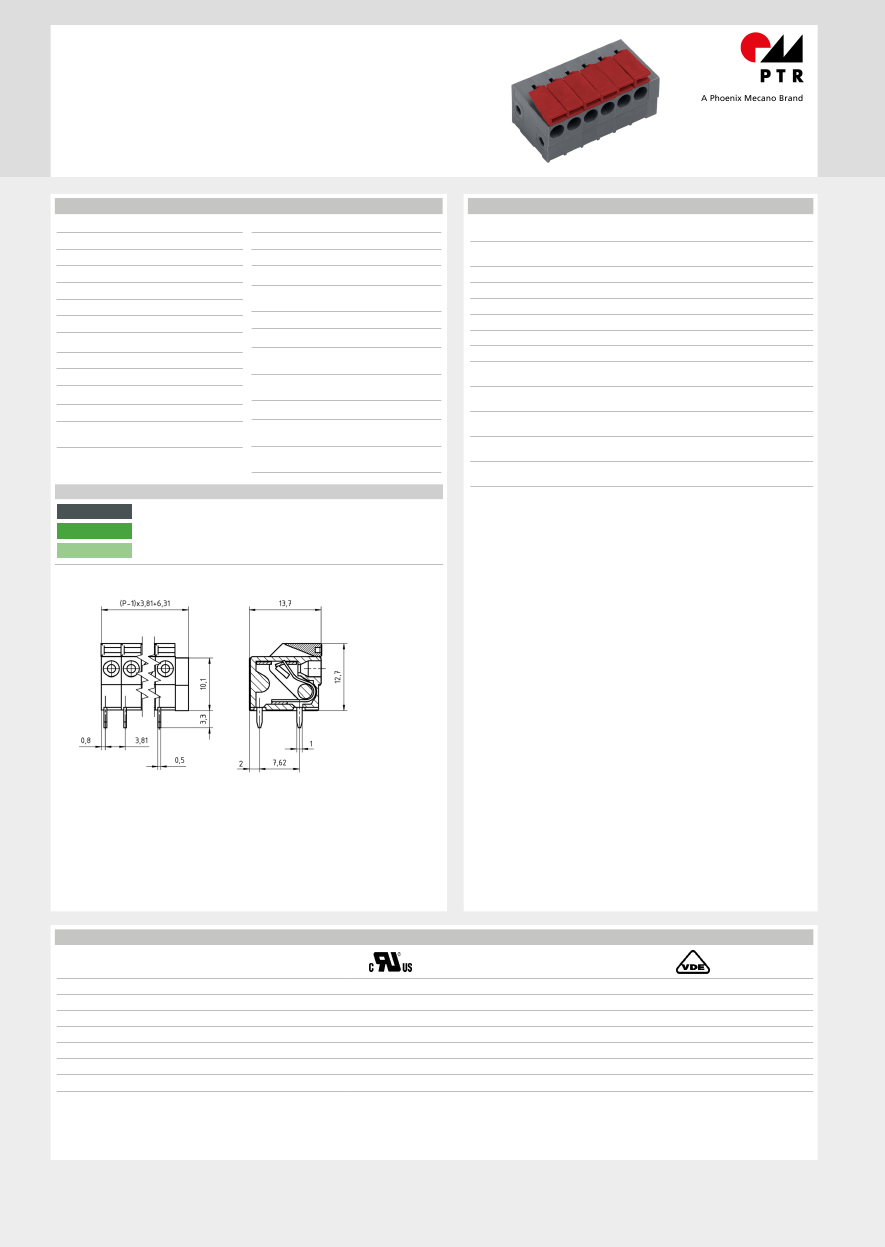

AKZ4701/..KD-3.81-H-BASALTGREY
- 1 to n poles
Technical Data
Wire sizes
Solid min
Solid max
Stranded (flexible) min
Stranded (flexible) max
Stranded with Ferrule min
Stranded with Ferrule max
0.14 mm²
1.5 mm²
0.14mm²
1.5 mm²
0.14 mm²
0.34 mm²
Order Data (Spacing 3.81 mm)
Insulating Material
Material
Flammability Class
PBT
1
6.31
10.12
13.93
17.74
21.55
25.36
29.17
32.98
36.79
40.60
44.41
48.22
AKZ4701/1KD-3.81-H-BASALTGREY
AKZ4701/2KD-3.81-H-BASALTGREY
AKZ4701/3KD-3.81-H-BASALTGREY
AKZ4701/4KD-3.81-H-BASALTGREY
AKZ4701/5KD-3.81-H-BASALTGREY
AKZ4701/6KD-3.81-H-BASALTGREY
AKZ4701/7KD-3.81-H-BASALTGREY
AKZ4701/8KD-3.81-H-BASALTGREY
AKZ4701/9KD-3.81-H-BASALTGREY
AKZ4701/10KD-3.81-H-BASALTGREY
AKZ4701/11KD-3.81-H-BASALTGREY
AKZ4701/12KD-3.81-H-BASALTGREY
Poles
Width (mm)
Article Designation
Article
Number
54701010422
G
PU
250
UL 94 V-0
2
Temperatures
Operating Temperature
(without mech. load)
Store Temperature
-40 °C - 105 °C
-40 °C - 105 °C
54701020422 F 200
54701030422 F 200
54701040422 F 200
54701050422 E 100
54701060422 E 100
54701070422 E 100
54701080422
D
54701090422
D
54701100422
D
54701110422
D
54701120422
D
50
50
50
50
50
3
4
5
6
Dimensions
Stripped Length
PCB Hole Diameter
10.0 mm
1.4 mm
Wave Soldering Process
Soldering Temperature,
recommended
Peak Soldering Time,
recommended
260 °C
3-4 s
7
8
9
10
Materials
Solder Tab
Clamp Spring
Brass
Stainless
Steel
Reflow Process
Soldering Temperature,
recommended
Peak Soldering Time,
recommended
-
11
-
12
Colours
BASALT GREY, RAL 7012
GREEN, RAL 6018
LIGHT GREEN, similar RAL 6018
Colours according to RAL, there may be variations on colour due to production conditions. Special
colours on request.
Ratings
UseGroup
Rated Voltage
Rated Current
Rated Wire Size
- solid
- stranded
Test Voltage
B
300 V
6A
C
-
-
D
300 V
6A
min
130 V
12 A
max
1.5 mm²
1.5 mm²
1.25 kV
AWG 26-16
AWG 26-16
1.60 kV
-
-
-
AWG 26-16
AWG 26-16
1.60 kV
0.2 mm²
0.2 mm²
PTR HARTMANN GmbH
• Gewerbehof 38 • 59368 Werne / Germany
Telefon: +49 (0)2389/7988-0 •
E-Mail: info@ptr-hartmann.com
www.ptr.eu
