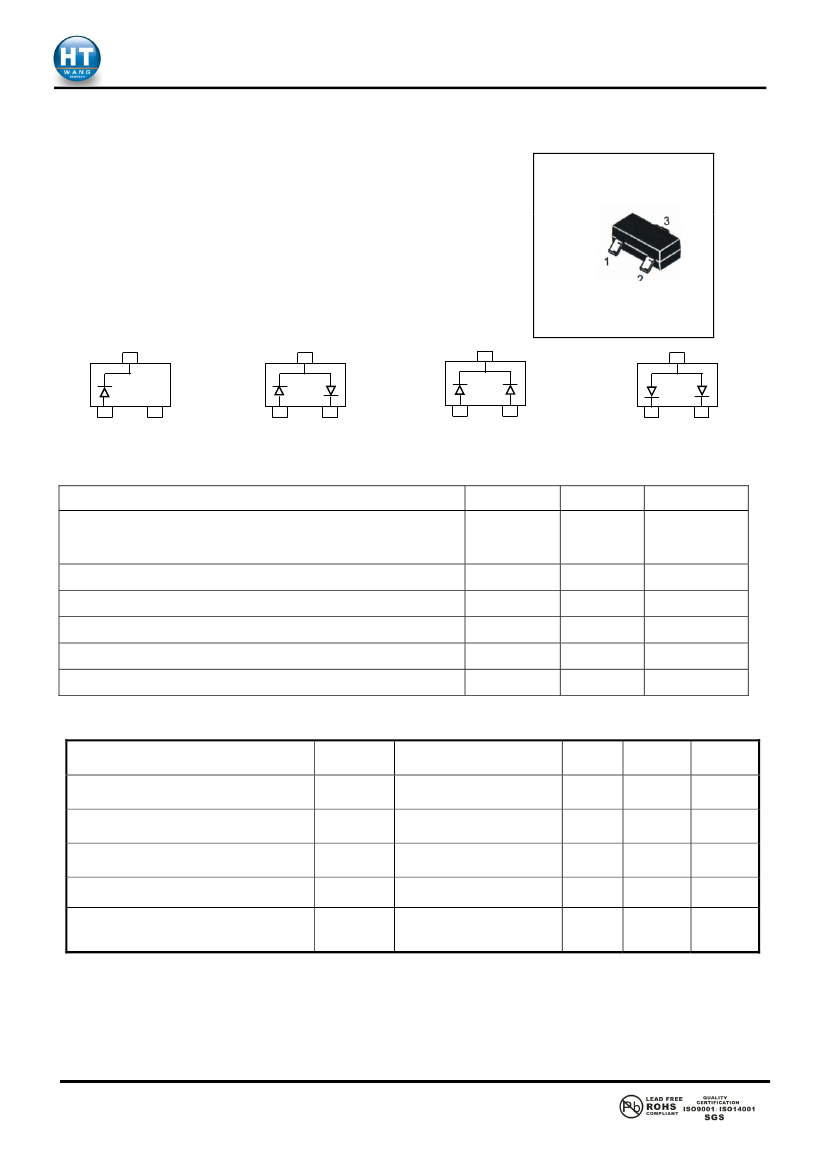

BAS7 0T/-04T/-05T/-06T

SCHOTTKY DIODE

SOT-523

FEATURES

Low Turn-on voltage

Fast switching

BAS70T Marking: 7C

BAS70-04T Marking: 7D

BAS70-05T Marking: 7E

BAS70-06T Marking: 7F

Maximum Ratings @T

A

=25℃

Parameter

Peak Repetitive Peak reverse voltage

Working Peak Reverse Voltage

DC Blocking Voltage

Forward Continuous Current

Non-Repetitive Peak Forward Surge Current @ t = 1.0s

Power Dissipation

Thermal Resistance Junction to Ambient Air

Storage temperature

Symbol

V

RRM

V

RWM

V

R

I

FM

I

FSM

P

D

R

θJA

T

STG

Limits

70

100

150

833

-65-125

Unit

V

mA

A

mW

℃/W

℃

ELECTRICAL CHARACTERISTICS (Tamb=25℃ unless otherwise specified)

Parameter

Reverse breakdown voltage

Reverse voltage

Forward

Diode

voltage

capacitance

leakage current

Symbol

V

(BR) R

I

R

V

F

C

D

t

rr

Test

I

R

= 10µA

V

R

=50V

I

F

=1mA

I

F

=15mA

V

R

=0, f=1MHz

conditions

MIN

70

100

410

1000

2

5

MAX

UNIT

V

nA

mV

pF

nS

Reveres recovery time

I

F

=I

R

=10mA,I

rr

=0.1xI

R

,

R

L

=100Ω

１　

JinYu

semiconductor

www.htsemi.com

Ｄ½½½：２０１１／０５
