BAV16WS
Silicon Epitaxial Planar Diodes
SOD-323
Features
Fast Switching Speed:trr=4ns(Typ).
Surface Mount Package Ideally Suited For
Automatic Insertion.
For General Purpose Switching Applications.
High Conductance.
Available in Lead Free Version.
Dimensions in inches and (millimeters)
Applications
Surface mount fast switching diode.
Ordering Information
Type No.
BAV16WS
Marking
T6
Package Code
SOD-323
MAXIMUM RATING
@ Ta=25℃ unless otherwise specified
Characteristic
Non-Repetitive Peak Reverse Voltage
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Reverse Voltage
RMS Reverse Voltage
Forward Continuous Current
Average Rectified Output Current
Non-Repetitive Peak Forward Surge Current @t=1.0
μs
@t=1.0 s
Power Dissipation
Thermal Resistance Junction to Ambient Air
Operating and Storage Temperature Rage
Symbol
V
RM
V
RRM
V
RWM
V
R
V
R(RMS)
I
FM
I
o
I
FSM
P
d
R
θJA
T
j
,T
STG
Value
100
75
Unit
V
V
53
300
150
2.0
1.0
200
625
-65 to+150
V
mA
mA
A
mW
℃/W
℃
http://www.luguang.cn
mail:lge@luguang.cn
BAV16WS
Silicon Epitaxial Planar Diodes
ELECTRICAL CHARACTERISTICS
@ Ta=25℃ unless otherwise specified
Characteristic
Reverse Breakdown Voltage
Forward Voltage
Symbol
V
(BR)R
V
F
Min
75
-
Max
-
0.715
0.855
1.0
1.25
1.0
25
2.0
4.0
Unit
V
V
Test Condition
I
R
=1.0μA
I
F
=1.0mA
I
F
=10mA
I
F
=50mA
I
F
=150mA
V
R
=75V
V
R
=20V
V
R
=0,f=1.0MHz
I
F
=I
R
=10mA,
I
rr
=0.1×I
R
,R
L
=100Ω
Reverse Current
Capacitance between
terminals
Reverse Recovery Time
I
R
C
T
t
rr
-
-
-
μA
nA
pF
ns

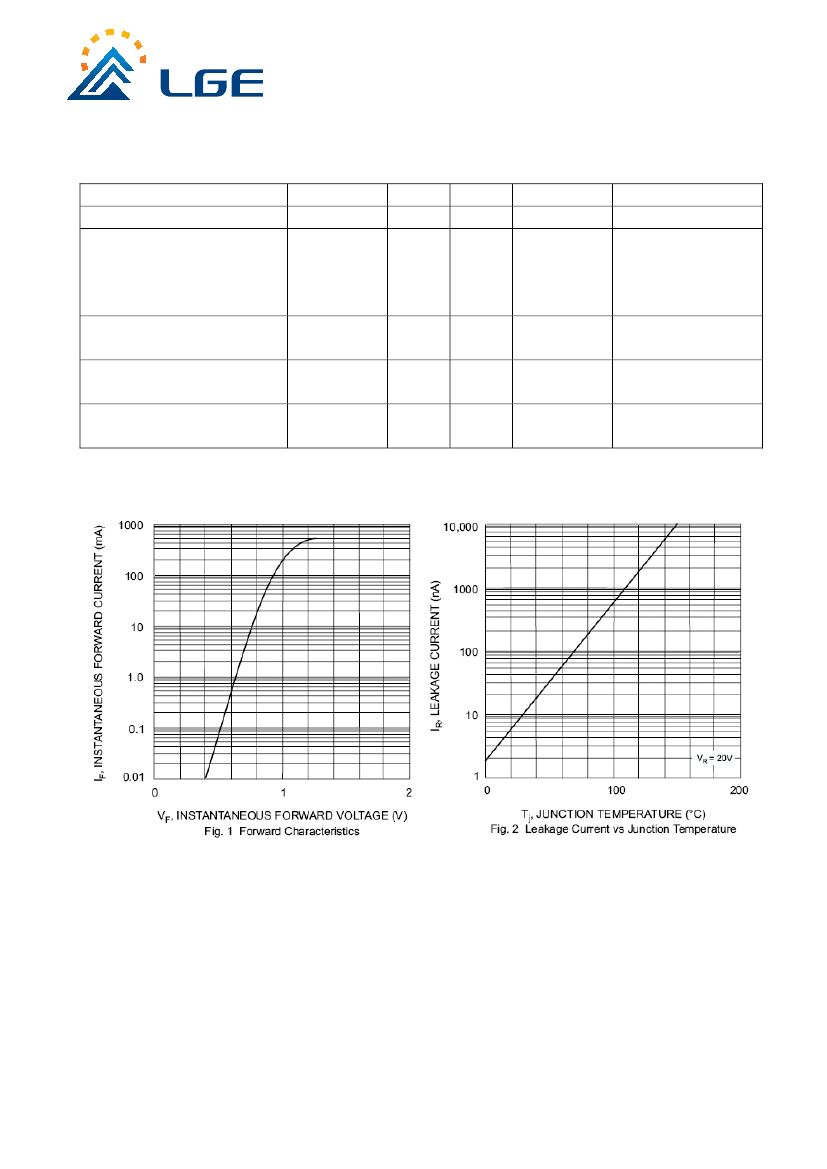

TYPICAL CHARACTERISTICS
