Surface mount switching diode
FEATURES
Continuous reverse voltage:max.75V
Switching speed:50ns.
Repetitive peak reverse voltage:max.250V
Repetitive peak forward current:max.625mA
BAV23
Pb
Lead-free
APPLICATIONS
General application.
SOT-143
ORDERING INFORMATION
Type No.
BAV23
Marking
L30
Package Code
SOT-143
MAXIMUM RATING
@ Ta=25℃ unless otherwise specified
Characteristic
Repetitive Peak Reverse Voltage
Continuous Reverse Voltage
Continuous forward current
Repetitive peak forward current
Surge current
t=1μs
t=1ms
t=1s
single diodes
double diodes
Symbol
V
RRM
V
R
I
F
I
FRM
I
FSM
P
d
T
j
T
STG
Limits
250
200
225
125
625
9
3
1.7
250
150
-65 to +150
Unit
V
V
mA
mA
A
mW
℃
℃
Power Dissipation
Operating Junction Temperature Range
Storage Temperature Range
http://www.luguang.cn
mail:lge@luguang.cn
1
Surface mount switching diode
BAV23
ELECTRICAL CHARACTERISTICS
@ Ta=25℃ unless otherwise specified
Characteristic
Reverse Breakdown Voltage
Forward Voltage
Forward Voltage series
connection
Reverse Leakage Current
Reverse Leakage Current
series connection
Diodes Capacitance
series connection
Reverse Recovery Time
Symbol
V
(BR)R
V
F
V
F
I
R
I
R
C
d
t
rr
Min
200
-
-
-
Typ
-
-
-
-
MAX
-
1.0
1.25
2.0
2.5
100
100
100
100
5
2.5
50
UNIT
V
V
V
nA
μA
nA
μA
pF
ns
Test Condition
I
R
= 100μA
I
F
=100mA
I
F
=200mA
I
F
=100mA
I
F
=200mA
V
R
=200V
V
R
=200V,T
j
=150℃
V
R
=400V
V
R
=400V,T
j
=150℃
V
R
=0V,f=1.0MHz
I
F
=I
R
=10mA,I
rr
=0.1*I
R
-
-
-
-
-
-

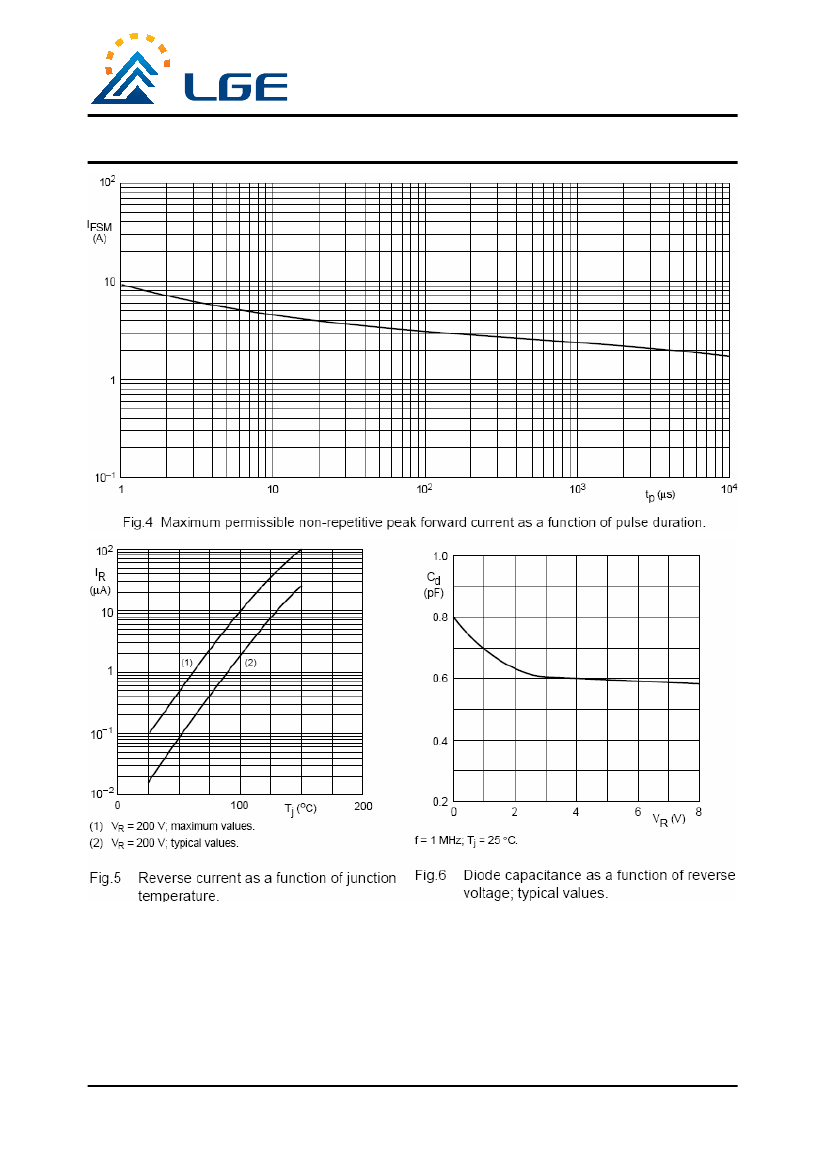

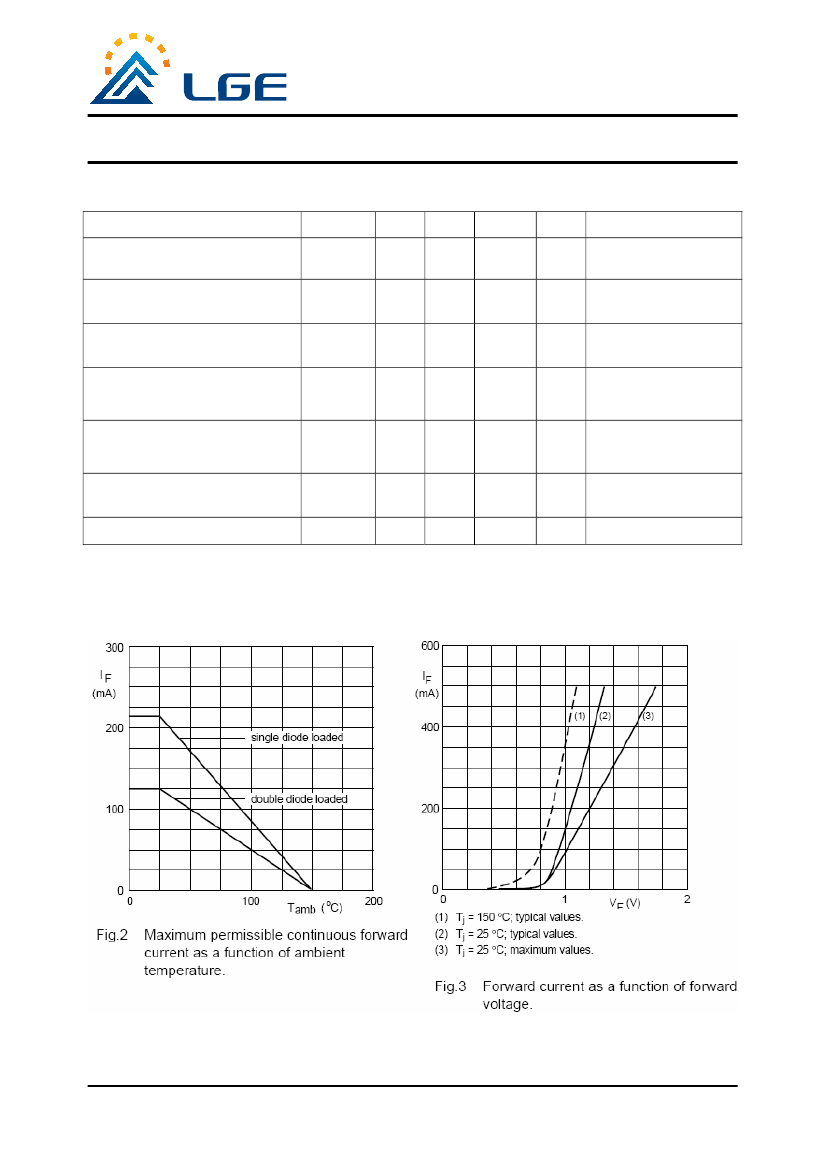

TYPICAL CHARACTERISTICS
@ Ta=25℃ unless otherwise specified
http://www.luguang.cn
mail:lge@luguang.cn
2
