LCBP473-P2R2-6K7L

Description
SINGLE COLOR LED, BLUE, 1.6mm, ROHS COMPLIANT, SMT, 2 PIN
CategoryLED optoelectronic/LED    photoelectric
File Size536KB，17 Pages
ManufacturerOsram Opto Semiconductor
Websitehttps://www.osram.com/index-2.jsp
Environmental Compliance
Download Datasheet Parametric Compare View All

LCBP473-P2R2-6K7L Overview

SINGLE COLOR LED, BLUE, 1.6mm, ROHS COMPLIANT, SMT, 2 PIN

LCBP473-P2R2-6K7L Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
package instructionROHS COMPLIANT, SMT, 2 PIN
Reach Compliance Codecompliant
Other featuresSUPPORTS INFRARED
colorBLUE
color@wavelengthBlue
ConfigurationSINGLE
Maximum forward current0.02 A
Maximum forward voltage3.7 V
Lens typeDIFFUSED
Nominal luminous intensity118.0 mcd
Installation featuresSURFACE MOUNT
Number of functions1
Number of terminals2
Maximum operating temperature100 °C
Minimum operating temperature-40 °C
Optoelectronic device typesSINGLE COLOR LED
total height0.825 mm
method of packingTAPE AND REEL
Maximum reverse voltage5 V
shapeROUND
size1.6 mm
surface mountYES
perspective120 deg

LCBP473-P2R2-6K7L Preview

Color on Demand PointLED
®
: blue
Lead (Pb) Free Product - RoHS Compliant
LCB P473
reverse mount
top mount
Released
Besondere Merkmale
•
Gehäusetyp:
weißes SMT Gehäuse, farbiger
diffuser Verguss
•
Besonderheit des Bauteils:
Montage von
unten durch die Leiterplatte oder von oben
möglich; ideal für extrem flache
Hinterleuchtungen
•
Farbort:
x = 0,20, y = 0,30 nach
CIE 1931 (blau)
•
Abstrahlwinkel:
Lambertscher Strahler (120°)
•
Technologie:
InGaN
•
optischer Wirkungsgrad:
11 lm/W
•
Gruppierungsparameter:
Lichtstärke, Farbort
•
Verarbeitungsmethode:
für alle
SMT-Bestücktechniken geeignet
•
Lötmethode:
Reflow Löten
•
Vorbehandlung:
nach JEDEC Level 2
•
Gurtung:
8-mm Gurt mit 3000/Rolle, ø180 mm
oder 12000/Rolle, ø330 mm
•
ESD-Festigkeit:
ESD-sicher bis 2 kV nach
JESD22-A114D
•
Erweiterte Korrosionsfestigkeit:
Details siehe
Seite 10
Anwendungen
• Einkopplung in Lichtleiter
• Tastenhinterleuchtung
• optischer Indikator
• Hinterleuchtung (LCD, Handy, Schalter,
Tasten, Displays, Werbebeleuchtung)
• Innenbeleuchtung im Automobilbereich
(z.B. Instrumentenbeleuchtung, u.ä.)
• Ersatz für Blitzlampen in Mobiltelefonen
Features
•
package:
white SMT package, colored diffused
resin
•
feature of the device:
top mount or reverse
mount; ideal for extremely flat backlight
•
color coordinates:
x = 0.20, y = 0.30 acc. to
CIE 1931 (blue)
•
viewing angle:
Lambertian Emitter (120°)
•
technology:
InGaN
•
optical efficiency:
11 lm/W
•
grouping parameter:
luminous intensity, color
coordinates
•
assembly methods:
suitable for all
SMT assembly methods
•
soldering methods:
reflow soldering
•
preconditioning:
acc. to JEDEC Level 2
•
taping:
8 mm tape with 3000/reel, ø180 mm
or 12000/reel, ø330 mm
•
ESD-withstand voltage:
up to 2 kV acc. to
JESD22-A114D
•
Superior Corrosion Robustness:
details see
page 10
Applications
• coupling into light guides
• key pad illumination
• optical indicators
• backlighting (LCD, cellular phones, switches,
keys, displays, illuminated advertising)
• interior automotive lighting
(e.g. dashboard backlighting, etc.)
• substitution of strobe light in cellular phones
2012-03-16
1
LCB P473
Bestellinformation
Ordering Information
Typ
Emissions-
farbe
Color of
Emission
Lichtstärke
1)
Seite 17
Lichtstrom
2)
Seite 17
Bestellnummer
Type
Luminous
Intensity
1)
page 17
Luminous Flux
2)
page 17
Ordering Code
I
F
= 10 mA
I
V
(mcd)
LCB P473-P2R2-3J4K
LCB P473-P2R2-3K4L
LCB P473-P2R2-4J5K
LCB P473-P2R2-4K5L
LCB P473-P2R2-5J6K
LCB P473-P2R2-5K6L
LCB P473-P2R2-6J7K
LCB P473-P2R2-6K7L
LCB P473-P2R2-3J4K
LCB P473-P2R2-3K4L
LCB P473-P2R2-4J5K
LCB P473-P2R2-4K5L
LCB P473-P2R2-5J6K
LCB P473-P2R2-5K6L
LCB P473-P2R2-6J7K
LCB P473-P2R2-6K7L
I
F
= 10 mA
Φ
V
(mlm)
on request
on request
on request
on request
on request
on request
on request
on request
on request
on request
on request
on request
on request
on request
on request
on request
CoD blue
top mount
56 ... 180
350 (typ.)
CoD blue
reverse mount
56 ... 180
350 (typ.)
Anm.: Die oben genannten Typbezeichnungen umfassen die bestellbaren Selektionen. Diese bestehen aus wenigen
Helligkeitsgruppen (siehe
Seite 6
für nähere Informationen). Es wird nur eine einzige Helligkeitsgruppe pro
Gurt geliefert. Z.B.: LCB P473-P2R2-XXXX bedeutet, dass auf dem Gurt nur eine der Helligkeitsgruppen P2,
Q1, Q2, R1, R2 enthalten ist.
Um die Liefersicherheit zu gewährleisten, können einzelne Helligkeitsgruppen nicht bestellt werden.
Gleiches gilt für die Farben, bei denen Farbortgruppen gemessen und gruppiert werden. Pro Gurt wird nur eine
Farbortgruppe geliefert. Z.B.: LCB P473-P2R2-XXXX bedeutet, dass auf dem Gurt nur eine der
Farbortgruppen enthalten ist (siehe
Seite 5
für nähere Information).
Um die Liefersicherheit zu gewährleisten, können einzelne Farbortgruppen nicht bestellt werden.
Note:
The above Type Numbers represent the order groups which include only a few brightness groups (see
page 6
for explanation). Only one group will be shipped on each reel (there will be no mixing of two groups on each
reel). E.g. LCB P473-P2R2-XXXX means that only one group P2, Q1, Q2, R1, R2 will be shippable for any one
reel.
In order to ensure availability, single brightness groups will not be orderable.
In a similar manner for colors where chromaticity coordinate groups are measured and binned, single
chromaticity coordinate groups will be shipped on any one reel. E.g. LCB P473-P2R2-XXXX means that only
1 chromaticity coordinate group will be shippable (see
page 5
for explanation).
In order to ensure availability, single chromaticity coordinate groups will not be orderable.
2012-03-16
2
LCB P473
Grenzwerte
Maximum Ratings
Bezeichnung
Parameter
Betriebstemperatur
Operating temperature range
Lagertemperatur
Storage temperature range
Sperrschichttemperatur
Junction temperature
Durchlassstrom
Forward current
(
T
A
=25°C)
Stoßstrom
Surge current
t
≤
10
µ
s,
D
= 0.005,
T
A
=25°C
Sperrspannung
3)
Seite 17
Reverse voltage
3)
page 17
(
T
A
=25°C)
Leistungsaufnahme
Power consumption
(
T
A
=25°C)
Wärmewiderstand
Thermal resistance
Sperrschicht/Umgebung
4)
Seite 17
Junction/ambient
4)
page 17
Sperrschicht/Lötpad
Junction/solder point
Symbol
Symbol
Wert
Value
– 40 … + 100
– 40 … + 100
+ 110
20
Einheit
Unit
°C
°C
°C
mA
T
op
T
stg
T
j
I
F
I
FM
200
mA
V
R
5
V
P
tot
80
mW
R
th JA
R
th JS
480
230
K/W
K/W
2012-03-16
3
LCB P473
Kennwerte
Characteristics
(
T
A
= 25 °C)
Bezeichnung
Parameter
Farbkoordinate x nach CIE 1931
5)
Seite 17
(typ.)
5)
page 17
Chromaticity coordinate x acc. to CIE 1931
I
F
= 10 mA
(typ.)
Farbkoordinate y nach CIE 1931
5)
Seite 17
5)
page 17
Chromaticity coordinate y acc. to CIE 1931
I
F
= 10 mA
Abstrahlwinkel bei 50 %
I
V
(Vollwinkel)
Viewing angle at 50 %
I
V
Durchlassspannung
6)
Seite 17
Forward voltage
6)
page 17
I
F
= 10 mA
Sperrstrom
Reverse current
V
R
= 5 V
Optischer Wirkungsgrad
Optical efficiency
I
F
= 10 mA
(typ.)
(min.)
(typ.)
(max.)
(typ.)
(max.)
(typ.)
Symbol
Symbol
x
Wert
Value
0.2
Einheit
Unit
–
y
0.3
–
2
ϕ
120
2.7
3.1
3.7
0.01
10
11
Grad
deg.
V
V
V
V
F
V
F
V
F
I
R
I
R
η
opt
µ
A
µ
A
lm/W
2012-03-16
4
LCB P473

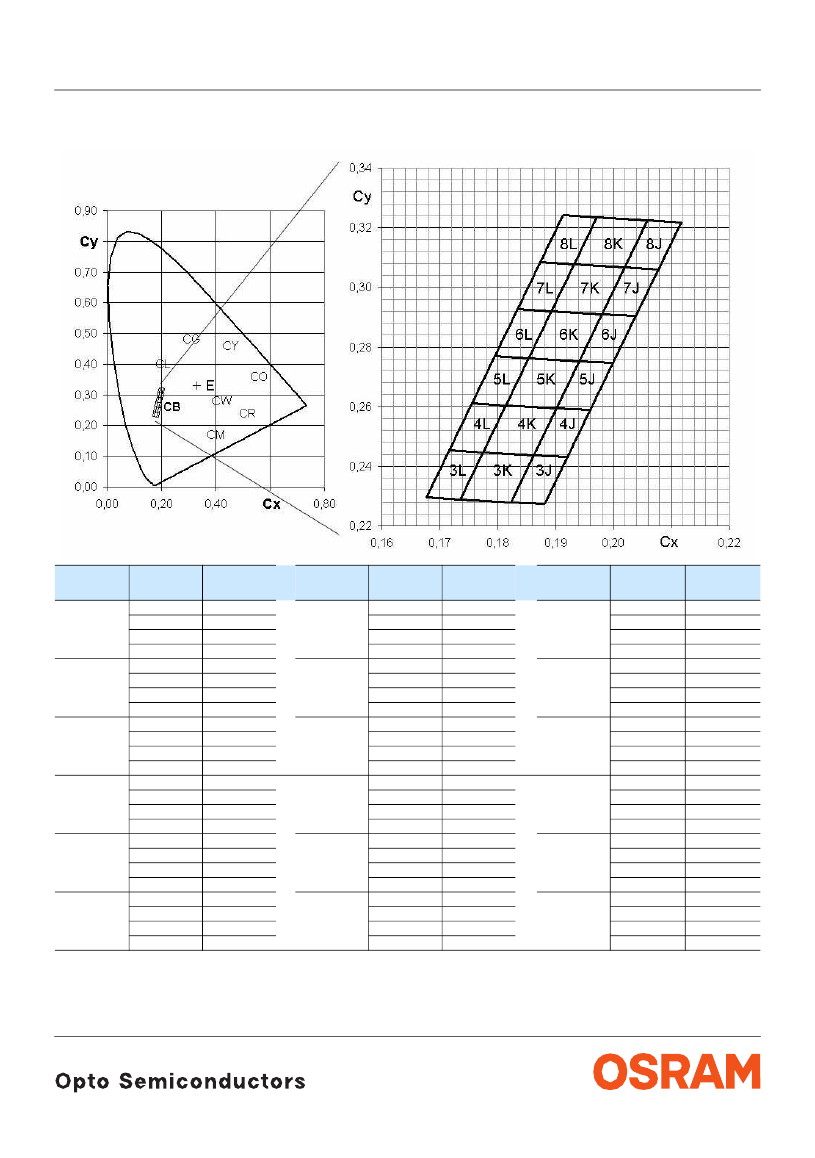

Farbortgruppen
5)
Seite 17
5)
page 17
Chromaticity coordinate groups
Gruppe
Group
3L
Cx
0.172
0.177
0.174
0.168
Cy
0.245
0.245
0.229
0.230
0.261
0.260
0.245
0.245
0.277
0.276
0.260
0.261
0.293
0.292
0.276
0.277
0.308
0.308
0.292
0.293
0.324
0.324
0.308
0.308
Gruppe
Group
3K
Cx
0.177
0.186
0.182
0.174
Cy
0.245
0.244
0.228
0.229
0.260
0.259
0.244
0.245
0.276
0.275
0.259
0.260
0.292
0.291
0.275
0.276
0.308
0.307
0.291
0.292
0.324
0.323
0.307
0.308
Gruppe
Group
3J
Cx
0.186
0.192
0.188
0.182
Cy
0.244
0.243
0.227
0.228
0.259
0.259
0.243
0.244
0.275
0.275
0.259
0.259
0.291
0.290
0.275
0.275
0.307
0.306
0.290
0.291
0.323
0.322
0.306
0.307
4L
0.176
0.181
0.177
0.172
4K
0.181
0.190
0.186
0.177
4J
0.190
0.196
0.192
0.186
5L
0.179
0.189
0.181
0.176
5K
0.185
0.194
0.190
0.181
5J
0.194
0.200
0.196
0.190
6L
0.183
0.189
0.185
0.179
6K
0.189
0.198
0.194
0.185
6J
0.198
0.204
0.200
0.194
7L
0.187
0.193
0.189
0.183
7K
0.193
0.202
0.198
0.189
7J
0.202
0.208
0.194
0.198
8L
0.191
0.197
0.193
0.187
8K
0.197
0.206
0.202
0.193
8J
0.206
0.212
0.208
0.202
Es ist nur möglich das Produkt mit minimum 2x2 Farbgruppen zu bestellen (z.B.: 3J4K)
Its only possible to order the product with min. 2x2 color groups (e.g.: 3J4K).
2012-03-16
5
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

LCBP473-P2R2-6K7L Related Products

LCBP473-P2R2-6K7L LCBP473-P2R2-4K5L LCBP473-P2R2-5K6L LCBP473-P2R2-3J4K LCBP473-P2R2-6J7K LCBP473-P2R2-3K4L LCBP473-P2R2-5J6K
Description SINGLE COLOR LED, BLUE, 1.6mm, ROHS COMPLIANT, SMT, 2 PIN SINGLE COLOR LED, BLUE, 1.6mm, ROHS COMPLIANT, SMT, 2 PIN SINGLE COLOR LED, BLUE, 1.6mm, ROHS COMPLIANT, SMT, 2 PIN SINGLE COLOR LED, BLUE, 1.6mm, ROHS COMPLIANT, SMT, 2 PIN SINGLE COLOR LED, BLUE, 1.6mm, ROHS COMPLIANT, SMT, 2 PIN SINGLE COLOR LED, BLUE, 1.6mm, ROHS COMPLIANT, SMT, 2 PIN SINGLE COLOR LED, BLUE, 1.6mm, ROHS COMPLIANT, SMT, 2 PIN
Is it Rohs certified? conform to conform to conform to conform to conform to conform to conform to
package instruction ROHS COMPLIANT, SMT, 2 PIN ROHS COMPLIANT, SMT, 2 PIN ROHS COMPLIANT, SMT, 2 PIN ROHS COMPLIANT, SMT, 2 PIN ROHS COMPLIANT, SMT, 2 PIN ROHS COMPLIANT, SMT, 2 PIN ROHS COMPLIANT, SMT, 2 PIN
Reach Compliance Code compliant compliant compliant compliant compliant compliant compliant
Other features SUPPORTS INFRARED SUPPORTS INFRARED SUPPORTS INFRARED SUPPORTS INFRARED SUPPORTS INFRARED SUPPORTS INFRARED SUPPORTS INFRARED
color BLUE BLUE BLUE BLUE BLUE BLUE BLUE
color@wavelength Blue Blue Blue Blue Blue Blue Blue
Configuration SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE
Maximum forward current 0.02 A 0.02 A 0.02 A 0.02 A 0.02 A 0.02 A 0.02 A
Maximum forward voltage 3.7 V 3.7 V 3.7 V 3.7 V 3.7 V 3.7 V 3.7 V
Lens type DIFFUSED DIFFUSED DIFFUSED DIFFUSED DIFFUSED DIFFUSED DIFFUSED
Nominal luminous intensity 118.0 mcd 118.0 mcd 118.0 mcd 118.0 mcd 118.0 mcd 118.0 mcd 118.0 mcd
Installation features SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT
Number of functions 1 1 1 1 1 1 1
Number of terminals 2 2 2 2 2 2 2
Maximum operating temperature 100 °C 100 °C 100 °C 100 °C 100 °C 100 °C 100 °C
Minimum operating temperature -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C
Optoelectronic device types SINGLE COLOR LED SINGLE COLOR LED SINGLE COLOR LED SINGLE COLOR LED SINGLE COLOR LED SINGLE COLOR LED SINGLE COLOR LED
total height 0.825 mm 0.825 mm 0.825 mm 0.825 mm 0.825 mm 0.825 mm 0.825 mm
method of packing TAPE AND REEL TAPE AND REEL TAPE AND REEL TAPE AND REEL TAPE AND REEL TAPE AND REEL TAPE AND REEL
Maximum reverse voltage 5 V 5 V 5 V 5 V 5 V 5 V 5 V
shape ROUND ROUND ROUND ROUND ROUND ROUND ROUND
size 1.6 mm 1.6 mm 1.6 mm 1.6 mm 1.6 mm 1.6 mm 1.6 mm
surface mount YES YES YES YES YES YES YES
perspective 120 deg 120 deg 120 deg 120 deg 120 deg 120 deg 120 deg
Maker - Osram Opto Semiconductor Osram Opto Semiconductor Osram Opto Semiconductor Osram Opto Semiconductor Osram Opto Semiconductor -

Recommended Resources

Amplifier circuit diagram

Zoomlion F-9500A preamplifier (a)

30W flyback switching power supply circuit diagram

sound level generator

GEL-Cell Charger Circuit

Audio intermediate frequency amplifier circuit

A person who doesn't know MCU talks about MCU
Nowadays, too many products are equipped with single-chip microcomputers. I think if one of these microcontrollers breaks down, the whole board will be wasted. Isn’t that a pity?...
wswddwsw Talking
US-funded company recruits VOIP engineer (SW 2#)
A US company is recruiting VOIP engineer(SW 2#) Company name: Carrier Access Company website: http://www.carrieraccess.com Email: lshi@carrieraccess.com, please indicate the source of the information ...
liudaozhu Embedded System
Open Source Activity 2: Single-Chip FM Radio DIY Materials
[b]Necessary information[/b] [b]1. RDA5820 PDF chip information[/b] The RDA5820 is a single-chip broadcast FM transceiver with fully integrated synthesizer, IF selectivity and MPX decoder. The chip us...
leslie RF/Wirelessly
Infrared encoding and decoding——GREE remote control transmission
[color=#000][font=微软雅黑]In the last issue, we described infrared decoding and the errors caused by infrared transmission. [/font][/color] [color=#000][font=微软雅黑]Last Issue Review[/font][/color] [font=微...
dvd1478 NXP MCU
Is there such a network card: it can realize dual network card redundant fault-tolerant backup? My QQ: 270996889 EMAIL: SDTZ_ZZ@126.COM
Is there such a network card: it can realize dual network card redundant fault-tolerant backup? My QQ: 270996889 EMAIL: SDTZ_ZZ@126.COM...
tigerweihui Embedded System
Three factors considered in the ADI solution for lithium battery capacity testing are worth learning from
In today's world of huge energy consumption, lithium-ion batteries play an important role in energy conservation. The manufacturing process of lithium-ion batteries is very complex, including electrod...
qwqwqw2088 Energy Infrastructure?
Shortcut:   A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 AA AB AC AD AE AF AG AH AI AJ AK AL AM AN AO AP AQ AR AS AT AU AV AW AX AY AZ B0 B1 B2 B3 B4 B5 B6 B7 B8 B9 BA BB BC BD BE BF BG BH BI BJ BK BL BM BN BO BP BQ BR BS BT BU BV BW BX BY BZ C0 C1 C2 C3 C4 C5 C6 C7 C8 C9 CA CB CC CD CE CF CG CH CI CJ CK CL CM CN CO CP CQ CR CS CT CU CV CW CX CY CZ D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 DA DB DC DD DE DF DG DH DI DJ DK DL DM DN DO DP DQ DR DS DT DU DV DW DX DZ

Popular Components

  1. PICOD-131-AL
  2. NCH269C3
  3. TVP00RW-23-151P-P2AD
  4. SR103N0-26K3-180
  5. HCHP0805100PPM2940.5%WTRE4
  6. ATS175-6571-CT452
  7. 125-152-HB20W
  8. C0805A209C2GAG7800
  9. AME8500AEETBD20
  10. MD60K18D1
  11. C2003HMC-10P-LG
  12. A2541WV-31P-D1016-G15

Popular Articles

  1. 26-Conveyor belt counting system based on single chip microcomputer
  2. Motor winding wiring tips_Motor winding wiring methods
  3. NIO releases 75kWh ternary iron-lithium battery pack, reducing low-temperature endurance loss by 25%
  4. Clarience Launches New Program A2Z for e-Mobility™ to Improve Electric Vehicle Range
  5. Redmi Note 11 Pro+ passes FCC certification: will be released overseas
  6. Rochester Electronics and Kyoto Semiconductor Partner to Provide Long-Term Reliable Optical Components to Communications and Sensing Customers
  7. The impact of power battery degradation on electric vehicles
  8. It has become a consensus that new energy vehicles will replace fuel vehicles in the future.
  9. Murata's stable and long-lasting negative ion/oxygen generator helps smart home appliance manufacturers create a healthy living space in the future
  10. How Oscilloscope Probes Measure Low Amplitude Signals

Technical ResourceMore

  1. Guangdong Tower 5G Network Construction Experience Sharing
  2. Embedded VxWorks system development and application
  3. A new type of BOOST circuit
  4. Sine wave power signal source with phase shift and frequency conversion function
  5. Detailed explanation of automotive electronic control systems
  6. Mobile phone sound cavity design
  7. MATLAB Case 22 LVQ Neural Network Prediction - Face Orientation Recognition.rar
  8. Detailed Introduction to the Basic Principles of DDR SDRAM
  9. Altium Designer schematic library simulation symbol.SCHLIB
  10. Practical C language programming and typical examples for AVR microcontrollers

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 2053  188  2248  159  2699  42  4  46  55  25
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
