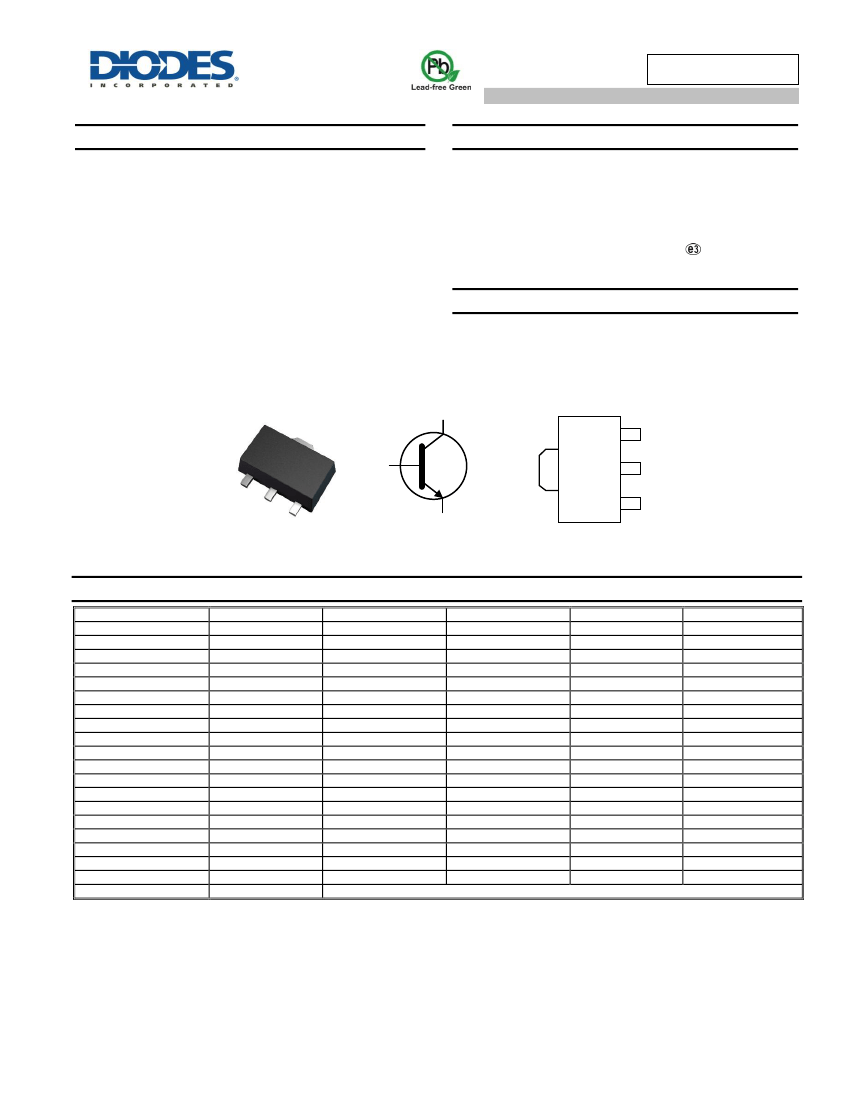

Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 4)
Mechanical Data
Case: SOT89
Case Material: Molded Plastic, “Green” Molding Compound;
UL Flammability Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish Leads.
Solderable per MIL-STD-202 Method 208
Weight: 0.055 grams (Approximate)
Applications
Medium Power Switching or Amplification Applications
AF Driver and Output Stages
SOT89
C
E
B
C
C
B
E
Top View
Device Symbol
Top View
Pin-Out
Ordering Information
(Notes 4 & 5)
Product
BCX54TA
BCX5410TA
BCX5416TA
BCX5416-13R
BCX55TA
BCX5510TA
BCX5516TA
BCX56TA
BCX5610TA
BCX5616TA
BCX5616TC
BCX5410TC
BCX5416TC
BCX54TC
BCX5510TC
BCX5516TC
BCX55TC
BCX5610TC
BCX56TC
BCX5616QTA
Notes:
Compliance
AEC-Q101
AEC-Q101
AEC-Q101
AEC-Q101
AEC-Q101
AEC-Q101
AEC-Q101
AEC-Q101
AEC-Q101
AEC-Q101
AEC-Q101
AEC-Q101
AEC-Q101
AEC-Q101
AEC-Q101
AEC-Q101
AEC-Q101
AEC-Q101
AEC-Q101
Automotive
Marking
Reel size (inches)
Tape width (mm)
BA
7
12
BC
7
12
BD
7
12
BD
13
12
BE
7
12
BG
7
12
BM
7
12
BH
7
12
BK
7
12
BL
7
12
BL
13
12
BC
13
12
BD
13
12
BA
13
12
BG
13
12
BM
13
12
BE
13
12
BK
13
12
BH
13
12
Refer to http://diodes.com/datasheets/BCX5616Q.pdf
Quantity per reel
1,000
1,000
1,000
4,000
1,000
1,000
1,000
1,000
1,000
1,000
4,000
4,000
4,000
4,000
4,000
4,000
4,000
4,000
4,000
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally
the same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_compliance_definitions/.
5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
