0074-600-AB221: DescriptionPotentiometer, Carbon, 0.2W, 220ohm, 20% +/-Tol; CategoryPassive components The resistor; File Size345KB，1 Pages; ManufacturerBourns; Websitehttp://www.bourns.com; Environmental Compliance

Download Datasheet Parametric Compare View All

0074-600-AB221 Overview

Potentiometer, Carbon, 0.2W, 220ohm, 20% +/-Tol

0074-600-AB221 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
structure	Rotary
JESD-609 code	e3
Manufacturer's serial number	0074
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
Package diameter	20 mm
Package length	5 mm
Package form	PCB Mount
Rated power dissipation(P)	0.2 W
resistance	220 Ω
Resistor type	POTENTIOMETER
rotation angle	240 deg
series	0074
technology	CARBON
Terminal surface	Matte Tin (Sn)
Tolerance	20%

Preview

Download Datasheet

View All

Features

Edge control

Various knurled knobs are tooled

Additional models and versions available

Carbon resistive element

This model is

not

recommended for new designs.

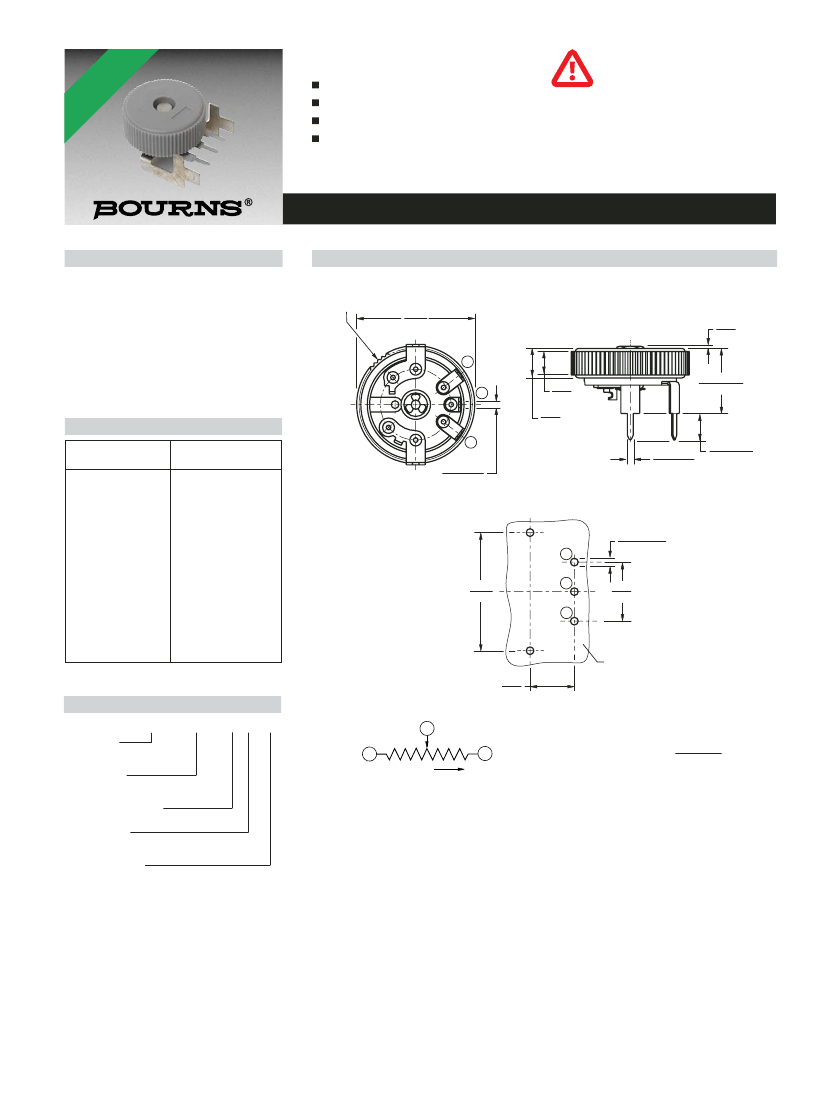

0074 - Rotary Potentiometer

Mechanical Angle...................240 °±10 °

Starting Torque ................0.7 to 2.5 Ncm

End Stop Strength....................>30 Ncm

Resistance Range

...................100 ohms to 4.7 megohms

Resistance Taper...........................Linear

Power Rating ...............................0.20 W

Temperature Range ......-25 °C to +70 °C

Rotational Life ...................10,000 cycles

Standard Resistance Table

Resistance

(Ohms)

100

220

470

1,000

2,200

4,700

10,000

22,000

47,000

100,000

220,000

470,000

1,000,000

2,200,000

4,700,000

Characteristics

Product Dimensions

0074-600

KNURL DIN 82

RAA ca. 09

20.0

(.787)

0.4

(.016)

4.0

(.157)

5.0

(.197)

11.0 ± 0.4

(.433 ± .016)

Resistance

Code

101

221

471

102

222

472

103

223

473

104

224

474

105

225

475

How to Order

Model Type

• 0074

Terminal Style and

Knob Version

• 600 (Other knobs available

upon request)

Independent Linearity

A = ±5 %

Element Taper

B = Linear Carbon ±20 %

M = Linear Carbon ±30 %

Resistance Code

Other versions available upon request.

0074 - 600 - A B 103

1.0 ± 0.1

(.039 ± .004)

1.0 ± 0.1

(.039 ± .004)

4.5 ± 0.3

(.177 ± .012)

Recommended PCB Layout

5 PLCS.

1.3 +0.1/-0

(.051 +.004/-0)

20.0

(.787)

10.0

(.394)

COMPONENT SIDE

7.5

(.295)

CCW

WIPER

CLOCKWISE

DIMENSIONS ARE:

(INCHES)

REV. 11/12

*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.

Specifications are subject to change without notice.

Customers should verify actual device performance in their specific applications.

0074-600-AB221 Related Products

	0074-600-AB221	0074-600-AB473	0074-600-AB223	0074-600-AB102	0074-600-AB104	0074-600-AM475
Description	Potentiometer, Carbon, 0.2W, 220ohm, 20% +/-Tol	Potentiometer, Carbon, 0.2W, 47000ohm, 20% +/-Tol	Potentiometer, Carbon, 0.2W, 22000ohm, 20% +/-Tol	Potentiometer, Carbon, 0.2W, 1000ohm, 20% +/-Tol	Potentiometer, Carbon, 0.2W, 100000ohm, 20% +/-Tol	Potentiometer, Carbon, 0.2W, 4700000ohm, 30% +/-Tol
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
structure	Rotary	Rotary	Rotary	Rotary	Rotary	Rotary
JESD-609 code	e3	e3	e3	e3	e3	e3
Manufacturer's serial number	0074	0074	0074	0074	0074	0074
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
Package diameter	20 mm	20 mm	20 mm	20 mm	20 mm	20 mm
Package length	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm
Package form	PCB Mount	PCB Mount	PCB Mount	PCB Mount	PCB Mount	PCB Mount
Rated power dissipation(P)	0.2 W	0.2 W	0.2 W	0.2 W	0.2 W	0.2 W
resistance	220 Ω	47000 Ω	22000 Ω	1000 Ω	100000 Ω	4700000 Ω
Resistor type	POTENTIOMETER	POTENTIOMETER	POTENTIOMETER	POTENTIOMETER	POTENTIOMETER	POTENTIOMETER
rotation angle	240 deg	240 deg	240 deg	240 deg	240 deg	240 deg
series	0074	0074	0074	0074	0074	0074
technology	CARBON	CARBON	CARBON	CARBON	CARBON	CARBON
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Tolerance	20%	20%	20%	20%	20%	30%
Maker	-	Bourns	Bourns	Bourns	Bourns	-
