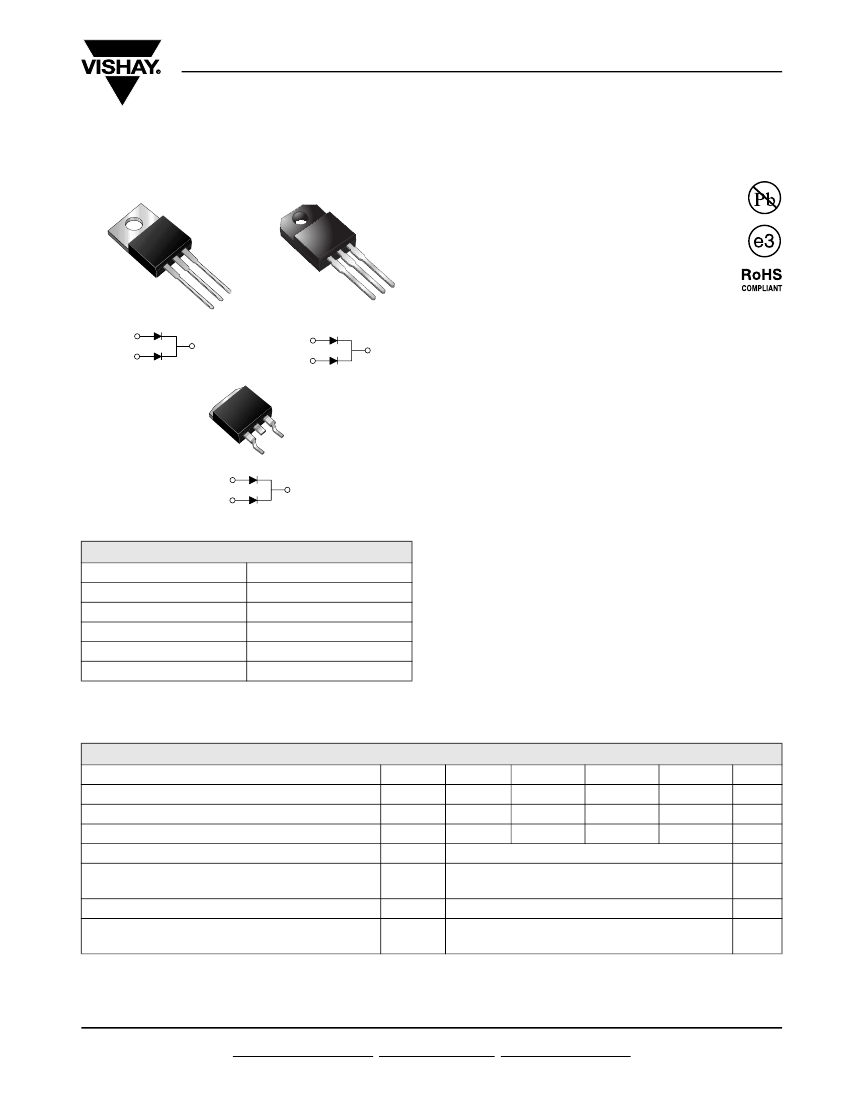

BYV(F,B)32-50 thru BYV(F,B)32-200

Vishay General Semiconductor

Dual Common-Cathode Ultrafast Rectifier

TO-220AB

ITO-220AB

BYV32 Series

PIN 1

PIN 3

PIN 2

CASE

BYVF32 Series

PIN 1

PIN 3

PIN 2

TO-263AB

FEATURES

• Glass passivated chip junction

• Ultrafast recovery time

• Low switching losses, high efficiency

• Low forward voltage drop

• High forward surge capability

• Meets MSL level 1, per J-STD-020, LF maximum

peak of 245 °C (for TO-263AB package)

• Solder dip 260 °C, 40 s (for TO-220AB and

ITO-220AB package)

• Component in accordance to RoHS 2002/95/EC

and WEEE 2002/96/EC

TYPICAL APPLICATIONS

For use in high frequency rectifier of switching mode

power supplies, inverters, freewheeling diodes,

dc-to-dc converters, and other power switching

application.

MECHANICAL DATA

Case:

TO-220AB, ITO-220AB, TO-263AB

Epoxy meets UL 94V-0 flammability rating

Terminals:

Matte tin plated leads, solderable per

J-STD-002 and JESD22-B102

E3 suffix for consumer grade, meets JESD 201 class

1A whisker test, HE3 suffix for high reliability grade

(AEC Q101 qualified), meets JESD 201 class 2

whisker test

Polarity:

As marked

Mounting Torque:

10 in-lbs maximum

BYVB32 Series

PIN 1

PIN 2

HEATSINK

PRIMARY CHARACTERISTICS

F(AV)

RRM

FSM

max.

18 A

50 V to 200 V

150 A

25 ns

0.85 V

150 °C

MAXIMUM RATINGS

= 25 °C unless otherwise noted)

PARAMETER

Maximum repetitive peak reverse voltage

Maximum RMS voltage

Maximum DC blocking voltage

Maximum average forward rectified current at T

= 125 °C

Peak forward surge current 8.3 ms single half sine-wave

superimposed on rated load per diode

Operating storage and temperature range

Isolation voltage (ITO-220AB only)

from terminal to heatsink t = 1 min

SYMBOL

RRM

RMS

F(AV)

FSM

, T

STG

BYV32-50

BYV32-100

100

150

- 65 to + 150

1500

BYV32-150

150

105

150

BYV32-200

200

140

200

UNIT

°C

Document Number: 88558

Revision: 05-May-08
