BZX84B4V3-V: Description4.3 V, 0.3 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE; CategoryDiscrete semiconductor diode; File Size253KB，11 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric Compare View All

BZX84B4V3-V Overview

4.3 V, 0.3 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE

BZX84B4V3-V Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Vishay
package instruction	R-PDSO-G3
Contacts	3
Reach Compliance Code	unknow
ECCN code	EAR99
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
JESD-30 code	R-PDSO-G3
JESD-609 code	e3
Humidity sensitivity level	1
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
polarity	UNIDIRECTIONAL
Maximum power dissipation	0.3 W
Certification status	Not Qualified
Nominal reference voltage	4.3 V
surface mount	YES
technology	ZENER
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	40
Maximum voltage tolerance	2%
Working test current	5 mA

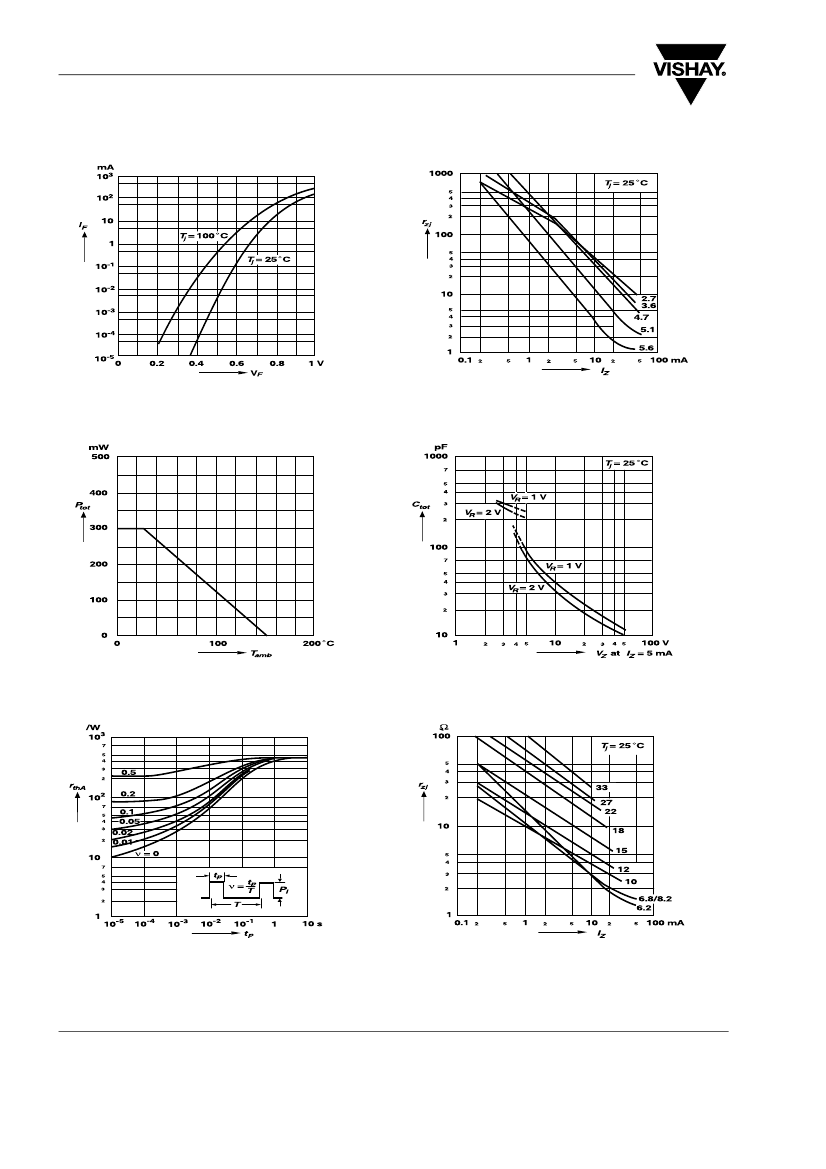

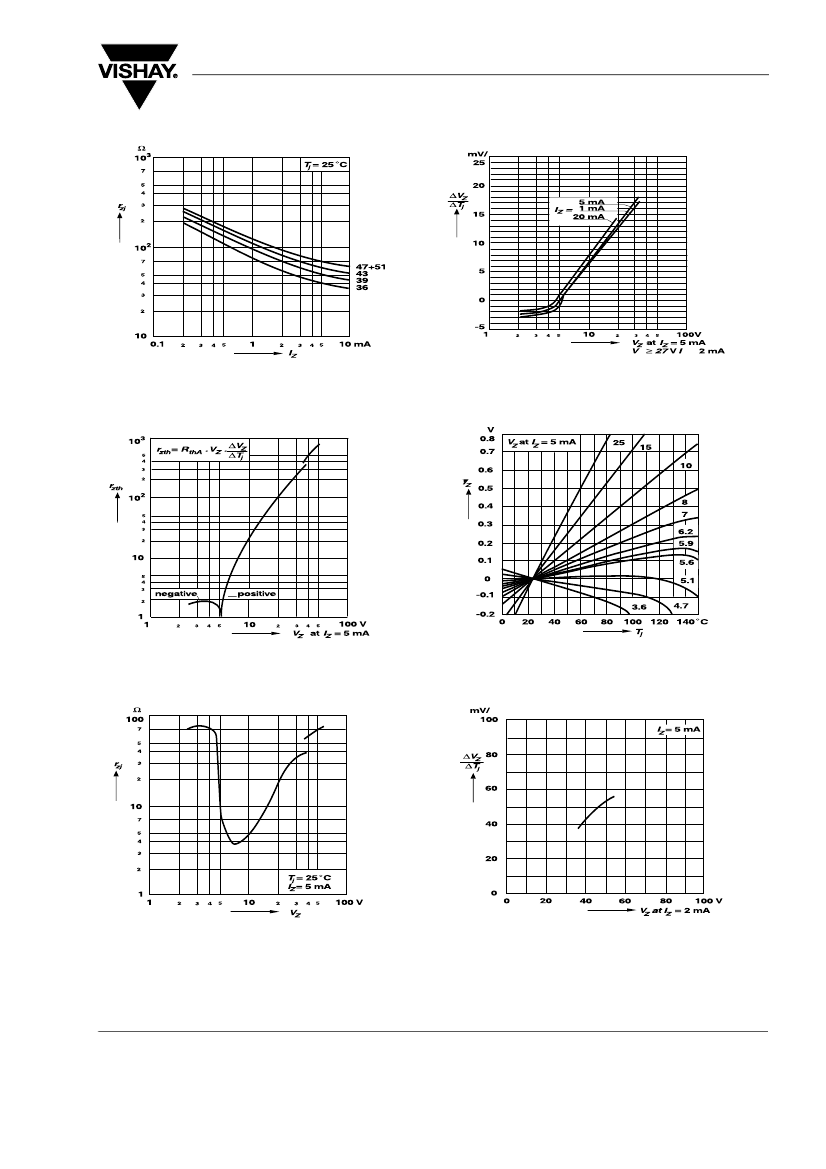

Preview

Download Datasheet

View All

BZX84-V-Series

Vishay Semiconductors

Small Signal Zener Diodes

Features

• These diodes are also available in other

case styles and other configurations

including: the SOD-123 case with type

designation BZT52 series, the dual zener

diode common anode configuration in the SOT-23

case with type designation AZ23 series and the

dual zener diode common cathode configuration

in the SOT-23 case with type designation DZ23

series.

• The Zener voltages are graded according to the

international E 24 standard. Standard Zener volt-

age tolerance is ± 5 %. Replace "C" with "B" for

± 2 % tolerance.

• Silicon Planar Power Zener Diodes

• Lead (Pb)-free component

• Component in accordance to RoHS 2002/95/EC

and WEEE 2002/96/EC

18078

Mechanical Data

Case:

SOT-23 Plastic case

Weight:

approx. 8.8 mg

Packaging Codes/Options:

GS18 / 10 k per 13" reel (8 mm tape), 10 k/box

GS08 / 3 k per 7" reel (8 mm tape), 15 k/box

Absolute Maximum Ratings

amb

= 25 °C, unless otherwise specified

Parameter

Power dissipation

Test condition

Symbol

tot

Value

300

Unit

Device on fiberglass substrate, see layout.

Thermal Characteristics

amb

= 25 °C, unless otherwise specified

Parameter

Thermal resistance junction to ambient air

Junction temperature

Storage temperature range

Test condition

Symbol

thJA

Value

420

150

- 65 to + 150

Unit

°C/W

°C

Device on fiberglass substrate, see layout.

Document Number 85763

Rev. 1.7, 14-Jul-05

www.vishay.com
