Micro-USB connectors meeting requirements of USB 2.0 Standard
ZX Series
Note: Contact us to ascertain whether a TID number has
been acquired for an individual product.

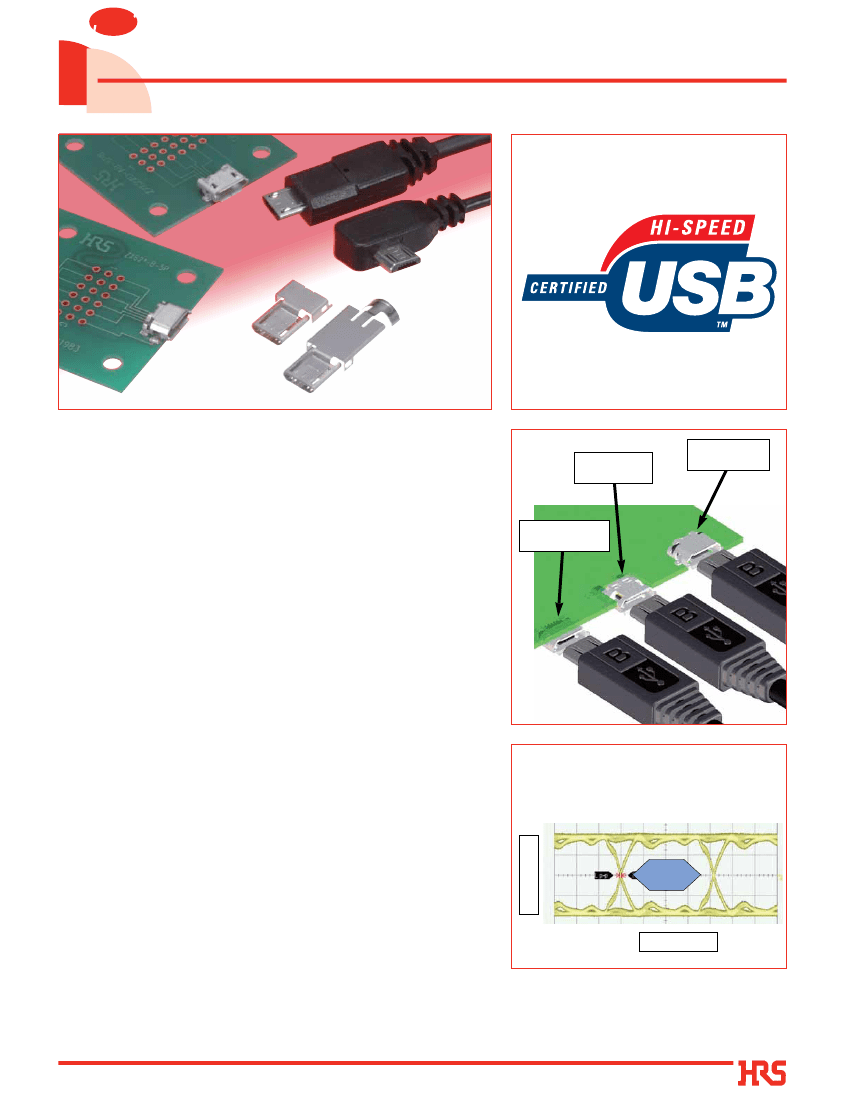

■Overview
Extremely small high reliability connectors complying with physical,
electrical and environmental requirements of Micro-USB standard
(USB 2.0).
Receptacles and plugs are available in a wide variety of mounting
and termination configurations, permitting their use in various
applications.
Drop-in
(Mid-mount)
Reverse
(Top mount)
■Features
1. Size reduction
Compared with the standard Mini-B connectors, the size of ZX
connectors is reduced by approximately 60% while still allowing a
high-speed data transfer of 480 Mbps, specified in USB 2.0.
Standard
(Bottom mount)
2. Receptacle styles
Two interface configurations: Micro-B and Micro-AB in standard,
mid-mount and reverse mounting styles.
SMT and through-hole (shell) PC board terminations
3. Plug styles
Corresponding to the receptacle styles, two interface configurations:
Micro-B and Micro-A, with direct wire or PCB wire soldering.
Several plug styles can be used for data transmission, earphone or
charging applications.
USB 2.0 Hi-Speed (480 Mbps)
Eye pattern measurement results:
Measured with USB 2.0 cable 2.4 m long
4. High durability
Unique contact and lock configuration assures high durability while
(when mated with corresponding HRS connector) is confirmed by a
definite tactile sensation
200 mV/div
5. RoHS compliant
All components and materials comply with the requirements of EU
directive 20/95/EC
TP2
■Applications
Mobile phones, PDA, portable music players, digital cameras, digital
camcorders and other applications requiring high reliability Micro-B
interface connectors.
500ps/div
2008.7
1
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon.
requirements of USB 2.0 Standard
ZX Series●Micro-USB connectors meeting
Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

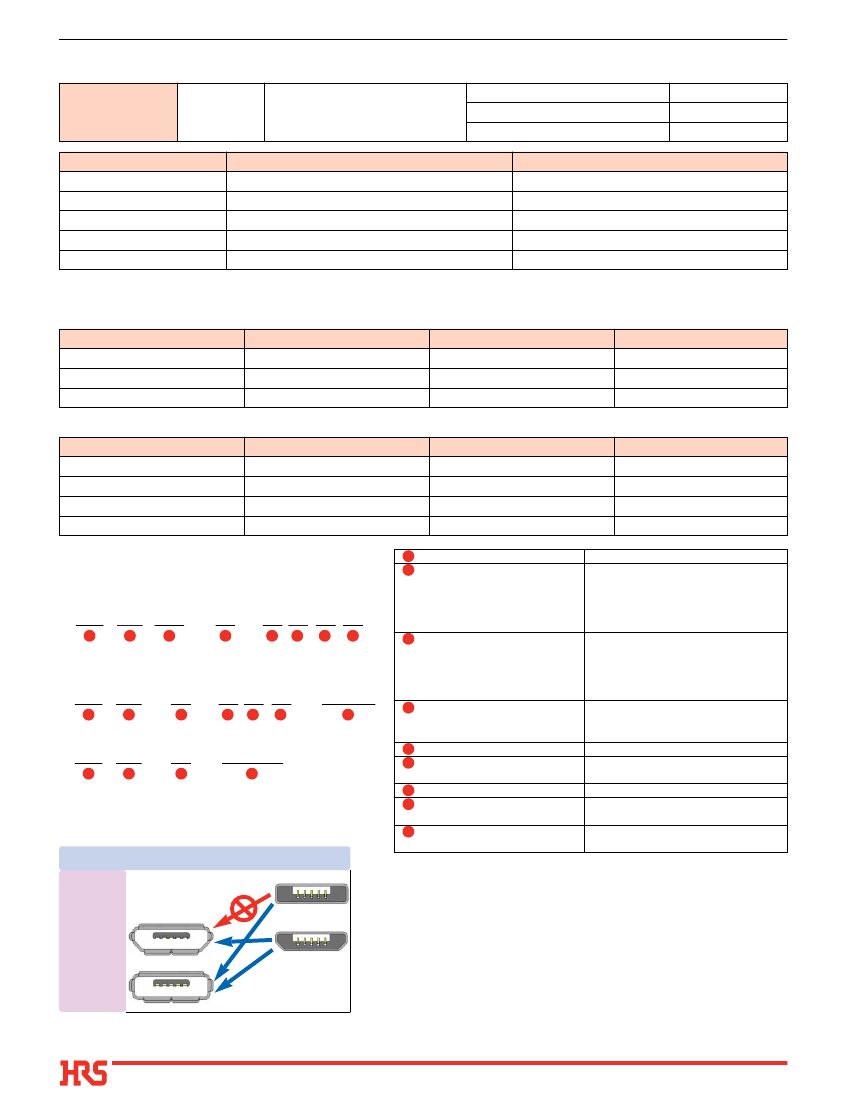

■Specifications
1 A (per contact) or
Ratings
Current rating
1.8 A (contacts No. 1 and 5) and
0.5 A (contacts No. 2, 3, and 4)
Item
1. Contact resistance
2. Withstanding voltage
3. Capacitance
4. Durability
5. Total insertion/removal force
30 mø max.
No flashover or insulation breakdown
2 pF max.
Contact resistance: Rise from initial value of 10 mø max.
Insertion force: 35 N max., Removal force: 8 N min.
Specification
100 mA
100 V AC / 1 minute
Between adjacent contacts at 1,000 Hz (AC voltage)
10,000 cycles
Mated with corresponding connector
Voltage rating
Operating temperature range
Storage temperature range
Conditions
30 V AC
-30°C to +85 °C
-30 °C to +85°C
■Materials
●Receptacles
Part
Insulator
Contacts
Shell
Material
LCP
Copper alloy
Stainless steel
Finish
Micro-B: Black, Micro-AB: Gray
Selective gold plated
Tin alloy plating
Remarks
UL94V-0
---------------
---------------
●Plugs
Part
Insulator
Contacts
Lock spring
Shell
Material
Synthetic resin
Copper alloy
Stainless steel
Stainless steel
Finish
Micro-A: White, Micro-B: Black
Selective gold plated
Remarks
UL94V-0
---------------
---------------
---------------
ZX
10's: Right-angle PCB wire, SMT
20's: Straight, PCB wire
40's: Direct wire
60's: Right-angle, PCB wire
80's: Cradle SMT
Standard (Bottom mount)
Standard (Bottom mount) through hole
Reverse (Top mount)
Reverse (Top mount) through hole
Drop-in (Mid-mount)
Micro-A
Micro-B
Micro-AB
5
Receptacle- Male
Plug – Female
SMT
Through hole (solder tab length: 0.8mm)
Assembly (Insulator/contact/lock)
Cover (Note 1)
---------------
Nickel plated or unfinished
■Ordering
information
●Receptacles
1
Series name
2
Termination style
ZX 62 RD - B - 5 P
*
8
1
2
3
4
5
6
7
8
3
Board mounting style
(Receptacles)
●Plugs
ZX 40 - B - 5 S
*
- UNIT
1
2
4
5
6
7
9
4
Mating side configuration
5
Number of contacts
6
Contact type
7
Serial No.
8
Shell termination style –
ZX 40 - B - SLDA
1
2
4
9
Blank
D
R
RD
M
A
B
AB
P
S
Blank
8
UNIT
SLD*
■Product
Styles Table
Interface
Micro-A
Receptacle
Plug
Receptacles
9
Components-plugs
Note 1: Classifiers such as A, B, and C are entered for *.
Micro-B
Micro-AB
2
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
ZX Series●Micro-USB connectors meeting requirements of USB 2.0 Standard

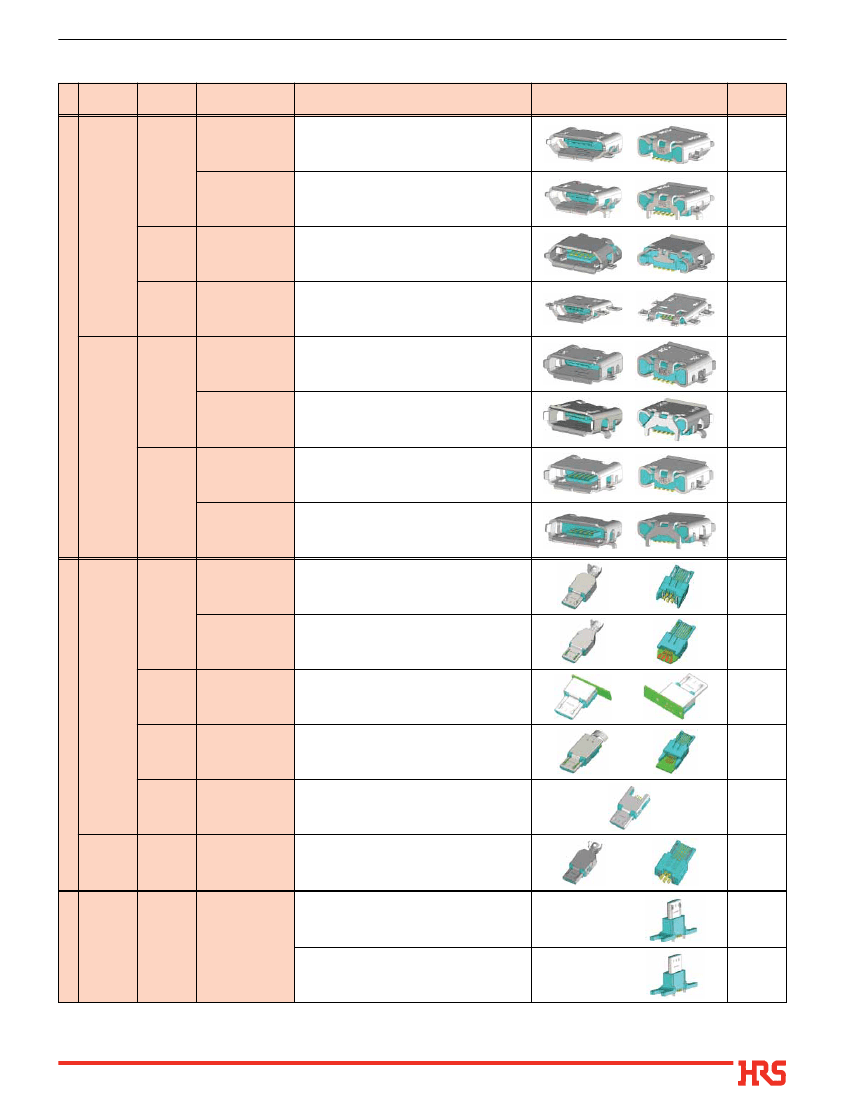

■Configurations
Mating side
Mounting, termination
Application
configuration
styles/wire attachment
Part Number
3D Image
Page
SMT
Standard
ZX62-B-5PA
4
SMT
+
DIP
ZX62D-B-5P8
4
Micro-B
Reverse
SMT
ZX62R-B-5P
5
R e c e p t a c l e s
Drop-in
SMT
ZX62M-B-5P
5
SMT
Standard
ZX62-AB-5PA
6
SMT
+
DIP
ZX62D-AB-5P8
6
Micro-AB
SMT
Reverse
ZX62R-AB-5P
7
SMT
+
DIP
ZX62RD-AB-5P8
7
Direct wire soldering
Data
PCB wire soldering
(right angle, through hole)
Assembly
:ZX40-B-5S-UNIT(12)
(insulator/contacts/lock)
Cover-top
:ZX40-B-SLDA
Cover-bottom
:ZX40-SLDB
Assembly
:ZX10-B-5S-UNIT(12)
(insulator/contacts/lock)
Cover-top
:ZX10-B-SLDA
Cover-bottom
:ZX10-SLDB(3.3)
9 and 10
11 and 12
P l u g s
Micro-B
Earphone
PCB wire soldering
Assembly
:ZX20-B-5S-UNIT(12)
(insulator/contacts/lock)
(straight, through hole)
Cover
:ZX20-B-SLDC
PCB wire soldering
(SMT)
Assembly
:ZX64-B-5S-UNIT(14)
(insulator/contacts/lock)
Cover-top
:ZX64-B-SLDA
Cover- bottom
:ZX64-SLDB
Assembly
:ZX64-B-5S-UNIT(14)
(insulator/contacts/lock)
Cover
:ZX64-B-SLDC
Assembly
:ZX40-A-5S-UNIT
(insulator/contacts/lock)
Cover-top
:ZX40-A-SLDA
Cover- bottom
:ZX40-SLDB
13
Charging
14 and 15
Charging
PCB wire soldering
(SMT)
Earphone
14 and 16
Micro-A
Data
Direct wire soldering
17 and 18
C r a d l e s
ZX80-B-5S
Micro-B
Cradle
SMT
+
DIP
ZX80-B-5SA
With lock
19
Without lock
19
Note: 1. Part numbers in the Plugs section of the above table list the Assembly (insulator/contacts/locks) and the corresponding Shields/Covers.
Note: 2. Optional Printed Circuit boards for the Plugs are shown for reference only. Not supplied with applicable connectors.
Note: 3. The color of the insulators body in the Assembly (insulator/contacts/lock) shown in the 3D Image column above is blue for clarity. Refer to the
Materials (Page 2) for correct colors.
3
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon.
requirements of USB 2.0 Standard
ZX Series●Micro-USB connectors meeting
Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

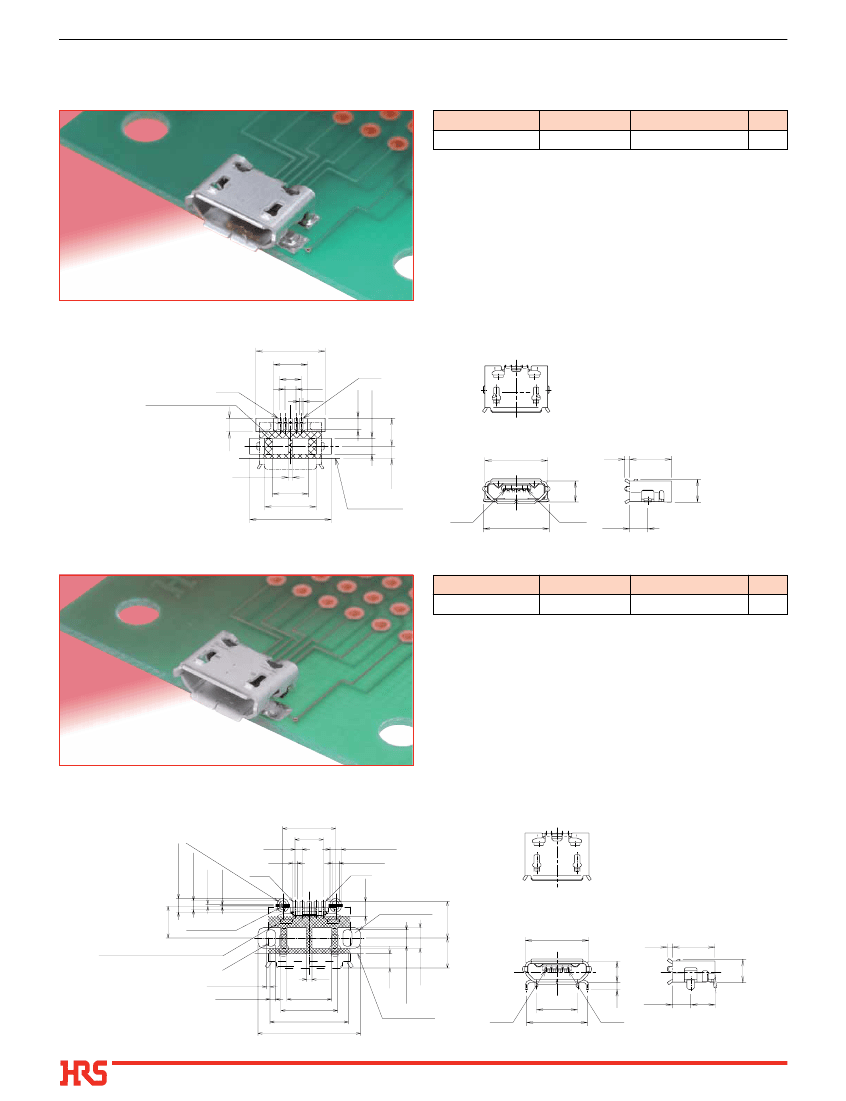

■Receptacles
●
Micro B - Standard (Bottom mount), Shell SMT
Part Number
ZX62-B-5PA
CL No.
242-0033-8
Packaging
2,000 pieces per reel
RoHS
YES
B
Recommended PCB mounting pattern
8.3
4.1
2.6
No.1
NO CONDUCTIVE
TRACES
1.6
1.3
0.4
No.5
1.35
1.9
3.35
7.5
1.45
0.5
4.3
6.2
9.8
0.6
5
PCB EDGE
No.1
7.9
No.5
2.5
2.15
●
Micro B - Standard (Bottom mount), Shell through hole
Part Number
ZX62D-B-5P8
CL No.
242-0034-0
Packaging
2,000 pieces per reel
2.8
All dimensions: mm
RoHS
YES
B
Recommended PCB mounting pattern
1.25(LAND)
0.85(TH)
R0
.52
4.85
2.6
5(L
0.2
0.1
0.65
0.4
AN
D)
No.1
1.05(LAND)
0.65(TH)
No.5
1.35
R0.5(LAND)
R0.325(TH)
3.35
2.9
7.5
2.75
PCB EDGE
No.1
4.85
7.2
No.5
0.8
R0.325(TH)
0.5(TH)
4.1
5.2
7.2
9.4
1.3
0.5
1.5(TH)
1.9
2.5
2.15
2.9
All dimensions: mm
4
2.8
NO CONDUCTIVE TRACES
(TH)
.3
R0
0.6
5
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
ZX Series●Micro-USB connectors meeting requirements of USB 2.0 Standard
