Technical Data Sheet
1.5mm Side Face Infrared LED
IR928-6C-F
Features
․High
reliability
․High
radiant intensity
․Peak
wavelength
λp=940nm
․2.54mm
Lead spacing
․Low
forward voltage
․Pb.Free
․This
product itself will remain within RoHS compliant version.
Descriptions
․EVERLIGHT’s
Infrared Emitting Diode (IR928-6C-F) is a
high intensity diode , molded in a water clear plastic package.
․The
miniature side- facing device has a chip ,
that emits radiation from the side of the clear package.
Applications
‧Mouse
‧Optoelectronic
switch
‧Infrared
applied system
Device Selection Guide
LED Part No.
IR928-6C-F
Chip
Material
GaAlAs
Lens Color
Water clear
Everlight Electronics Co., Ltd.
Device No：CDIR-092-007
http:\\www.everlight.com
Prepared date:2006/12/21
Rev 1
Page: 1 of 8
Prepared by: zhouhong
IR928-6C-F
Package Dimensions
Notes:
1.All dimensions are in millimeters
2.Tolerances unless dimensions
±0.25mm
Absolute Maximum Ratings (Ta=25℃)
Parameter
Continuous Forward Current
Peak Forward Current(*1)
Reverse Voltage
Operating Temperature
Storage Temperature
Soldering Temperature(*2)
Power Dissipation at(or below)
25℃Free Air Temperature
Symbol
I
F
I
FP
V
R
T
opr
T
stg
T
sol
P
d
Rating
50
1.0
5
-25 ~ +85
-40 ~ +85
260
75
Units
mA
A
V
℃
℃
℃
mW
Notes:
*1:I
FP
Conditions--Pulse Width≦100μs and Duty≦1%.
*2:Soldering time≦5 seconds.
Everlight Electronics Co., Ltd.
Device No：CDIR-092-007
http:\\www.everlight.com
Prepared date:2006/12/21
Rev 1
Page: 2 of 8
Prepared by: zhouhong
IR928-6C-F
Electro-Optical Characteristics (Ta=25℃)
Parameter
Light Current
Peak Wavelength
Spectral
Bandwidth
Forward Voltage
Reverse Current
View Angle
Symbol
Ic(ON)
λp
Δλ
V
F
I
R
2θ1/2
Condition
I
F
=4mA,V
CE
=3.5V
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
R
=5V
I
F
=20mA
Min.
265
--
--
--
--
--
Typ.
--
940
50
1.2
--
40
Max.
1870
--
--
1.5
10
--
Units
μA
nm
nm
V
μA
deg
Wide Rank
Parameter
5-2
6-1
6-2
7-1
7-2
7-3
Symbol
Ic(ON)
Ic(ON)
Ic(ON)
Ic(ON)
Ic(ON)
Ic(ON)
Ranks
Min
1053
650
465
347
306
265
Symbol
Max
1870
1274
750
550
441
358
Min
Unit
μA
μA
μA
μA
μA
μA
Max
Unit
Test Condition
I
F
=4mA,V
CE
=3.5V
I
F
=4mA,V
CE
=3.5V
I
F
=4mA,V
CE
=3.5V
I
F
=4mA,V
CE
=3.5V
I
F
=4mA,V
CE
=3.5V
I
F
=4mA,V
CE
=3.5V
Test Condition
Thin Rank
Color Code
Yellow
Silver
Green
Purple
White
Brown
Orange
E3
E4
E5
E6
E7
E8
E9
Ic(ON)
Ic(ON)
Ic(ON)
Ic(ON)
Ic(ON)
Ic(ON)
Ic(ON)
286
357
428
500
571
643
714
431
519
608
696
784
872
960
μA
μA
μA
μA
μA
μA
μA
I
F
=4mA,V
CE
=3.5V
I
F
=4mA,V
CE
=3.5V
I
F
=4mA,V
CE
=3.5V
I
F
=4mA,V
CE
=3.5V
I
F
=4mA,V
CE
=3.5V
I
F
=4mA,V
CE
=3.5V
I
F
=4mA,V
CE
=3.5V
Everlight Electronics Co., Ltd.
Device No：CDIR-092-007
http:\\www.everlight.com
Prepared date:2006/12/21
Rev 1
Page: 3 of 8
Prepared by: zhouhong
IR928-6C-F

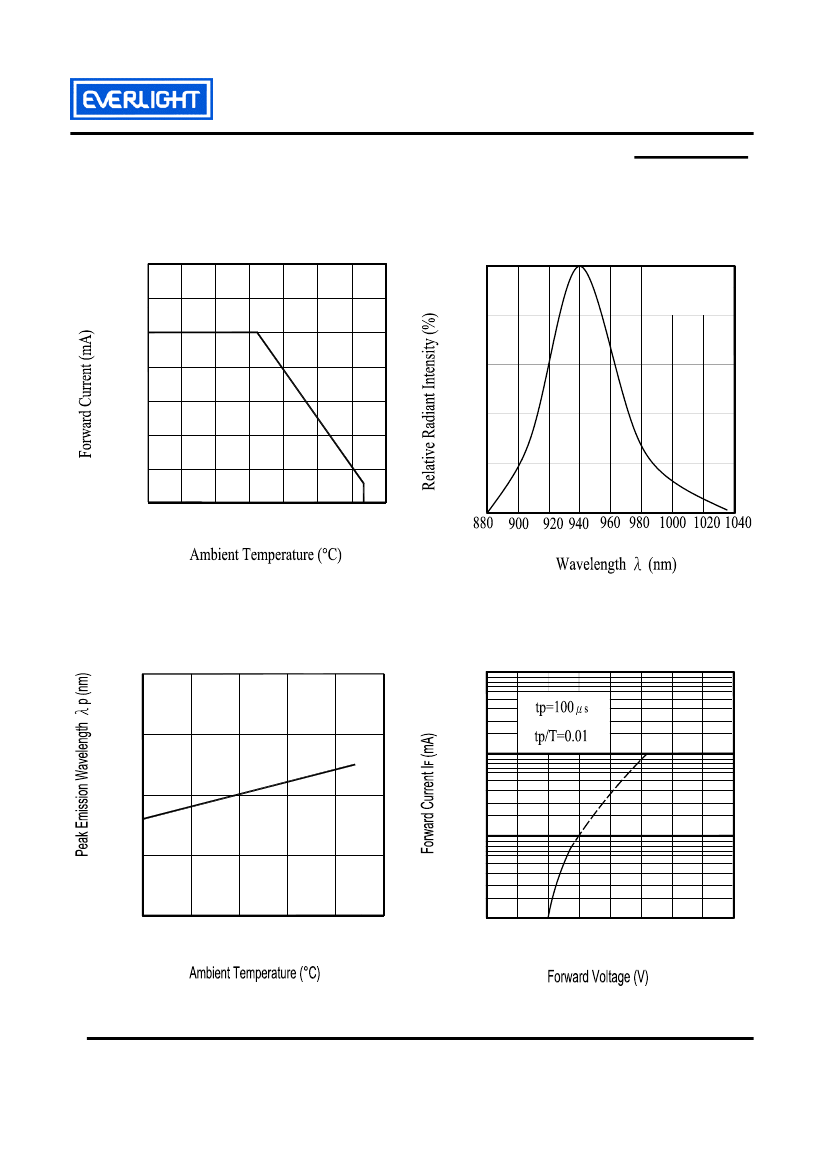

Typical Electro-Optical Characteristics Curves
Fig.1 Forward Current vs.
Ambient Temperature
140
120
Fig.2 Spectral Distribution
100
80
I
F
=20mA
Ta=25°C
100
80
60
40
20
0
60
40
20
0
-40 -20 0
20
40
60
80
100
Fig.3 Peak Emission Wavelength
Ambient Temperature
Fig.4 Forward Current
vs. Forward Voltage
980
10
4
960
10
940
3
10
920
2
900
-25
1
10
0
25
50
75
100
0
1
2
3
4
Everlight Electronics Co., Ltd.
Device No：CDIR-092-007
http:\\www.everlight.com
Prepared date:2006/12/21
Rev 1
Page: 4 of 8
Prepared by: zhouhong
IR928-6C-F
Typical Electro-Optical Characteristics Curves

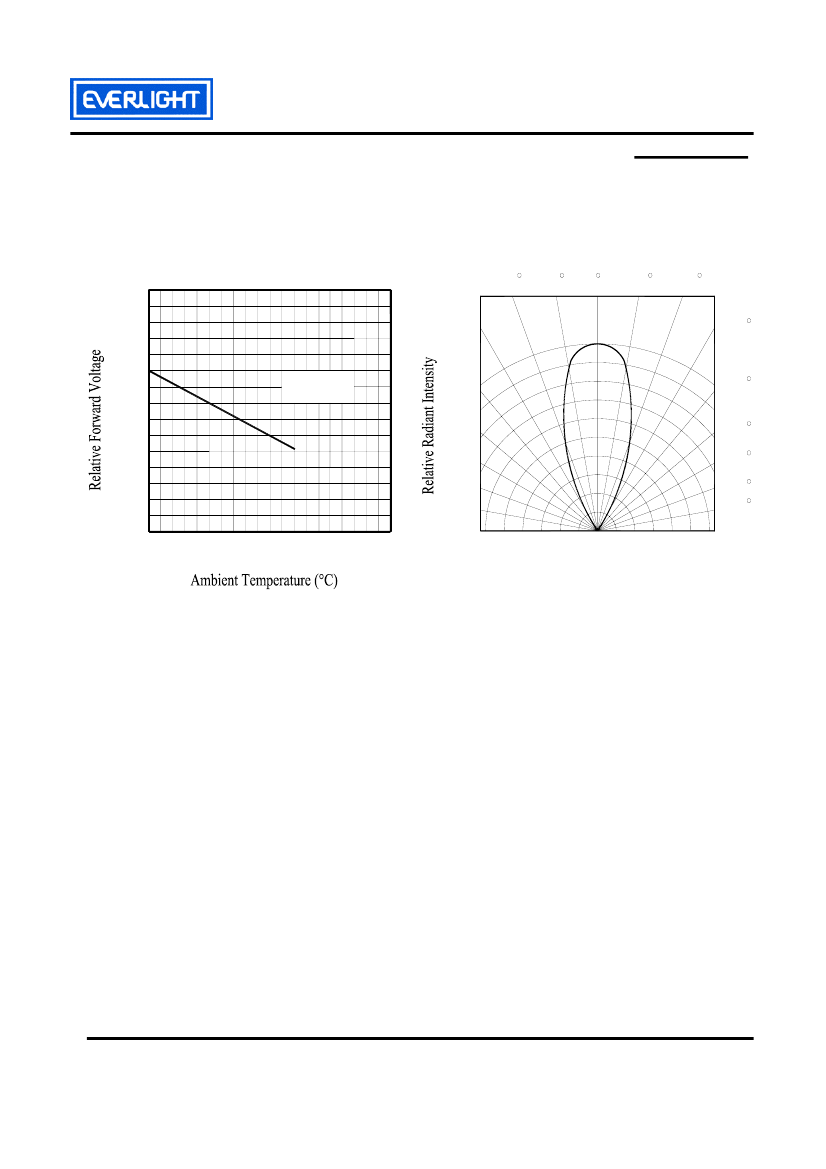

Fig.5 Forward Voltage vs.
Ambient Temperature
Fig.6 Relative Radiant Intensity vs.
Angular Displacement
1.3
-20
-10
0
10
20
30
1.2
I
F
=20mA
1.0
0.9
40
50
60
70
80
0.6 0.4 0.2
0
0.2 0.4 0.6
1.1
0.8
0.7
1
25
50
75
100
120
Everlight Electronics Co., Ltd.
Device No：CDIR-092-007
http:\\www.everlight.com
Prepared date:2006/12/21
Rev 1
Page: 5 of 8
Prepared by: zhouhong
