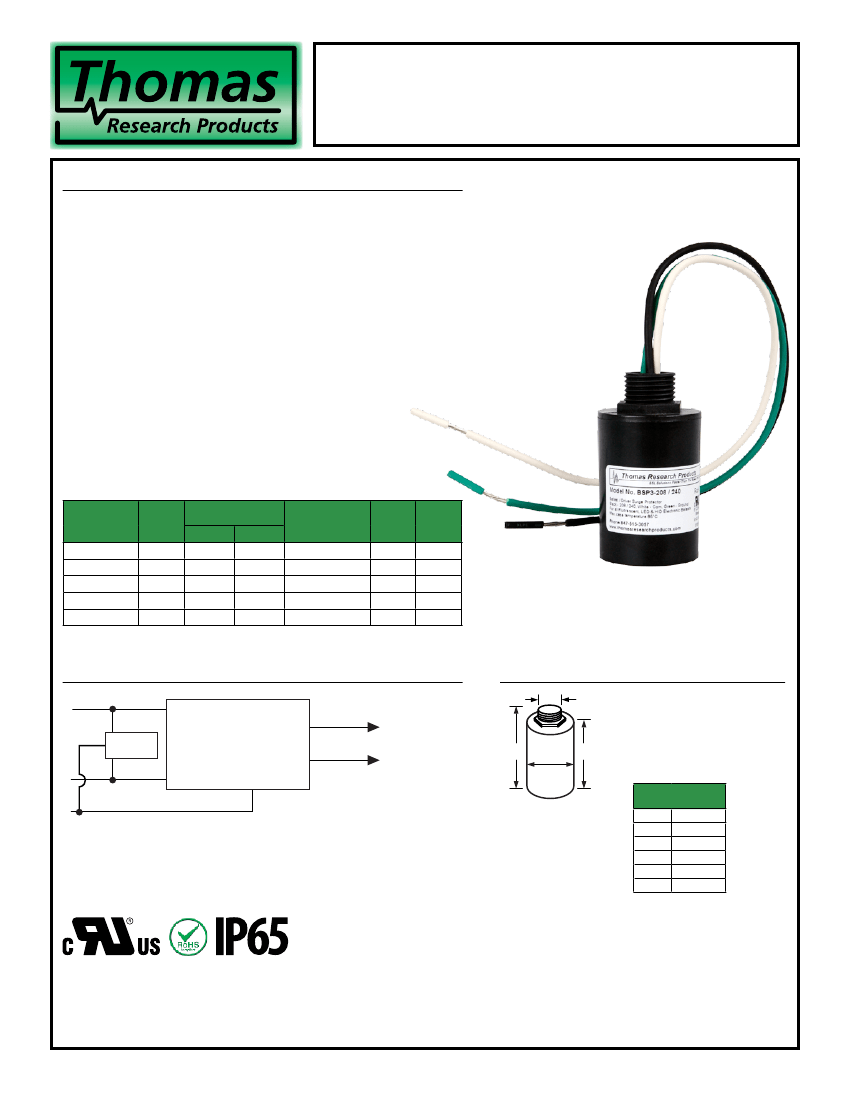

BSP3-120 / BSP3-208-240 / BSP3-277
BSP3-347 / BSP3-480
BSP3 series 3-Pole LED Driver & Ballast Surge Protectors, Enhanced
Features
• The BSP3 Series are 3-leaded devices that protect Line-Ground, Line-Neutral,
and Neutral-Ground in accordance with IEEE / ANSI C62.41.2 guidelines
• Protects against surges according to IEEE C62.41.2 C High (10kA and 10kV)
• Protects against surges according to ANSI C136.2
• Surge current rating = 10,000 Amps using industry standard 8/20 µSec wave
• Surge Location Rated Category C3
• UL Recognized Component in the United States and Canada (UL935, UL1029),
Some models Recognized to UL1449 (see below)
• High temperature, flameproof plastic enclosure,
85ºC max surface temp rating
• Thermally Protected Transient Over-voltage Circuit
BSP3 series products are designed to be used in conjunction
with LED Drivers and electronic fluorescent and HID ballasts
to provide an additional level of protection against powerline
disturbances in industrial and commercial applications
Part Number
BSP3-120
BSP3-208-240
BSP3-277
BSP3-347
BSP3-480
Mains
Voltage
120V
240V
277V
347V
480V
Continuous
Max
Max Voltage Rating Clamping Voltage UL1449
8/20 µS @ 10kA
AC
DC
150
275
320
420
550
200
350
420
560
715
600
1000
1500
1900
2500
UL935/
UL1029
•
•
•
•
•
•
•
•
Dimensions (Nom.)
.75”
Wiring
Vin
Green
Black
BSP3
White
COM
GROUND
LED Driver
or electronic ballast
LOAD
Output
to Lamp
2.82”
1.55”
2.25”
Leads:
12”, stripped 0.63”
Leadwire:
AWG#16 stranded
Weight:
0.33 lbs / 128g
Pulse rating
(8 x 20 μSec)
Threaded Nipple:
½”-NPS
Strikes
1
2
10
100
1,000
Surge
10,000 A
6,500 A
3,000 A
1,500 A
700 A
E355018
MADE
IN USA
Of Imported And Domestic Components
Specifications subject to change without notice.
Rev 6-27-14
Thomas Research Products • 1215 Bowes Rd • Elgin, IL 60123 • T 847-515-3057 • F 847-515-3047 • www.trpssl.com
