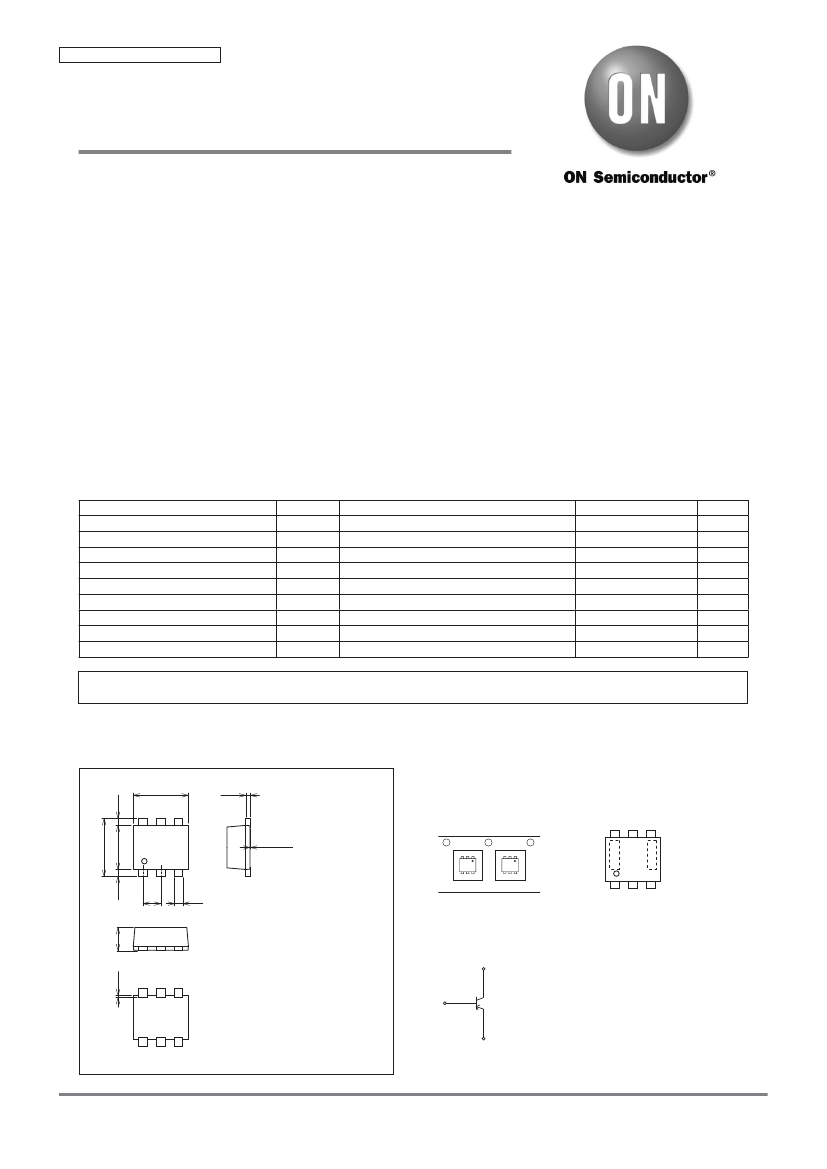

Ordering number : ENA1287A
MCH6122
Bipolar Transistor
–30V, –3A, Low VCE(sat), PNP Single MCPH6
Applications
•
http://onsemi.com
Relay drivers, lamp drivers, motor drivers, charger circuit
Features
•
•
•
•
•
•
Large current capacity
Adoption of MBIT process
•
High speed switching
Low collector-to-emitter saturation voltage
Ultrasmall-sized package permitting applied sets to be made small and slim (0.85mm)
High allowable power dissipation
Halogem free compliance
Specifications
Absolute Maximum Ratings
at Ta=25°C
Parameter
Collector-to-Base Voltage
Collector-to-Emitter Voltage
Emitter-to-Base Voltage
Collector Current
Collector Current (Pulse)
Base Current
Collector Dissipation
Junction Temperature
Storage Temperature
Symbol
VCBO
VCEO
VEBO
IC
ICP
IB
PC
Tj
Tstg
When mounted on ceramic substrate (600mm
×0.8mm)
2
Conditions
Ratings
-30
-30
-5
-3
-5
-600
1
150
-55 to +150
Unit
V
V
V
A
A
mA
W
°C
°C
Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Recommended Operating
Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability.
Package Dimensions
unit : mm (typ)
7022A-007
2.0
0.25
6
5
4
0 to 0.02
0.15
Product & Package Information
• Package
: MCPH6
• JEITA, JEDEC
: SC-88, SC-70-6, SOT-363
• Minimum Packing Quantity : 3,000 pcs./reel
MCH6122-TL-E
MCH6122-TL-H
Packing Type : TL
Marking
LOT No.
LOT No.
2.1
1.6
AY
0.25
1
0.65
2
3
0.3
TL
0.85
1
2
3
1 : Collector
2 : Collector
3 : Base
4 : Emitter
5 : Collector
6 : Collector
MCPH6
Electrical Connection
1, 2, 5, 6
0.07
3
6
5
4
4
Semiconductor Components Industries, LLC, 2013
September, 2013
N2112 TKIM TC-00002852/O0808EA TIIM TC-00001607 No.A1287-1/6
MCH6122

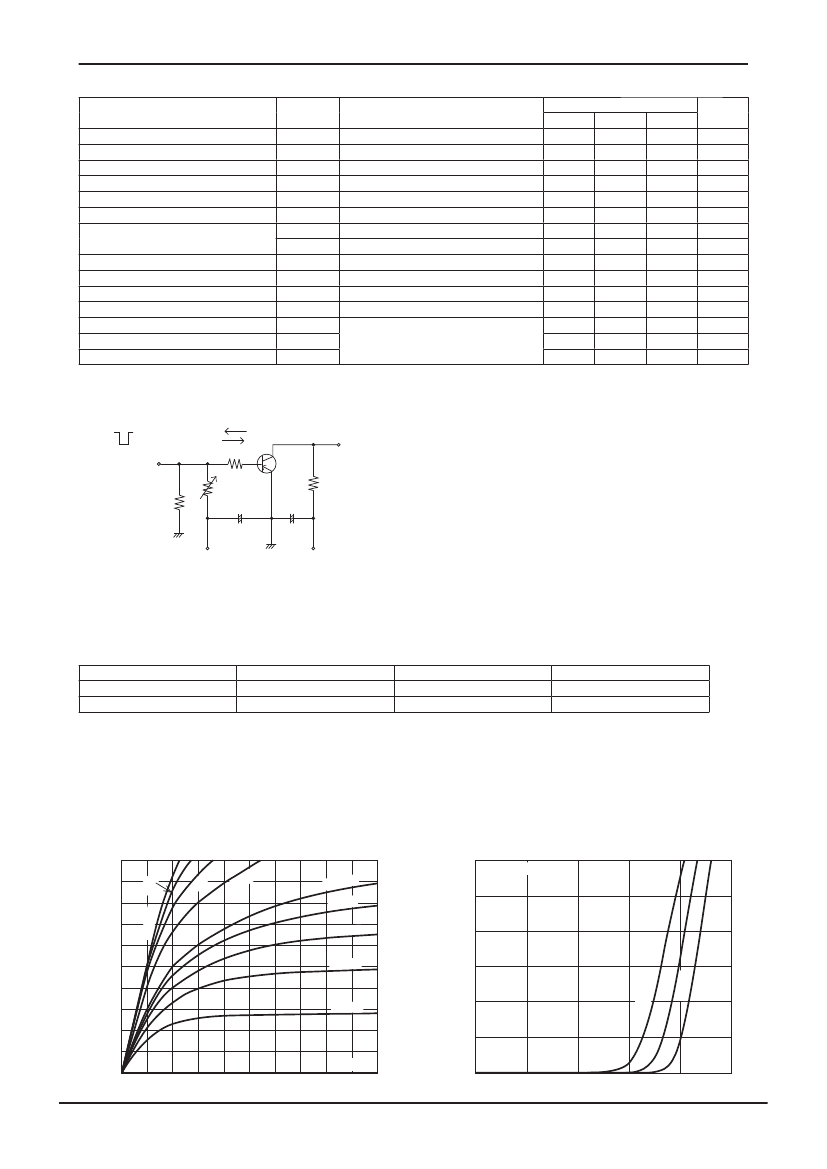

Electrical Characteristics
at Ta=25°C
Parameter
Collector Cutoff Current
Emitter Cutoff Current
Collector Cutoff Current
DC Current Gain
Gain-Bandwidth Product
Output Capacitance
Collector-to-Emitter Saturation Voltage
Base-to-Emitter Saturation Voltage
Collector-to-Base Breakdown Voltage
Collector-to-Emitter Breakdown Voltage
Emitter-to-Base Breakdown Voltage
Turn-On Time
Storage Time
Fall Time
Symbol
ICBO
IEBO
IECO
hFE
fT
Cob
VCE(sat)1
VCE(sat)2
VBE(sat)
V(BR)CBO
V(BR)CEO
V(BR)EBO
ton
tstg
tf
Conditions
VCB= -30V, IE=0A
VEB= -4V, IC=0A
VEC= -4.5V, IB=0A
VCE= -2V, IC= -500mA
VCE= -10V, IC= -500mA
VCB= -10V, f=1MHz
IC= -1.5A, IB= -30mA
IC= -1.5A, IB= -75mA
IC= -1.5A, IB= -30mA
IC= -10μA, IE=0A
IC= -1mA, RBE=∞
IE= -10μA, IC=0A
See specified Test Circuit.
-30
-30
-5
50
270
27
200
400
25
-180
-120
-0.83
-270
-180
-1.2
Ratings
min
typ
max
-0.1
-0.1
-1
560
MHz
pF
mV
mV
V
V
V
V
ns
ns
ns
Unit
μA
μA
μA
Switching Time Test Circuit
PW=20μs
D.C.
≤
1%
INPUT
50Ω
VR
IB1
IB2
RB
+
100μF
VBE=5V
+
470μF
VCC= --12V
OUTPUT
24Ω
IC=20IB1=--20IB2=--500mA
Ordering Information
Device
MCH6122-TL-E
MCH6122-TL-H
Package
MCPH6
MCPH6
Shipping
3,000pcs./reel
3,000pcs./reel
memo
Pb Free
Pb Free and Halogen Free
--2.0
IC -- VCE
--4
--50m
0m
A
A
--3.0
IC -- VBE
VCE= --2V
0m
A
--3
--1.8
0
--2
mA
--10mA
Collector Current, IC -- A
Collector Current, IC -- A
--1.6
--1.4
--1.2
--1.0
--0.8
--0.6
--0.4
--0.2
0
--8mA
--2.5
--6mA
--4mA
--2.0
C
0
--0.2
--0.4
--0.6
--1.5
--2mA
--1.0
--0.5
IB=0mA
0
--0.1
--0.2 --0.3
--0.4
--0.5
--0.6 --0.7
--0.8
--0.9
--1.0
0
Ta=75
°
25
°
C
--25
°
C
--0.8
--1.0
IT04555
Collector-to-Emitter Voltage, VCE -- V
IT04554
Bass-to-Emitter Voltage, VBE -- V
No.A1287-2/6

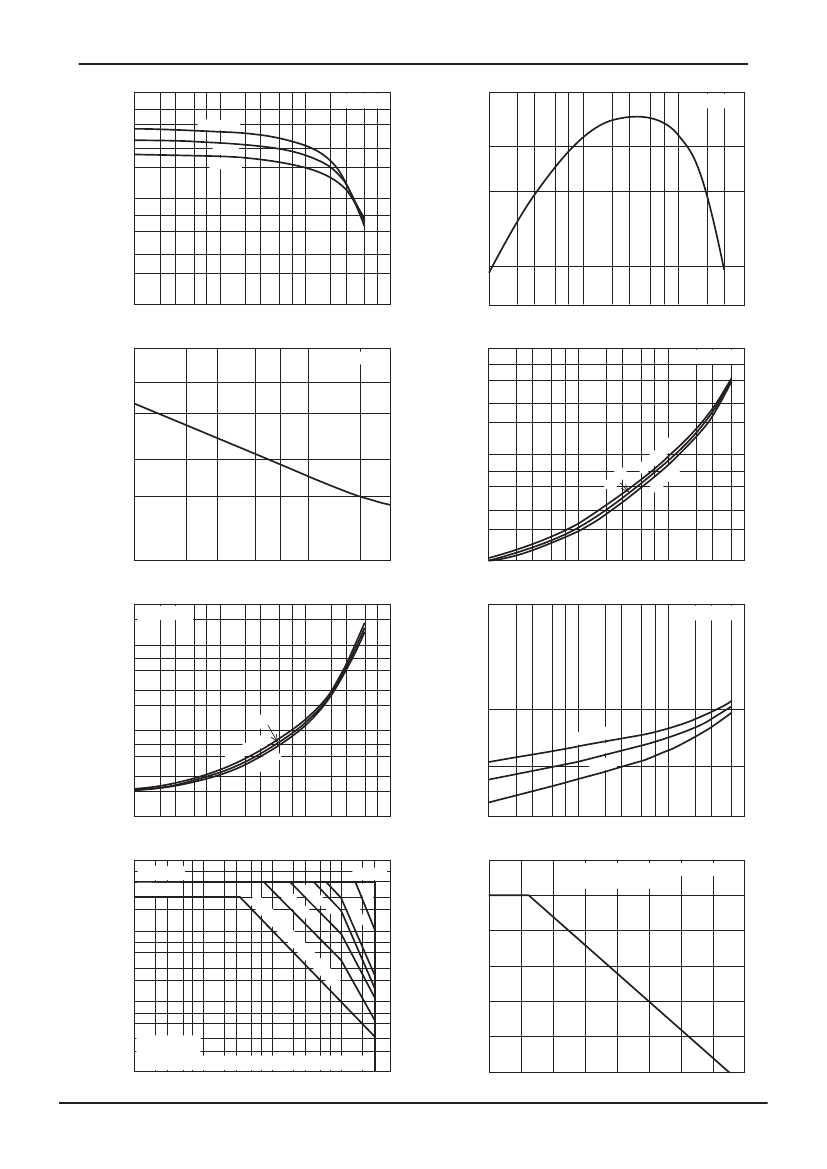

MCH6122
1000
7
5
hFE -- IC
VCE= --2V
Gain-Bandwidth Product, FT -- MHz
5
fT -- IC
VCE= --10V
Ta=75
°
C
25
°
C
--25
°
C
DC Current Gain, hFE
3
2
3
100
7
5
3
2
10
--0.01
2
100
2
3
5 7 --0.1
2
3
5 7 --1.0
2
3
Collector Current, IC -- A
100
Cob -- VCB
5 7 --10
IT04556
7
--0.01
2
3
5
7 --0.1
2
3
5
7 --1.0
2
3
5
Collector Current, IC -- A
--1000
VCB(sat) -- IC
IT04557
f=1MHz
Collector-to-Emitter
Saturation Voltage, VCE(sat) -- mV
Output Capacitance, Cob -- pF
7
7
5
3
2
IC / IB=20
5
3
--100
2
5
3
2
--10
--0.01
10
--
1.0
--
10
Collector-to-Base Voltage, VCB -- V
2
3
5
7
2
3
2
3
5
7 --0.1
25
°
C
2
3
5
7
°
C
75
=
Ta
C
5
°
-2
-
7 --1.0
2
3
5 7
IT04559
3
2
VCE(sat) -- IC
IT04558
2
Collector Current, IC -- A
VBE(sat) -- IC
IC / IB=50
Base-to-Emitter
Saturation Voltage, VBE(sat) -- V
IC / IB=50
Collector-to-Emitter
Saturation Voltage, VCE(sat) -- mV
--1000
7
5
3
2
--100
7
5
3
2
--10
--0.01
C
25
°
5
°
C
a=7
T
5
°
C
--2
--1.0
7
°
C
Ta= --25
25
°
C
75
°
C
2
3
5 7 --0.1
2
3
5 7 --1.0
2
3
Collector Current, IC -- A
--10
7
5
ASO
5 7 --10
IT04560
5
--0.01
2
3
5
7 --0.1
2
3
5
7 --1.0
2
3
5
7
Collector Current, IC -- A
1.2
PC -- Ta
IT04561
Collector Current, IC -- A
0m
s
1m
s
Collector Dissipation, PC -- W
3
2
--1.0
7
5
3
2
--0.1
7
5
3
2
ICP= --5A
IC= --3A
<10μs
s
100
μ
When mounted on ceramic substrate
(600mm
2
×
0.8mm)
1.0
10
m
10
500
s
--0.01
--0.01 2 3
Ta=25°C
Single pulse
When mounted on ceramic substrate (600mm
2
×0.8mm)
5 7--0.1
2 3
5 7--1.0
2 3
5 7 --10
2
3
5
Collector-to-Emitter Voltage, VCE -- V
D
C
op
er
μ
s
0.8
io
at
n
25
a=
(T
°
C
)
IT13916
0.6
0.4
0.2
0
0
20
40
60
80
100
120
140
160
Ambient Temperature, Ta --
°C
IT13915
No.A1287-3/6
MCH6122

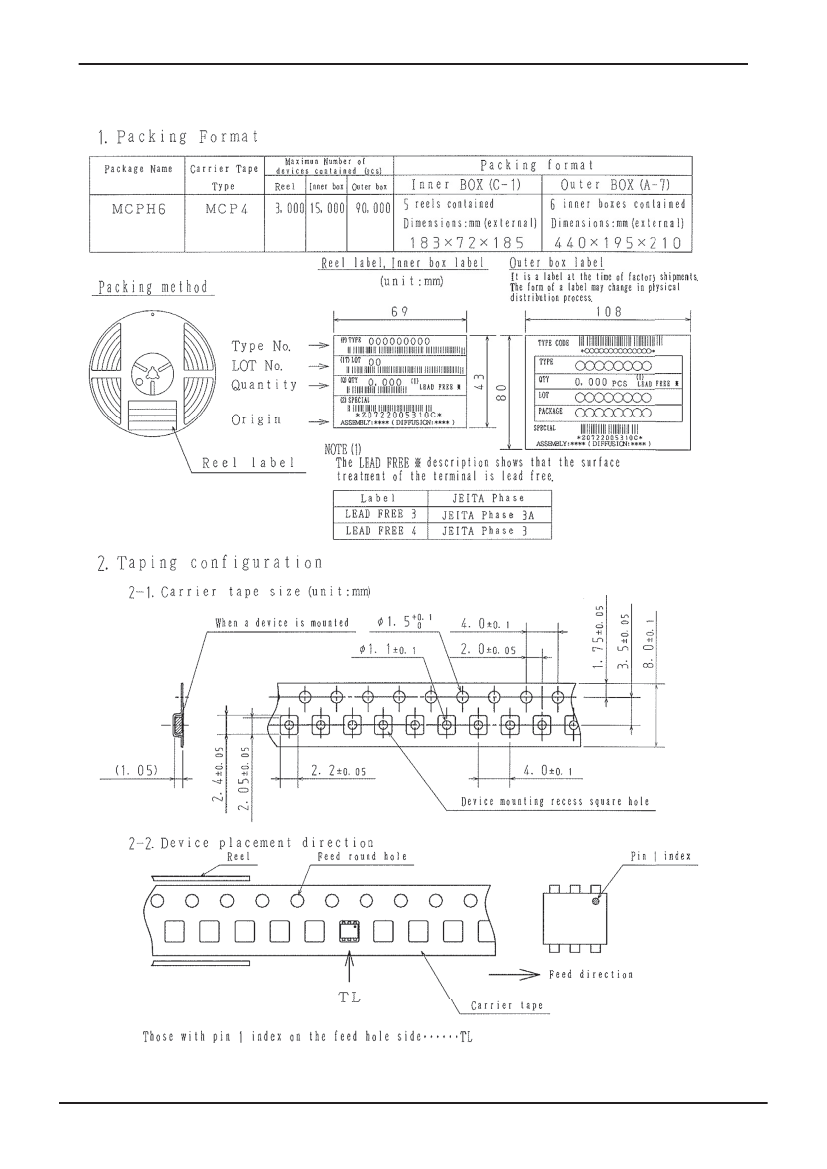

Embossed Taping Specification
MCH6122-TL-E, MCH6122-TL-H
No.A1287-4/6
MCH6122
Outline Drawing
MCH6122-TL-E, MCH6122-TL-H
Mass (g) Unit
0.008 mm
* For reference
Land Pattern Example
Unit: mm
0.4
0.6
2.1
0.65 0.65
No.A1287-5/6
