MBR15HxxCT, MBRF15HxxCT, MBRB15HxxCT
www.vishay.com
Vishay General Semiconductor
Dual Common Cathode Schottky Rectifier
High Barrier Technology for Improved High Temperature Performance

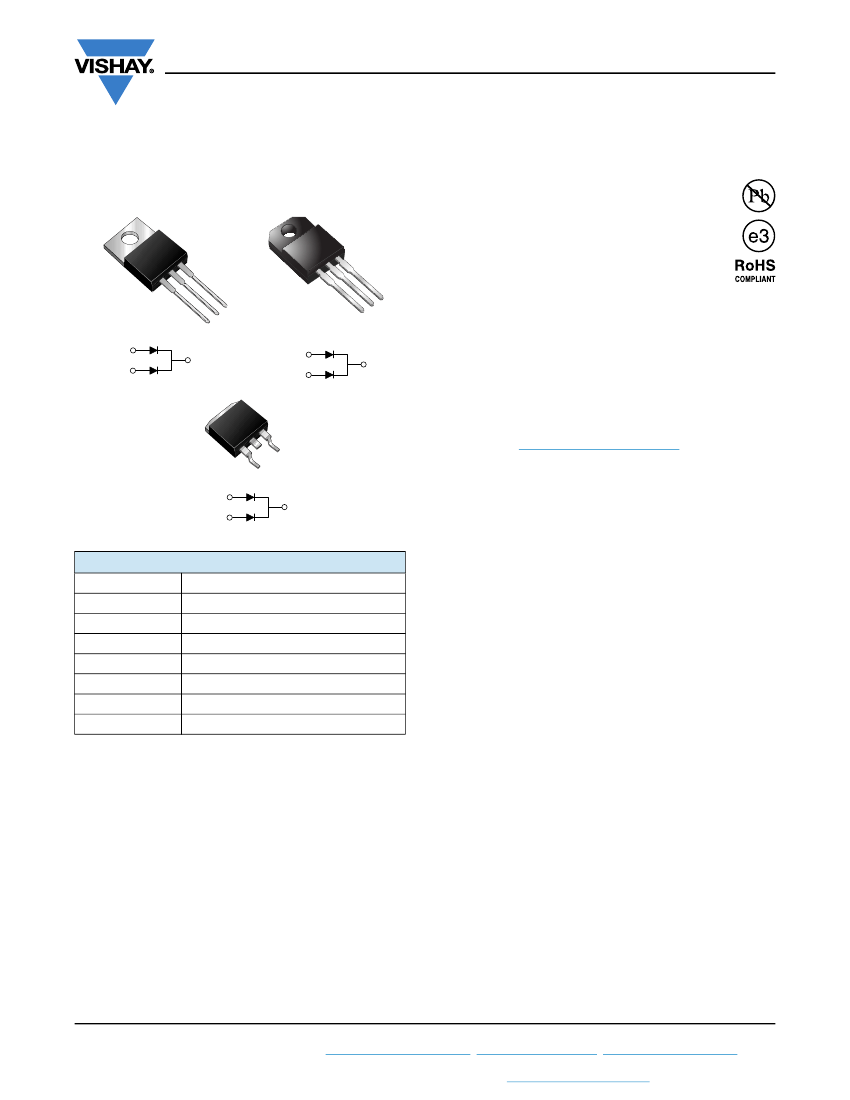

FEATURES
TO-220AB
ITO-220AB
• Power pack
• Guardring for overvoltage protection
• Low power loss, high efficiency
• Low forward voltage drop
• Low leakage current
• High forward surge capability
• High frequency operation
• Meets MSL level 1, per J-STD-020, LF maximum peak of
245 °C (for TO-263AB package)
• Solder bath temperature 275 °C maximum, 10 s, per
JESD 22-B106 (for TO-220AB and ITO-220AB package)
• AEC-Q101 qualified
• Material categorization: For definitions of compliance
please see
www.vishay.com/doc?99912
2
MBR15HxxCT
PIN 1
PIN 3
PIN 2
CASE
3
MBRF15HxxCT
PIN 1
PIN 3
1
2
3
1
PIN 2
TO-263AB
K
2
1
MBRB15HxxCT
PIN 1
PIN 2
K
HEATSINK
TYPICAL APPLICATIONS
For use in low voltage, high frequency rectifier of switching
mode power supplies, freewheeling diodes, DC/DC
converters, and polarity protection application.
PRIMARY CHARACTERISTICS
I
F(AV)
V
RRM
I
FSM
V
F
I
R
T
J
max.
Package
Diode variations
2 x 7.5 A
35 V to 60 V
150 A
0.55 V, 0.61 V
50 μA
175 °C
TO-220AB, ITO-220AB, TO-263AB
Common cathode
MECHANICAL DATA
Case:
TO-220AB, ITO-220AB, TO-263AB
Molding compound meets UL 94 V-0 flammability rating
Base P/N-E3 - RoHS-compliant, commercial grade
Base P/NHE3 - RoHS-compliant, AEC-Q101 qualified
Terminals:
Matte tin plated leads, solderable per
J-STD-002 and JESD 22-B102
E3 suffix meets JESD 201 class 1A whisker test, HE3 suffix
meets JESD 201 class 2 whisker test
Polarity:
As marked
Mounting Torque:
10 in-lbs maximum
Revision: 12-Jun-13
Document Number: 88782
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
MBR15HxxCT, MBRF15HxxCT, MBRB15HxxCT
www.vishay.com
Vishay General Semiconductor
SYMBOL MBR15H35CT MBR15H45CT MBR15H50CT MBR15H60CT
V
RRM
V
RWM
V
DC
total device
per diode
I
F(AV)
E
AS
I
FSM
I
RRM
E
RSM
V
C
dV/dt
T
J
, T
STG
V
AC
1.0
20
25
10 000
- 65 to +175
1500
35
35
35
45
45
45
15
7.5
80
150
A
0.5
10
mJ
kV
V/μs
°C
V
50
50
50
60
60
60
A
mJ
V
UNIT
MAXIMUM RATINGS
(T
C
= 25 °C unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Working peak reverse voltage
Maximum DC blocking voltage
Maximum average forward rectified
current (fig. 1)
Non-repetitive avalanche energy
at 25 °C, I
AS
= 4 A, L = 10 mH per diode
Peak forward surge current 8.3 ms single half
sine-wave superimposed on rated load per diode
Peak repetitive reverse surge current per diode
at t
p
= 2.0 μs, 1 kHz
Peak non-repetitive reverse energy
(8/20 μs waveform)
Electrostatic discharge capacitor voltage
Human body model: C = 100 F, R = 1.5 k
Voltage rate of change (rated V
R
)
Operating junction and storage temperature range
Isolation voltage (ITO-220AB only)
from terminal to heatsink t = 1 min
ELECTRICAL CHARACTERISTICS
(T
C
= 25 °C unless otherwise noted)
PARAMETER
SYMBOL
TEST CONDITIONS
I
F
= 7.5 A
Maximum instantaneous forward
voltage per diode
V
F (1)
I
F
= 7.5 A
I
F
= 15 A
I
F
= 15 A
Maximum reverse current per diode
I
R (2)
Rated V
R
T
J
= 25 °C
T
J
= 125 °C
T
J
= 25 °C
T
J
= 125 °C
T
J
= 25 °C
T
J
= 125 °C
MBR15H35CT
MBR15H45CT
TYP.
-
0.50
-
0.61
-
3.0
MAX.
0.63
0.55
0.75
0.66
50
10
MBR15H50CT
MBR15H60CT
TYP.
-
0.58
-
0.68
-
2.0
MAX.
0.73
0.61
0.87
0.72
50
10
μA
mA
V
UNIT
Notes
(1)
Pulse test: 300 μs pulse width, 1 % duty cycle
(2)
Pulse test: Pulse width
40 ms
THERMAL CHARACTERISTICS
(T
C
= 25 °C unless otherwise noted)
PARAMETER
Maximum thermal resistance per diode
SYMBOL
R
JC
MBR
3.0
MBRF
5.0
MBRB
3.0
UNIT
°C/W
ORDERING INFORMATION
(Example)
PACKAGE
TO-220AB
ITO-220AB
TO-263AB
TO-263AB
TO-220AB
ITO-220AB
TO-263AB
TO-263AB
Note
(1)
AEC-Q101 qualified
Revision: 12-Jun-13
Document Number: 88782
2
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
PREFERRED P/N
MBR15H45CT-E3/45
MBRF15H45CT-E3/45
MBRB15H45CT-E3/45
MBRB15H45CT-E3/81
MBR15H45CTHE3/45
(1)
MBRF15H45CTHE3/45
(1)
MBRB15H45CTHE3/45
(1)
UNIT WEIGHT (g)
1.85
1.99
1.35
1.35
1.85
1.99
1.35
1.35
PACKAGE CODE
45
45
45
81
45
45
45
81
BASE QUANTITY
50/tube
50/tube
50/tube
800/reel
50/tube
50/tube
50/tube
800/reel
DELIVERY MODE
Tube
Tube
Tube
Tape and reel
Tube
Tube
Tube
Tape and reel
MBRB15H45CTHE3/81
(1)
MBR15HxxCT, MBRF15HxxCT, MBRB15HxxCT
www.vishay.com

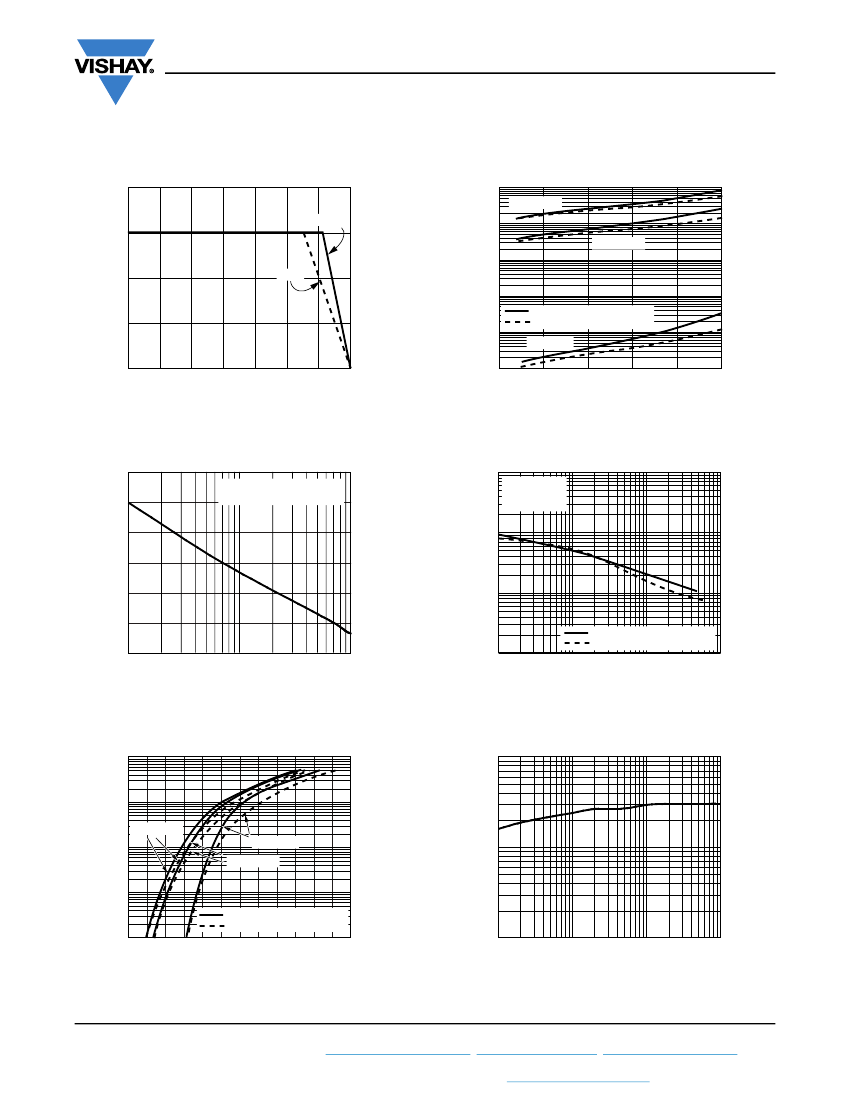

RATINGS AND CHARACTERISTICS CURVES
(T
A
= 25 °C unless otherwise noted)
Vishay General Semiconductor
20
10
MBR, MBRB
15
Instantaneous Reverse Leakage
Current (mA)
T
J
= 150 °C
1
T
J
= 125 °C
0.1
Average Forward Current (A)
10
MBRF
0.01
MBR15H35CT, MBR15H45CT
MBR15H50CT, MBR15H60CT
0.001
T
J
= 25 °C
5
0
0
25
50
75
100
125
150
175
0.0001
0
20
40
60
80
100
Case Temperature (°C)
Percent of Rated Peak Reverse Voltage (%)
Fig. 1 - Forward Derating Curve Per Diode
Fig. 4 - Typical Reverse Characteristics Per Diode
175
1000
T
J
= T
J
max.
8.3 ms Single Half Sine-Wave
T
J
= 25 °C
f = 1.0 MHz
V
sig
= 50 mV
p-p
100
Peak Forward Surge Current (A)
125
100
75
Junction Capacitance (pF)
150
10
50
MBR15H35CT, MBR15H45CT
MBR15H50CT, MBR15H60CT
25
1
10
100
1
0.1
1
10
100
Number
of Cycles at 60 Hz
Reverse Voltage (V)
Fig. 2 - Maximum Non-Repetitive Peak Forward Surge Current
Per Diode
Fig. 5 - Typical Junction Capacitance Per Diode
100
10
10
T
J
= 150 °C
1
T
J
= 25 °C
T
J
= 125 °C
Transient Thermal Impedance (°C/W)
Instantaneous Forward Current (A)
1
0.1
MBR15H35CT, MBR15H45CT
MBR15H50CT, MBR15H60CT
0.01
0
0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2
0.1
0.01
0.1
1
10
Instantaneous Forward Voltage (V)
t - Pulse Duration (s)
Fig. 3 - Typical Instantaneous Forward Characteristics
Per Diode
Revision: 12-Jun-13
Fig. 6 - Typical Transient Thermal Impedance Per Diode
Document Number: 88782
3
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
MBR15HxxCT, MBRF15HxxCT, MBRB15HxxCT
www.vishay.com
PACKAGE OUTLINE DIMENSIONS
in inches (millimeters)
TO-220AB
0.415 (10.54) MAX.
0.370 (9.40)
0.360 (9.14)
0.154 (3.91)
0.148 (3.74)
0.113 (2.87)
0.103 (2.62)
0.145 (3.68)
0.135 (3.43)
0.635 (16.13)
0.625 (15.87)
3
0.603 (15.32)
0.573 (14.55)
0.350 (8.89)
0.330 (8.38)
1.148 (29.16)
1.118 (28.40)
0.110 (2.79)
0.100 (2.54)
0.560 (14.22)
0.530 (13.46)
0.035 (0.90)
0.028 (0.70)
0.205 (5.20)
0.195 (4.95)
0.022 (0.56)
0.014 (0.36)
0.560 (14.22)
0.530 (13.46)
0.057 (1.45)
0.045 (1.14)
0.025 (0.64)
0.015 (0.38)
0.105 (2.67)
0.095 (2.41)
0.404 (10.26)
0.384 (9.75)
0.076 (1.93) REF.
0.076 (1.93) REF.
7° REF.
0.140 (3.56) DIA.
0.125 (3.17) DIA.
0.135 (3.43) DIA.
0.122 (3.08) DIA.
Vishay General Semiconductor
ITO-220AB
0.190 (4.83)
0.170 (4.32)
0.110 (2.79)
0.100 (2.54)
0.185 (4.70)
0.175 (4.44)
0.055 (1.39)
0.045 (1.14)
45° REF.
0.600 (15.24)
0.580 (14.73)
PIN
0.671 (17.04)
0.651 (16.54)
7° REF.
0.350 (8.89)
0.330 (8.38)
1
0.160 (4.06)
0.140 (3.56)
0.057 (1.45)
0.045 (1.14)
0.105 (2.67)
0.095 (2.41)
0.104 (2.65)
0.096 (2.45)
PIN
2
1
2
3
7° REF.
0.191 (4.85)
0.171 (4.35)
0.110 (2.79)
0.100 (2.54)
0.057 (1.45)
0.045 (1.14)
0.035 (0.89)
0.025 (0.64)
0.205 (5.21)
0.195 (4.95)
0.028 (0.71)
0.020 (0.51)
TO-263AB
0.411 (10.45)
0.380 (9.65)
0.245 (6.22)
MIN.
K
0.360 (9.14)
0.320 (8.13)
1
K
2
0.055 (1.40)
0.047 (1.19)
0.190 (4.83)
0.160 (4.06)
0.055 (1.40)
0.045 (1.14)
Mounting Pad Layout
0.42 (10.66) MIN.
0.33 (8.38) MIN.
0.624 (15.85)
0.591 (15.00)
0.670 (17.02)
0.591 (15.00)
0 to 0.01 (0 to 0.254)
0.110 (2.79)
0.090 (2.29)
0.021 (0.53)
0.014 (0.36)
0.15 (3.81) MIN.
0.08 (2.032) MIN.
0.105 (2.67)
0.095 (2.41)
0.037 (0.940)
0.027 (0.686)
0.105 (2.67)
0.095 (2.41)
0.205 (5.20)
0.195 (4.95)
0.140 (3.56)
0.110 (2.79)
Revision: 12-Jun-13
Document Number: 88782
4
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Legal Disclaimer Notice
www.vishay.com
Vishay
Disclaimer
ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE
RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,
“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other
disclosure relating to any product.
Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or
the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all
liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,
consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular
purpose, non-infringement and merchantability.
Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical
requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements
about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular
product with the properties described in the product specification is suitable for use in a particular application. Parameters
provided in datasheets and/or specifications may vary in different applications and performance may vary over time. All
operating parameters, including typical parameters, must be validated for each customer application by the customer’s
technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,
including but not limited to the warranty expressed therein.
Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining
applications or for any other application in which the failure of the Vishay product could result in personal injury or death.
Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk. Please
contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by
any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.
Material Category Policy
Vishay Intertechnology, Inc. hereby certifies that all its products that are identified as RoHS-Compliant fulfill the
definitions and restrictions defined under Directive 2011/65/EU of The European Parliament and of the Council
of June 8, 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment
(EEE) - recast, unless otherwise specified as non-compliant.
Please note that some Vishay documentation may still make reference to RoHS Directive 2002/95/EC. We confirm that
all the products identified as being compliant to Directive 2002/95/EC conform to Directive 2011/65/EU.
Vishay Intertechnology, Inc. hereby certifies that all its products that are identified as Halogen-Free follow Halogen-Free
requirements as per JEDEC JS709A standards. Please note that some Vishay documentation may still make reference
to the IEC 61249-2-21 definition. We confirm that all the products identified as being compliant to IEC 61249-2-21
conform to JEDEC JS709A standards.
Revision: 02-Oct-12
1
Document Number: 91000
京公网安备 11010802033920号
EEWORLD
