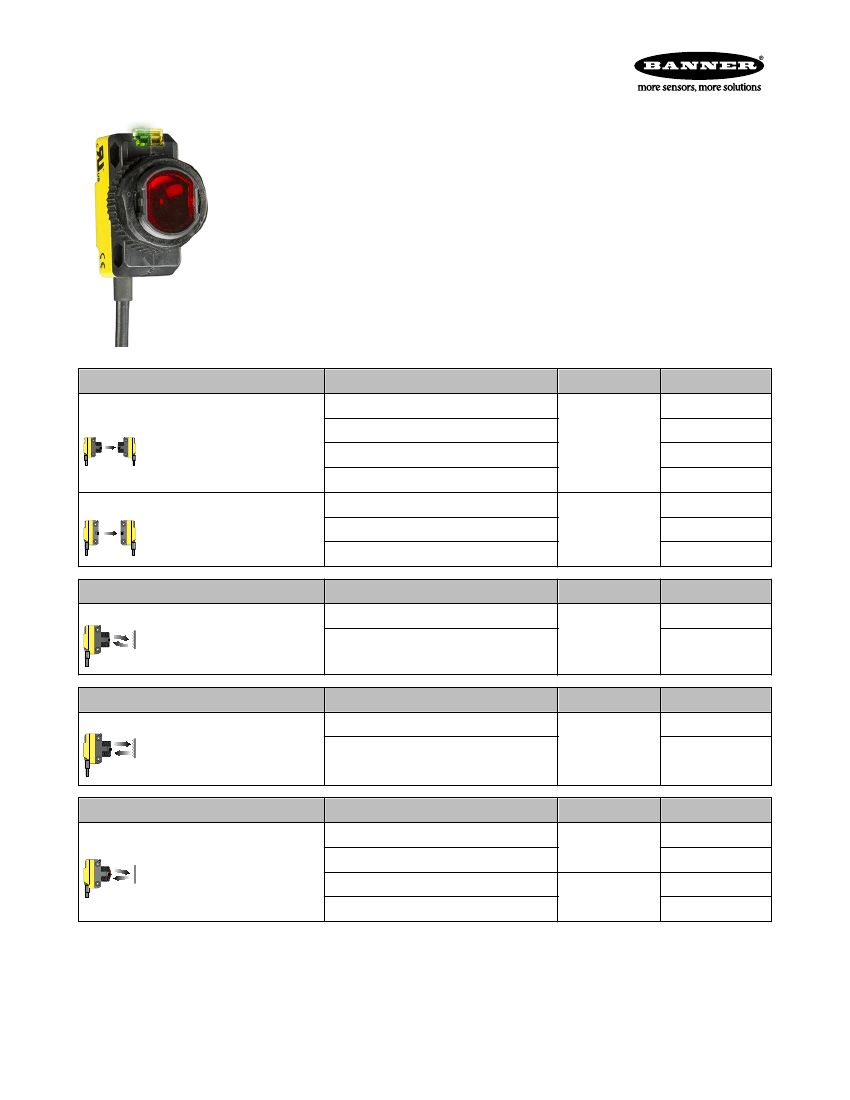

WORLD-BEAM QS18
Miniature self-contained photoelectric sensors in universal housing
• Easily fits (or retrofits) almost any mounting situation
• Exceptional optical performance, comparable to larger “MINI-style” or barrel sensors
• 10 to 30V dc operation, with complementary (SPDT) NPN or PNP outputs, depending on
model
• Bright LED operating status indicators are visible from 360°
• Rugged sealed housing, protected circuitry
• Models available with or without 18 mm threaded “nose”
• Less than 1 millisecond output response for excellent sensing repeatability
• Choose 2 m (6.5 ft) or 9 m (30 ft) cable or 150 mm (6 inch) Pico-style pigtail QD
Opposed Mode
Effective beam: 13 mm (0.5 inch)
Model¹
QS186EV (624 nm Visible Red)
QS186E (940 nm Infrared)
QS18VN6R
QS18VP6R
Range
Output
N/A
20 m (66 ft)
N/A
NPN
PNP
N/A
Effective beam: 13 mm (0.5 inch)
QS186EB (940 nm Infrared)
QS18VN6RB
QS18VP6RB
3 m (10 ft)
NPN
PNP
Polarized Retroreflective Mode
630 nm Visible Red
P
Model¹
QS18VN6LP
QS18VP6LP
Range
Output
NPN
3.5 m (12 ft)
PNP
Retroreflective Mode
628 nm Visible Red
Model¹
QS18VN6LV
QS18VP6LV
Range
Output
NPN
6.5 m (21 ft)
PNP
Convergent Mode
630 nm Visible Red
Model¹
QS18VN6CV15
QS18VP6CV15
QS18VN6CV45
QS18VP6CV45
Range
16 mm (0.63 ft)
Output
NPN
PNP
NPN
PNP
43 mm (1.7 inches)
¹ Standard 2 m (6.5 ft) cable models are listed. To order the 9 m (30 ft) cable model, add suffix "W/30" to the cabled model number.
QD Models.
For 4-pin integral Euro-style QD, add suffix “Q8” (e.g., QS186EQ8). For 4-pin integral Pico-style QD, add suffix “Q7” (e.g.,
QS186EQ7). For 4-pin 150 mm (6") Euro-style pigtail, add suffix “Q5” (e.g., QS186EQ5). For 4-pin 150 mm (6") Pico-style pigtail, add
suffix “Q” (e.g., QS186EQ).
P/N 63908 Rev. H
6/11/2013
WORLD-BEAM QS18
Diffuse Mode
940 nm Infrared
Model¹
QS18VN6D
QS18VP6D
Range
Output
NPN
PNP
450 mm (18 inches)
QS18VN6DB (Diffuse, wide)
QS18VP6DB (Diffuse, wide)
Divergent Mode
940 nm Infrared
Model¹
QS18VN6W
QS18VP6W
100 mm (4 inches)
Range
NPN
PNP
Output
NPN
PNP
Fixed Field Mode
660 nm Visible Red
Model¹
QS18VN6FF50
QS18VP6FF50
QS18VN6FF100
QS18VP6FF100
Range
50 mm (2 inches)
Output
NPN
PNP
NPN
PNP
Output
NPN
100 mm (4 inches)
Plastic Fiber Optic Mode
660 nm Visible Red
Model¹
QS18VN6FP
QS18VP6FP
Range
Range varies by sensing
mode and fiber optics used
PNP
Glass Fiber Optic Mode
940 nm Infrared
Model¹
QS18VN6F
QS18VP6F
Range
Range varies by sensing
mode and fiber optics used
Output
NPN
PNP
¹ Standard 2 m (6.5 ft) cable models are listed. To order the 9 m (30 ft) cable model, add suffix "W/30" to the cabled model number.
QD Models.
For 4-pin integral Euro-style QD, add suffix “Q8” (e.g., QS186EQ8). For 4-pin integral Pico-style QD, add suffix “Q7” (e.g.,
QS186EQ7). For 4-pin 150 mm (6") Euro-style pigtail, add suffix “Q5” (e.g., QS186EQ5). For 4-pin 150 mm (6") Pico-style pigtail, add
suffix “Q” (e.g., QS186EQ).
WARNING: Not To Be Used for Personnel Protection
Never use this device as a sensing device for personnel protection. Doing so could lead to serious
injury or death.
This device does not include the self-checking redundant circuitry necessary to allow its
use in personnel safety applications. A sensor failure or malfunction can cause either an energized or de-
energized sensor output condition.
2
www.bannerengineering.com - tel: 763-544-3164
P/N 63908 Rev. H
WORLD-BEAM QS18
Specifications
Supply Voltage
10 to 30V dc (10% maximum ripple) at less than 25
mA, exclusive of load;
Protected against reverse polarity and transient voltag-
es
Repeatability
Opposed Mode: 100 microseconds
FF Mode: 160 microseconds
All others: 150 microseconds
Adjustments
Glass Fiber Optic, Plastic Fiber Optic, Convergent, Dif-
fuse, and Retroreflective mode models (only): Single-
turn sensitivity (Gain) adjustment potentiometer
Indicators
2 LED indicators on sensor top:
Green ON steady:
Power ON
Yellow ON steady:
Light sensed
Green flashing:
Output overloaded
Yellow flashing:
Marginal excess gain (1 to 1.5x ex-
cess gain)
Prior to date code 0223, the output indicator was red.
Construction
ABS housing
3 mm mounting hardware included
Connections
2 m (6.5 ft) 4-wire PVC cable, 9 m (30 ft) 4-wire PVC
cable, 4-pin Pico-style or Euro-style QD, 4-pin Pico-
style or Euro-style 150 mm (6 in) pigtail QD, depending
on model
Output Configuration
Solid-state complementary (SPDT): NPN or PNP (cur-
rent sinking or sourcing), depending on model;
Rating:
100 mA maximum each output at 25°C
Off-state Leakage Current (FF Mode): less than 200 μA
@ 30V dc
Off-state Leakage Current (All others): less than 50 μA
@ 30V dc
ON-state Saturation Voltage: less than 1V @ 10 mA;
less than 1.5V @ 100 mA
Protected against false pulse on power-up and continu-
ous overload or short circuit of outputs
Output Response
Opposed Mode: 750 microseconds ON; 375 microsec-
onds OFF
FF Mode: 850 microseconds ON/OFF
All others: 600 microseconds ON/OFF
NOTE: 100 millisecond delay on power-up; outputs do
not conduct during this time
Environmental
Rated IEC IP67; NEMA 6
Operating Conditions
Temperature: -20 to +70 °C (-4 to +158 °F)
Relative Humidity: 90% @ 50º C (non-condensing)
Certifications
P/N 63908 Rev. H
www.bannerengineering.com - tel: 763-544-3164
3
WORLD-BEAM QS18

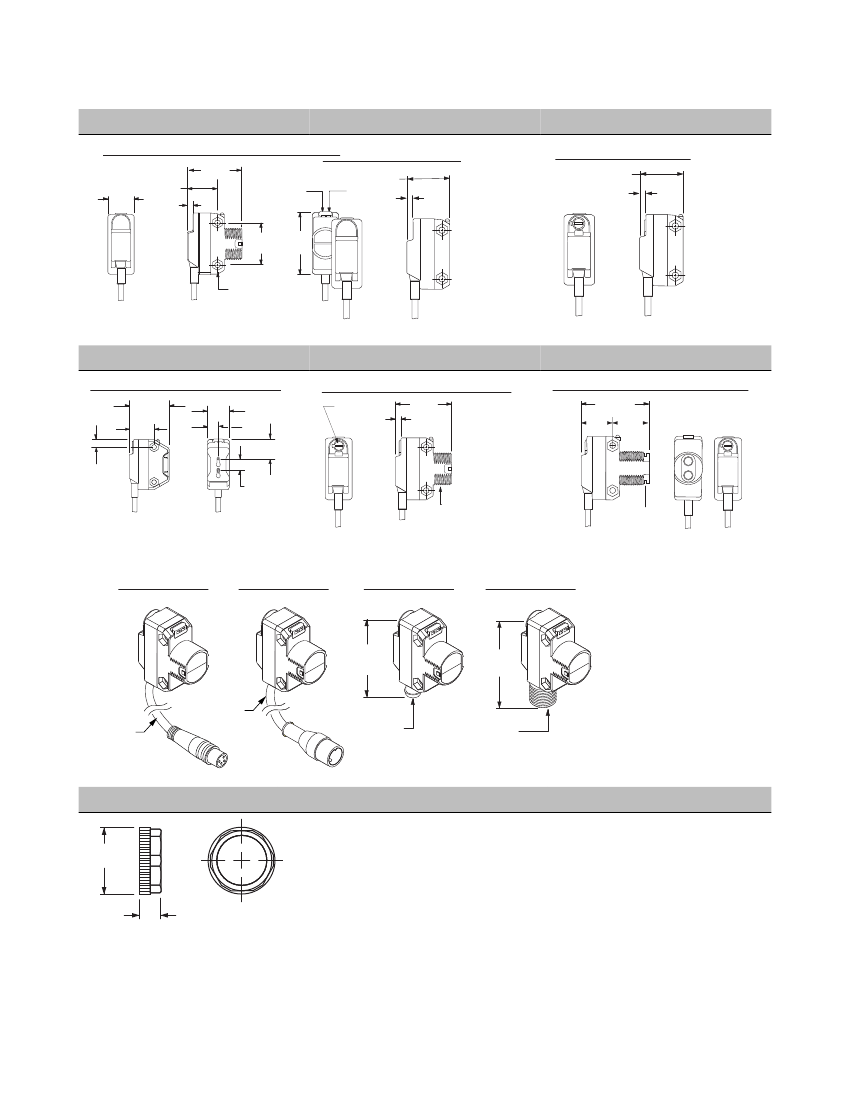

Dimensions and Features
Models E, EV, R, and FF
Model Suffix E, EV, R, and FF
31.0 mm
(1.22")
15.0 mm
(0.59")
17.1 mm
(0.67")
3.0 mm
(0.12")
Yellow
LED
Models EB and RB
Model Suffix EB, RB
21.1 mm
Green
(0.82")
LED
Models DB and W
Model Suffix DB, W
21.1 mm
(0.82")
3.0 mm
(0.12")
3.0 mm
(0.12")
24.1 mm
(0.95")
35.0 mm
(1.38")
Ø3.3 mm (0.13")
Max. torque 0.6 Nm (5 in-lbs)
Models FP
Model Suffix FP
27.5 mm
(1.09")
17.1 mm
(0.67")
15.0 mm
(0.59")
7.5 mm
(0.30")
13.4 mm
(0.53")
5.2 mm
(0.21")
7.6 mm
(0.30")
Models CV15, CV45, D, LV, and LP
Model Suffix CV15, CV45, D, LV, LP
Single-turn
Sensitivity
Adjustment
31.0 mm
(1.22")
3.0 mm
(0.12")
†
CV Models:
33.2 mm (1.31")
†
Models F
Model Suffix F
36.9 mm
(1.45")
17.1 mm
(0.67")
19.8 mm
(0.78")
M18x1 Thread
Max. torque 2.3 Nm (20 in-lbs)
Slot for
Fiber Clip
Model Suffix Q
(e.g. QS186EQ)
Model Suffix Q5
(e.g. QS186EQ5)
Model Suffix Q7
(e.g. QS186EQ7)
Model Suffix Q8
(e.g. QS186EQ8)
41.5 mm
(1.63")
49 mm
(1.93")
150 mm (6")
Pico-style
Pigtail
150 mm (6")
Euro-style
Pigtail
Integral
4-pin
Pico-Style QD
Integral
4-pin
Euro-Style QD
M18 x 1 Jam Nut
M3 hardware packet contents:
2 - M3 x 0.5 x 20 mm stainless steel screw
2 - M3 x 0.5 stainless steel hex nut
2 - M3 stainless steel washer
8.0 mm
(0.32")
Packing List
Sensor
M18 x 1 jam nut
M3 hardware packet
Installation sheet, p/n 63687
24.2 mm
(0.95")
4
www.bannerengineering.com - tel: 763-544-3164
P/N 63908 Rev. H
WORLD-BEAM QS18
Performance Curves
Opposed Mode
Excess Gain Curve
1000
Beam Pattern
750 mm
500 mm
250 mm
0
250 mm
500 mm
Excess Gain Curve
1000
30 in
20 in
10 in
0
10 in
20 in
30 in
Beam Pattern
450 mm
300 mm
150 mm
0
150 mm
300 mm
E
X
C
E
S
S
G
A
I
N
QS186E, EV and
QS18...R
Opposed Mode
100
QS186E, EV and QS18...R
Opposed Mode
E
X
C
E
S
S
G
A
I
N
QS186EB and
QS18...RB
Opposed Mode
100
QS186EB and QS18...RB
Opposed Mode
18 in
12 in
6 in
0
6 in
12 in
18 in
10
750 mm
0
4m
12 ft
8m
26 ft
12 m
40 ft
16 m
52 ft
20 m
66 ft
10
450 mm
0
.75 m
2.5 ft
1.5 m
5 ft
2.25 m
7.5 ft
3.0 m
10 ft
3.75 m
12.5 ft
DISTANCE
1
0.1 m
0.3 ft
1m
3.3 ft
10 m
33 ft
100 m
330 ft
1
0.01 m
0.03 ft
DISTANCE
0.1 m
0.33 ft
1m
3.3 ft
10 m
33 ft
DISTANCE
DISTANCE
Polarized Retroreflective
Excess Gain Curve
1000
Retroreflective
Excess Gain Curve
1000
1.2 in
0.8 in
0.4 in
0
0.4 in
0.8 in
1.2 in
Beam Pattern
30 mm
20 mm
10 mm
Beam Pattern
150 mm
100 mm
50 mm
with BRT-84 Reflector
E
X
C
E
S
S
G
A
I
N
QS18...LP
Retroreflective Mode
100
with BRT-84 Reflector
10
QS18...LP
Retroreflective Mode
with BRT-84 Reflector
0
10 mm
20 mm
30 mm
0
.75 m
2.5 ft
1.5 m
5 ft
2.25 m
7.5 ft
3.0 m
10 ft
E
X
C
E
S
S
G
A
I
N
QS18...LV
Retroreflective Mode
100
QS18...LV
Retroreflective Mode
6 in
4 in
2 in
0
2 in
4 in
6 in
0
50 mm
100 mm
10
with BRT-84 Reflector
150 mm
0
1.5 m
5 ft
3.0 m
10 ft
4.5 m
15 ft
6.0 m
20 ft
3.75 m
12.5 ft
DISTANCE
1
0.01 m
0.03 ft
0.1 m
0.33 ft
1m
3.3 ft
10 m
33 ft
7.5 m
25 ft
1
0.01 m
0.03 ft
DISTANCE
0.1 m
0.33 ft
1m
3.3 ft
10 m
33 ft
DISTANCE
DISTANCE
Convergent (Performance is based on a 90% reflectance white test card.)
Excess Gain Curve
1000
Beam Pattern
6 mm
4 mm
Excess Gain Curve
1000
.24 in
.16 in
.08 in
0
.08 in
.16 in
.24 in
Beam Pattern
6 mm
4 mm
E
X
C
E
S
S
G
A
I
N
QS18...CV15
Convergent Mode
100
QS18...CV15
Convergent Mode
2 mm
0
2 mm
4 mm
E
X
C
E
S
S
G
A
I
N
QS18...CV45
Convergent Mode
100
QS18...CV45
Convergent Mode
.24 in
.16 in
.08 in
0
.08 in
.16 in
.24 in
2 mm
0
2 mm
4 mm
10
6 mm
0
10 mm
0.4 in
20 mm
0.8 in
30 mm
1.2 in
40 mm
1.6 in
10
6 mm
0
15 mm
0.6 in
30 mm
1.2 in
45 mm
1.8 in
60 mm
2.4 in
50 mm
2.0 in
75 mm
3.0 in
1
1 mm
0.04 in
DISTANCE
10 mm
0.4 in
100 mm
4.0 in
1000 mm
40.0 in
1
1 mm
0.04 in
DISTANCE
10 mm
0.4 in
100 mm
4.0 in
1000 mm
40.0 in
DISTANCE
DISTANCE
P/N 63908 Rev. H
www.bannerengineering.com - tel: 763-544-3164
5
