Multilayer Ceramic Capacitors (High dielectric type)
LMK042BJ102MC-W
Features
Item Summary
1000pF±20%, 10V,
X5R/B, 01005/0402 (EIA/JIS)
Lifecycle Stage
Mass Production
Standard packaging quantity (minimum)
Taping Embossed 40000pcs
Products characteristics table
Capacitance
Case Size (EIA/JIS)
Rated Voltage
tanδ (max)
Temperature Characteristic (EIA)
Operating Temp. Range (EIA)
Temperature Characteristic (JIS)
Operating Temp. Range (JIS)
High Temperature Loading
(% Rated Voltage)
Insulation Resistance (min)
RoHS2 Compliance (10 subst.)
REACH Compliance (181 subst.)
Halogen Free
Soldering
10 GΩ
Yes
Yes
Yes
Reflow
1000 pF ± 20 %
01005/0402
10 V
5%
X5R
-55 to +85 ℃
B
-25 to +85 ℃
200 %
External Dimensions
Dimension L
Dimension W
Dimension T
Dimension e
0.4 ±0.02 mm
0.2 ±0.02 mm
0.2 ±0.02 mm
0.10 ±0.03 mm
2018.11.04
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
http://www.ty-top.com
Powered by TCPDF (www.tcpdf.org)

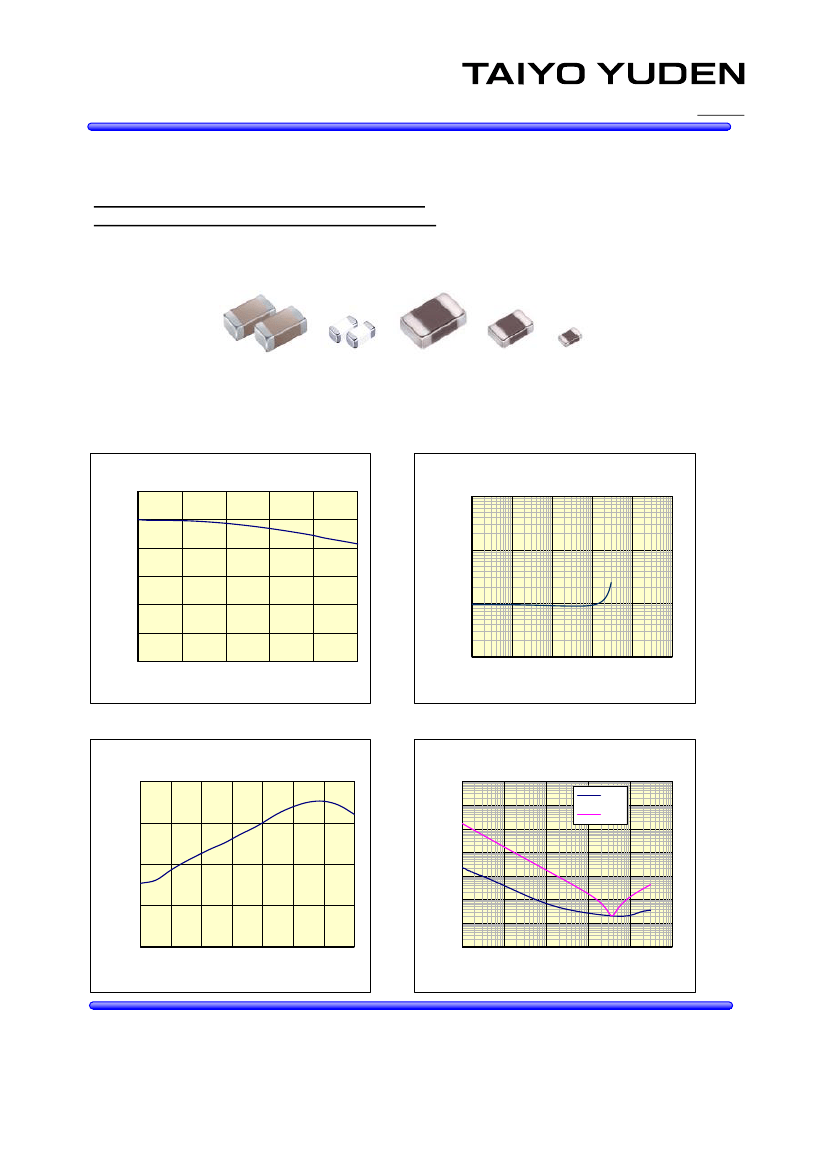

Multi Layer Ceramic Capacitor
○LMK042BJ102MC
10V 0402 B/X5R 1000pF +/- 20% t=0.22mmMAX
10V 01005 B/X5R 1000pF +/- 20% t=0.009inchMAX
-Electrical Characteristics Data-
17SA12
RoHS compliance product
10
0
LMK042BJ102MC
DC Bias Char.
LMK042BJ102MC
Capacitance Freq.
100000
-20
-30
Capacitance[pF]
-10
10000
dC/C[%]
1000
-40
-50
0
2
4
6
8
DC Bias Voltage[V]
10
100
0.1
1
10
100
1000
10000
Frequency[MHz]
LMK042BJ102MC
Capacitance Temp.
10
100000
LMK042BJ102MC
Impedance,ESR Freq.
10000
0
1000
ESR
Z
-10
Z,ESR[OHM]
-55
-35
-15
5
25
45
Temperature[degreeC]
65
85
dC/C[%]
100
10
-20
1
0.1
-30
0.01
0.1
1
10
100
1000
Frequency[MHz]
10000
