SolidMatrix
®
1206 Fast Acting Surface Mount Fuses
Features:
Multilayer monolithic structure with glass ceramic body and silver
fusing element
Silver termination with nickel and pure-tin solder plating,
providing excellent solderability
Standard EIA 1206/EIAJ3216 size
Compatible with both wave and reflow soldering processes
Operating temperature range: -55
o
C to +125
o
C (with de-rating)
RoHS compliant

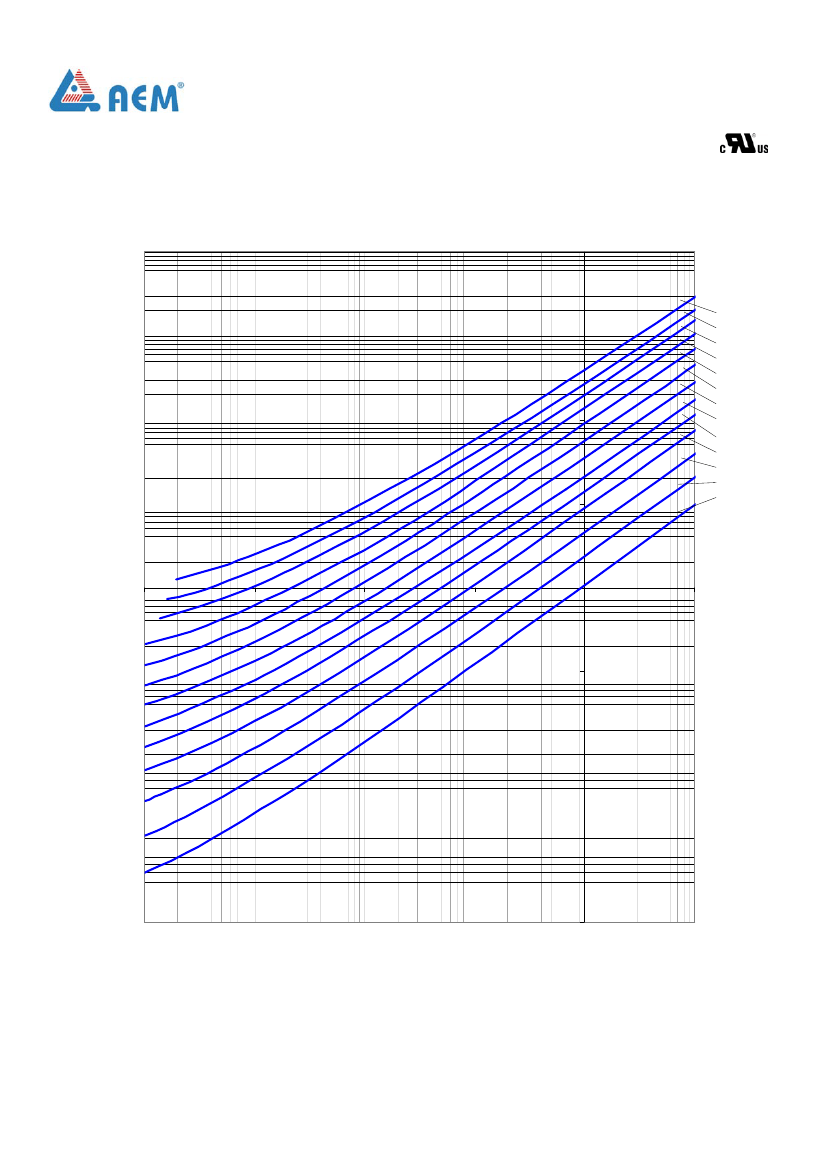

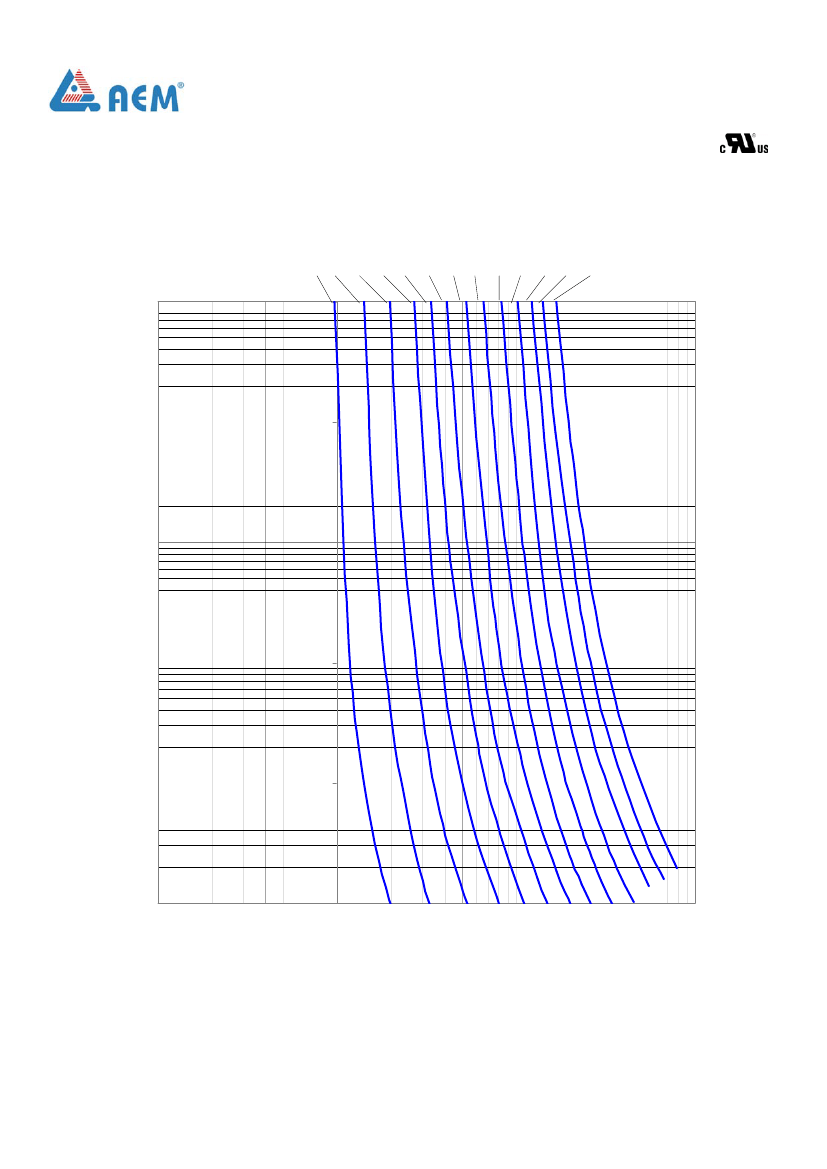

Clearing Time Characteristics (Fast Acting):
% of current rating
100 %
250 %
400 %

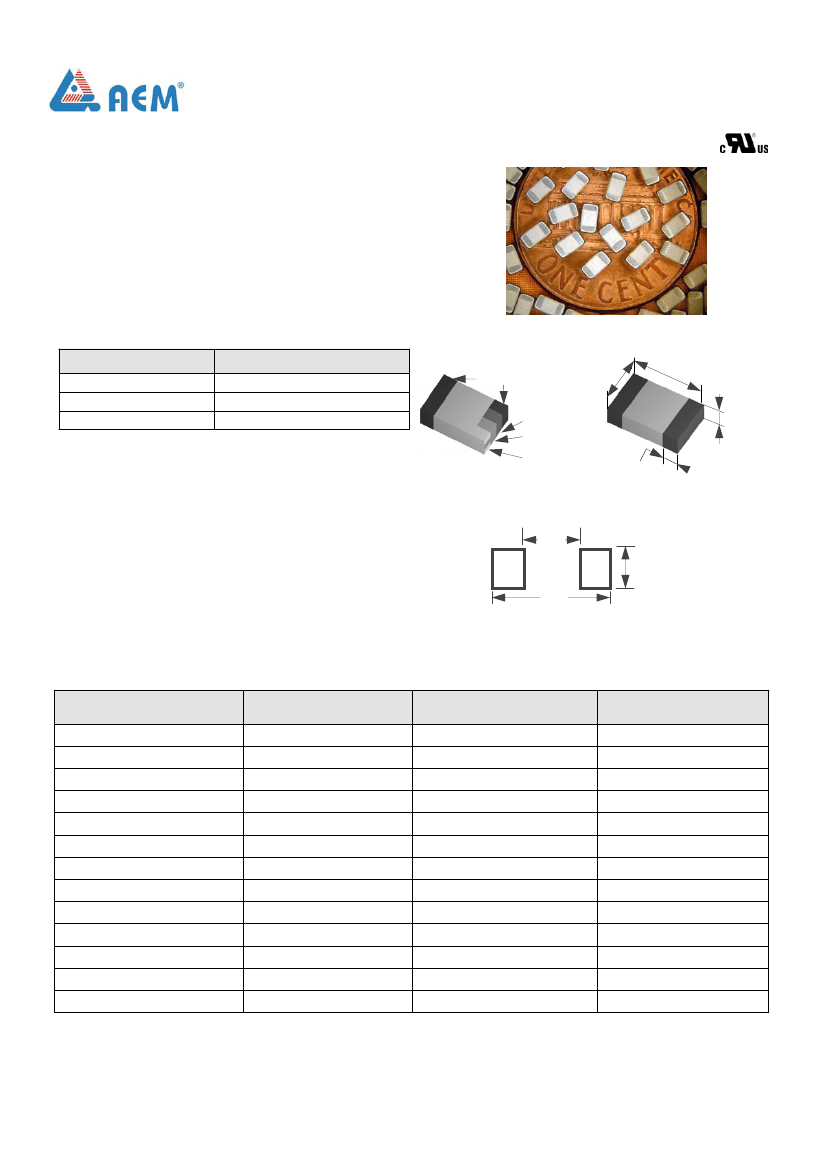

Shape and Dimensions:
SOLDER
0.063 ± 0.008
(1.60 ± 0.20)
0.126 ± 0.008
(3.20± 0.20)
Clearing time at 25
o
C
4 hours min.
5 seconds max.
0.05 seconds max.
Agency Approval:
Recognized Under the Components
Program of Underwriters Laboratories. File Number: E232989
NICKEL
SILVER
METALLIZATION
FUSE ELEMENT
0.043 ± 0.008
(1.10 ± 0.20)
0.020 ± 0.010
(0.51 ± 0.25)
Patents:
U.S. Patent numbers 6,034,589; 6,228,230;
6,602,766; 7,268,661 B2; and other pending patents.
Recommended Land Pattern:
0.059
(1.50)
0.071
(1.80)
0.173
(4.40)
Interrupting Ratings:
0.5 A - 3.0 A
4.0 A - 8.0 A
50 A at rated voltages
45 A at rated voltage
Marking (Optional):
Black Marking Character Code
0.5 A:C, 0.75 A:D, 1.0 A:E, 1.5 A:G, 1.75 A:H, 2.0 A:I, 2.5 A:J, 3.0 A:K,
4.0 A:M, 5.0 A:N, 6.0 A:O, 7.0 A:P, 8.0 A:R
Inch (mm)
Ordering Information:
Part Number
F1206FA0500V063T
F1206FA0750V063T
F1206FA1000V063T
F1206FA1500V063T
F1206FA1750V063T
F1206FA2000V063T
F1206FA2500V032T
F1206FA3000V032T
F1206FA4000V032T
F1206FA5000V032T
F1206FA6000V024T
F1206FA7000V024T
F1206FA8000V024T
1. Measured at
10% rated current and 25
o
C ambient.
Current Rating
(A)
0.5
0.75
1.0
1.5
1.75
2.0
2.5
3.0
4.0
5.0
6.0
7.0
8.0
Voltage Rating
(VDC)
63
63
63
63
63
63
32
32
32
32
32
32
32
Nominal Cold DCR
( )
1
0.730
0.513
0.220
0.120
0.100
0.050
0.035
0.031
0.022
0.015
0.013
0.011
0.008
Website:
www.aemchina.com & www.aemcomponents.com
