82-6106-4050 datasheet, PDF - EEWORLD Datasheet

82-6106-4050: DescriptionRF N Connector, 1 Contact(s), Male, Cable Mount, Crimp Terminal, Locking, Plug; CategoryThe connector The connector; File Size367KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

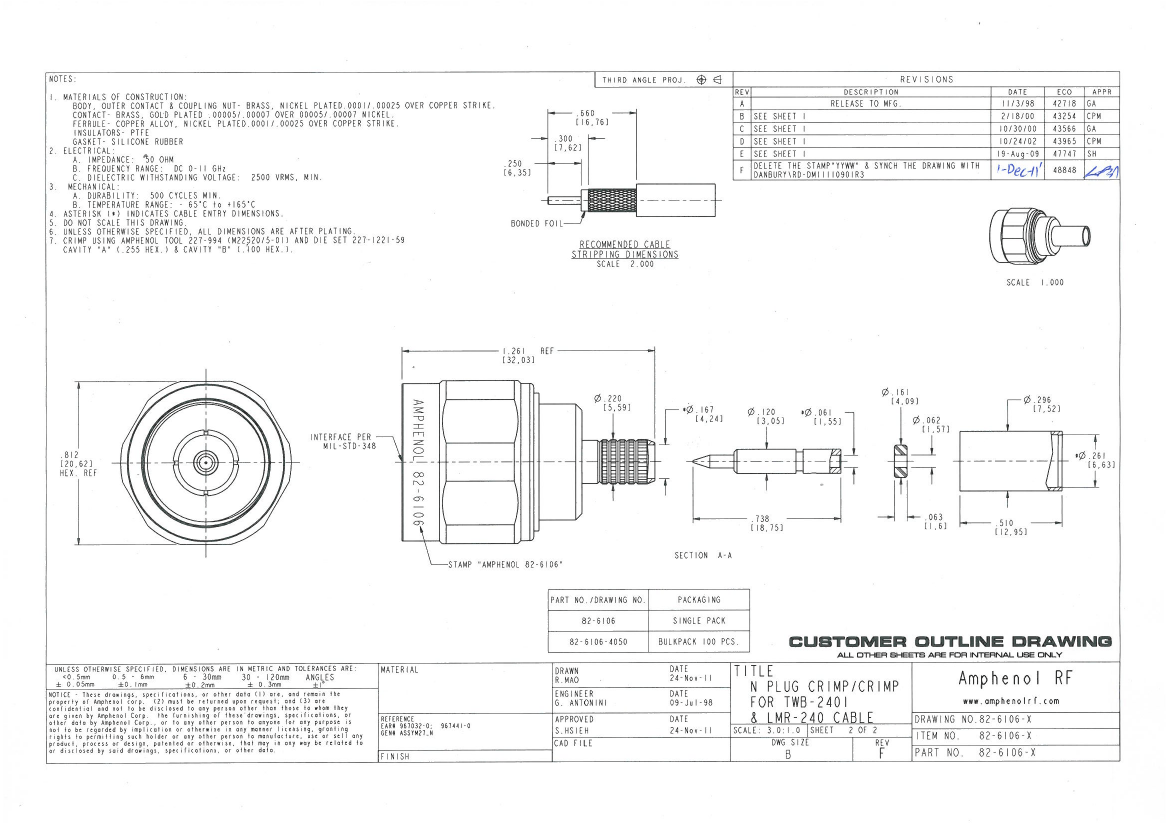

82-6106-4050 Overview

RF N Connector, 1 Contact(s), Male, Cable Mount, Crimp Terminal, Locking, Plug

Parameter Name	Attribute value
Reach Compliance Code	unknown
Body/casing type	PLUG
Cable type	LMR240
Characteristic impedance	50 Ω
Connector type	RF N CONNECTOR
Contact point gender	MALE
Contact style	COAX
Dielectric withstand voltage	3500VAC V
Durability	500 Cycles
insulator material	POLYTETRAFLUOROETHYLENE
Manufacturer's serial number	82-6106
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	CABLE
Number of ports	1
Maximum operating frequency	11 GHz
Maximum operating temperature	165 °C
Minimum operating temperature	-65 °C
reliability	COMMERCIAL
Shell surface	NICKEL OVER COPPER
Shell material	BRASS
Termination type	CRIMP
Total number of contacts	1

	82-6106-4050	82-6106
Description	RF N Connector, 1 Contact(s), Male, Cable Mount, Crimp Terminal, Locking, Plug	RF N Connector, 1 Contact(s), Male, Cable Mount, Crimp Terminal, Locking, Plug
Reach Compliance Code	unknown	compliant
Body/casing type	PLUG	PLUG
Cable type	LMR240	LMR240
Characteristic impedance	50 Ω	50 Ω
Connector type	RF N CONNECTOR	RF N CONNECTOR
Contact point gender	MALE	MALE
Contact style	COAX	COAX
Dielectric withstand voltage	3500VAC V	3500VAC V
Durability	500 Cycles	500 Cycles
insulator material	POLYTETRAFLUOROETHYLENE	POLYTETRAFLUORO ETHYLENE
Manufacturer's serial number	82-6106	N
Installation option 1	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT
Installation type	CABLE	CABLE
Number of ports	1	1
Maximum operating frequency	11 GHz	11 GHz
Maximum operating temperature	165 °C	165 °C
Minimum operating temperature	-65 °C	-65 °C
reliability	COMMERCIAL	COMMERCIAL
Shell surface	NICKEL OVER COPPER	NICKEL OVER COPPER
Shell material	BRASS	BRASS
Termination type	CRIMP	CRIMP
Total number of contacts	1	1
