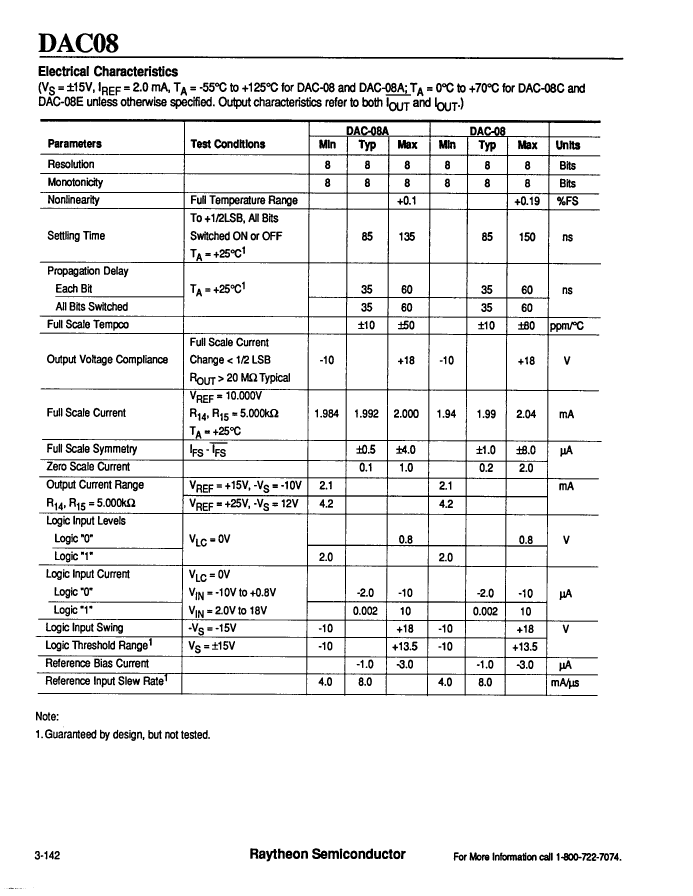

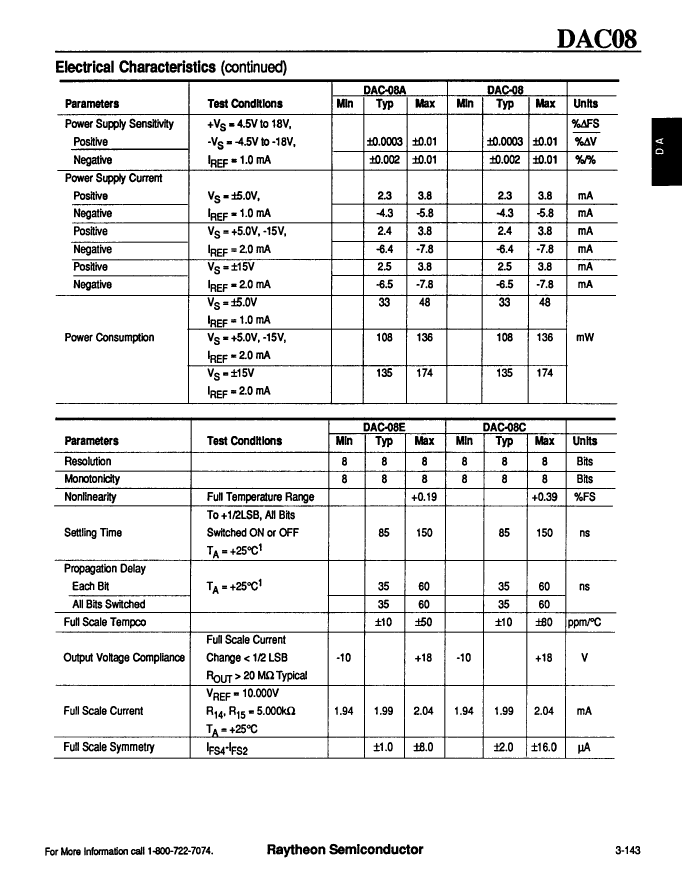

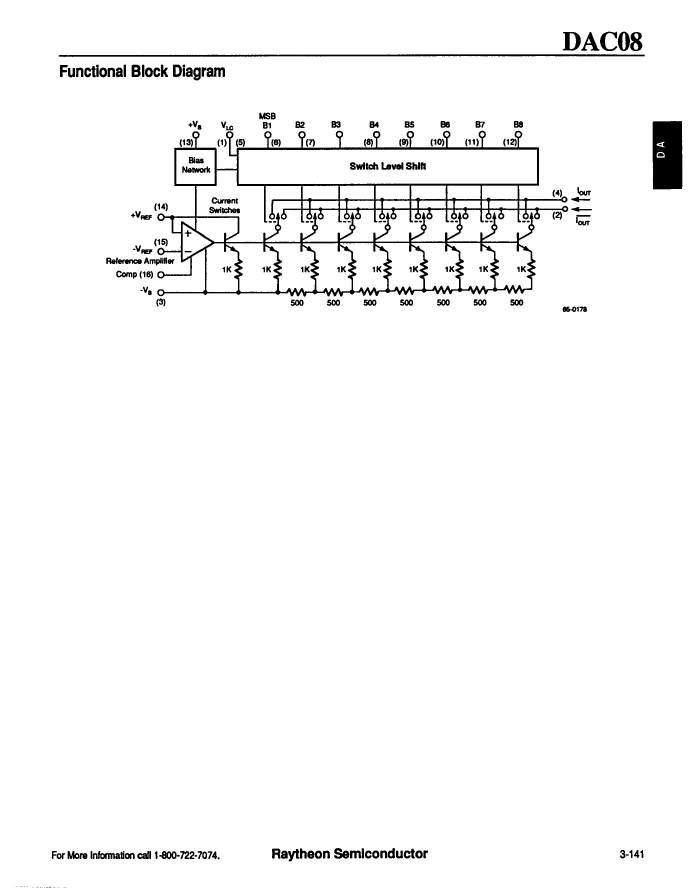

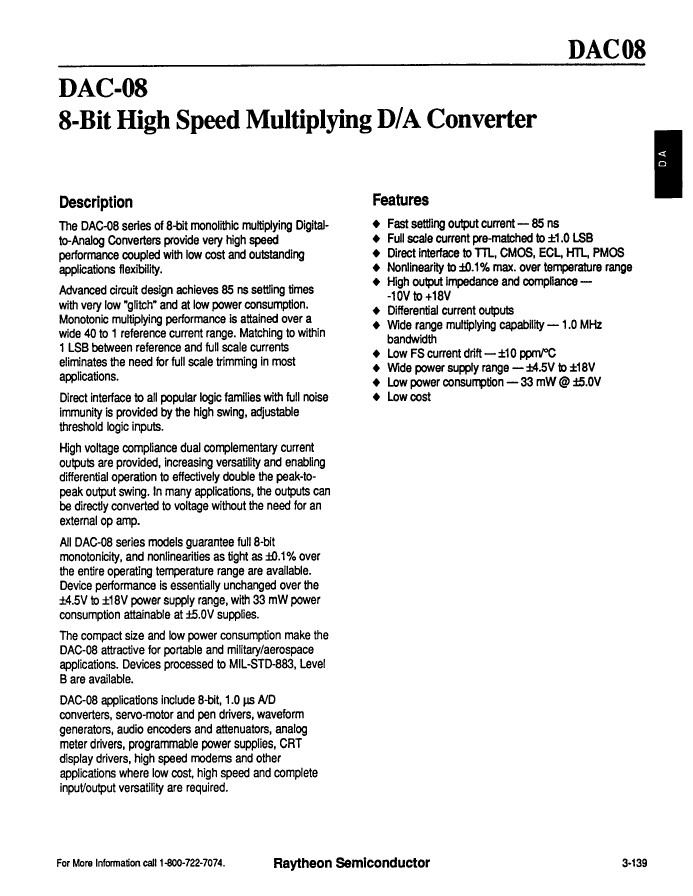

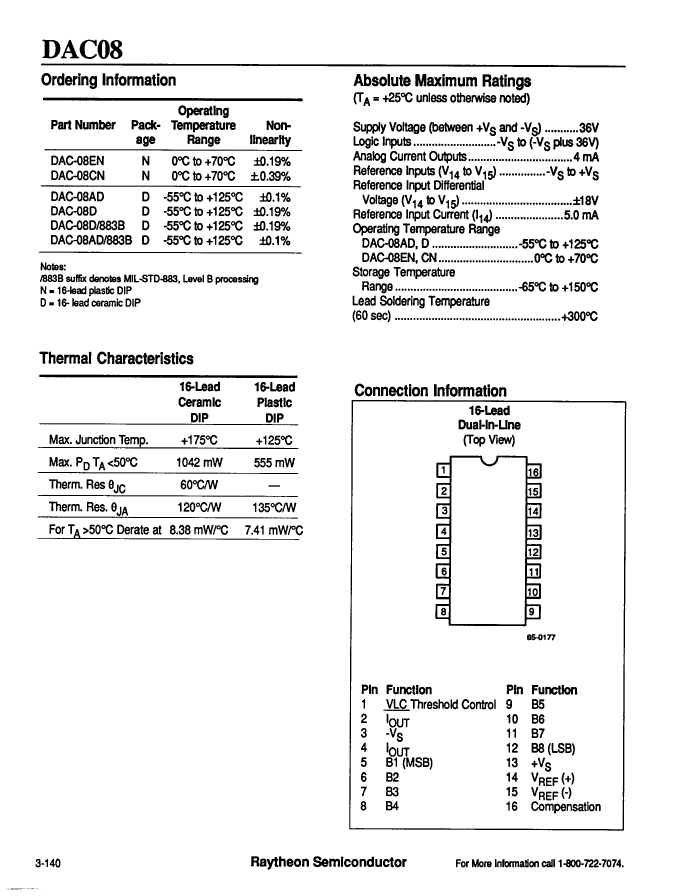

DAC-08HDC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> DAC-08HDC

DAC-08HDC: DescriptionD/A Converter,; CategoryAnalog mixed-signal IC converter; File Size846KB，13 Pages; ManufacturerRaytheon Company; Websitehttps://www.raytheon.com/

Download Datasheet Parametric Compare View All

DAC-08HDC Overview

D/A Converter,

DAC-08HDC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	,
Reach Compliance Code	unknown
Converter type	D/A CONVERTER
Enter bit code	BINARY
JESD-609 code	e0
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Terminal surface	Tin/Lead (Sn/Pb)
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

DAC-08HDC Related Products

	DAC-08HDC	DAC-08EN	DAC-08HN	DAC-08EDC	DAC-08CDC	DAC-08AD	DAC-08AD/883B	DAC-08CN	DAC-08D/883B	DAC-08D
Description	D/A Converter,	D/A Converter, 1 Func, Parallel, 8 Bits Input Loading, 0.085us Settling Time, PDIP16,	D/A Converter, 1 Func, Parallel, 8 Bits Input Loading, 0.085us Settling Time, PDIP16, PLASTIC, DIP-16	D/A Converter, 8-Bit, 1 Func, Bipolar, CDIP16,	D/A Converter, 8-Bit, 1 Func, Bipolar, CDIP16,	D/A Converter, 1 Func, Parallel, 8 Bits Input Loading, 0.085us Settling Time, CDIP16,	D/A Converter, 1 Func, Parallel, 8 Bits Input Loading, 0.085us Settling Time, CDIP16,	D/A Converter, 1 Func, Parallel, 8 Bits Input Loading, 0.085us Settling Time, PDIP16,	D/A Converter, 1 Func, Parallel, 8 Bits Input Loading, 0.085us Settling Time, CDIP16,	D/A Converter, 1 Func, Parallel, 8 Bits Input Loading, 0.085us Settling Time, CDIP16,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	,	DIP-16	PLASTIC, DIP-16	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Converter type	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	-	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER
Enter bit code	BINARY	OFFSET BINARY, COMPLEMENTARY OFFSET BINARY	OFFSET BINARY	BINARY, OFFSET BINARY	-	OFFSET BINARY, COMPLEMENTARY OFFSET BINARY	OFFSET BINARY, COMPLEMENTARY OFFSET BINARY	OFFSET BINARY, COMPLEMENTARY OFFSET BINARY	OFFSET BINARY, COMPLEMENTARY OFFSET BINARY	OFFSET BINARY, COMPLEMENTARY OFFSET BINARY
JESD-609 code	e0	e0	e0	e0	-	e0	e0	e0	e0	e0
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	NOT SPECIFIED	-	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Terminal surface	Tin/Lead (Sn/Pb)	TIN LEAD	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED	-	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum analog output voltage	-	10 V	18 V	-	-	10 V	10 V	10 V	10 V	10 V
Minimum analog output voltage	-	-10 V	-10 V	-	-	-10 V	-10 V	-10 V	-10 V	-10 V
Input format	-	PARALLEL, 8 BITS	PARALLEL, 8 BITS	-	-	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS
JESD-30 code	-	R-PDIP-T16	R-PDIP-T16	R-XDIP-T16	-	R-GDIP-T16	R-GDIP-T16	R-PDIP-T16	R-GDIP-T16	R-GDIP-T16
Maximum linear error (EL)	-	0.19%	0.1%	-	-	0.1%	0.1%	0.39%	0.19%	0.19%
Nominal negative supply voltage	-	-15 V	-15 V	-15 V	-	-15 V	-15 V	-15 V	-15 V	-15 V
Number of digits	-	8	8	8	-	8	8	8	8	8
Number of functions	-	1	1	1	-	1	1	1	1	1
Number of terminals	-	16	16	16	-	16	16	16	16	16
Maximum operating temperature	-	70 °C	70 °C	70 °C	-	125 °C	125 °C	70 °C	125 °C	125 °C
Package body material	-	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC	-	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	-	DIP	DIP	DIP	-	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	-	DIP16,.3	DIP16,.3	DIP16,.3	-	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3
Package shape	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	-	IN-LINE	IN-LINE	IN-LINE	-	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	-	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal settling time (tstl)	-	0.085 µs	0.085 µs	-	-	0.085 µs	0.085 µs	0.085 µs	0.085 µs	0.085 µs
Maximum slew rate	-	7.8 mA	11.6 mA	-	-	7.8 mA	7.8 mA	7.8 mA	7.8 mA	7.8 mA
Nominal supply voltage	-	15 V	15 V	15 V	-	15 V	15 V	15 V	15 V	15 V
surface mount	-	NO	NO	NO	-	NO	NO	NO	NO	NO
technology	-	BIPOLAR	BIPOLAR	BIPOLAR	-	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	MILITARY	MILITARY	COMMERCIAL	MILITARY	MILITARY
Terminal form	-	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	-	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	-	2.54 mm	2.54 mm	2.54 mm	-	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	-	DUAL	DUAL	DUAL	-	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	-	-	Raytheon Company	-	Raytheon Company	Raytheon Company	Raytheon Company	Raytheon Company	Raytheon Company	Raytheon Company
power supply	-	-	+-15 V	+-15 V	-	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V
